Go Back  Bike Forums > Bike Forums > Bicycle Mechanics
Reload this Page >

Chain rubbing rear derailleur cage between upper and lower pulley

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Chain rubbing rear derailleur cage between upper and lower pulley

Old 10-05-20, 12:04 PM
  #1
Bicycler043
Extremely Newbie
Thread Starter

Join Date: Oct 2020
Location: The Netherlands
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Chain rubbing rear derailleur cage between upper and lower pulley

A bit more than half a year ago I bought my first (second-hand) road bike. Around a month ago I gave it a good deep clean (and played with the adjustment a bit), but unfortunately I知 now stuck with a rattling sound from the chain. I知 pretty sure that it痴 the chain rubbing the cage of the rear derailleur, between the upper and lower pulley. The chain seems to be out of center, which causes it to rub the cage around it, especially when riding in the big ring on the front derailleur. I checked multiple discussions online, but I haven稚 found a good solution yet. It is possible to push the upper pulley a bit more towards the center, but this immediately gets undone after a single pedal stroke. All components are Shimano Sora. Do you have any suggestions to fix this issue?

For some reason I am not allowed to upload pictures (yet).
Bicycler043 is offline
Old 10-05-20, 01:04 PM
  #2
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,303

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1429 Post(s)
Liked 1,063 Times in 711 Posts
Played with the adjustment, eh? Never Fix A Running Piece. Did you remove and reinstall the chain as part of your deep cleaning? You may have routed it through the derailleur incorrectly. https://www.madegood.com/bikes/threa...ar-derailleur/
If you would take some well-lit and clearly focused photos and upload them to a photo-sharing site, you could then post a link here, replacing the "." with "DOT" and adding a few spaces to fool the robots.
dsbrantjr is offline
Likes For dsbrantjr:
Old 10-05-20, 01:27 PM
  #3
shelbyfv
Expired Member

shelbyfv's Avatar

Join Date: Jun 2007
Location: TN
Posts: 10,165
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 3031 Post(s)
Liked 4,002 Times in 2,020 Posts
Check this https://www.parktool.com/blog/repair-help?area%5B%5D=52 Start from scratch, go step by step, no shortcuts.
shelbyfv is offline
Old 10-05-20, 07:50 PM
  #4
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,761

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1139 Post(s)
Liked 738 Times in 495 Posts
"...For some reason I am not allowed to upload pictures (yet)...."

Sorry for the inconvenience. We have found that imposing a 10 post minimum before allowing pictures & links, has greatly reduced the spam and other objectionable material.
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Old 10-05-20, 07:52 PM
  #5
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,761

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1139 Post(s)
Liked 738 Times in 495 Posts
Did you remove the chain ? Is it the same chain or a replacement ?
Pedal backwards by hand slowly, and look closely at the chain. Is it going over a "tab" that it should be under , or the opposite ?
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html

Last edited by Homebrew01; 10-05-20 at 08:16 PM.
Homebrew01 is offline
Likes For Homebrew01:
Old 10-05-20, 09:30 PM
  #6
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,864

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5256 Post(s)
Liked 2,831 Times in 1,669 Posts
Originally Posted by Bicycler043 View Post
A bit more than half a year ago I bought my first (second-hand) road bike. Around a month ago I gave it a good deep clean (and played with the adjustment a bit), but unfortunately I’m now stuck with a rattling sound from the chain. I’m pretty sure that it’s the chain rubbing the cage of the rear derailleur, between the upper and lower pulley. The chain seems to be out of center, which causes it to rub the cage around it, especially when riding in the big ring on the front derailleur. I checked multiple discussions online, but I haven’t found a good solution yet. It is possible to push the upper pulley a bit more towards the center, but this immediately gets undone after a single pedal stroke. All components are Shimano Sora. Do you have any suggestions to fix this issue?

For some reason I am not allowed to upload pictures (yet).
I’m with Homebrew01. I’m going to borrow some pictures from a site called bikesonrobson. They have a good article on the chain and derailer installation. Here’s the relevant pictures




The chain should route above the tab shown by the red arrow. If your chain goes under the tab (red arrow below), it will make a lot of noise And shift badly.



This is a common mistake.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 10-06-20, 08:20 AM
  #7
Bicycler043
Extremely Newbie
Thread Starter

Join Date: Oct 2020
Location: The Netherlands
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hi all, thank you so much for your replies. To make the problem a bit more clear I included links to four photos underneath. I did not take off the chain, so I assume it is routed correctly. As you can see in the pictures, there seems to be an outwards tension, pushing the chain against the cage, which is worse in the big ring. In the fourth picture, you see how the chain is more centered if I push the upper pulley and chain more towards the wheel. But as mentioned, this immediately gets undone after a single pedal stroke.

https ://ibb dot co/Yyd7DPC
https ://ibb dot co/Zfy2DF9
https ://ibb dot co/CtdTpvN
https ://ibb dot co/vQZpLmW

Oh and I see on these pictures that it might already be time for another wash haha
Bicycler043 is offline
Old 10-06-20, 08:32 AM
  #8
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,804

Bikes: Schwinn Varsity

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1895 Post(s)
Liked 678 Times in 398 Posts
No pics for me
trailangel is offline
Old 10-06-20, 08:35 AM
  #9
Bicycler043
Extremely Newbie
Thread Starter

Join Date: Oct 2020
Location: The Netherlands
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by trailangel View Post
No pics for me
Also not if you remove the spaces and change the "dot" to "." ?
Bicycler043 is offline
Old 10-06-20, 08:37 AM
  #10
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,804

Bikes: Schwinn Varsity

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1895 Post(s)
Liked 678 Times in 398 Posts
nada
trailangel is offline
Old 10-06-20, 08:59 AM
  #11
Bicycler043
Extremely Newbie
Thread Starter

Join Date: Oct 2020
Location: The Netherlands
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by trailangel View Post
nada
I just uploaded them here as well.
ht tps: //w ww dot flickr dot com/ photos/ 190508546@N03/
Make sure you remove the spaces and replace the "dot" by ".".
Bicycler043 is offline
Old 10-06-20, 09:26 AM
  #12
gearbasher
Senior Member

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 1,336
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 463 Times in 241 Posts
Pic assist. Not sure if I got the correct order.






Last edited by gearbasher; 10-06-20 at 09:34 AM.
gearbasher is offline
Old 10-06-20, 09:58 AM
  #13
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,864

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5256 Post(s)
Liked 2,831 Times in 1,669 Posts

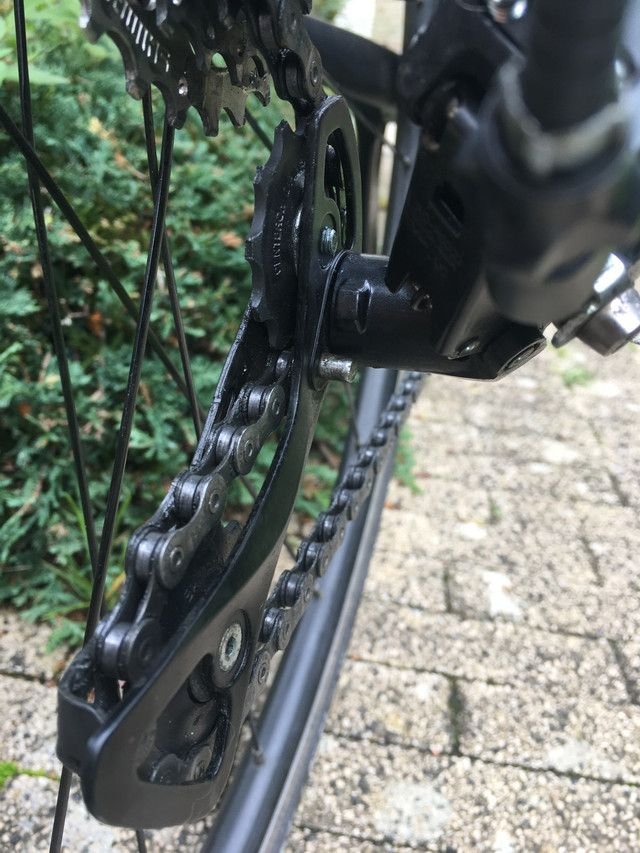

From the pictures, the chain is routed properly. However, the cage looks bent at the red arrow. Both the front and back plates look bent at the same location. This would push the derailer off towards the outside (direction of green arrow).



And, at the risk of a chain lube flame war, don’t use oil based lubricants if you want to avoid cleaning all the time.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 10-06-20, 11:09 AM
  #14
mrrabbit
Senior Member

mrrabbit's Avatar

Join Date: Dec 2007
Location: San Jose, California
Posts: 3,496

Bikes: 2001 Tommasini Sintesi w/ Campagnolo Daytona 10 Speed

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Likes: 0
Liked 31 Times in 26 Posts
Bent cage . . . been in a side-swipe type accident . . . and someone tried to bend it back . . . a little too far.

Repairable by the way.

=8-|
__________________
5000+ wheels built since 1984...

Disclaimer:

1. I do not claim to be an expert in bicycle mechanics despite my experience.
2. I like anyone will comment in other areas.
3. I do not own the preexisting concepts of DISH and ERD.
4. I will provide information as I always have to others that I believe will help them protect themselves from unscrupulous mechanics.
5. My all time favorite book is:

Kahane, Howard. Logic and Contemporary Rhetoric: The Use of Reason in Everyday Life
mrrabbit is offline
Likes For mrrabbit:
Old 10-19-20, 09:24 AM
  #15
Bicycler043
Extremely Newbie
Thread Starter

Join Date: Oct 2020
Location: The Netherlands
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hi all, thanks for your help with this issue! The cage indeed seems to be bent, but I found that the noise was actually caused by the lack of proper lubricant after the cleaning. I tried a new wet lube instead of an old spray, which reduced the noise dramatically.
Bicycler043 is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
