Cable end stops

My bike uses a few of these ... thingies, for want of a better word, for the gear cables. They can drop out rather easily which makes me nervous. Can someone tell me what they're called and where I might get some more. I've found something which might do on Ebay but I'd rather get the correct part if I can. The outside diameter is 6mm, inside is about 4mm and the lip is around 8mm.


jgwilliams is offline
Old 10-08-20, 07:44 AM
  #2
commo_soulja
Senior Member

commo_soulja's Avatar

Join Date: Aug 2008
Location: C-Ville
Posts: 1,246

Bikes: are fun to ride

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 28 Times in 21 Posts
Cable housing end caps. You can go to your local shop and if you ask nicely they give you enough to finish a bike without charging you.
commo_soulja is offline
Old 10-08-20, 07:49 AM
  #3
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,860

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5254 Post(s)
Liked 2,815 Times in 1,664 Posts
Originally Posted by commo_soulja View Post
Cable housing end caps.
Cable housing ferrules, actually.

You can go to your local shop and if you ask nicely they give you enough to finish a bike without charging you.
Probably. You can, however, find them in various colors to match a color scheme. Donít expect to get those for free.


__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 10-08-20, 10:37 AM
  #4
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,301

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1429 Post(s)
Liked 1,062 Times in 710 Posts
I would suggest that you use brass or aluminum ferrules for brake lines and only use plastic ones for shift cables, due to the higher stresses and safety considerations for brakes.
dsbrantjr is offline
Old 10-08-20, 10:54 AM
  #5
aggiegrads
Senior Member

Join Date: Oct 2009
Location: Sherwood, OR
Posts: 1,265
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 329 Post(s)
Liked 293 Times in 172 Posts
Originally Posted by jgwilliams View Post
Can someone tell me what they're called and where I might get some more. I've found something which might do on Ebay but I'd rather get the correct part if I can. The outside diameter is 6mm, inside is about 4mm and the lip is around 8mm.
Universal Cycles is a good source for this type of part:
https://www.universalcycles.com/sear...=cable+ferrule
aggiegrads is offline
Old 10-08-20, 06:03 PM
  #6
dsaul
Senior Member

Join Date: Jan 2013
Location: South Jersey
Posts: 2,170
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 675 Post(s)
Liked 685 Times in 417 Posts
Those actually look like stops that are meant to convert a housing guide into a cable stop. You can find some similar ones here https://www.universalcycles.com/shop...s.php?id=46818
dsaul is offline
Likes For dsaul:
Old 10-09-20, 01:42 AM
  #7
jgwilliams
Senior Member
Thread Starter

jgwilliams's Avatar

Join Date: Aug 2004
Location: Surrey, UK
Posts: 759

Bikes: Mekk Poggion with SRAM Force, custom built 653 and 531 bikes with frames by Barry Witcomb, Giant XTC 4 mountain bike and a Brompton folding bike.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 258 Post(s)
Liked 99 Times in 73 Posts
Thanks everyone. Looks like those Jagwire bits should do the trick.
jgwilliams is offline
Old 10-09-20, 01:52 AM
  #8
AndreyT
Senior Member

AndreyT's Avatar

Join Date: Nov 2011
Location: CA
Posts: 402
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 149 Post(s)
Liked 32 Times in 14 Posts
Originally Posted by dsaul View Post
Those actually look like stops that are meant to convert a housing guide into a cable stop. You can find some similar ones here https://www.universalcycles.com/shop...s.php?id=46818
Precisely.

The above flurry of nonsensical answers about "ferrules" is disconcerting, when the parts in question are obviously not ferrules.

Also Jagwire ones are 5mm I.D. The OP claims that theirs are 4mm I.D... Are they really?

Last edited by AndreyT; 10-09-20 at 02:06 AM.
AndreyT is offline
Old 10-09-20, 06:01 AM
  #9
jgwilliams
Senior Member
Thread Starter

jgwilliams's Avatar

Join Date: Aug 2004
Location: Surrey, UK
Posts: 759

Bikes: Mekk Poggion with SRAM Force, custom built 653 and 531 bikes with frames by Barry Witcomb, Giant XTC 4 mountain bike and a Brompton folding bike.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 258 Post(s)
Liked 99 Times in 73 Posts
Originally Posted by AndreyT View Post
Also Jagwire ones are 5mm I.D. The OP claims that theirs are 4mm I.D... Are they really?
Yes, I think so, although they're hard to measure. They are designed for shifter cables, not brakes, so 4mm would make sense.

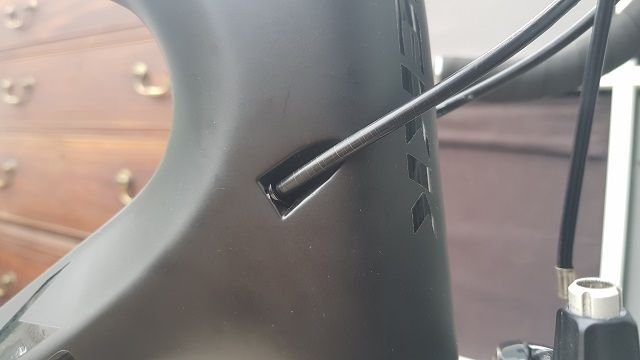

This is where they fit, so there's no chance of them getting lost in normal use. However, they do fit quite loosely so when I change the cables it wouldn't be impossible to lose one, so it's the sort of thing I like to have spares of.

The Jagwire ones just said 5mm; I wasn't sure if that was internal or external. If that is internal then they probably wouldn't fit.
jgwilliams is offline
Old 10-09-20, 08:52 AM
  #10
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,187
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 690 Post(s)
Liked 702 Times in 526 Posts
Also try contacting the mfr. of your bike as they may sell spares. Sometimes they make these little bits slightly different than what you can get from other suppliers. The dreaded "proprietary" part. Can't say for sure though so you may be fine getting some Jagwire or ?? replacements.
Crankycrank is offline
Old 10-09-20, 08:58 AM
  #11
jgwilliams
Senior Member
Thread Starter

jgwilliams's Avatar

Join Date: Aug 2004
Location: Surrey, UK
Posts: 759

Bikes: Mekk Poggion with SRAM Force, custom built 653 and 531 bikes with frames by Barry Witcomb, Giant XTC 4 mountain bike and a Brompton folding bike.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 258 Post(s)
Liked 99 Times in 73 Posts
Originally Posted by Crankycrank View Post
Also try contacting the mfr. of your bike as they may sell spares.
Yes, I would certainly do that except they don't appear to be in business any more. The web site hasn't been updated since 2018 and all emails are bouncing back. I left a question on their Facebook page about the bottom bracket and that hasn't been answered either. It's a real shame as they seem to be pretty well regarded bikes in the press.
jgwilliams is offline
Old 10-09-20, 09:01 AM
  #12
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,187
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 690 Post(s)
Liked 702 Times in 526 Posts
^^Oh, well that's not good. What make and model is your bike? Someone here may have some inside info.
Crankycrank is offline
Old 10-09-20, 09:33 AM
  #13
jgwilliams
Senior Member
Thread Starter

jgwilliams's Avatar

Join Date: Aug 2004
Location: Surrey, UK
Posts: 759

Bikes: Mekk Poggion with SRAM Force, custom built 653 and 531 bikes with frames by Barry Witcomb, Giant XTC 4 mountain bike and a Brompton folding bike.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 258 Post(s)
Liked 99 Times in 73 Posts
It's a 2018 Mekk Poggio. It says made in Taiwan on it so I imagine the parts have probably been widely used on a number of frames. I just need to find out which ones.
jgwilliams is offline
Old 10-09-20, 10:03 AM
  #14
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,860

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5254 Post(s)
Liked 2,815 Times in 1,664 Posts
Originally Posted by AndreyT View Post
Precisely.

The above flurry of nonsensical answers about "ferrules" is disconcerting, when the parts in question are obviously not ferrules.

Also Jagwire ones are 5mm I.D. The OP claims that theirs are 4mm I.D... Are they really?
The answers above aren’t nonsensical. If the part in question was a stop, it would be larger than 4 (or even 5) mm. A 4mm or 5mm ferrule usually fits into the cable stop. The stop that dsaul links to is meant to go into a hydraulic brake guide so that cable brakes can be used and is at least 5mm outside diameter and perhaps larger. It won’t fit. Here’s how those stops are used

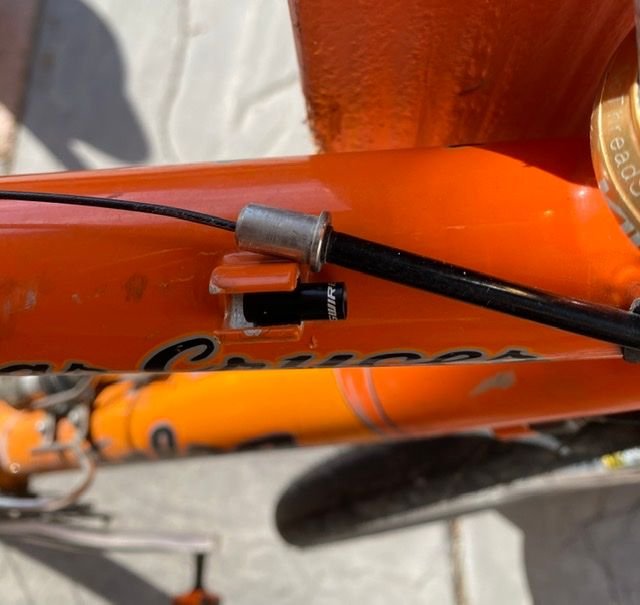

Here’s a 4mm ferrule in the cable guide for reference. You can see that the Jagwire cable stop would be to large to fit in jgwilliams frame shown in post 9.




The cable ends that jgwilliams showed in post 1 are both stops and ferrules. They are called nosed ferrules or nosed end caps. Jagwire used to make them but I don’t see them on the website. There is a listing on Fleabay for a 5 pack. Universal Cycles sells a Shimano version. The Shimano model number is Y6AM98080, although some of those don’t have the stepped end.
