Opinions wanted: Seat stay rust

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Opinions wanted: Seat stay rust

Old 10-26-20, 08:47 PM
  #1
BCATC
Senior Member
Thread Starter

Join Date: Nov 2017
Posts: 93
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Opinions wanted: Seat stay rust

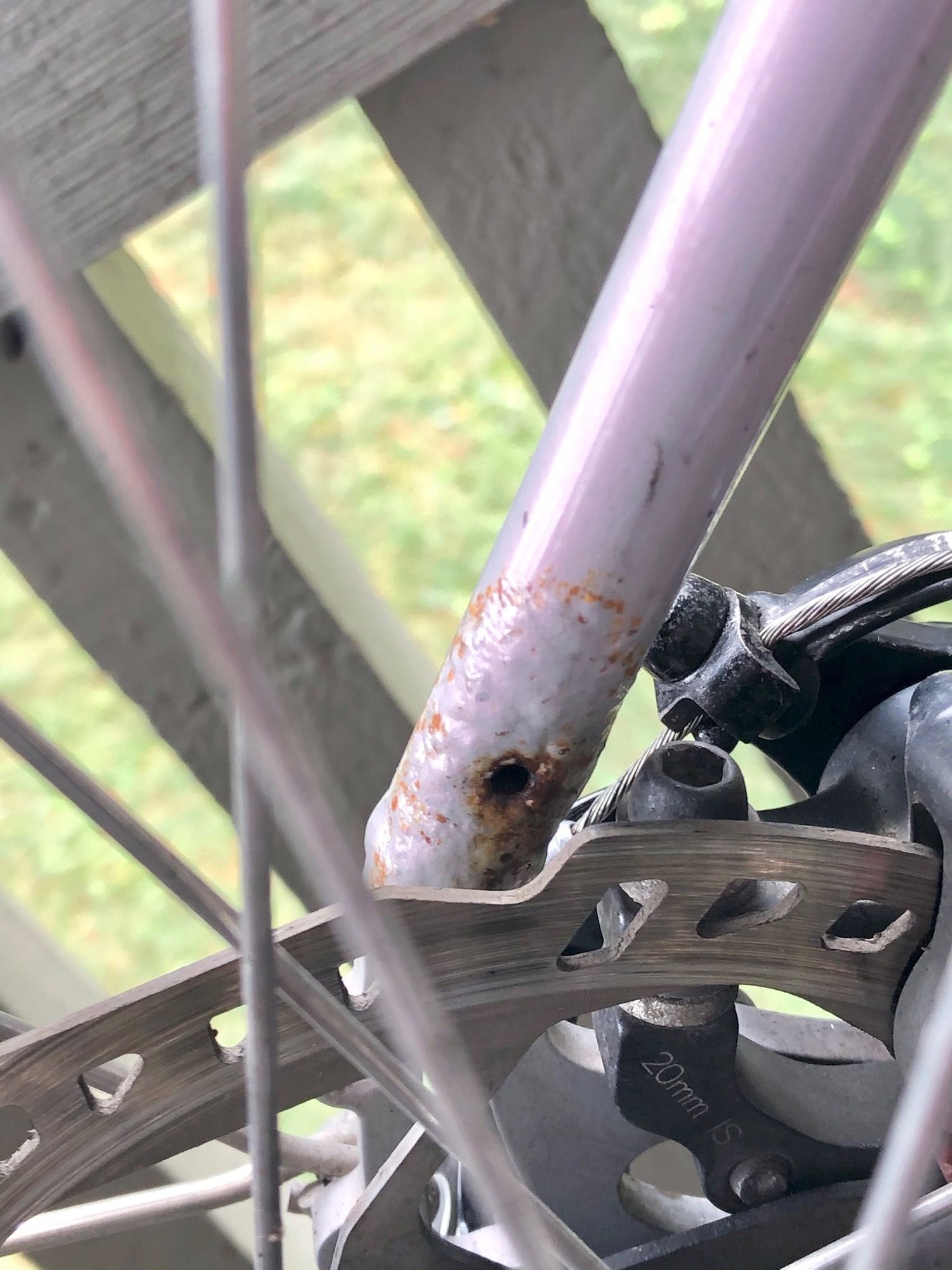

I recently picked up a steel bike, previous owner used it for commuting in the PNW. I wanted other opinions on if the rust on both seat stays are concerning or not. It also exists in some form on the brake bridge area, but I think that's it. My gut says it just looks ugly and should be fine after taking a wire wheel brush to it... though the spread of it is a little close to some of welds.


BCATC is offline
Old 10-26-20, 10:06 PM
  #2
sch
Senior Member

Join Date: May 2003
Location: Mountain Brook. AL
Posts: 3,868
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 266 Post(s)
Likes: 0
Liked 80 Times in 62 Posts
That looks like a significant % of the thickness of the steel is now converted to rust judging from the
bubbled paint, and the hole in the tube suggests that the inside is also rusting as well. Yes clean it
up, passivate what is left with a phosphate prep and repaint (all local, suspect frame redo as a whole
is not a good idea). Eventually it will give way and you will need a new frame, but frames are
replaceable. Fortunately a tube failure in that area (assuming it does not occur at 30+mph on a
down hill) is unlikely to cause a crash, unless the chain stay looks as bad and fails at the same
time in which case the tire immediately shifts into the frame and you come to a rapid halt. Treat the
bike with care, keep power output to under 150w.
sch is offline
Likes For sch:
Old 10-26-20, 10:44 PM
  #3
BCATC
Senior Member
Thread Starter

Join Date: Nov 2017
Posts: 93
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by sch View Post
...Eventually it will give way and you will need a new frame, but frames are
replaceable. Fortunately a tube failure in that area (assuming it does not occur at 30+mph on a
down hill) is unlikely to cause a crash, unless the chain stay looks as bad and fails at the same
time in which case the tire immediately shifts into the frame and you come to a rapid halt. Treat the
bike with care, keep power output to under 150w.
Thanks for the thoughtful response. I hope "eventually" is at least a few years. I'll take more photos tomorrow for assessment, but from I can recall there is at most dots of surface rust that can be removed easily with a mild abrasive on the chain stays.
BCATC is offline
Old 10-27-20, 01:26 AM
  #4
Amt0571
Senior Member

Join Date: Dec 2014
Location: Catalonia
Posts: 880

Bikes: Canyon Grand Canyon AL SL 8.0, Btwin Ultra 520 AF GF, Dahon Mu P27, Triban Road 7, Benotto 850

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 373 Post(s)
Liked 167 Times in 112 Posts
Sand it and look what's underneath. I think it's structurally ok, but you need to remedy it.
Amt0571 is offline
Old 10-27-20, 07:19 AM
  #5
pdlamb
Senior Member

Join Date: Dec 2010
Location: northern Deep South
Posts: 6,622

Bikes: Fuji Touring, Novara Randonee

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1481 Post(s)
Liked 615 Times in 409 Posts
That looks like a vent hole to me, but the bubbling paint is concerning. After you've brushed or sanded the paint off you'll be able to assess it better. If the hole is pretty much circular, you should be able to passivate/prime/paint and ride it. If, OTOH, the rust goes through the tube and the hole is elongated, you're looking at an expensive tube replacement (or just tossing the frame).
pdlamb is offline
Old 10-27-20, 11:51 AM
  #6
BCATC
Senior Member
Thread Starter

Join Date: Nov 2017
Posts: 93
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by pdlamb View Post
That looks like a vent hole to me, but the bubbling paint is concerning. After you've brushed or sanded the paint off you'll be able to assess it better. If the hole is pretty much circular, you should be able to passivate/prime/paint and ride it. If, OTOH, the rust goes through the tube and the hole is elongated, you're looking at an expensive tube replacement (or just tossing the frame).
Some more photos as I removed some of the paint. Initially I was like, "eh shouldn't be a problem". Now it's "uh oh". The vent holes on the chain stay I would say are fine. Either way, it's interesting that it has progressed this much for a frame from 2015 and was apparently kept indoors.




Last edited by BCATC; 10-27-20 at 12:00 PM.
BCATC is offline
Old 10-27-20, 01:02 PM
  #7
pdlamb
Senior Member

Join Date: Dec 2010
Location: northern Deep South
Posts: 6,622

Bikes: Fuji Touring, Novara Randonee

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1481 Post(s)
Liked 615 Times in 409 Posts
Hmm. That's roughly what I thought it might look like when you got the paint off. Keep wire brushing or sanding until you get down to shiny metal.

You might also want to get a six penny nail and push it against the seatstay when you've got to bare metal. If it goes through with hand pressure, either you're a gorilla or that tube is toast.
pdlamb is offline
Old 10-27-20, 05:32 PM
  #8
BCATC
Senior Member
Thread Starter

Join Date: Nov 2017
Posts: 93
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by pdlamb View Post
Hmm. That's roughly what I thought it might look like when you got the paint off. Keep wire brushing or sanding until you get down to shiny metal.

You might also want to get a six penny nail and push it against the seatstay when you've got to bare metal. If it goes through with hand pressure, either you're a gorilla or that tube is toast.

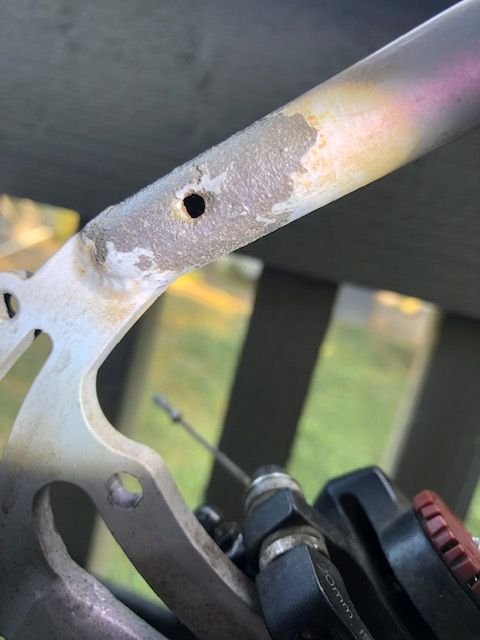

Here are updates and progress pics. I spent 1-2 hours with a steel wire brush. Overall, it's better than expected but I don't know what to make of the pitting if you can call it that. I don't have a six penny nail on hand, but poking at it with a phillips screwdriver in different areas showed no perceivable metal giving way or denting. I soaked some paper towels in a citric acid solution and wrapped them with cling film for tonight.

If I am in the clear and the frame is fine, I purchased Fluid Film to spray the interior. I would like to strip the frame but don't have access to all the tools/space right now to remove the bottom bracket. It does have a RS500 Hollowtech BB, but I'm not sure if spraying the fluid film with BB still installed will affect anything other than the fluid not reaching the BB shell. Thanks for the feedback.




Drive side seat stay.

Non-drive side seat stay 2/2

Non-drive side seat stay. 1/2
BCATC is offline
Old 10-27-20, 05:53 PM
  #9
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 2,403

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 767 Post(s)
Liked 537 Times in 321 Posts
The first photos had me saying "yikes." These last few pics give me a lot of comfort in saying that the frame is fine. Use some sort of rust converter on the bad spots and touch them up with paint. When you get around to repainting, you can correct the esthetics.
Moe Zhoost is offline
Old 10-27-20, 11:35 PM
  #10
BCATC
Senior Member
Thread Starter

Join Date: Nov 2017
Posts: 93
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by Moe Zhoost View Post
The first photos had me saying "yikes." These last few pics give me a lot of comfort in saying that the frame is fine. Use some sort of rust converter on the bad spots and touch them up with paint. When you get around to repainting, you can correct the esthetics.
Thanks. Not sure what the correct steps to repainting it would be. Rust converter --> primer --> touch up paint? Rustoleum primer --> touch up paint?
BCATC is offline
Old 10-27-20, 11:48 PM
  #11
GamblerGORD53
Senior Member

Join Date: Apr 2010
Location: Elevation 666m Edmonton Canada
Posts: 1,665

Bikes: 2013 Custom SA5w / Rohloff Tourster

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 786 Post(s)
Liked 73 Times in 66 Posts
I would pump a wad of PL glue in there, so it won't crush.
===
Now I see it's both sides, toast. IMO

Last edited by GamblerGORD53; 10-27-20 at 11:51 PM.
GamblerGORD53 is offline
Likes For GamblerGORD53:
Old 10-28-20, 06:50 AM
  #12
pdlamb
Senior Member

Join Date: Dec 2010
Location: northern Deep South
Posts: 6,622

Bikes: Fuji Touring, Novara Randonee

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1481 Post(s)
Liked 615 Times in 409 Posts
Originally Posted by Moe Zhoost View Post
The first photos had me saying "yikes." These last few pics give me a lot of comfort in saying that the frame is fine. Use some sort of rust converter on the bad spots and touch them up with paint. When you get around to repainting, you can correct the esthetics.
I agree, the last few shots look much better than the originals.

I'd probably put a base of Rustoleum on the bare metal, then finish with either "matching" or contrasting paint (I've never quite successfully got a match to old paint). Rustoleum, 'cause that's what I've got in the garage. Naval jelly or rustfree might work as well, though I'm not sure what the recommended protocol is for paint on top of those.
pdlamb is offline
Likes For pdlamb:
Old 10-28-20, 09:50 AM
  #13
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,585

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 259 Post(s)
Liked 122 Times in 92 Posts
I spend time in the PNW summers every year and know there is varying opinions on dealing with stay vent hole rust. Some say plug the hole some say keep it open. If nothing else I would try to flood the area with frame saver, maybe with a straw or something similar.
easyupbug is offline
Old 10-28-20, 07:48 PM
  #14
BCATC
Senior Member
Thread Starter

Join Date: Nov 2017
Posts: 93
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by easyupbug View Post
I spend time in the PNW summers every year and know there is varying opinions on dealing with stay vent hole rust. Some say plug the hole some say keep it open. If nothing else I would try to flood the area with frame saver, maybe with a straw or something similar.
This was also something I was actually debating. The seat stay on the non-drive side was in the worse condition. I don't know if it's because that's where the disc brake mounts and so more debris gets on that side more. Yes, I bought a can of Fluid Film and will navigate how to best use that once I take care of touching up this rust.

Originally Posted by pdlamb View Post
I agree, the last few shots look much better than the originals.

I'd probably put a base of Rustoleum on the bare metal, then finish with either "matching" or contrasting paint (I've never quite successfully got a match to old paint). Rustoleum, 'cause that's what I've got in the garage. Naval jelly or rustfree might work as well, though I'm not sure what the recommended protocol is for paint on top of those.
After checking up on it today it actually looks significantly better and instills a lot more confidence to keep going/not part out the bike. I didn't take any photos though. The route I decided to take was to use Loctite Rust Extend Neutralizer to convert rust and prime the surface, then touch up with Testor's enamel paint that's close enough to match. Not sure if this was the best route but it allows me to brush on everything and not have to deal with masking/spraying on such a small area. Then I'll be exploring how to best apply Fluid Film into the frame. Thanks again for your feedback.
BCATC is offline
Old 10-29-20, 02:49 AM
  #15
Amt0571
Senior Member

Join Date: Dec 2014
Location: Catalonia
Posts: 880

Bikes: Canyon Grand Canyon AL SL 8.0, Btwin Ultra 520 AF GF, Dahon Mu P27, Triban Road 7, Benotto 850

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 373 Post(s)
Liked 167 Times in 112 Posts
Originally Posted by easyupbug View Post
I spend time in the PNW summers every year and know there is varying opinions on dealing with stay vent hole rust. Some say plug the hole some say keep it open. If nothing else I would try to flood the area with frame saver, maybe with a straw or something similar.
If you plug the hole and waters gets inside the frame, which it will, as you can avoid rain but not condensation, it will be trapped inside and that won't be good for the frame.
Amt0571 is offline
Old 10-29-20, 06:24 AM
  #16
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,585

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 259 Post(s)
Liked 122 Times in 92 Posts
Originally Posted by Amt0571 View Post
If you plug the hole and waters gets inside the frame, which it will, as you can avoid rain but not condensation, it will be trapped inside and that won't be good for the frame.
As I understand the theory all tubes are sealed as a last step prior to finishing, obviously with the exception of the seat tube (which requires frame saver); therefore being sealed no additional oxygen can enter so no additional rust can form as iron oxide requires oxygen to form.
easyupbug is offline
Old 10-30-20, 08:08 AM
  #17
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 11,384
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 2014 Post(s)
Liked 465 Times in 395 Posts
re not removing the bb--Ive only applied framesaver once, but I can attest that it does get sticky, so I would be wary of doing it with the bb in place---others with more experience will have more reliable suggestions.
I figure if you are going to take the time to do this anyway, it would be worth doing it properly on the entire frame.
Owning the removal tools will always be handy down the road at some point, and frankly given the rust that occured at these points (I agree, surprising how much in just 5 years) I suspect it would be a really good idea to remove the bb and clean out the threads etc and liberally regrease it. I've been surprised how much grit and stuff works its way into bb threads grease over time.

the other thing I take from this bikes example, is how its important to do regular bike washing, especially in winter and salt conditions.
djb is offline
Likes For djb:
Old 10-30-20, 09:48 AM
  #18
Bike Gremlin
Mostly harmless

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,166

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 989 Post(s)
Liked 45 Times in 30 Posts
Originally Posted by djb View Post
re not removing the bb--Ive only applied framesaver once, but I can attest that it does get sticky, so I would be wary of doing it with the bb in place---others with more experience will have more reliable suggestions.
I figure if you are going to take the time to do this anyway, it would be worth doing it properly on the entire frame.
Owning the removal tools will always be handy down the road at some point, and frankly given the rust that occured at these points (I agree, surprising how much in just 5 years) I suspect it would be a really good idea to remove the bb and clean out the threads etc and liberally regrease it. I've been surprised how much grit and stuff works its way into bb threads grease over time.

the other thing I take from this bikes example, is how its important to do regular bike washing, especially in winter and salt conditions.
It never stops, does it?
I sleep better after doing a full overhaul - at least once in a bicycle's lifetime (usually right after I acquire it). Prefer anti-seize to grease, on any threads that are used for mounting stuff onto the frame, including the BB.
And agree that getting the tools and doing all the work yourself is worth it - if for no other reason, than for the pure joy and zen feeling of fixing one's bicycle.

As others have noted - the first pic looked - "uuugh - toast!" When I see bulged paint, I usually expect a very poor frame condition (advanced rust).
I would inspect closely the entire frame, to see whether it's worth saving. Any other places where paint started bulging (if less obvious), any cracks etc. If no - then by all means, go for it, try to fix the damaged part and give the frame a few more decades of life.
Bike Gremlin is offline
Old 10-30-20, 09:58 AM
  #19
Geepig
Senior Member

Geepig's Avatar

Join Date: Sep 2020
Location: Eastern Poland
Posts: 556

Bikes: Romet Jubilat x 4, Wigry x 1, Turing x 1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 133 Times in 104 Posts
Originally Posted by BCATC View Post
Some more photos as I removed some of the paint. Initially I was like, "eh shouldn't be a problem". Now it's "uh oh". The vent holes on the chain stay I would say are fine. Either way, it's interesting that it has progressed this much for a frame from 2015 and was apparently kept indoors.
That takes me back to buying cars in the 1970s....
Geepig is offline
Old 10-30-20, 12:38 PM
  #20
Koyote
Senior Member

Join Date: Sep 2017
Posts: 3,380
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 2635 Post(s)
Liked 3,415 Times in 1,543 Posts
I hope you didn't pay much for it.
Koyote is offline
Old 10-30-20, 12:58 PM
  #21
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,434
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 494 Post(s)
Likes: 0
Liked 105 Times in 91 Posts
Phosphoric acid will change light surface rust into black iron phosphate and act like galvanizing. Then paint it.
The seat stays aren't heavily loaded so the frame should be ok for a lot of miles.
davidad is offline
Old 10-30-20, 11:03 PM
  #22
BCATC
Senior Member
Thread Starter

Join Date: Nov 2017
Posts: 93
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by djb View Post
re not removing the bb--Ive only applied framesaver once, but I can attest that it does get sticky, so I would be wary of doing it with the bb in place---others with more experience will have more reliable suggestions.
I figure if you are going to take the time to do this anyway, it would be worth doing it properly on the entire frame.
Owning the removal tools will always be handy down the road at some point, and frankly given the rust that occured at these points (I agree, surprising how much in just 5 years) I suspect it would be a really good idea to remove the bb and clean out the threads etc and liberally regrease it. I've been surprised how much grit and stuff works its way into bb threads grease over time.

the other thing I take from this bikes example, is how its important to do regular bike washing, especially in winter and salt conditions.
Will keep in mind and will remove the BB before applying framesaver, thanks.

Originally Posted by Bike Gremlin View Post
It never stops, does it?
I sleep better after doing a full overhaul - at least once in a bicycle's lifetime (usually right after I acquire it). Prefer anti-seize to grease, on any threads that are used for mounting stuff onto the frame, including the BB.
And agree that getting the tools and doing all the work yourself is worth it - if for no other reason, than for the pure joy and zen feeling of fixing one's bicycle.

As others have noted - the first pic looked - "uuugh - toast!" When I see bulged paint, I usually expect a very poor frame condition (advanced rust).
I would inspect closely the entire frame, to see whether it's worth saving. Any other places where paint started bulging (if less obvious), any cracks etc. If no - then by all means, go for it, try to fix the damaged part and give the frame a few more decades of life.
So far the rest of the frame looks fine from what I can tell (on the outside atleast!).

Originally Posted by Koyote View Post
I hope you didn't pay much for it.
$250. At worse, I got a full Shimano 5700 105 groupset out of this that I can transfer to a different frame.

Originally Posted by davidad View Post
Phosphoric acid will change light surface rust into black iron phosphate and act like galvanizing. Then paint it.
The seat stays aren't heavily loaded so the frame should be ok for a lot of miles.
The Loctite Rust Neutralizer brushed on and cured seems to have done the trick, created a black and smooth(er) surface that's ready to paint when I can get to it.
BCATC is offline
Likes For BCATC:
Old 10-31-20, 05:37 AM
  #23
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 11,384
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 2014 Post(s)
Liked 465 Times in 395 Posts
Originally Posted by BCATC View Post
Will keep in mind and will remove the BB before applying framesaver, thanks.

The Loctite Rust Neutralizer brushed on and cured seems to have done the trick, created a black and smooth(er) surface that's ready to paint when I can get to it.
depending on bb type , just inform yourself properly about how to do it. Park tool video series are great.
will keep that loctite rust neutralizer product in mind for future use.
djb is offline
Old 10-31-20, 12:18 PM
  #24
BCATC
Senior Member
Thread Starter

Join Date: Nov 2017
Posts: 93
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by djb View Post
depending on bb type , just inform yourself properly about how to do it. Park tool video series are great.
will keep that loctite rust neutralizer product in mind for future use.
Also keep in mind for the future that if you use the loctite product, you can only use an oil-based paint as a top coat per their instructions. Acrylic would not work!
BCATC is offline
Old 10-31-20, 01:42 PM
  #25
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 11,384
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 2014 Post(s)
Liked 465 Times in 395 Posts
Originally Posted by BCATC View Post
Also keep in mind for the future that if you use the loctite product, you can only use an oil-based paint as a top coat per their instructions. Acrylic would not work!
thanks, to be honest, I've really only had any use of that product , or that I perhaps should have used it, on some used steel rims I got for winter tires, and cleaned up before painting. And maybe the balcony railing, but both have held up pretty well despite just metal brushing/drill attached brushing a lot before putting oil paint on.
djb is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
