Replacing Hylex calipers with Shimano?

I have some TRP full-hydrolic Hylex RS brakes. The calipers are the low point, so after several years of annoyance, I replaced them with Shimano BR-M6000 Deore Disc Brake Calipers.

I think I discovered the hard way that TRP's hoses are just different enough from Shimano's that they don't make a good seal. All was well for the first week, but now the brakes are weak, and I in fact discovered a very small but impossible to explain away quantity of mineral oil at the junction of the hose and the front caliper.

So am I just screwed, or is there any way to salvage this? (Anyone else stupid enough to even try to do this?)
wgscott is offline
Old 11-06-20, 05:39 PM
  #2
gsa103
Senior Member

Join Date: May 2013
Location: SF Bay Area
Posts: 4,401

Bikes: Bianchi Infinito (Celeste, of course)

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 752 Post(s)
Liked 103 Times in 76 Posts
Did you use a new olive on the compression fitting?
gsa103 is offline
Likes For gsa103:
Old 11-06-20, 05:48 PM
  #3
wgscott
Banned.
Thread Starter

Join Date: Jul 2013
Location: CZU
Posts: 7,130
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 2,226 Times in 1,107 Posts
Yes. (On both). I bought the Shimano versions.
wgscott is offline
Old 11-06-20, 05:55 PM
  #4
CargoDane
Not a newbie to cycling

Join Date: Oct 2020
Posts: 911

Bikes: Omnium Cargo Ti with Rohloff, Bullitt Milk Plus, Dahon Smooth Hound

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 356 Post(s)
Liked 319 Times in 197 Posts
Did you forget the small O-rings on the brake hose bolt?

https://www.google.com/search?client...4dUDCAw&uact=5

https://www.bike-components.de/en/Sh...e-Bolt-p39696/
CargoDane is offline
Likes For CargoDane:
Old 11-06-20, 06:01 PM
  #5
wgscott
Banned.
Thread Starter

Join Date: Jul 2013
Location: CZU
Posts: 7,130
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 2,226 Times in 1,107 Posts
I did not in fact use O-rings.

Are they required for the non-Banjo-bolt brakes?

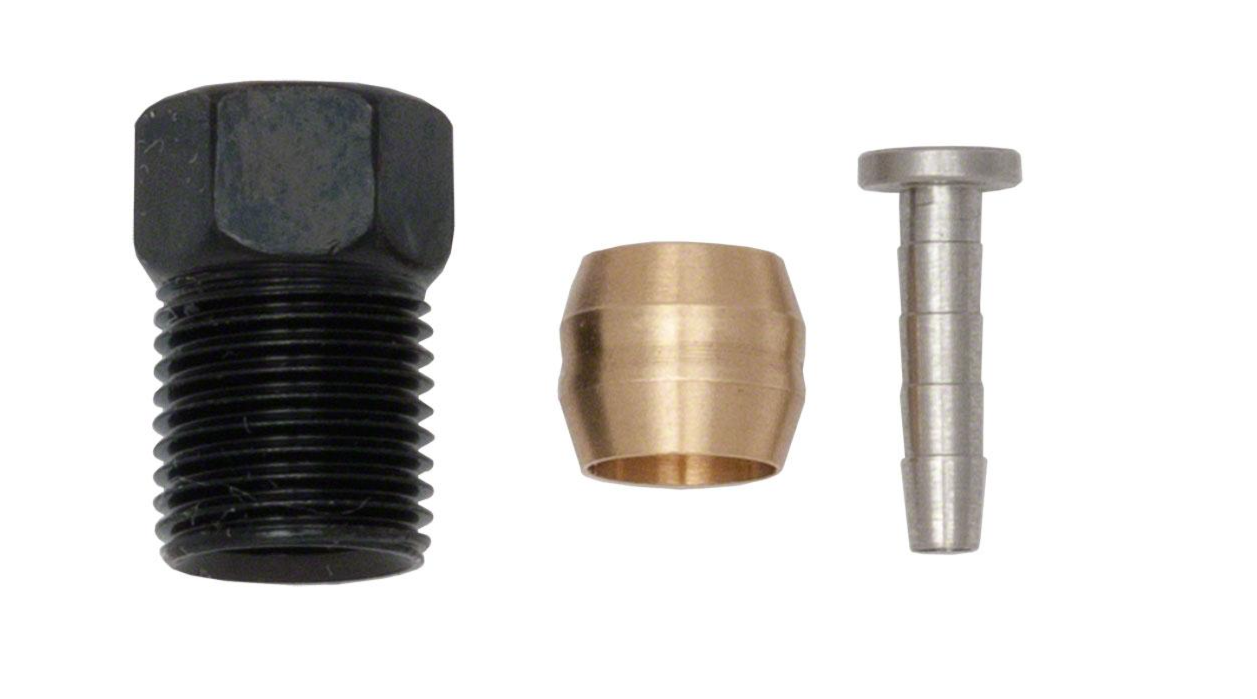

I got the package with these parts (only):




I didn't know they even existed, or were required.

Oy.
wgscott is offline
Old 11-06-20, 06:05 PM
  #6
wgscott
Banned.
Thread Starter

Join Date: Jul 2013
Location: CZU
Posts: 7,130
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 2,226 Times in 1,107 Posts
BTW, my kid did the same thing with his mountain bike TRP brakes and these calipers, and it works flawlessly. He says he didn't use O-rings either. (He is now a much better bike mechanic than I am.)

What also worries me is that the TRP hose is 5.3 mm OD, and the shimano is 4.9. Could that be problematic?
wgscott is offline
Old 11-06-20, 06:10 PM
  #7
CargoDane
Not a newbie to cycling

Join Date: Oct 2020
Posts: 911

Bikes: Omnium Cargo Ti with Rohloff, Bullitt Milk Plus, Dahon Smooth Hound

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 356 Post(s)
Liked 319 Times in 197 Posts
Oh, that's up at the lever! I thought you meant the caliper down at the rotors:



From your picture, I can tell there are other Shimano olives (at least two different shapes). Maybe the shape is the wrong one (hard to know, since you don't use the same "system" throughout.
Also, the olive is meant to take some shape so it fits better when you tighten down the nut so it becomes tight. That's why it is brass (malleable). Did you tighten it enough?
CargoDane is offline
Old 11-06-20, 06:11 PM
  #8
CargoDane
Not a newbie to cycling

Join Date: Oct 2020
Posts: 911

Bikes: Omnium Cargo Ti with Rohloff, Bullitt Milk Plus, Dahon Smooth Hound

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 356 Post(s)
Liked 319 Times in 197 Posts
Originally Posted by wgscott View Post
BTW, my kid did the same thing with his mountain bike TRP brakes and these calipers, and it works flawlessly. He says he didn't use O-rings either. (He is now a much better bike mechanic than I am.)

What also worries me is that the TRP hose is 5.3 mm OD, and the shimano is 4.9. Could that be problematic?
That's a lot of difference for a compression fitting. So, yes, it certainly could be problematic.
CargoDane is offline
Old 11-06-20, 06:48 PM
  #9
wgscott
Banned.
Thread Starter

Join Date: Jul 2013
Location: CZU
Posts: 7,130
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 2,226 Times in 1,107 Posts
Originally Posted by CargoDane View Post
Oh, that's up at the lever! I thought you meant the caliper down at the rotors:
I did. The caliper is different from the BR-785 pictured (which is essentially XT), and uses a banjo bolt. This one is more primitive, and also has the delightful design feature of no bleed port.

I'm using the TRP hose up to the caliper.



. Did you tighten it enough?
The hope is that I didn't, and it is simply a case of needing to wale upon it some more. OTOH, I wonder if I could have over-tightened it?
wgscott is offline
Old 11-06-20, 06:50 PM
  #10
wgscott
Banned.
Thread Starter

Join Date: Jul 2013
Location: CZU
Posts: 7,130
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 2,226 Times in 1,107 Posts
Originally Posted by CargoDane View Post
That's a lot of difference for a compression fitting. So, yes, it certainly could be problematic.
Yeah. That is what I am afraid of.

I wonder if the hose is wider than their mountain one. I will go check it.

Edit: He used Shimano hoses (5mm OD according to my measurement).

Last edited by wgscott; 11-06-20 at 06:57 PM.
wgscott is offline
Old 11-06-20, 06:58 PM
  #11
CargoDane
Not a newbie to cycling

Join Date: Oct 2020
Posts: 911

Bikes: Omnium Cargo Ti with Rohloff, Bullitt Milk Plus, Dahon Smooth Hound

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 356 Post(s)
Liked 319 Times in 197 Posts
I don't think I've ever used a Shimano brake that didn't use a banjo bolt at the caliper. But since yours doesn't, no you don't need the O-rings. Try tigthening it a bit more to compress the brass. Otherwise, I think it's the vastly different OD tubing.
CargoDane is offline
Old 11-06-20, 07:05 PM
  #12
wgscott
Banned.
Thread Starter

Join Date: Jul 2013
Location: CZU
Posts: 7,130
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 2,226 Times in 1,107 Posts
Yeah, the plan is now to tighten the living shi'ite out of them, and if that doesn't work, I'm going to install the Di2 ultegra levers (and calipers with banjo bolts and bleed ports) I picked up for $199 from Universal Cycle.
wgscott is offline
Likes For wgscott:
Old 11-06-20, 07:08 PM
  #13
CargoDane
Not a newbie to cycling

Join Date: Oct 2020
Posts: 911

Bikes: Omnium Cargo Ti with Rohloff, Bullitt Milk Plus, Dahon Smooth Hound

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 356 Post(s)
Liked 319 Times in 197 Posts
Good route to satisfaction, WG!
CargoDane is offline
Old 11-06-20, 07:16 PM
  #14
wgscott
Banned.
Thread Starter

Join Date: Jul 2013
Location: CZU
Posts: 7,130
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 2,226 Times in 1,107 Posts
Originally Posted by CargoDane View Post
Good route to satisfaction, WG!
Except I will have to buy a battery, front and rear derailleurs, and have the frame drilled (or run it externally), or just use them as brakes for now.

It is a touring bike, so I am a bit reluctant to Di2-ify it, but if the situation forces my hand, who am I to ride against the wind?
wgscott is offline
Old 11-06-20, 09:07 PM
  #15
wgscott
Banned.
Thread Starter

Join Date: Jul 2013
Location: CZU
Posts: 7,130
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 2,226 Times in 1,107 Posts
Originally Posted by CargoDane View Post
I don't think I've ever used a Shimano brake that didn't use a banjo bolt at the caliper.
My advice is to keep it that way.

They also use the cotter pin that comes with the pads, instead of a bolt.

They were $23 for a pair. I may have cheaped out.
wgscott is offline
Likes For wgscott:
Old 11-21-20, 05:57 PM
  #16
wgscott
Banned.
Thread Starter

Join Date: Jul 2013
Location: CZU
Posts: 7,130
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 2,226 Times in 1,107 Posts
Originally Posted by wgscott View Post
...
I got the package with these parts (only):




.
This was the mistake. I should have used Tektro/TRP parts. Specifically, the barb thing was too narrow, and also the Tektro "olive" is shaped a bit differently. Tektro's lock nut threads into the Shimano caliper.

The Shimano barb was still loose in the tube when I pulled it apart. I had to tap the Tektro version of it in lightly with a ball-peen hammer. I suspect it requires the tight fit not to slowly ooze fluid. I used the other Tektro parts for re-assembly as well.

It is too soon to declare victory (the other problem took a few days to become apparent), but in retrospect the loose-fitting Shimano barbs should have been a tip-off that they were incompatible with the TRP brakelines, i.e., the TRP hydraulic hose ID > Shimano ID.

Here is what the correct fittings look like:

Last edited by wgscott; 11-21-20 at 06:01 PM. Reason: added second pic
wgscott is offline
Old 11-21-20, 06:02 PM
  #17
CargoDane
Not a newbie to cycling

Join Date: Oct 2020
Posts: 911

Bikes: Omnium Cargo Ti with Rohloff, Bullitt Milk Plus, Dahon Smooth Hound

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 356 Post(s)
Liked 319 Times in 197 Posts
Originally Posted by wgscott View Post
This was the mistake. I should have used Tektro/TRP parts. Specifically, the barb thing was too narrow, and also the Tektro "olive" is shaped a bit differently. Tektro's lock nut threads into the Shimano caliper.

The Shimano barb was still loose in the tube when I pulled it apart. I had to tap the Tektro version of it in lightly with a ball-peen hammer. I suspect it requires the tight fit not to slowly ooze fluid. I used the other Tektro parts for re-assembly as well.

It is too soon to declare victory (the other problem took a few days to become apparent), but in retrospect the loose-fitting Shimano barbs should have been a tip-off that they were incompatible with the TRP brakelines, i.e., the TRP hydraulic hose ID > Shimano ID.
Yes, it needs to fit tightly. With the better fitting parts, I wouldn't have any worries. I'm certain you won't have any problems with the better fitting stuff. Good to hear you're where you are
CargoDane is offline
Old 11-21-20, 06:16 PM
  #18
wgscott
Banned.
Thread Starter

Join Date: Jul 2013
Location: CZU
Posts: 7,130
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 2,226 Times in 1,107 Posts
Well, there is still no guarantee that mixing calipers and levers like this will work properly.

But at least now it has a fighting chance. I'm posting this mainly in the event that someone else is stupid enough to try it.
wgscott is offline
