Campy Cup & Cone rear hub keeps loosening

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Campy Cup & Cone rear hub keeps loosening

Old 11-22-20, 08:59 PM
  #1
Paniolo
Senior Member
Thread Starter

Join Date: Jul 2004
Location: N Dallas, TX
Posts: 844
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked 3 Times in 3 Posts
Campy Cup & Cone rear hub keeps loosening

10 Spd Campy Record Rear Hub cup and cone bearings, guess is circa 2004. It has developed side to side play of the wheel. I've readjusted the cones several times. Tighten up till it starts to bind then back off till jtspins smooth. Clamp down on outer lock nut being careful not to let inner cone rotate. Use 2 proper size cone wrenches, estimate lock torque around 40 ft-lb. Its fine when I'm done with no side play at rim, but over next few weeks gradually comes back. Seems to last maybe 400-500 miles to get noticeable side to side play..
Probably some kind of user error? Appreciate any insight
Paniolo is offline
Old 11-22-20, 09:30 PM
  #2
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 1,338

Bikes: lots

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Liked 648 Times in 368 Posts
Wrong size balls? It's that or you're not actually getting the locknut tight.
cxwrench is online now
Likes For cxwrench:
Old 11-23-20, 02:01 AM
  #3
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 545

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Liked 74 Times in 55 Posts
Originally Posted by cxwrench View Post
Wrong size balls? It's that or you're not actually getting the locknut tight.
Are the serrations on the locknut too smooth to properly grip against the cone? Just a thought
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is offline
Old 11-23-20, 05:55 AM
  #4
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,965

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 1302 Post(s)
Liked 768 Times in 537 Posts
Originally Posted by cxwrench View Post
Wrong size balls? It's that or you're not actually getting the locknut tight.
I am going to go with not getting the locknut tight enough. I would say that 40 ft-lb with typical cone wrenches is unrealistic. I have to put a lot of effort to get 40 ft-lb with my ~22 inch torque wrench.
dsbrantjr is offline
Old 11-23-20, 05:55 AM
  #5
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 876

Bikes: Peugeot teamline

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 64 Times in 53 Posts
Did you have a look at the races and cones?
Tighten the locknuts more. Both sides.
Or set it a bit tight first and then hopefully it backs out to the right spot as you ride.
If the hub has gone bad you may get a bit more out of it this way.
blamester is offline
Old 11-23-20, 07:22 AM
  #6
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,332

Bikes: Several, mostly not name brands.

Mentioned: 131 Post(s)
Tagged: 0 Thread(s)
Quoted: 2492 Post(s)
Liked 1,027 Times in 665 Posts
Check that the threads on the axle, cone and locknut are not damaged.
JohnDThompson is offline
Old 11-23-20, 08:14 AM
  #7
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,281

Bikes: TWO Cinelli superstar disc with SRAM Force AXS

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 604 Post(s)
Liked 264 Times in 213 Posts
Time for new wheels with the over sized aluminum axle and simple to adjust bearings. No more cone wrenches.
DaveSSS is offline
Old 11-23-20, 02:18 PM
  #8
Paniolo
Senior Member
Thread Starter

Join Date: Jul 2004
Location: N Dallas, TX
Posts: 844
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked 3 Times in 3 Posts
Thanks for all the suggestions!

Wrong size balls? It's that or you're not actually getting the locknut tight. Haven't checked the balls, actually haven't broken it down that far usually been a quick adjust/tighten for that days ride ... probably a good idea to tear it down totally at this point and check balls/races. Still don't see how this would cause a loosening from where it was adjusted unless locknut is loose?

-Are the serrations on the locknut too smooth to properly grip against the cone? Just a thought
-I am going to go with not getting the locknut tight enough. I would say that 40 ft-lb with typical cone wrenches is unrealistic.
-Did you have a look at the races and cones?

Tighten the locknuts more. Both sides.
Or set it a bit tight first and then hopefully it backs out to the right spot as you ride.
All variations on tightening the locknut. Agree this is only logical way it loosens over time. The Drive Side does not have a lock nut, The cone on the drive side is set to proper depth to position axle correctly in dropouts and locked in place via an Allen head set screw into a channel in the axle which prevents rotation. Then all adjustment is done from non drive side and then locked in place with the only lock nut. The serrations on the lock nut seem fine. Agree I'm probably not getting 35+ft-lb on those short cone wrenches, but I am getting as much as possible on those to point I worry about bending the cone wrench. When I disassemble the lock nut it is still very securely clamped to the keyed washer and cone. It takes a lot of effort to separate the lock nut from the washer/cone to readjust. See attached schematic. Talking this through with you all makes me feel like the likely culprit is the drive side cone is rotating on the axle due to the Allen set screw not being properly engaged.in the axle keyway. The NDS locknut/keyed washer/cone have always been solidly locked together on disassembly so it seems like the only way it can loosen is if the axle can rotate on the drive side.

Paniolo is offline
Old 11-23-20, 03:06 PM
  #9
Drew Eckhardt
Senior Member

Drew Eckhardt's Avatar

Join Date: Apr 2010
Location: Mountain View, CA USA and Golden, CO USA
Posts: 6,330

Bikes: 97 Litespeed, 50-39-30x13-26 10 cogs, Campagnolo Ultrashift, retroreflective rims on SON28/PowerTap hubs

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 544 Post(s)
Liked 303 Times in 214 Posts
Originally Posted by Paniolo View Post
10 Spd Campy Record Rear Hub cup and cone bearings, guess is circa 2004. It has developed side to side play of the wheel. I've readjusted the cones several times. Tighten up till it starts to bind then back off till jtspins smooth. Clamp down on outer lock nut being careful not to let inner cone rotate. Use 2 proper size cone wrenches, estimate lock torque around 40 ft-lb. Its fine when I'm done with no side play at rim, but over next few weeks gradually comes back. Seems to last maybe 400-500 miles to get noticeable side to side play..
Probably some kind of user error? Appreciate any insight
10 speed Record hubs have a pinch bolt not a lock nut.

Last edited by Drew Eckhardt; 11-23-20 at 03:15 PM.
Drew Eckhardt is offline
Likes For Drew Eckhardt:
Old 11-23-20, 07:11 PM
  #10
mrrabbit
Senior Member

mrrabbit's Avatar

Join Date: Dec 2007
Location: San Jose, California
Posts: 3,457

Bikes: 2001 Tommasini Sintesi w/ Campagnolo Daytona 10 Speed

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 112 Post(s)
Likes: 0
Liked 24 Times in 19 Posts
You're doing it wrong.

The only time you loosen is to RESET and START OVER.

1. Loosen - tap with a plastic or rubber mallet to ensure the wheel is reset - i.e. has serious slack or play.
2. Tighten the adjusting cone until you have a super duper small smidgen of end play.
3. Lock the screw to secure the adjusting cone.
4. Secure wheel in the frame - do the old school two finger wobble test.

You can also do this on the bike...but first remove the wheel to do Step 1, then continue with Step 2 and 3 on the bike.

NEVER EVER BACK OFF DURING THE TIGHTENING PROCESS - IF YOU DO YOU HAVE TO GO BACK TO STEP 1.

=8-)
__________________
5000+ wheels built since 1984...

Disclaimer:

1. I do not claim to be an expert in bicycle mechanics despite my experience.
2. I like anyone will comment in other areas.
3. I do not own the preexisting concepts of DISH and ERD.
4. I will provide information as I always have to others that I believe will help them protect themselves from unscrupulous mechanics.
5. My all time favorite book is:

Kahane, Howard. Logic and Contemporary Rhetoric: The Use of Reason in Everyday Life
mrrabbit is offline
Likes For mrrabbit:
Old 11-25-20, 03:56 PM
  #11
Paniolo
Senior Member
Thread Starter

Join Date: Jul 2004
Location: N Dallas, TX
Posts: 844
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked 3 Times in 3 Posts
Thanks for all the Input everyone!

Originally Posted by Drew Eckhardt View Post
10 speed Record hubs have a pinch bolt not a lock nut.
I believe you are referring to the style of hub that came out around 2009, this is prior to that ... see hub schematic I posted.

Originally Posted by mrrabbit View Post
You're doing it wrong.

The only time you loosen is to RESET and START OVER.

1. Loosen - tap with a plastic or rubber mallet to ensure the wheel is reset - i.e. has serious slack or play.
2. Tighten the adjusting cone until you have a super duper small smidgen of end play.
3. Lock the screw to secure the adjusting cone.
4. Secure wheel in the frame - do the old school two finger wobble test.

You can also do this on the bike...but first remove the wheel to do Step 1, then continue with Step 2 and 3 on the bike.

NEVER EVER BACK OFF DURING THE TIGHTENING PROCESS - IF YOU DO YOU HAVE TO GO BACK TO STEP 1.

=8-)
I was pretty sure there was user error involved! So never loosen, start over if bearings get to point of binding. I've done too many car hubs where you get the bearing to bind then back off!

Let me confirm my understanding of all the steps from a complete rebuild after balls are in and axle is inserted through hub:
  1. Set axle length even to drop outs by adjusting drive side lock nut fh-re020, then secure in place with set screw fh-re019.
  2. Make sure bearings are loose - tap with a plastic or rubber mallet to ensure the wheel is reset - i.e. has serious slack or play.
  3. Tighten non drive side cone fh-re107 to a super duper small smidgen of end play. If you have to loosen start over.at #2
  4. Secure NDS locknut fh-re011 against cone, using two cone wrenches to make sure cone does not move from #3 adjustment.
  5. Secure wheel in the frame - do the old school two finger wobble test.
Will give this another shot. fyi on disassembly I feel the root cause is the set screw fh-re019 was not tight enough. I can tell the drive side nut had rotated a small amount because the set screw was not located in the same position on the axle in relation to axle keyway. That indicates to me the play developed from movement of the drive side lock nut. I'll tighten the set screw more this time, I was worried about that damaging to axle threads before.

Thanks again for the help!

Last edited by Paniolo; 11-25-20 at 04:02 PM. Reason: clarifictiona
Paniolo is offline
Old 11-25-20, 04:52 PM
  #12
RGMN
Senior Member

Join Date: Feb 2018
Location: Western 'burbs of TC,MN
Posts: 396
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Liked 114 Times in 81 Posts
Originally Posted by Paniolo View Post
Thanks for all the suggestions!


Wrong size balls? It's that or you're not actually getting the locknut tight. Haven't checked the balls, actually haven't broken it down that far usually been a quick adjust/tighten for that days ride ... probably a good idea to tear it down totally at this point and check balls/races. Still don't see how this would cause a loosening from where it was adjusted unless locknut is loose?


-Are the serrations on the locknut too smooth to properly grip against the cone? Just a thought

-I am going to go with not getting the locknut tight enough. I would say that 40 ft-lb with typical cone wrenches is unrealistic.

-Did you have a look at the races and cones?


Tighten the locknuts more. Both sides.

Or set it a bit tight first and then hopefully it backs out to the right spot as you ride.

All variations on tightening the locknut. Agree this is only logical way it loosens over time. The Drive Side does not have a lock nut, The cone on the drive side is set to proper depth to position axle correctly in dropouts and locked in place via an Allen head set screw into a channel in the axle which prevents rotation. Then all adjustment is done from non drive side and then locked in place with the only lock nut. The serrations on the lock nut seem fine. Agree I'm probably not getting 35+ft-lb on those short cone wrenches, but I am getting as much as possible on those to point I worry about bending the cone wrench. When I disassemble the lock nut it is still very securely clamped to the keyed washer and cone. It takes a lot of effort to separate the lock nut from the washer/cone to readjust. See attached schematic. Talking this through with you all makes me feel like the likely culprit is the drive side cone is rotating on the axle due to the Allen set screw not being properly engaged.in the axle keyway. The NDS locknut/keyed washer/cone have always been solidly locked together on disassembly so it seems like the only way it can loosen is if the axle can rotate on the drive side.


It's been a while I've rebuilt one of this version hubs, but I think you have this correct. The DS nut gets positioned to locate the axles in the dropouts, tighten the set screw making sure it is in the keyway, and then adjust the play on the NDS.

My archives show the last year Record used this design was 1998. 1999 Record was the OS design with the pinch bolt, so this was originally a 9-speed hub.
RGMN is offline
Old 11-25-20, 05:40 PM
  #13
Drew Eckhardt
Senior Member

Drew Eckhardt's Avatar

Join Date: Apr 2010
Location: Mountain View, CA USA and Golden, CO USA
Posts: 6,330

Bikes: 97 Litespeed, 50-39-30x13-26 10 cogs, Campagnolo Ultrashift, retroreflective rims on SON28/PowerTap hubs

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 544 Post(s)
Liked 303 Times in 214 Posts
Originally Posted by Paniolo View Post
Thanks for all the Input everyone!

I believe you are referring to the style of hub that came out around 2009, this is prior to that ... see hub schematic I posted.
Record and Chorus rear hubs switched to oversize aluminum axles in 1999. 10 speed followed in 2001.

https://branfordbike.com/rear-hub-pa...arts-1999-2006

If you have a 10mm steel axle, that's a 1997 or 1998 9 speed hub (same splines, 26mm lock ring not 27mm) or not Daytona/Centaur/Chorus/Record. Record cassette hubs have grease ports. Chorus steel axle did too at least some years.

You could also have an 8 speed hub with a newer freehub. I upgraded when Campagnolo discontinued my favorite cassette in 2000.

10 sped Record hubs. Note the threaded pinch bolt hole in the rear hub:



8 speed Chorus rear hub with Record Titanium freehub body retrofitted. Note non-drive-side lock nut and cone:

Last edited by Drew Eckhardt; 11-28-20 at 01:16 PM.
Drew Eckhardt is offline
Old 11-25-20, 05:45 PM
  #14
Paniolo
Senior Member
Thread Starter

Join Date: Jul 2004
Location: N Dallas, TX
Posts: 844
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by RGMN View Post
It's been a while I've rebuilt one of this version hubs, but I think you have this correct. The DS nut gets positioned to locate the axles in the dropouts, tighten the set screw making sure it is in the keyway, and then adjust the play on the NDS.

My archives show the last year Record used this design was 1998. 1999 Record was the OS design with the pinch bolt, so this was originally a 9-speed hub.
Ahhh, that makes a lot of sense. I picked this Craigslist wheelset up as a quick cheap replacement for a rear Mavic Open Pro that cracked the rim when a spoke broke mid ride. IIRC I paid $45 which was all I could afford being unemployed at the time. That was probably 2008-9 time frame and I know the wheelset was no where near new even then. It did come with a 10 spd cassette on them though.

Fingers crossed this time it will hold the adjustment! Thanks for all the help!
Paniolo is offline
Old 11-25-20, 06:28 PM
  #15
Paniolo
Senior Member
Thread Starter

Join Date: Jul 2004
Location: N Dallas, TX
Posts: 844
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by Drew Eckhardt View Post
Record and Chorus rear hubs switched to oversize aluminum axles in 1999. 10 speed followed in 2001.

https://branfordbike.com/rear-hub-pa...arts-1999-2006

If you have a 10mm steel axle, that's a 1997 or 1998 9 speed hub (same splines, 26mm lock ring not 27mm) or not Daytona/Centaur/Chorus/Record. Record cassette hubs have grease ports. Chorus steel axle did too at least some years.

You could also have an 8 speed hub with a newer freehub. I upgraded when Campagnolo discontinued my favorite cassette in 2000.
Sorry, I threw you off with my wild guess of circa 2004. It does look exactly like that schematic and does have a steel axle. My calipers are in my toolbox at a friends garage or I would measure the axle diameter. The lock ring does say 9sp on it. Has a grease port on the axle housing. I believe it was an Arroyo? wheelset, but took the decal off so it wouldn't look totally mismatched with my Zonda front wheel.

Had a bad run on rears for a year or so with lighter weight, low spoke count wheels. Broke two of the first version Zonda's with rim cracks by the spoke holes then cracked the Open Pro when a spoke broke and did a road side true to get rid of brake rub so I could ride home. Still have those two Zonda rear hubs hoping there will be a use for them sometime. So a heavy 32 hole wheelset was perfect! They are old school but still kicking after 20+ years. Should just rebuild the whole hub again, but I have a Velocity Deep Vee 32h to lace with a pinch style Record hub (from the Open Pro wheel). Plus, I seem to remember having a heck of a time getting the free hub, pawls and little springs all together and back in the hub the last time I did that. Actually think I bent one of the springs on one of the attempts so when it finally went in and ratcheted correct I made a mental note never open that back up while is still worked! lol Sure there is a trick, but I didn't know it!
Paniolo is offline
Old 11-26-20, 01:00 PM
  #16
RGMN
Senior Member

Join Date: Feb 2018
Location: Western 'burbs of TC,MN
Posts: 396
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Liked 114 Times in 81 Posts
Originally Posted by Paniolo View Post
I seem to remember having a heck of a time getting the free hub, pawls and little springs all together and back in the hub the last time I did that. Actually think I bent one of the springs on one of the attempts so when it finally went in and ratcheted correct I made a mental note never open that back up while is still worked! lol Sure there is a trick, but I didn't know it!

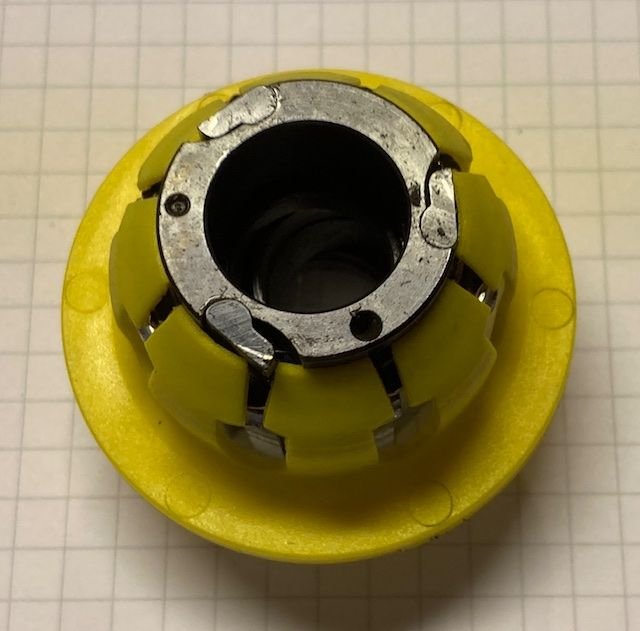

Once upon a time Campagnolo made an inexpensive plastic tool to help install the freehub. You would get the pawls and springs positioned properly, the slide it into the tool. The tool would compress the pawls and springs and hold it all together until you installed the freehub. If they slide out you could just lift a plastic finger and slide them behind it. You slid the tool off as you installed the freehub. It worked well, but I believe they discontinued it due the the new freehubs having a single spring operating all the pawls. You only need a small screwdriver to push the pawls in to install the freehub.


Last edited by RGMN; 11-26-20 at 06:19 PM. Reason: spelling
RGMN is offline
Old 11-27-20, 05:53 AM
  #17
Ross200
Senior Member

Join Date: Feb 2019
Posts: 57
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 7 Times in 7 Posts
Also a wire spring clip to hold the pawls. Dental floss works with no tool.

Last edited by Ross200; 11-27-20 at 05:55 AM. Reason: misspelling
Ross200 is offline
Old 11-27-20, 06:54 AM
  #18
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,829

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1054 Post(s)
Liked 253 Times in 190 Posts
Originally Posted by mrrabbit View Post
You're doing it wrong.
The only time you loosen is to RESET and START OVER.
=8-)
So, I've done it a bit differently. I mention this not to disagree, but to learn. I get the axle centered, and the cones loosely tightened. Then, I tighten the locknuts with cone wrenches. This generally gets the cones just about right. IF the cones are too loose or way too tight, then I loosen the locknuts, readjust the cones, and try again. If the the cones are a bit too tight, I use two cone wrenches and apply torque to both cones to take the setup from "crunchy and locked up" to "taut, but rolling free". This action tightens the cones a bit more against the locknuts. IT also allows near-perfect adjustment of pre-load. Now, this has worked for my and my Record hubs have lasted 50 years (and I've never weight less than 210lbs during that time). Does no one else do this? Why is this a bad method?

I know of Mr. Rabbit's wheel prowess, so I expect my understanding will be improved here.
WizardOfBoz is offline
Old 11-27-20, 03:02 PM
  #19
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 1,494
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 285 Post(s)
Liked 235 Times in 156 Posts
^ This is fine for traditional freewheel-type hubs where the cones & locknuts on both ends of the axle are the same. The OP has a different design where this will not work: there is only one locknut and one moveable cone, on the left end. The large nut on the right end, with the set screw, has nothing to do with controlling the bearings of the hub itself. Rather, it holds the freehub body against the ratchet ring and maintains the preload on the cartridge bearings inside the freehub. When you have the nut, RE-020, tightened just enough to compress the thick lock washer, you tighten the set screw enough to keep the nut from moving in normal use. That ensures proper operation of the freehub. But you can’t put a big wrench on it to resist torquing of the moveable cone at the other end of the axle: the nut will simply slide and drag the set screw around with it. Indeed if you remove that nut and the washers under it, the freehub will slide right off the axle (dropping pawls and springs in this design, ) without making any difference to bearing adjustment.

The right end of the hub bearings, unrelated to the freehub, rest on a fixed cone, RE-110, that is press-fitted onto the axle from the left end and driven down against a shoulder that prevents further rightward movement. All adjustment must be made at the left end. To hold the axle motionless while you work on the left cone & locknut, you must clamp the right end of the axle, not the big RE-020 nut, in an axle vise. To get an adequate clamp of the axle, you may need to remove the nut, taking care the freehub body does not dislodge. With the axle properly immobilized against wrench torque, you should be able to get the left-end adjustment in the usual way and it should stay tight. Even if the fixed right cone has got loose and is spinning on the axle, it will not affect bearing adjustment because it is not threaded and can’t move longitudinally.

My suspicion is that you are trying to hold that big RE-020 nut with a wrench or ordinary vise while you torque the left cone & locknut. This is not tightening those left parts together but is only making the RE-020 nut move on its end of the axle. Immobilize the axle and don’t touch that big nut, except to remove it if you need to get access to more axle.

Last edited by conspiratemus1; 11-27-20 at 03:53 PM.
conspiratemus1 is offline
Likes For conspiratemus1:
Old 11-27-20, 03:41 PM
  #20
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 1,494
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 285 Post(s)
Liked 235 Times in 156 Posts
Originally Posted by Paniolo View Post
Thanks for all the suggestions!

Wrong size balls? It's that or you're not actually getting the locknut tight. Haven't checked the balls, actually haven't broken it down that far usually been a quick adjust/tighten for that days ride ... probably a good idea to tear it down totally at this point and check balls/races. Still don't see how this would cause a loosening from where it was adjusted unless locknut is loose?

-Are the serrations on the locknut too smooth to properly grip against the cone? Just a thought
-I am going to go with not getting the locknut tight enough. I would say that 40 ft-lb with typical cone wrenches is unrealistic.
-Did you have a look at the races and cones?

Tighten the locknuts more. Both sides.
Or set it a bit tight first and then hopefully it backs out to the right spot as you ride.
All variations on tightening the locknut. Agree this is only logical way it loosens over time. The Drive Side does not have a lock nut, The cone on the drive side is set to proper depth to position axle correctly in dropouts and locked in place via an Allen head set screw into a channel in the axle which prevents rotation. Then all adjustment is done from non drive side and then locked in place with the only lock nut. The serrations on the lock nut seem fine. Agree I'm probably not getting 35+ft-lb on those short cone wrenches, but I am getting as much as possible on those to point I worry about bending the cone wrench. When I disassemble the lock nut it is still very securely clamped to the keyed washer and cone. It takes a lot of effort to separate the lock nut from the washer/cone to readjust. See attached schematic. Talking this through with you all makes me feel like the likely culprit is the drive side cone is rotating on the axle due to the Allen set screw not being properly engaged.in the axle keyway. The NDS locknut/keyed washer/cone have always been solidly locked together on disassembly so it seems like the only way it can loosen is if the axle can rotate on the drive side.

Also see my other post immediately up-thread.
-The set screw is not meant to lock necessarily into the slot cut into the axle. Rather, the set-screw is meant to hold the nut RE-020 wherever it needs to be to just flatten the thick lock washer, thus delivering correct preload to the freehub cartridge bearings. The position of the set-screw could be anywhere around the axle, unrelated to the slot. The hub is designed so that when this preload is right, the nut will be in the right place on the axle (although you can cheat a bit by removing one of both of the thin flat washers. But that thick lock washer has to be there. It’s the poor-man’s torque wrench.)

-The position of this large nut has nothing to do with fixing the position of the right axle cone RE-110 — they are completely isolated from each other. You must not think of that big nut as holding the position of the right cone in any way — it is not a lock nut.

-The right cone is the usual failure point of this hub, although all in my fleet are still going strong. If the reason for play is that the cone is worn, the hub is toast because replacements are not available. But I suspect your problem is just that you are not immobilizing the axle during your adjustment, as I said in my previous post. As part of your diagnosis you should pull the axle out so you can look at the fixed cone, though, in an old used hub especially. If the cone is pitted, there is no point wasting any further effort on the hub.

-I have never found that locknuts have to be particularly tight against cones on the left side. I give them a good squeeze but never where i’d worry that the cone wrench would bend. (Geez! ). In my hands, the axle will slip in the axle vise before that would happen. I think you are locking the parts together tightly enough, just not in the right place, because the axle is moving as you tighten.

Last edited by conspiratemus1; 11-27-20 at 03:57 PM. Reason: Got RE-110 part number wrong.
conspiratemus1 is offline
Old 11-27-20, 04:08 PM
  #21
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 1,494
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 285 Post(s)
Liked 235 Times in 156 Posts
Finally, when you say the hub develops side-to-side play during riding after adjustment, do you know where the play is? Is it in the hub bearings proper, or is it in the mating of the freehub with the ratchet ring of the hub shell? I ask this because your misunderstanding of the role of the set screw could be causing the freehub to be inadequately secured to the hub. The big RE-020 nut might need to be tighter by another half-turn or some other non-integer beyond where the set-screw drops into the axle slot. If the set-screw has been dragged out of engagement against the axle, the big nut will be free to turn while riding, loosening.

There is a masterful description of the servicing of these hubs somewhere in BikeForums. Googling will find it more likely than using the BikeForums Search.
conspiratemus1 is offline
Old 12-02-20, 08:19 PM
  #22
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 1,494
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 285 Post(s)
Liked 235 Times in 156 Posts
Any follow-up from the OP, to know if any of us got this right?
conspiratemus1 is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
