Balancing Cantilever Brakes

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Balancing Cantilever Brakes

Old 11-24-20, 02:05 PM
  #1
daniell
Member
Thread Starter

Join Date: Sep 2006
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 7 Times in 4 Posts
Balancing Cantilever Brakes

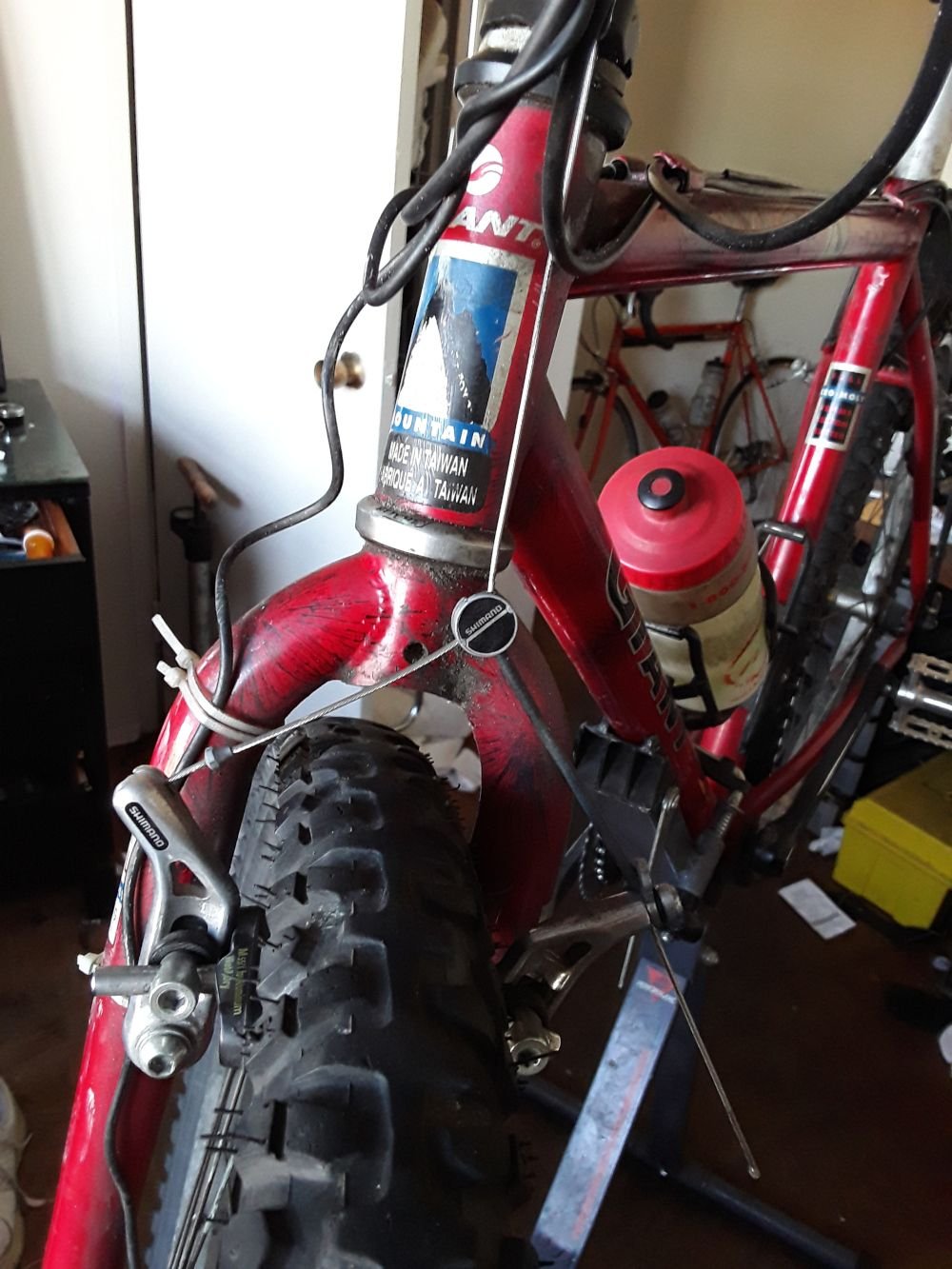

For decades I have not been able to balance the brakes. This is my third set of brakes. I have tried everything that I can think of. The cable does not pull in a straight line. Why, I don't know. Perhaps the frame is out of alignment.
daniell is offline
Old 11-24-20, 02:21 PM
  #2
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,212

Bikes: Several, mostly not name brands.

Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 2435 Post(s)
Liked 944 Times in 606 Posts
What do you mean by "balancing" the brakes? Is one pad closer to the rim than the other? Sheldon Brown offers some advice:

https://www.sheldonbrown.com/canti-trad.html
JohnDThompson is online now
Old 11-24-20, 02:25 PM
  #3
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 422
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked 149 Times in 109 Posts
Make sure the axle is fully seated in the dropouts. It looks like the tire is not centred in the fork, and this makes it almost impossible to adjust brakes properly. Also, next time you take your wheel out and put it back in, the brakes will be out of adjustment again. If the axle is fully seated in the dropouts then you can replicate the position perfectly every time.

One other thing to look out for is the conical springs on your quick release skewer - if one of the springs is on backwards it will jam between the fork's dropout and the axle and throw everything out of whack. The larger end of those springs must be pointed away from the centre of the bike on both sides of the axle..
ClydeClydeson is offline
Old 11-24-20, 02:46 PM
  #4
mack_turtle
n00b

Join Date: Jan 2008
Location: Austin, TX
Posts: 1,397

Bikes: Surly Karate Monkey, Twin Six Standard Rando

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 421 Post(s)
Liked 447 Times in 268 Posts
one or both of the sides of that brake should have a small screw with a philips head to adjust spring tension. on a lot of those older Shimano canti brakes, the spring is housed in a plastic sleeve and those sleeves get brittle and crack with time. if your plastic bit is cracked, you'll need to replace the springs, if you can find them. a whole new brake set should be cheap and easy to source though.
mack_turtle is offline
Old 11-24-20, 03:32 PM
  #5
daniell
Member
Thread Starter

Join Date: Sep 2006
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 7 Times in 4 Posts
Originally Posted by mack_turtle View Post
one or both of the sides of that brake should have a small screw with a philips head to adjust spring tension. on a lot of those older Shimano canti brakes, the spring is housed in a plastic sleeve and those sleeves get brittle and crack with time. if your plastic bit is cracked, you'll need to replace the springs, if you can find them. a whole new brake set should be cheap and easy to source though.
Believe me, I tried to improve matter by turning the screw. The spring is not broken. This is my third set of brakes with this problem. The rear wheel has the same problem.
daniell is offline
Old 11-24-20, 03:35 PM
  #6
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,400

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1249 Post(s)
Liked 439 Times in 343 Posts
Originally Posted by ClydeClydeson View Post
Make sure the axle is fully seated in the dropouts. It looks like the tire is not centred in the fork.........
Turn the bars more and it'll look like the tire is touching the fork.
You just can't tell unless it's a straight, head on shot.
Bill Kapaun is offline
Old 11-24-20, 03:58 PM
  #7
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO
Posts: 1,999

Bikes: 2016 Fuji Tread

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Liked 141 Times in 109 Posts
The brake shoe shown isn't installed correctly--the post should be perpendicular to the rim. The other side may not be symmetrical, and doesn't appear to be from what little shows in the photo. In fact, it looks like the left caliper is at a different angle to the wheel. I'd remove the brake shoes, get the calipers centered by adjusting spring tension as mentioned, then reinstall the shoes correctly and symmetrically.

The yoke angle looks a little high. See Sheldon Brown's article on cantilever geometry. A few millimeters makes a difference.
andrewclaus is offline
Likes For andrewclaus:
Old 11-24-20, 04:00 PM
  #8
daniell
Member
Thread Starter

Join Date: Sep 2006
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 7 Times in 4 Posts
Another View
daniell is offline
Old 11-24-20, 04:21 PM
  #9
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,879

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 1268 Post(s)
Liked 706 Times in 498 Posts
Ditch that hard-to-impossible to adjust link wire arrangement and use a straddle cable and cable carrier instead; I like the Problem Solvers Wide Cable Carrier but they seem to be getting hard to find. You balance the brakes by moving the straddle cable. You will need to have something to catch the straddle cable if the main brake cable comes loose, to avoid it catching in the tire, but that could be something like a reflector bracket or zip tie.
Extra points for installing a fork crown-mounted cable stop to get rid of the root cause of brake shudder.
dsbrantjr is offline
Old 11-24-20, 04:39 PM
  #10
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 23,586

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 119 Post(s)
Tagged: 1 Thread(s)
Quoted: 3897 Post(s)
Liked 1,327 Times in 820 Posts
Originally Posted by dsbrantjr View Post
Ditch that hard-to-impossible to adjust link wire arrangement and use a straddle cable and cable carrier instead; I like the Problem Solvers Wide Cable Carrier but they seem to be getting hard to find. You balance the brakes by moving the straddle cable. You will need to have something to catch the straddle cable if the main brake cable comes loose, to avoid it catching in the tire, but that could be something like a reflector bracket or zip tie.
Extra points for installing a fork crown-mounted cable stop to get rid of the root cause of brake shudder.
Yup. The Link Wire was another Shimano misstep. Why do we keep thinking that they are a great company?

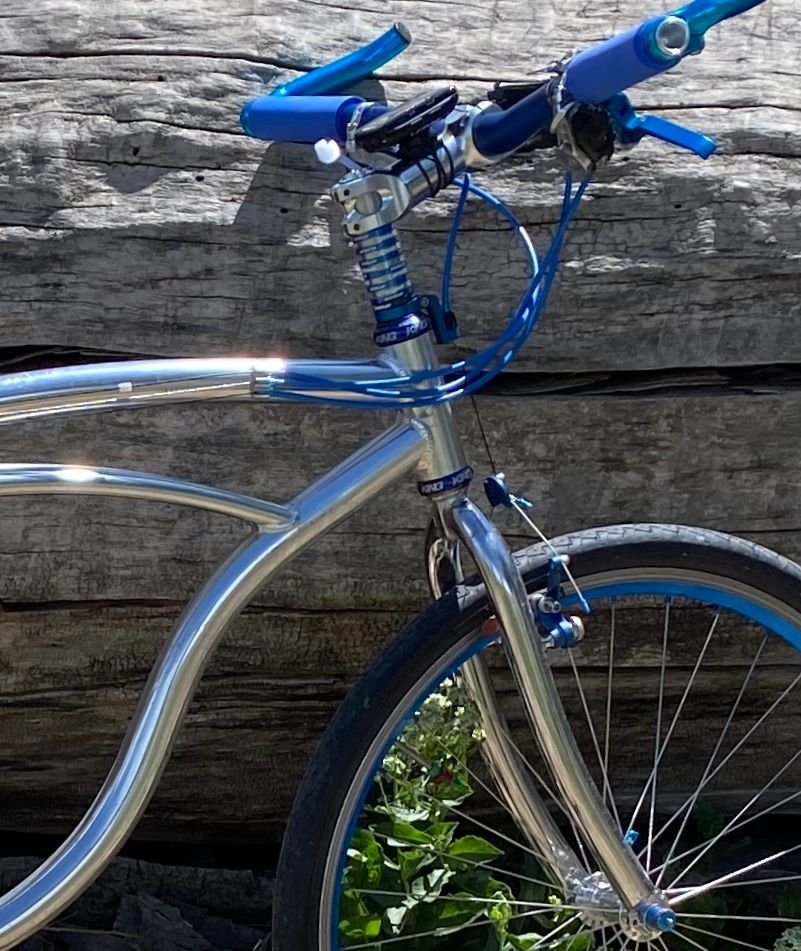

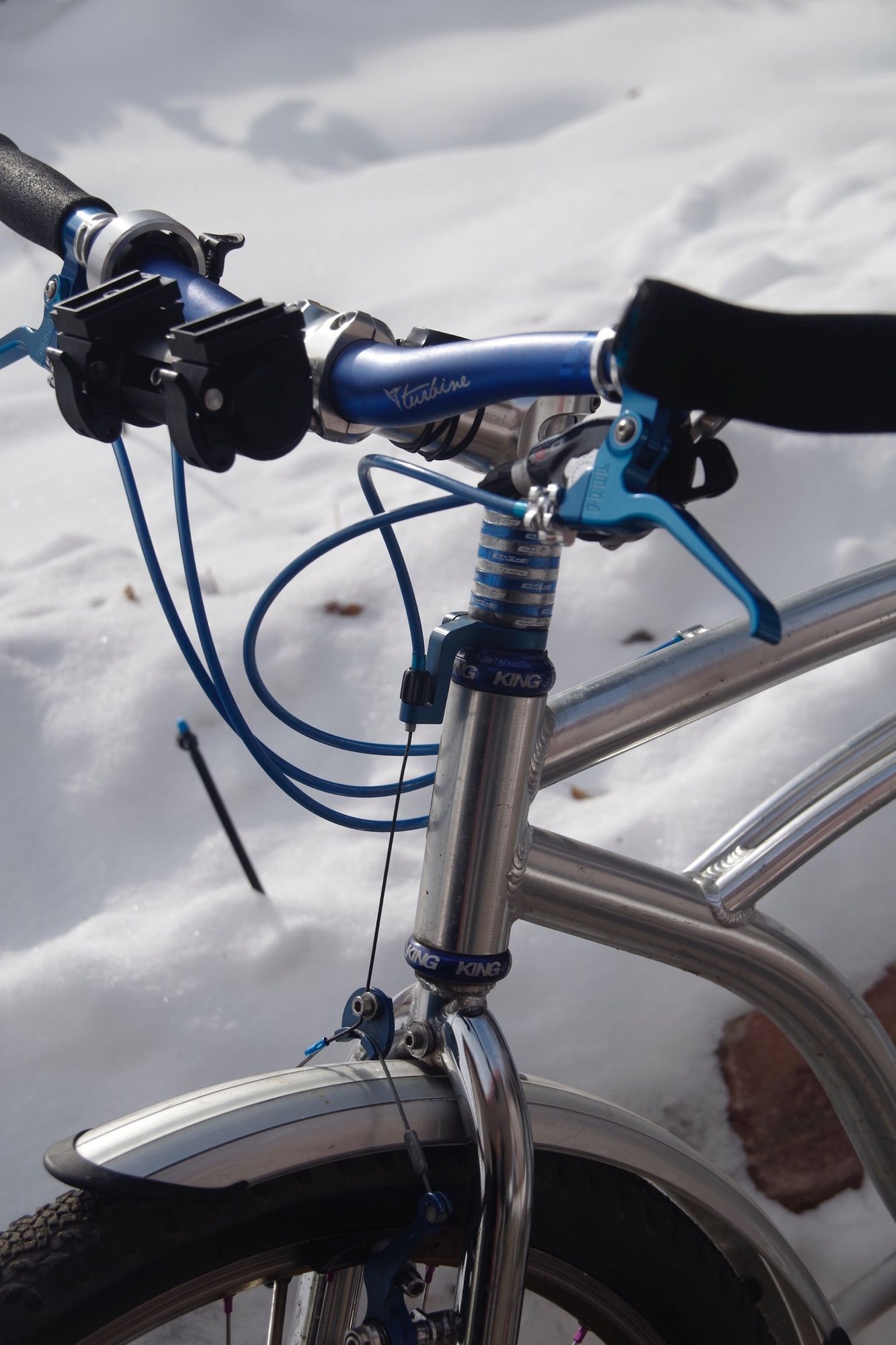

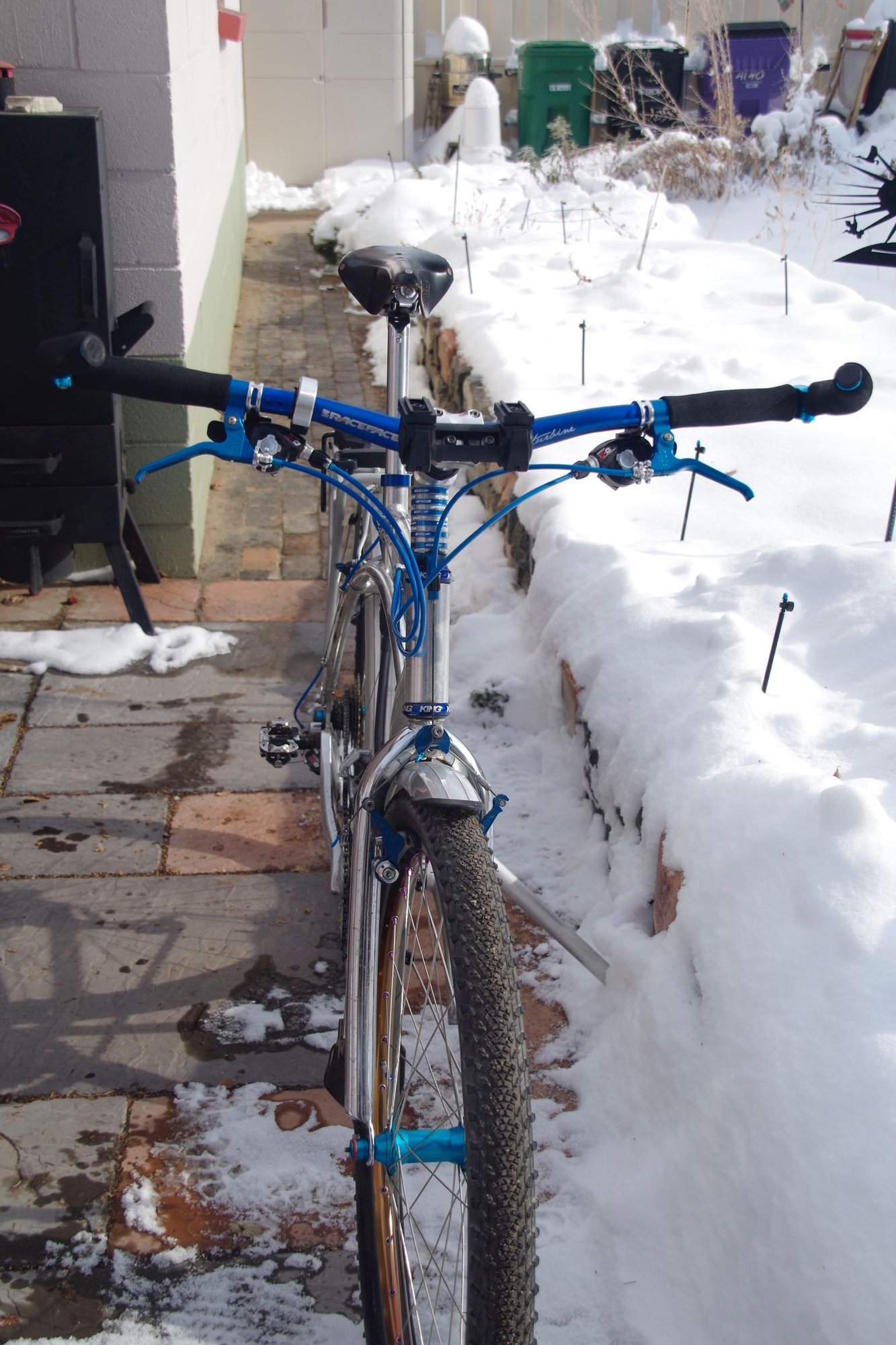

I prefer Paul Cantilevers and Moon Units but most people balk at the cost. Too bad, they are excellent brakes. But ditching the link wire will go a long way toward easier adjustment.


__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 11-24-20, 04:45 PM
  #11
daniell
Member
Thread Starter

Join Date: Sep 2006
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 7 Times in 4 Posts
Originally Posted by dsbrantjr View Post
Ditch that hard-to-impossible to adjust link wire arrangement and use a straddle cable and cable carrier instead; I like the Problem Solvers Wide Cable Carrier but they seem to be getting hard to find. You balance the brakes by moving the straddle cable. You will need to have something to catch the straddle cable if the main brake cable comes loose, to avoid it catching in the tire, but that could be something like a reflector bracket or zip tie.
Extra points for installing a fork crown-mounted cable stop to get rid of the root cause of brake shudder.
I was thinking of changing the cable but had one concern. If the main cable breaks, the wheel could lock up.
daniell is offline
Old 11-24-20, 04:57 PM
  #12
mack_turtle
n00b

Join Date: Jan 2008
Location: Austin, TX
Posts: 1,397

Bikes: Surly Karate Monkey, Twin Six Standard Rando

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 421 Post(s)
Liked 447 Times in 268 Posts

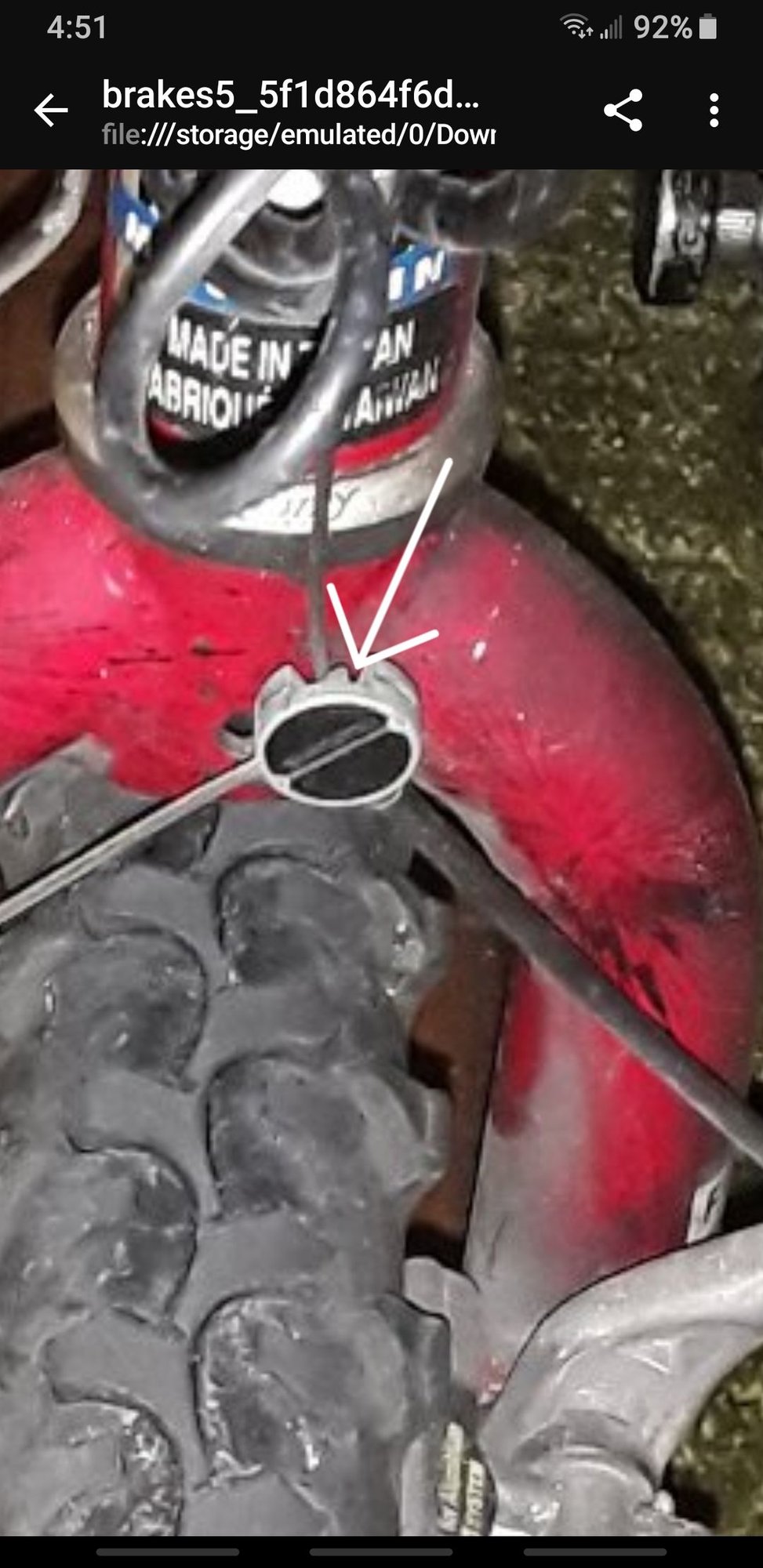

Part of your problem might be that the cable is not installed on the link wire correctly.

if several brakes do the same thing, the common denominator is: the mechanic. Look up BASIC instructions about how to adjust older canti brakes like that.
Is the housing on the right side of the brake (your right, while sitting on the bike) the EXACT same length as the fixed-lwngth end of the link wire?
mack_turtle is offline
Old 11-24-20, 05:07 PM
  #13
daniell
Member
Thread Starter

Join Date: Sep 2006
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 7 Times in 4 Posts
Originally Posted by mack_turtle View Post
Part of your problem might be that the cable is not installed on the link wire correctly.

if several brakes do the same thing, the common denominator is: the mechanic. Look up BASIC instructions about how to adjust older canti brakes like that.
Is the housing on the right side of the brake (your right, while sitting on the bike) the EXACT same length as the fixed-lwngth end of the link wire?
On my wife's bike I have no such problem. Also, I tried different positions in the yolk.
daniell is offline
Old 11-24-20, 05:44 PM
  #14
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,879

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 1268 Post(s)
Liked 706 Times in 498 Posts
Originally Posted by daniell View Post
I was thinking of changing the cable but had one concern. If the main cable breaks, the wheel could lock up.
Read my post: "You will need to have something to catch the straddle cable if the main brake cable comes loose, to avoid it catching in the tire, but that could be something like a reflector bracket or zip tie." Problem solved.
The link wire was a solution to a minor problem (straddle wire catching) which introduced other problems (crappy adjustability).
dsbrantjr is offline
Old 11-24-20, 07:09 PM
  #15
mack_turtle
n00b

Join Date: Jan 2008
Location: Austin, TX
Posts: 1,397

Bikes: Surly Karate Monkey, Twin Six Standard Rando

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 421 Post(s)
Liked 447 Times in 268 Posts
There are 100 reasons why the brake is off. I can see from your photo that the link wire is not attached correctly. I would start there.
your dropouts could be misaligned, the brake posts could be bent, wheel not centered in the dropouts, the axle is bent, the frame/fork out of alignment, etc. It sounds like this is beyond your powers and you need to spend a lot of time inspecting it or take it to a professional.

​​​​​​I've worked on HUNDREDS of older bikes with those exact same brakes and on almost every single one, the plastic sleeve that holds the spring in place was damaged from old age.
mack_turtle is offline
Likes For mack_turtle:
Old 11-24-20, 07:56 PM
  #16
Ross200
Member

Join Date: Feb 2019
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
The link wires come in several different lengths. The right length and the proper color coded Shimano setup tool generally gets you close in a short time unless there are problems not related to the brake itself.
Ross200 is offline
Old 11-24-20, 10:24 PM
  #17
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 23,586

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 119 Post(s)
Tagged: 1 Thread(s)
Quoted: 3897 Post(s)
Liked 1,327 Times in 820 Posts
Originally Posted by daniell View Post
I was thinking of changing the cable but had one concern. If the main cable breaks, the wheel could lock up.
Iíve used cantilever brakes with straddle cables since I bought a Miyata touring bike in 1983. Iíve used them on mountain bikes since I started doing that in 1984. Iíve even had them on shocks. I have had at least one cantilever bike in my stable since then and often many more...I currently have 3 of them. Iíve ridden thousands, no, tens of thousands of miles on with cantilever brakes and Iíve never had the main cable break. I havenít heard of a single person ever having one fail. Iím sure someone will come along with a tale of woe but itís a very rare occurrence. If you are worried about it, you can mount a reflector on the fork that will catch the staddle cable if it ever does fail.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 11-25-20, 05:03 AM
  #18
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,416
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 988 Post(s)
Liked 173 Times in 131 Posts
Originally Posted by daniell View Post
Another View
Well, for starters, your left brake pad shows a lot more exposed post than the right one.
dabac is offline
Old 11-25-20, 05:12 AM
  #19
daniell
Member
Thread Starter

Join Date: Sep 2006
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 7 Times in 4 Posts
Originally Posted by dsbrantjr View Post
Read my post: "You will need to have something to catch the straddle cable if the main brake cable comes loose, to avoid it catching in the tire, but that could be something like a reflector bracket or zip tie." Problem solved.
The link wire was a solution to a minor problem (straddle wire catching) which introduced other problems (crappy adjustability).
Please explain how I would use a zip tie.
Thanks
daniell is offline
Old 11-25-20, 05:12 AM
  #20
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,416
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 988 Post(s)
Liked 173 Times in 131 Posts
Originally Posted by daniell View Post
For decades I have not been able to balance the brakes. This is my third set of brakes. I have tried everything that I can think of. The cable does not pull in a straight line. Why, I don't know. Perhaps the frame is out of alignment.
While aestethically annoying, as long as both pads clear the rim when the brake isnít engaged, this is not a functional problem.
Pinch force will be automatically distributed evenly between sides when the brakes are engaged anyhow.
The return springs are fairly weak. I generally unhook cable, lube brake bosses etc generously and make sure both arms are moving freely before trying anything else.
Unless there is something blindingly obvious going on.
dabac is offline
Old 11-25-20, 05:26 AM
  #21
Geepig
Senior Member

Geepig's Avatar

Join Date: Sep 2020
Location: Eastern Poland
Posts: 416

Bikes: Romet Jubilat x 5

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 110 Post(s)
Liked 94 Times in 75 Posts
I have used a super short fender/mudguard as a cable catcher.
Geepig is offline
Old 11-25-20, 05:38 AM
  #22
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,879

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 1268 Post(s)
Liked 706 Times in 498 Posts
Originally Posted by daniell View Post
Please explain how I would use a zip tie.
Thanks
I loop a zip tie around my fork-mounted cable hanger and make it long enough for the brakes to function properly but short enough to keep the cable from fouling the tire. You could use a loop of string of appropriate length going around a stem- or headset-mounted hanger and the cable.
dsbrantjr is offline
Old 11-25-20, 09:20 AM
  #23
daniell
Member
Thread Starter

Join Date: Sep 2006
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 7 Times in 4 Posts
Originally Posted by dabac View Post
While aestethically annoying, as long as both pads clear the rim when the brake isnít engaged, this is not a functional problem.
Pinch force will be automatically distributed evenly between sides when the brakes are engaged anyhow.
The return springs are fairly weak. I generally unhook cable, lube brake bosses etc generously and make sure both arms are moving freely before trying anything else.
Unless there is something blindingly obvious going on.
I must admit that I never had a problem stopping.
daniell is offline
Old 12-01-20, 12:58 PM
  #24
daniell
Member
Thread Starter

Join Date: Sep 2006
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 7 Times in 4 Posts
I just measured the alignment of the frame. I put a string around the head tube and attached to the dropouts. There was about 3/4 cm of difference between the sides. Is this significant? Can this be affecting my inability to balance the brakes?
daniell is offline
Old 12-01-20, 01:14 PM
  #25
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,416
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 988 Post(s)
Liked 173 Times in 131 Posts
Originally Posted by daniell View Post
I just measured the alignment of the frame. I put a string around the head tube and attached to the dropouts. There was about 3/4 cm of difference between the sides. Is this significant? Can this be affecting my inability to balance the brakes?
If the frame isnít symmetrical, itíll be impossible to set the brakes symmetrically as well.
But you should still be able to set the brakes where you want them:
dabac is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
