Vintage Super Record Front Derailleur - Can I Replace clamp?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Vintage Super Record Front Derailleur - Can I Replace clamp?

Old 11-25-20, 12:28 AM
  #1
ChicagoWandrer
Junior Member
Thread Starter

Join Date: Nov 2020
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 5 Times in 4 Posts
Vintage Super Record Front Derailleur - Can I Replace clamp?

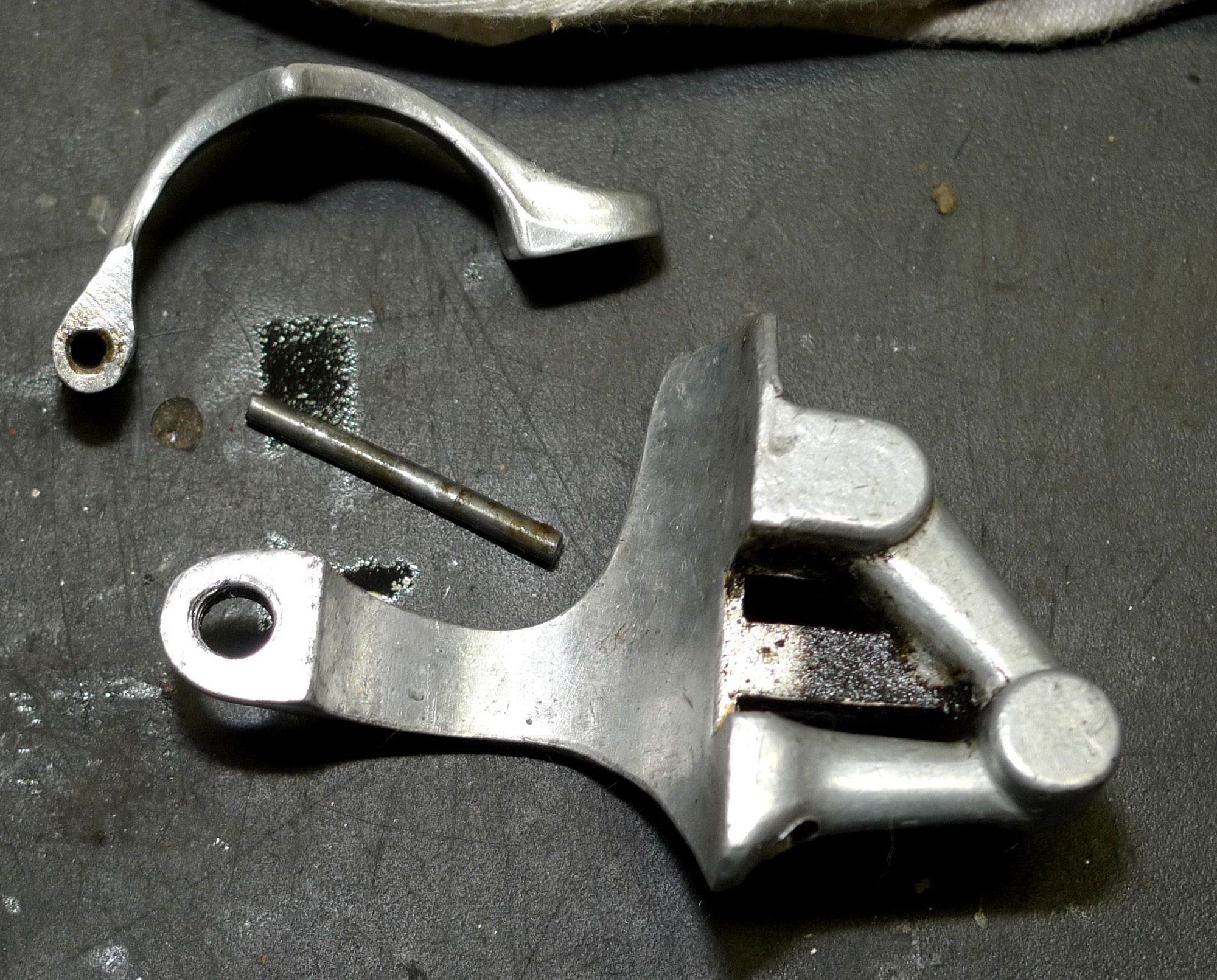

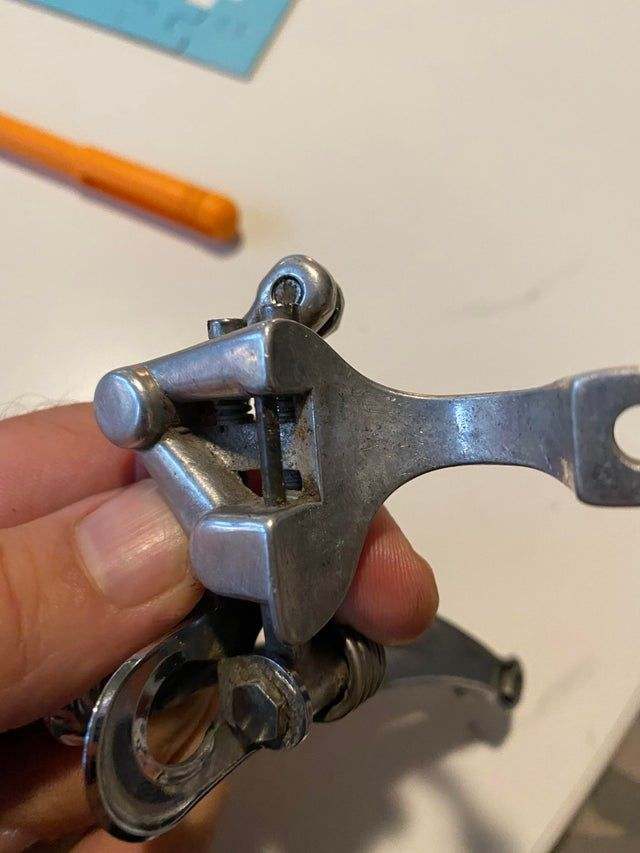

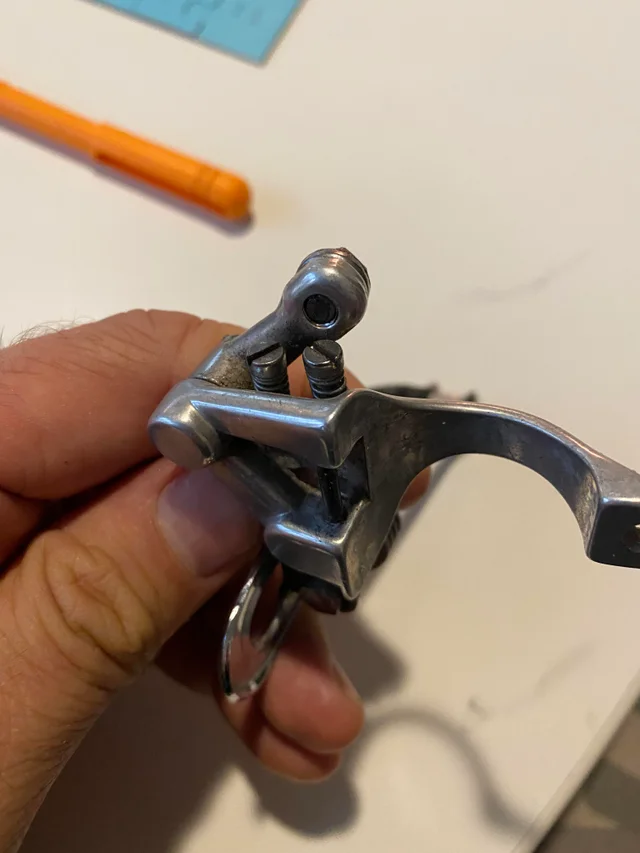

My front clamp broke when something got wedged between my crank and seat tube. Looking to swap in the replacement clamp show on the left. Note the closed end--I need to get this around the pin on the main piece.
Is this possible? Any campy enthusiasts on here know how I could loose this pin to get the clamp in place?




ChicagoWandrer is offline
Old 11-25-20, 05:14 AM
  #2
Geepig
Senior Member

Geepig's Avatar

Join Date: Sep 2020
Location: Eastern Poland
Posts: 628

Bikes: Romet Jubilat x 4, Wigry x 1, Turing x 1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 172 Post(s)
Liked 149 Times in 116 Posts
You have a nice little task there. There are several routes to go, but first one has to push back or grind away where the casting has been punched to retain the pin. How tight is the pin? My feeling is that unless the pin is a slide fit or you have some experience with these things or are willing to waste the clamp, then it might be better to find someone who works in an engineering shop.
Geepig is offline
Old 11-25-20, 05:44 AM
  #3
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,055

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1332 Post(s)
Liked 821 Times in 574 Posts
Originally Posted by Geepig View Post
You have a nice little task there. There are several routes to go, but first one has to push back or grind away where the casting has been punched to retain the pin. How tight is the pin? My feeling is that unless the pin is a slide fit or you have some experience with these things or are willing to waste the clamp, then it might be better to find someone who works in an engineering shop.

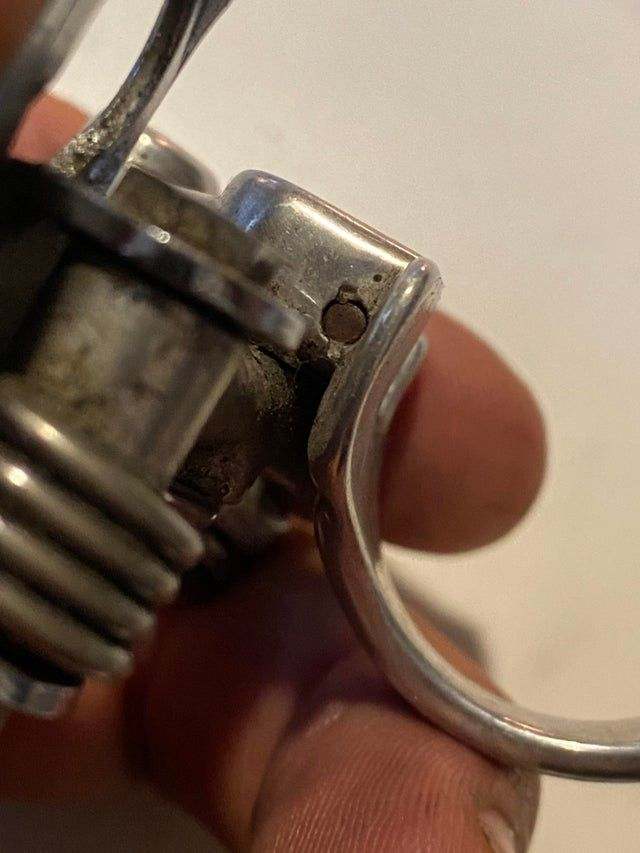

Check the other end of the pin from the staked end. If it is a through hole you have a chance of driving out the pin. If it is a blind hole you are probably screwed.
dsbrantjr is online now
Old 11-25-20, 10:19 AM
  #4
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 2,455

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 795 Post(s)
Liked 573 Times in 341 Posts
Looks like a blind hole - bummer. Perhaps you could free-up the staking by prudent dremeling and then clamp some thin vise-grips to the exposed center and try to wrestle it out. You'd probably muck up the pin so be prepared to find a replacement. I usually enjoy challenges; however I'd probably just sell (keep?) this one for parts.

Good luck. If you have a go at it, please post the outcome.
Moe Zhoost is offline
Old 11-25-20, 04:53 PM
  #5
mpetry912
aged to perfection

mpetry912's Avatar

Join Date: Jun 2009
Location: PacNW
Posts: 469

Bikes: Dinucci Allez 2.0, Richard Sachs, Alex Singer, Serotta, Masi GC, Raleigh Pro Mk.1, Hetchins, etc

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 204 Post(s)
Liked 130 Times in 97 Posts
I've done this repair. yes, some have a blind hole. I have a clamp band as a replacement, or you can buy a complete replacement body on ebay for 25 bucks and swap the arms over.

About a 10 minute fix.

Mark Petry
Bainbridge Island, WA
mpetry912 is offline
Old 11-25-20, 10:26 PM
  #6
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,544
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 676 Post(s)
Liked 314 Times in 208 Posts
As Mark says: once you have the part it's a pretty simple job. This thread goes into detail:
Changing Spring On Campagnolo Nuovo Record F Derailleur?
