Want to replace centering adjustment screws on Dura Ace BR-7403 brakes

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Want to replace centering adjustment screws on Dura Ace BR-7403 brakes

Old 11-29-20, 12:53 PM
  #1
johnlink
Senior Member
Thread Starter

Join Date: May 2010
Location: New York, NY
Posts: 294

Bikes: 1988 Centurion Ironman

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 6 Times in 5 Posts
Want to replace centering adjustment screws on Dura Ace BR-7403 brakes

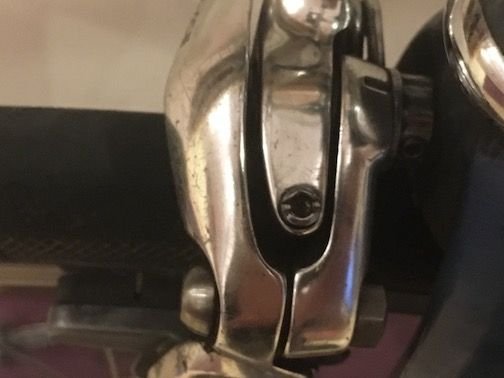

The attached pdf files shows the centering adjustment screws on Dura Ace BR-7403 brakes as Phillips head, but mine are straight. The screws in both the front and rear brakes are tight and the screwdriver tends to slip out of the slot, damaging it. I'd like to replace the centering adjustment screws with Phillips head screws or, even better, with socket head cap screws. One of the attached pdf files says the screws are M4 x 11.7. Is there any reason why the screws at https://www.ebay.com/itm/Genuine-Shi...EAAOSwZ2tcLH41 wouldn't work as replacements?


Attached Files
File Type: pdf
BR-7403 Instructions.pdf (126.0 KB, 1 views)
File Type: pdf
BR-7403.pdf (109.7 KB, 3 views)
johnlink is offline
Old 11-29-20, 01:01 PM
  #2
mpetry912
aged to perfection

mpetry912's Avatar

Join Date: Jun 2009
Location: PacNW
Posts: 469

Bikes: Dinucci Allez 2.0, Richard Sachs, Alex Singer, Serotta, Masi GC, Raleigh Pro Mk.1, Hetchins, etc

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 204 Post(s)
Liked 130 Times in 97 Posts
might work. all you can do is try them.

if you have problems with "phillips head screws slipping" consider going to 1/4 hex bits with accurately shaped Phillips drivers. I like the Wera items available on ebay. you can get hex and Torx drivers as well.

A really good Phillips screwdriver, like a Snap On, is OK when new. The one you pull out of the bargain bin at ace hardware will destroy fasteners from the start.

The shimano screws in particular seem very soft. A good "bit" fits correctly and will not slip and round out the screw head.

Mark Petry
Bainbridge Island, WA


Last edited by mpetry912; 11-29-20 at 01:05 PM.
mpetry912 is offline
Old 11-29-20, 01:06 PM
  #3
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,656

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1336 Post(s)
Liked 553 Times in 418 Posts
A genuine JIS screwdriver fits much better-
https://www.parktool.com/product/der...ewdriver-dsd-2
Bill Kapaun is offline
Old 11-29-20, 01:08 PM
  #4
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,051

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1331 Post(s)
Liked 816 Times in 571 Posts
Shimano screws are likely JIS drive, not Phillips. JIS drivers will probably fit the recesses properly. Having said that I prefer socket drive over Phillips. M4 x 12 should fit OK, if not it would be easy to grind off the slight extra length.
https://en.wikipedia.org/wiki/List_o...rives#Phillips
https://en.wikipedia.org/wiki/List_o...ves#JIS_B_1012
dsbrantjr is online now
Old 11-29-20, 01:14 PM
  #5
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,677

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1612 Post(s)
Liked 1,213 Times in 801 Posts
Originally Posted by johnlink View Post
. I'd like to replace the centering adjustment screws with Phillips head screws or, even better, with socket head cap screws. One of the attached pdf files says the screws are M4 x 11.7.

I personally would just run down to my Ace or Tru Value hardware store with one of them and match it up with a SS socket head they have for like $1
dedhed is offline
Likes For dedhed:
Old 11-29-20, 01:34 PM
  #6
onsay99
Senior Member

onsay99's Avatar

Join Date: Mar 2020
Location: Mid Atlantic, Nawf Cackalaky, Rawlywood
Posts: 60

Bikes: 3 road steelys, 3 alu, 1 mtb, 1cx

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Likes: 0
Liked 13 Times in 9 Posts
Try using a 2.5 or 3mm hex wrench in the existing bolts on your brake adjuster bolts.
Some of the dura ace brakes used a combination JIS and hex bolt. Assuming the bolt
is not seized in place, it should turn with a hex wrench.
onsay99 is offline
Old 11-29-20, 01:39 PM
  #7
johnlink
Senior Member
Thread Starter

Join Date: May 2010
Location: New York, NY
Posts: 294

Bikes: 1988 Centurion Ironman

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 6 Times in 5 Posts
I think these will work, although I'd rather have a socket head as long as the screw was stainless steel. I just bought the 2-pack which cost me $1.25.
https://www.homedepot.com/p/M4-0-7-x...1058/204225839

Last edited by johnlink; 11-29-20 at 01:54 PM.
johnlink is offline
Old 11-29-20, 01:40 PM
  #8
johnlink
Senior Member
Thread Starter

Join Date: May 2010
Location: New York, NY
Posts: 294

Bikes: 1988 Centurion Ironman

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 6 Times in 5 Posts
Originally Posted by onsay99 View Post
Try using a 2.5 or 3mm hex wrench in the existing bolts on your brake adjuster bolts.
Some of the dura ace brakes used a combination JIS and hex bolt. Assuming the bolt
is not seized in place, it should turn with a hex wrench.
Neither the front nor the rear bolt is seized but no hex driver works.
johnlink is offline
Old 11-29-20, 03:25 PM
  #9
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,918

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2924 Post(s)
Liked 1,192 Times in 840 Posts
On the vast majority of the dual pivot calipers I see I don't touch these "centering" screws at all, unless the caliper is already set up really off center. Then I generally just set the screw so that the two sides/arms/pads are symmetrical. To center the caliper/pads I just turn the caliper backing plate (and the mounting bolt) on the frame. Andy
__________________
AndrewRStewart
Andrew R Stewart is online now
Old 11-29-20, 03:50 PM
  #10
johnlink
Senior Member
Thread Starter

Join Date: May 2010
Location: New York, NY
Posts: 294

Bikes: 1988 Centurion Ironman

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 6 Times in 5 Posts
Originally Posted by Andrew R Stewart View Post
On the vast majority of the dual pivot calipers I see I don't touch these "centering" screws at all, unless the caliper is already set up really off center. Then I generally just set the screw so that the two sides/arms/pads are symmetrical. To center the caliper/pads I just turn the caliper backing plate (and the mounting bolt) on the frame. Andy
That's the same thing I've always done, both with my 7403 brakes and previously with my 7402 brakes, but now that I have centering screws on the 7403 brakes I'd like to be able to use them.
johnlink is offline
Old 11-30-20, 03:13 AM
  #11
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 576

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 81 Times in 60 Posts
Originally Posted by johnlink View Post
I think these will work, although I'd rather have a socket head as long as the screw was stainless steel. I just bought the 2-pack which cost me $1.25.
https://www.homedepot.com/p/M4-0-7-x...1058/204225839
How about a hex head version
Hex Head cap Screws Metric

Or this Metric set screw with internal hex
Set Screw Metric M4
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com





Last edited by JoeTBM; 11-30-20 at 03:17 AM.
JoeTBM is offline
Old 11-30-20, 10:03 AM
  #12
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 32,795

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 1645 Post(s)
Likes: 0
Liked 500 Times in 377 Posts
Originally Posted by Andrew R Stewart View Post
On the vast majority of the dual pivot calipers I see I don't touch these "centering" screws at all, unless the caliper is already set up really off center. Then I generally just set the screw so that the two sides/arms/pads are symmetrical. To center the caliper/pads I just turn the caliper backing plate (and the mounting bolt) on the frame. Andy
+1. I have various Shimano dual pivot brakes, including Dura Ace BR-7700, on three bikes and have NEVER touched the centering screws. I center the brakes after removal or pad changes as Andy describes, just pivot them around the mounting bolt and hold them in position by hand while tightening the bolt. Dual pivots don't require the tricky centering procedure that old single pivots did.
HillRider is offline
