Getting more height out of short steerer

Not having any luck finding a thread on this so I知 hoping ya値l know...

Picked up this vintage 1994 Specialized Stumpjumper FSR that I壇 like to convert to gravel drop bar. The current cockpit is long and slammed. The specialized fork uses a starnut. Would it be possible to remove the starnut and use a threadless stem adaptor (like one to replace a quill stem) to get some height out of the steerer? I plan to use a short stem with a steep angle and some high riser drop bars but hoping I can eke out more cm

from the steerer too. TIA
Wilbur76 is offline
Old 11-30-20, 02:59 AM
  #2
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 840

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 262 Post(s)
Liked 189 Times in 136 Posts
If you are just looking for extra height, how about something like this

__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is offline
Old 11-30-20, 04:10 AM
  #3
dsaul
Senior Member

Join Date: Jan 2013
Location: South Jersey
Posts: 2,147
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 668 Post(s)
Liked 653 Times in 402 Posts
They make threadless stem extenders that clamp on just like a threadless stem. https://www.amazon.com/Delta-Cycle-B.../dp/B000FHBED0
dsaul is offline
Old 11-30-20, 04:52 AM
  #4
Pop N Wood
Senior Member

Join Date: Jun 2020
Location: Maryland
Posts: 1,163

Bikes: 1982 Bianchi Sport SX, Rayleigh Tamland 1, Rans V-Rex recumbent, Fuji MTB, 80's Cannondale MTB with BBSHD ebike motor

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 552 Post(s)
Liked 439 Times in 290 Posts
I have the stem extender dsaul linked on one of my bikes. Looks truly stupid but works quite well.

Leaves the starnut where it is. From the height of your saddle you might want the longer version that same company makes.
Pop N Wood is offline
Likes For Pop N Wood:
Old 11-30-20, 08:30 AM
  #5
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,558
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 814 Post(s)
Liked 980 Times in 586 Posts
I've used one that I thought worked excellent it was branded Satori. It has a cylindrical clamp. If I can find it I'll snap a picture of it. I've used the Delta product also, I feel the style of the Satori is a better looking piece. I like how the Satori comes with spacers.
Mr. 66 is offline
Old 11-30-20, 08:54 AM
  #6
DorkDisk
Senior Member

Join Date: May 2013
Location: Kips Bay, NY
Posts: 2,096

Bikes: Ritchey Swiss Cross | Teesdale Kona Hot | Haro Extreme | Specialized Stumpjumper Comp | Cannondale F1000 | Shogun 1000 | Cannondale M500 | Norco Charger | Marin Muirwoods 29er | Shogun Kaze | Breezer Lightning

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 531 Post(s)
Liked 817 Times in 423 Posts
Another option is a weird stem, like the Happy Stem or Cigne stem from Velo Orange

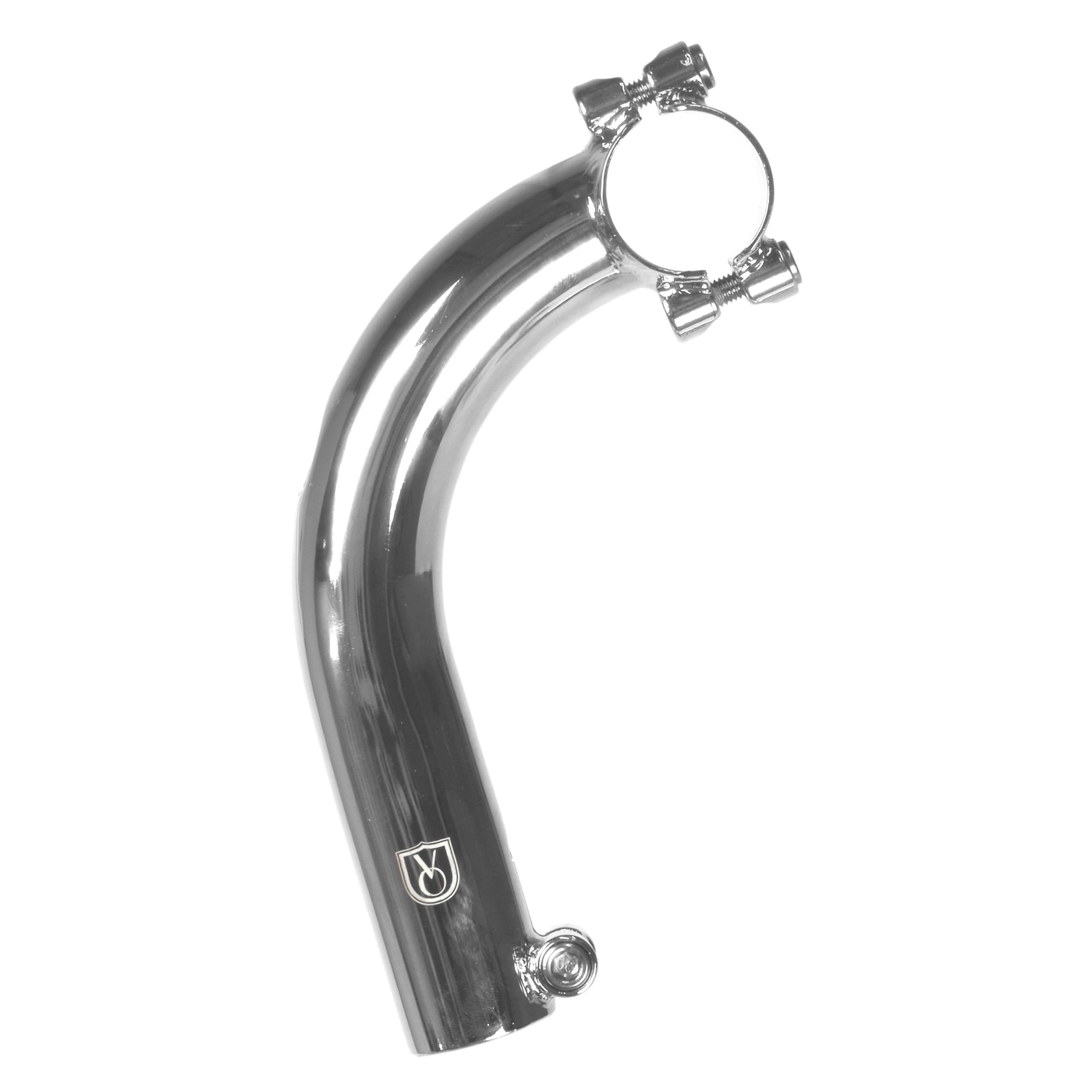

Cigne Stem

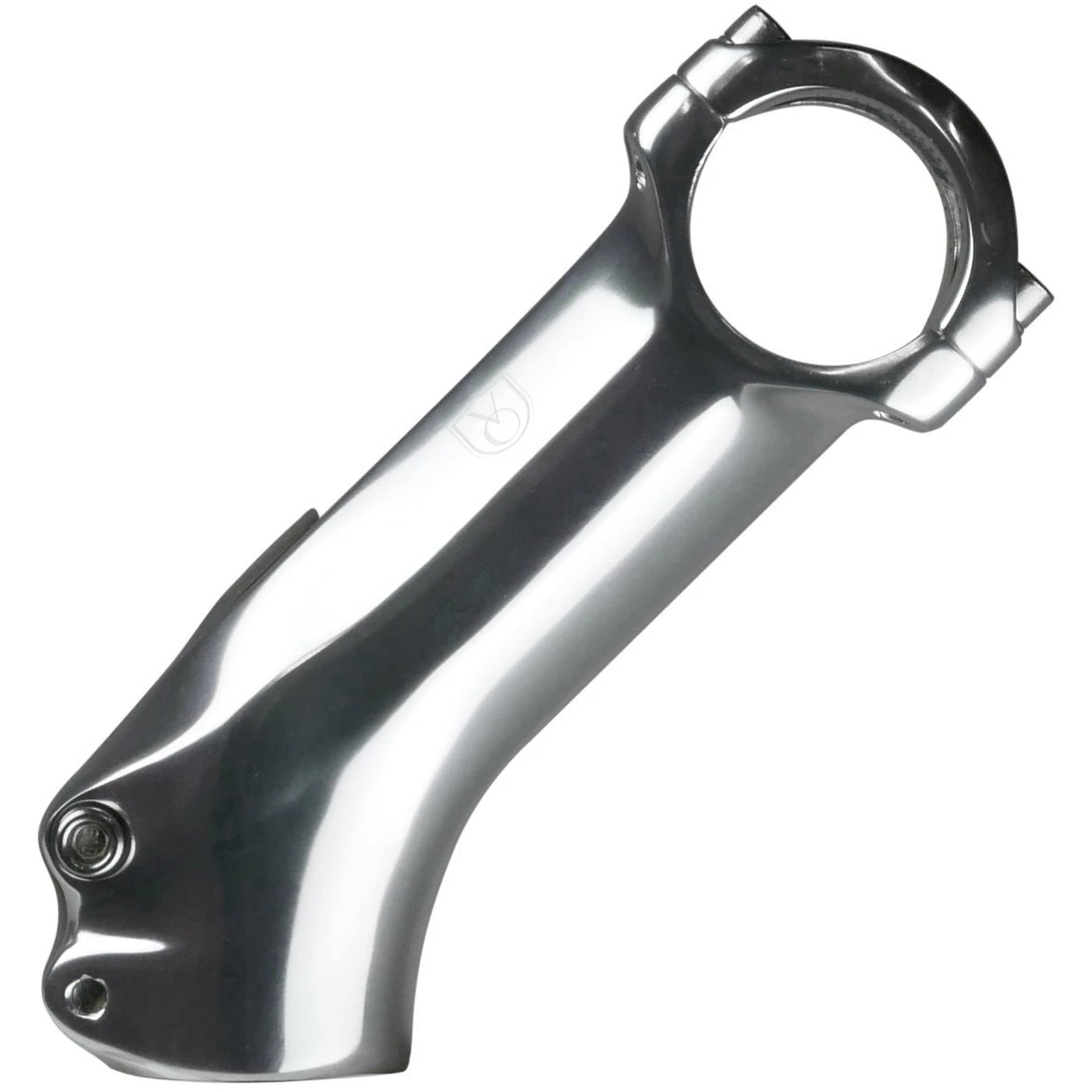

Happy Stem

Last edited by DorkDisk; 11-30-20 at 09:04 AM. Reason: Edit: You could also swap the steerer/crown assembly for one with a longer steerer
DorkDisk is offline
Likes For DorkDisk:
Old 11-30-20, 09:08 AM
  #7
mack_turtle
n00b

Join Date: Jan 2008
Location: Austin, TX
Posts: 1,398

Bikes: Surly Karate Monkey, Twin Six Standard Rando

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 427 Post(s)
Liked 466 Times in 273 Posts
there are a few handlebars on the market that have some rise to them: Specialized Hover, Surly Truck Stop, Soma Condor, etc.

I'd make sure the rear suspension works and has replacement parts available before you sink too much money into that bike. does that fork still work? it's likely that you can find parts for the fork at Suspension Fork Parts.
mack_turtle is offline
Old 09-21-22, 01:32 AM
  #8
WOTWU
Newbie

WOTWU's Avatar

Join Date: May 2020
Location: CA
Posts: 21

Bikes: Trek 400 Elance, Schwinn Breeze, Bridgestone MB-4

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by Wilbur76 View Post
Not having any luck finding a thread on this so I知 hoping ya値l know...

Picked up this vintage 1994 Specialized Stumpjumper FSR that I壇 like to convert to gravel drop bar. The current cockpit is long and slammed. The specialized fork uses a starnut. Would it be possible to remove the starnut and use a threadless stem adaptor (like one to replace a quill stem) to get some height out of the steerer? I plan to use a short stem with a steep angle and some high riser drop bars but hoping I can eke out more cm

from the steerer too. TIA
I'm having a similar issue on a fixed gear I bought used. The previous owner cut the fork down to a nub and I have very little steerer to work with. I bought a high rise stem like one of the above but the stem cap bolt doesn't reach the fork. Are there longer bolts available? I'm talking millimeters before it reaches the receiving threads.
WOTWU is offline
Old 09-21-22, 07:25 AM
  #9
bikebikebike
Senior Member

Join Date: Jul 2006
Location: TX
Posts: 504

Bikes: Downtube IX NS&FS, Dahon Speed8Pro/Matrix/Curve, Brom S2L,Montague Para, ICE-XL w/Rollie/Schlumpf, Trident Spike, ebikes, BFSatRDay

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 168 Post(s)
Liked 91 Times in 77 Posts
@ WOTWU
Do you just need a longer cap bolt?
They can be had.
Or drive out the "starnut" and put one in higher.
They are just tensioners, so they don't need to be driven in far
https://www.sheldonbrown.com/gloss_st-z.html#starnut
https://www.sheldonbrown.com/headsets.html
bikebikebike is offline
Likes For bikebikebike:
Old 09-21-22, 08:15 PM
  #10
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,791

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 297 Post(s)
Liked 241 Times in 184 Posts
I had to work on a bike with a Cigne Stem. The owner was having trouble keeping it attached to the fork. That is one you definitely do not want.

Clamp on risers are OK for casual use. If you're pulling hard, I recommend a standard road stem with a 30-degree rise, like this one from Ritchey Logic. https://ritcheylogic.com/bike/stems/...-axis-30d-stem
oldbobcat is offline
Old 09-23-22, 09:55 PM
  #11
WOTWU
Newbie

WOTWU's Avatar

Join Date: May 2020
Location: CA
Posts: 21

Bikes: Trek 400 Elance, Schwinn Breeze, Bridgestone MB-4

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by bikebikebike View Post
@ WOTWU
Do you just need a longer cap bolt?
They can be had.
Or drive out the "starnut" and put one in higher.
They are just tensioners, so they don't need to be driven in far
https://www.sheldonbrown.com/gloss_st-z.html#starnut
https://www.sheldonbrown.com/headsets.html
I considered stacking a starnut but luckily found a longer bolt at the hardware store. Crisis averted
WOTWU is offline
Likes For WOTWU:
Old 09-25-22, 01:53 PM
  #12
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,558
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 814 Post(s)
Liked 980 Times in 586 Posts
The Satori, here it is on the Rocky Mountain Sherpa 30
Mr. 66 is offline
Old 09-25-22, 03:19 PM
  #13
Schlafen
Full Member

Schlafen's Avatar

Join Date: Apr 2020
Posts: 232
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Liked 72 Times in 46 Posts
Originally Posted by Wilbur76 View Post
Not having any luck finding a thread on this so I知 hoping ya値l know...

Picked up this vintage 1994 Specialized Stumpjumper FSR that I壇 like to convert to gravel drop bar. The current cockpit is long and slammed. The specialized fork uses a starnut. Would it be possible to remove the starnut and use a threadless stem adaptor (like one to replace a quill stem) to get some height out of the steerer? I plan to use a short stem with a steep angle and some high riser drop bars but hoping I can eke out more cm

from the steerer too. TIA
check if it's a pressed in stem as these can be replaced. They can be replaced anyway by any frame builder or a machine shop and it's usually inexpensive.
Schlafen is offline
Old 10-01-22, 07:10 AM
  #14
fishboat
Senior Member

Join Date: Feb 2016
Location: SE Wisconsin
Posts: 1,647

Bikes: Lemond '01 Maillot Jaune, Lemond '02 Victoire, Lemond '03 Poprad, Lemond '03 Wayzata DB conv(Poprad), '79 AcerMex Windsor Carrera Professional(pur new), '88 GT Tequesta(pur new), '01 Bianchi Grizzly, 1993 Trek 970 DB conv, Trek 8900 DB conv

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 633 Post(s)
Likes: 0
Liked 644 Times in 369 Posts
Originally Posted by oldbobcat View Post
I had to work on a bike with a Cigne Stem. The owner was having trouble keeping it attached to the fork. That is one you definitely do not want.
Not sure what this refers to or what the actual problem is, but I run a Cigne stem on a a bike that has a couple thousand miles on it since I put the stem on. I haven't had any issues at all. Seems to work fine and looks nice. What exactly is/was the issue?
fishboat is online now
Old 10-01-22, 09:18 AM
  #15
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,791

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 297 Post(s)
Liked 241 Times in 184 Posts
Originally Posted by fishboat View Post
Not sure what this refers to or what the actual problem is, but I run a Cigne stem on a a bike that has a couple thousand miles on it since I put the stem on. I haven't had any issues at all. Seems to work fine and looks nice. What exactly is/was the issue?
The stem came with a sort of semi-recumbent cruiser the guy ordered on Amazon. He couldn't get it positively attached to the fork's steerer, and neither could we. It would wobble back and forth and twist on the end of the steerer. We ordered him an inexpensive forged stem that solved the problem. It appeared to us that the single clamp bolt on a split tube holds fine on a kid's Strider, but there wasn't enough friction and overlap to keep it solidly attached to an adult bike. Maybe it would have worked if the steerer extended farther into the stem, but it wasn't long enough.

Last edited by oldbobcat; 10-01-22 at 09:24 AM.
