Shimano carbon rim clean coat bubbling up around nipples.

Old 12-07-20, 01:29 PM
  #1
purdyd
Junior Member
Thread Starter

Join Date: Jan 2010
Posts: 23
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 0 Times in 0 Posts
Shimano carbon rim clear coat bubbling up around nipples.

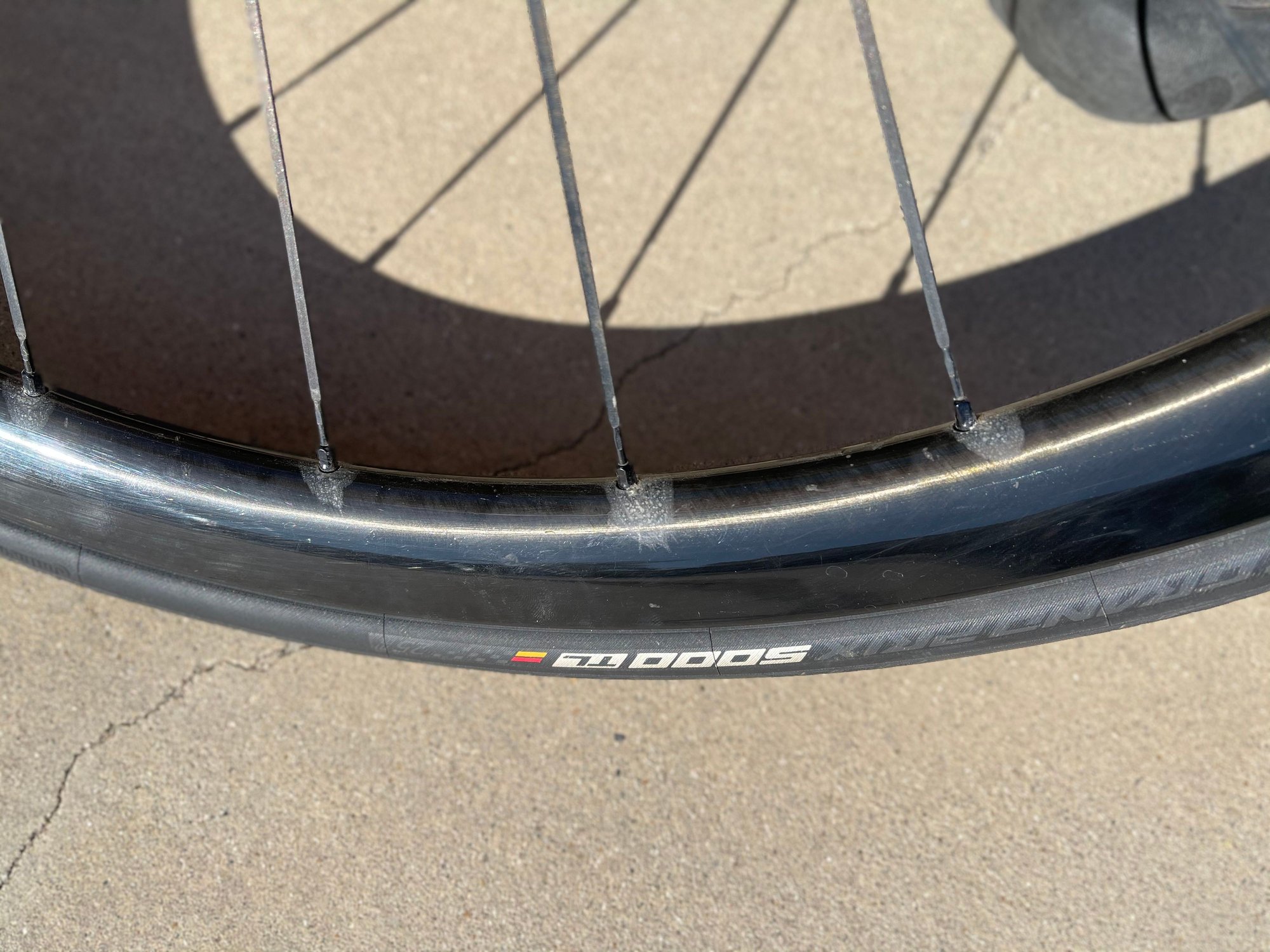

I have a set of shimano wh r9170 c40 to r12 rims.

and the clear coat is coming off around the nipples.

this is actually the second set this has happened to me on.

I believe it is related to braking because I babied this set along for a year and after a technical descent with hard braking I noticed it started.

it is now quite severe looking. Worse on the front wheel than the back.

anyone seen something like this?





Last edited by purdyd; 12-07-20 at 01:39 PM.
purdyd is offline
Old 12-07-20, 04:38 PM
  #2
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,619

Bikes: Schwinn Varsity

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1768 Post(s)
Liked 531 Times in 314 Posts
What is the spoke tension?
trailangel is offline
Old 12-07-20, 06:17 PM
  #3
purdyd
Junior Member
Thread Starter

Join Date: Jan 2010
Posts: 23
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 0 Times in 0 Posts
Good question Iíve never adjusted the spokes as their has never been any need. They are disc brake wheels and they have always seemed true so spoke tension is straight from the factory.
purdyd is offline
Old 12-07-20, 10:03 PM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,939

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2927 Post(s)
Liked 1,209 Times in 849 Posts
This looks much like the typical carbon frame joint/"braze on" bonding problem that plagued early carbon frames. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 12-07-20, 11:06 PM
  #5
purdyd
Junior Member
Thread Starter

Join Date: Jan 2010
Posts: 23
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by Andrew R Stewart View Post
This looks much like the typical carbon frame joint/"braze on" bonding problem that plagued early carbon frames. Andy
Iím not sure what that means or how it applies to this.

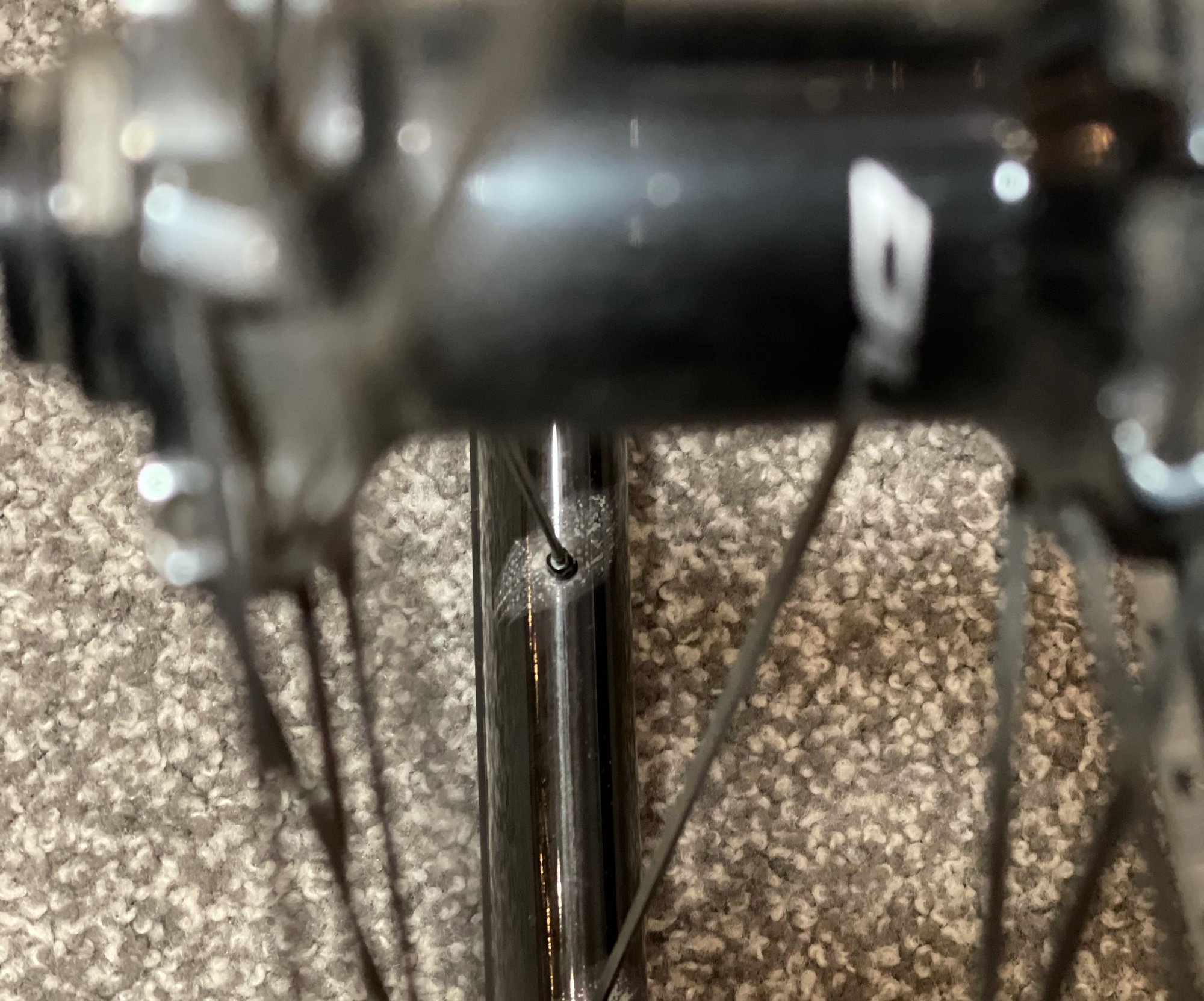

itís interesting that there is a general diagonal shape to the clear coat crinkling. I suspect it is flexing in the carbon rim and the clear coat Is not flexible enough and cracks.

i donít know if this is just me and I can do something different or just an issue with this particular shimano wheelset

disc brake on right


purdyd is offline
Old 12-09-20, 07:43 AM
  #6
Geepig
Senior Member

Geepig's Avatar

Join Date: Sep 2020
Location: Eastern Poland
Posts: 639

Bikes: Romet Jubilat x 4, Wigry x 1, Turing x 1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 173 Post(s)
Liked 160 Times in 122 Posts
I have no experience with these, but is there anything applied around the tire that might be leaking through? What does it look like on the tire side of the wheel?
Geepig is offline
Old 12-09-20, 08:46 AM
  #7
Dante49
Junior Member

Join Date: Dec 2020
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
As a LAST RESORT, you may use some ~1000grit sandpaper to wet-sand the affected area. While sanding, often check the dust you just sanded off:

1. If it's white, it means it's clearcoat. Keep sanding.
2. If it's black, you just hit carbon. STOP.

Now change to a finer sand paper like 3000. Carefully smooth out the area and inspect:

1. If there is no sign of cracking, fraying and/or softness when pressed hard with fingernail, it's probably fine. Clearcoat damage only.
2. If the carbon shows any damage, well, you are SOL I'm afraid.
Dante49 is offline
Old 12-09-20, 08:57 AM
  #8
purdyd
Junior Member
Thread Starter

Join Date: Jan 2010
Posts: 23
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by Geepig View Post
I have no experience with these, but is there anything applied around the tire that might be leaking through? What does it look like on the tire side of the wheel?

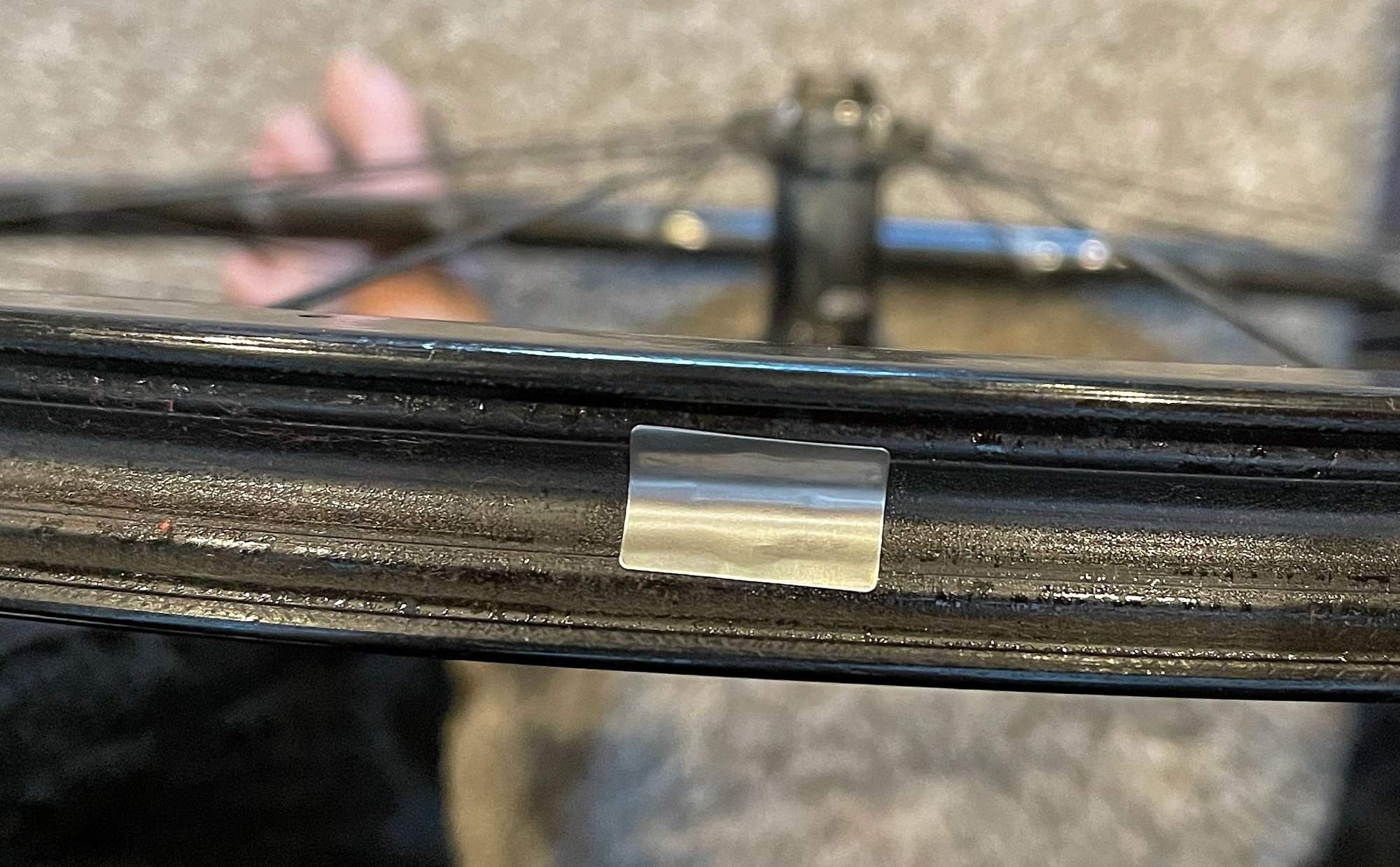

the tire side is immaculate. I do use sealant and tubeless tires. But there is rim tape snd each spoke hole is also sealed with what looks like and aluminum tape. There is no sign of damage on the spoke bed inside.

you can scrape the clear coat off with a fingernail and the underlying carbon appears to be fine.

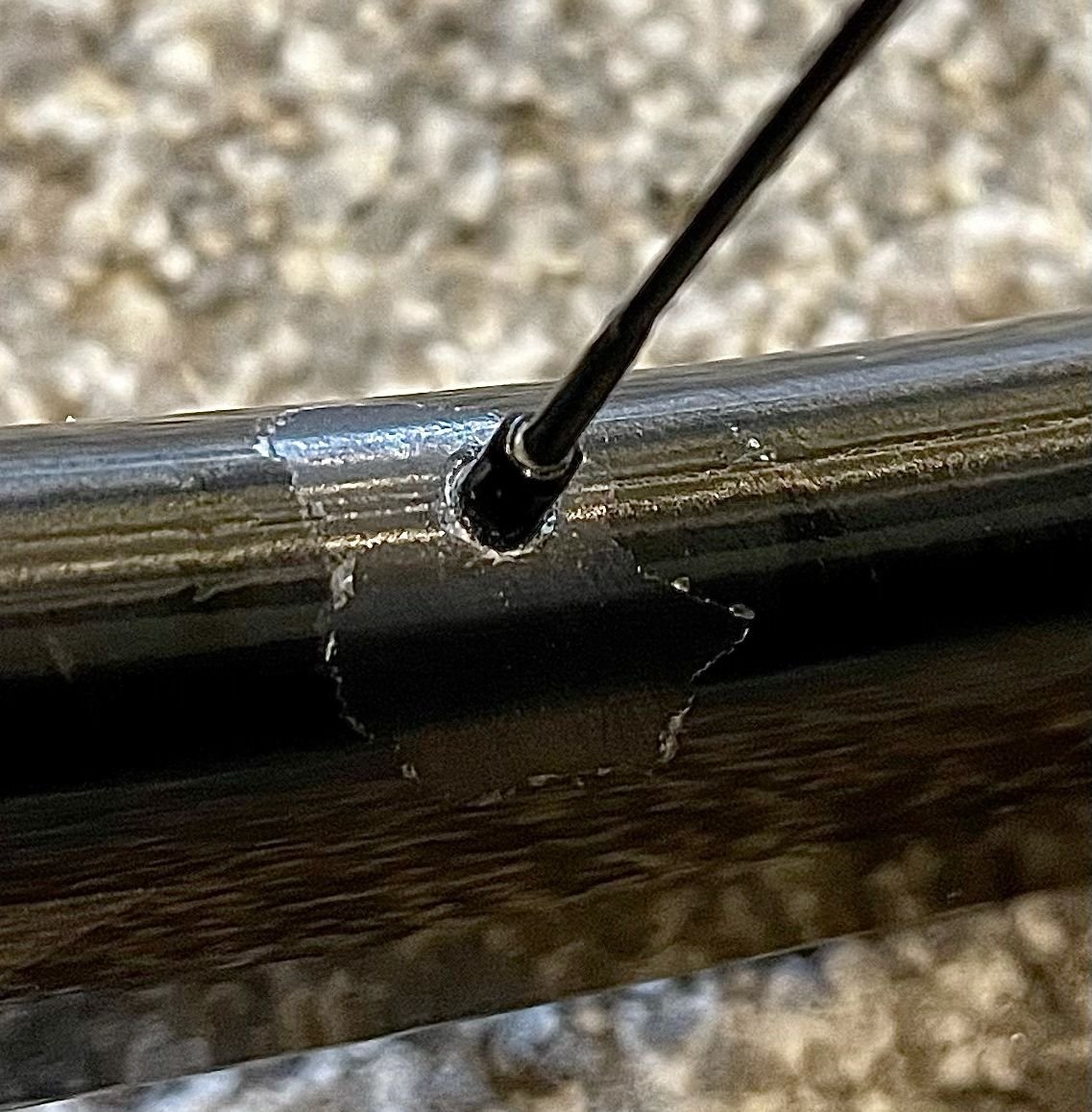

it appears there maybe a slight amount of galvanic corrosion on the side of the nipple where it contacts the side of the hole.
purdyd is offline
Old 12-09-20, 09:34 AM
  #9
purdyd
Junior Member
Thread Starter

Join Date: Jan 2010
Posts: 23
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by Dante49 View Post
As a LAST RESORT, you may use some ~1000grit sandpaper to wet-sand.
the clear coat just comes off with the scrape of a fingernail in the affected areas and you can even keep going with some more effort.

and there doesnít appear to be any underlying damage to the carbon

itís going to be warrantied so now I am trying to figure out how I can prevent this from happening again


purdyd is offline
Old 12-09-20, 12:15 PM
  #10
icemilkcoffee
Senior Member

Join Date: Aug 2009
Posts: 650
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 371 Post(s)
Liked 268 Times in 169 Posts
Titanium is less susceptible to galvanic corrosion with carbon. Maybe replace nipples with Ti nipples?
icemilkcoffee is offline
Old 12-09-20, 12:17 PM
  #11
Dante49
Junior Member

Join Date: Dec 2020
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I bet it's corrosion caused by sealantÖhere is my educated guess:

Some quick searches suggest that ammonia in the sealant will eat paint, which includes clear coat. The sealant somehow found its way out by passing the rim tape and some aluminum tape. The leakage just kept going and eating away clear coat near the places it came out: spoke holes.
Dante49 is offline
Old 12-09-20, 01:47 PM
  #12
purdyd
Junior Member
Thread Starter

Join Date: Jan 2010
Posts: 23
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by Dante49 View Post
I bet it's corrosion caused by sealantÖhere is my educated guess:

Some quick searches suggest that ammonia in the sealant will eat paint, which includes clear coat. The sealant somehow found its way out by passing the rim tape and some aluminum tape. The leakage just kept going and eating away clear coat near the places it came out: spoke holes.
Maybe but it would have to get by the tape, and the stainless tape, apparently it isnít aluminum. I didnít see any evidence of sealant inside the wheel.

I see no other sign of corrosion including the surfaces that are in constant contact with the sealant. In fact it has been my experience carbon wheels do well with sealant, much better than aluminum rims.

but ammonia certainly could be part of the issue. I think we would see it on other carbon wheels? Anyone?
purdyd is offline
Old 12-09-20, 01:56 PM
  #13
gsa103
Senior Member

Join Date: May 2013
Location: SF Bay Area
Posts: 4,401

Bikes: Bianchi Infinito (Celeste, of course)

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 752 Post(s)
Liked 103 Times in 76 Posts
Originally Posted by purdyd View Post
I suspect it is flexing in the carbon rim and the clear coat Is not flexible enough and cracks.
i donít know if this is just me and I can do something different or just an issue with this particular shimano wheelset
I think this is the issue. The asymmetric braking force from the disc is probably increasing the spoke tension, causing the nipple to flex. The clearcoat can't take it.

I think it's a fundamental issue with these wheels and you. My advice would be get the wheels warrantied, but immediately sell them (as new unmounted) and replace with something else. For whatever reason, you and these wheels don't mix.
gsa103 is offline
Likes For gsa103:
Old 12-09-20, 07:12 PM
  #14
purdyd
Junior Member
Thread Starter

Join Date: Jan 2010
Posts: 23
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by gsa103 View Post
I think this is the issue. The asymmetric braking force from the disc is probably increasing the spoke tension, causing the nipple to flex. The clearcoat can't take it.

I think it's a fundamental issue with these wheels and you. My advice would be get the wheels warrantied, but immediately sell them (as new unmounted) and replace with something else. For whatever reason, you and these wheels don't mix.
that is some pretty solid and frank advice. Thanks.
purdyd is offline
