Direct Drive Chainring Type?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Direct Drive Chainring Type?

Old 01-29-21, 02:32 PM
  #1
leadholder
Junior Member
Thread Starter

Join Date: Feb 2020
Location: N. California
Posts: 15

Bikes: Ritchey Road, 72 Windsor Pro, 94 Bridgestone MB1, 98 Kona Explosif, bunch of old Schwinns.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 2 Times in 2 Posts
Direct Drive Chainring Type?

I recently purchased a mountain bike on Craigslist and it came with a Shimano Deore LX Crank (FC-M570) set up as a 1X drivetrain. The 4-Arm Adaptor (spider mount) was not used and in its place is a 34t chainring with the same eight spline interface as the 4-Arm Adaptor. Looking around I have yet to find a chainring with this type of interface. The chainring does not have any markings indicating it's origins or manufacturer. Does anyone know what type of chainring I have. I tried to upload photos but the forum said I have to have ten posts before I can attach photos?? Yes I am new to Bike Forums.
leadholder is offline
Old 01-29-21, 04:35 PM
  #2
2cam16
Senior Member

2cam16's Avatar

Join Date: Oct 2016
Location: San Mateo,Ca.
Posts: 3,965

Bikes: TRIMMED DOWN THE HERD

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 973 Post(s)
Liked 610 Times in 426 Posts
Upload your pics to your member's album.
2cam16 is offline
Old 01-29-21, 05:56 PM
  #3
leadholder
Junior Member
Thread Starter

Join Date: Feb 2020
Location: N. California
Posts: 15

Bikes: Ritchey Road, 72 Windsor Pro, 94 Bridgestone MB1, 98 Kona Explosif, bunch of old Schwinns.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 2 Times in 2 Posts
Pictures are in my member album. I think.
leadholder is offline
Likes For leadholder:
Old 01-29-21, 06:16 PM
  #4
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,657

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1337 Post(s)
Liked 554 Times in 419 Posts
Did you contact the seller to see if they have the parts?
Here's the doc-
https://si.shimano.com/pdfs/ev/EV-FC-M570-4-1763.pdf
Bill Kapaun is offline
Old 01-29-21, 07:18 PM
  #5
leadholder
Junior Member
Thread Starter

Join Date: Feb 2020
Location: N. California
Posts: 15

Bikes: Ritchey Road, 72 Windsor Pro, 94 Bridgestone MB1, 98 Kona Explosif, bunch of old Schwinns.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 2 Times in 2 Posts
Thanks B.K. for the parts list. No luck with the seller. Were you able to see the photos I placed in my member album. I'm new to this (Forum) and not quite sure if my photos are available.
leadholder is offline
Old 01-29-21, 07:47 PM
  #6
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,657

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1337 Post(s)
Liked 554 Times in 419 Posts
If you can't get the part(s) you need, it looks like you'll simply have to get another crankset. Probably a new BB (Bottom Bracket) to match the crank too.
22-32-4x cranks are readily available for fairly cheap.
You can try a web search for the parts you need since you have the PN.
Likely, IF they are available, the cost is more than a new crank.
Bill Kapaun is offline
Old 01-30-21, 06:19 AM
  #7
zebede
Hello

zebede's Avatar

Join Date: Aug 2007
Location: Suncoast, Florida
Posts: 910

Bikes: n+1

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Liked 20 Times in 18 Posts

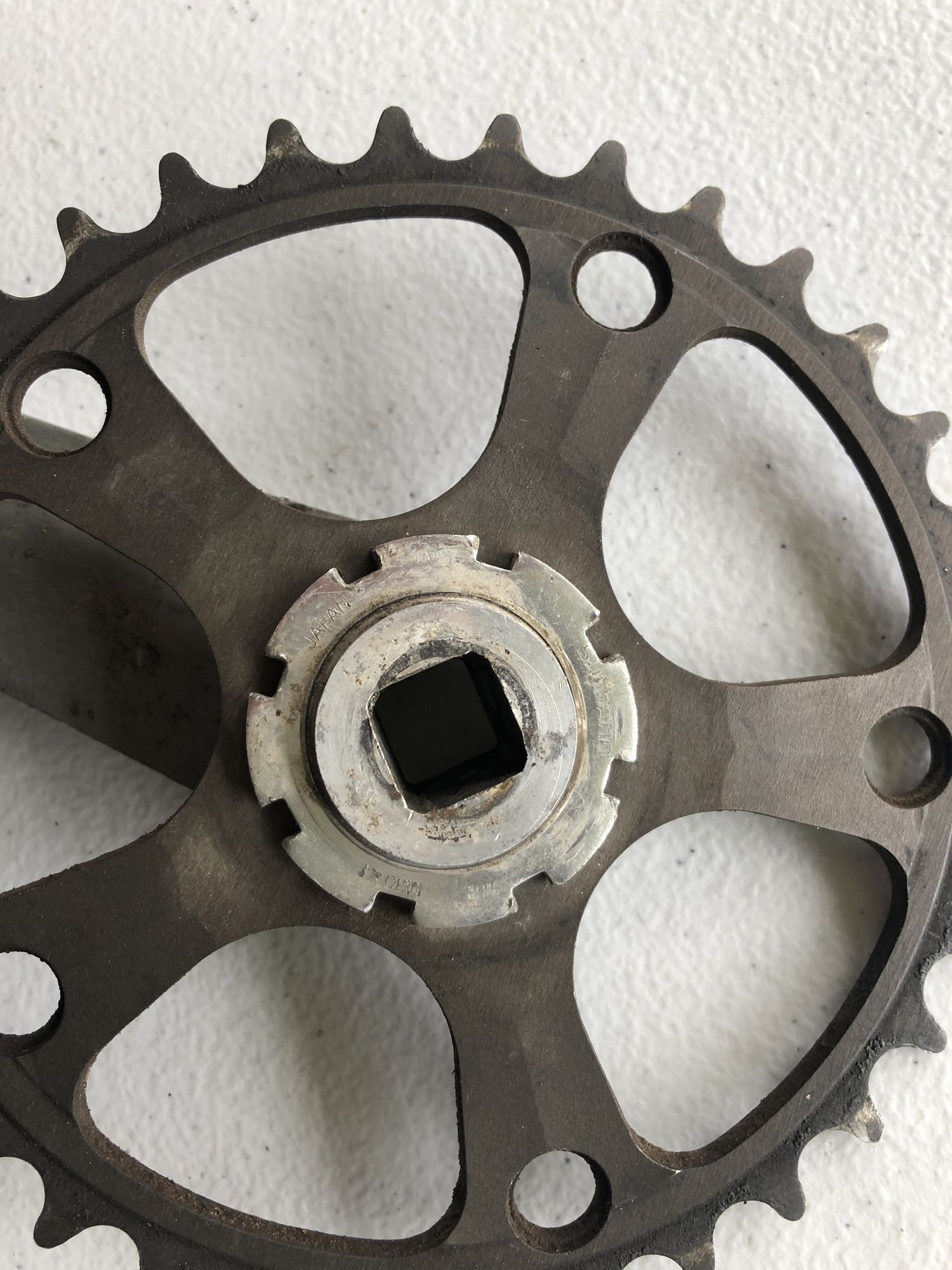

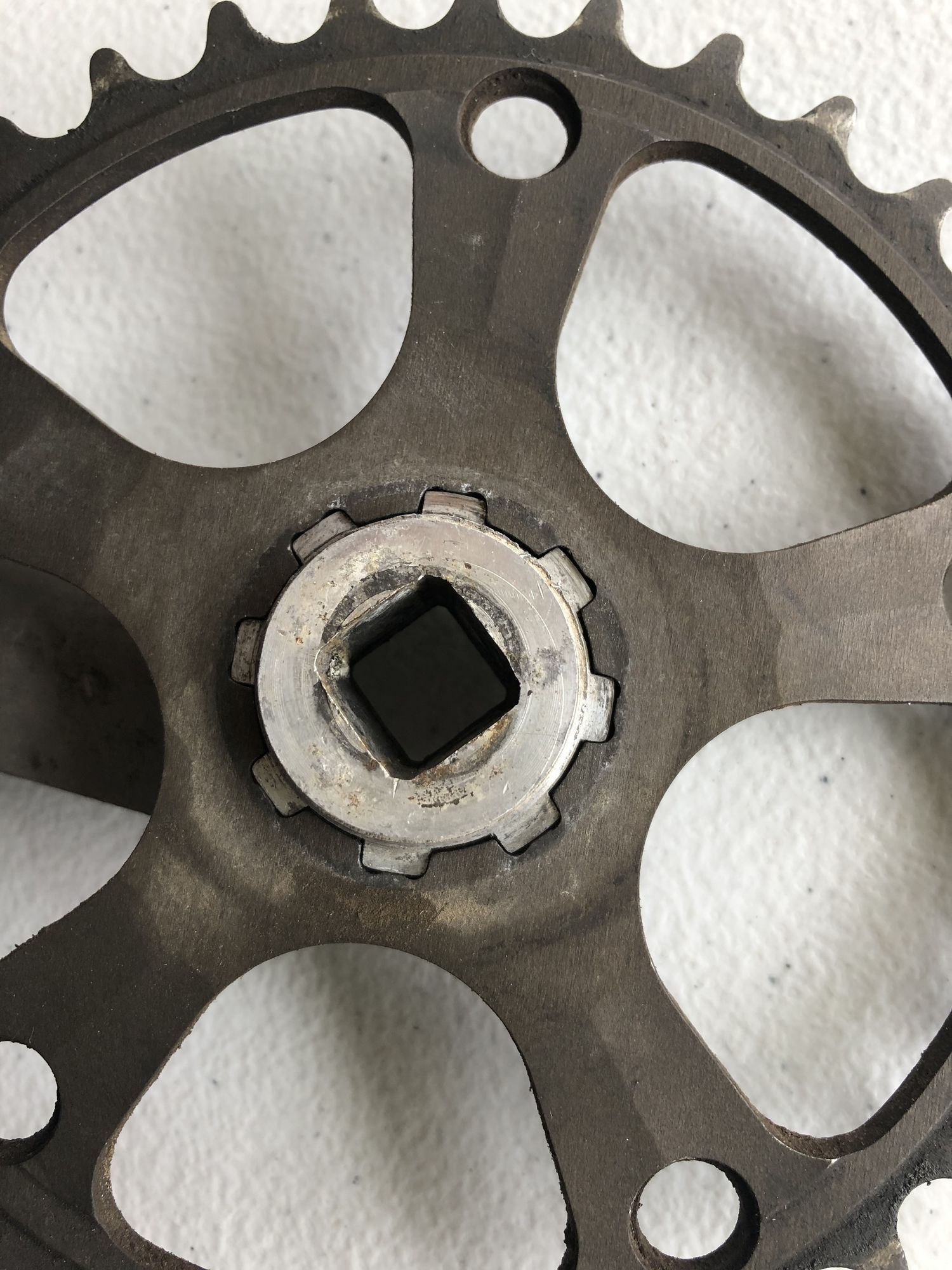

Pictures from O.P. Album

Originally Posted by leadholder View Post
I recently purchased a mountain bike on Craigslist and it came with a Shimano Deore LX Crank (FC-M570) set up as a 1X drivetrain. The 4-Arm Adaptor (spider mount) was not used and in its place is a 34t chainring with the same eight spline interface as the 4-Arm Adaptor. Looking around I have yet to find a chainring with this type of interface. The chainring does not have any markings indicating it's origins or manufacturer. Does anyone know what type of chainring I have. I tried to upload photos but the forum said I have to have ten posts before I can attach photos?? Yes I am new to Bike Forums.


zebede is offline
Old 01-30-21, 07:51 AM
  #8
dsaul
Senior Member

Join Date: Jan 2013
Location: South Jersey
Posts: 1,901
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 572 Post(s)
Liked 419 Times in 291 Posts
That is an early version of Shimano's direct mount design. My research indicates that the M950/952 cranksets used the same interface, but the chainring is not quite as thick at the interface, so they may need a thin spacer under the lockring. Garbaruk still makes chainrings, because the M950/952 are popular with the vintage MTB crowd. https://www.garbaruk.com/shimano-xtr...tml?category=1
dsaul is offline
Likes For dsaul:
Old 01-31-21, 11:01 AM
  #9
leadholder
Junior Member
Thread Starter

Join Date: Feb 2020
Location: N. California
Posts: 15

Bikes: Ritchey Road, 72 Windsor Pro, 94 Bridgestone MB1, 98 Kona Explosif, bunch of old Schwinns.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 2 Times in 2 Posts
Thanks dsaul for your information regarding compatable Shimano cranks and the great link to the Garbaruk website. Awesome!!
leadholder is offline
Likes For leadholder:
Old 02-01-21, 02:10 AM
  #10
Geepig
Senior Member

Geepig's Avatar

Join Date: Sep 2020
Location: Eastern Poland
Posts: 623

Bikes: Romet Jubilat x 4, Wigry x 1, Turing x 1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 170 Post(s)
Liked 148 Times in 115 Posts
Back in the day I would go to my local bike shop or Halfords and buy a chain for my single speed or 5-speed derailleur bikes.

Nowadays I have no idea what I want for my single speed and 3-speed/5-speed derailleurs, only that I need to replace them soon.

Where does one start?
