One brake pad wearing noticeably faster

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

One brake pad wearing noticeably faster

Old 02-03-21, 08:26 PM
  #1
decosse
Senior Member
Thread Starter

decosse's Avatar

Join Date: Aug 2013
Location: Las Vegas
Posts: 134

Bikes: 2014 Specialized Vita Sport, 2014 Lapierre Sensium

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 1 Time in 1 Post
One brake pad wearing noticeably faster

Hi all- I've been having problems with my front rim brakes being noisy- rubbing sounds, sometimes almost grating. I've lightly sanded the rim braking surface with 400 sandpaper. It helps for the first couple of stops, then it's back. Today I removed the front wheel and took a good look, half expecting to find something on the pads, but nothing. The pads were both smooth, evenly worn, and free of debris . The only off thing is the non-drive side is noticeably more worn than the drive side. Anyone have any idea why, and what to do about it? Its not been dragging. (I check regularly) The rim is not showing any real wear, and they are both aligned correctly. I realize this may be a simple thing, and I have done a search, but really couldn't find anything useful.
The bike is a 2014 Lapierre with a complete Tiagra Groupset -4600 I think, dual pivot rim brakes.
Thanks!
decosse is offline
Old 02-03-21, 08:34 PM
  #2
Bigbus
Very Senior Member

Bigbus's Avatar

Join Date: Mar 2018
Location: Always on the Run
Posts: 1,103

Bikes: Giant Quasar & Fuji Roubaix

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 362 Post(s)
Liked 278 Times in 205 Posts
Originally Posted by decosse View Post
Hi all- I've been having problems with my front rim brakes being noisy- rubbing sounds, sometimes almost grating. I've lightly sanded the rim braking surface with 400 sandpaper. It helps for the first couple of stops, then it's back. Today I removed the front wheel and took a good look, half expecting to find something on the pads, but nothing. The pads were both smooth, evenly worn, and free of debris . The only off thing is the non-drive side is noticeably more worn than the drive side. Anyone have any idea why, and what to do about it? Its not been dragging. (I check regularly) The rim is not showing any real wear, and they are both aligned correctly. I realize this may be a simple thing, and I have done a search, but really couldn't find anything useful.
The bike is a 2014 Lapierre with a complete Tiagra Groupset -4600 I think, dual pivot rim brakes.
Thanks!
You're confusing me. You begin by saying both pads are smooth and evenly worn and then in the next sentence you say the drive side is noticeably more worn... I'm confused, which is it? Either way, you just need to center the brake assembly. They move off to one side or another all the time so it's something you might want to learn how to do. It's really simple
Bigbus is offline
Old 02-04-21, 01:33 AM
  #3
decosse
Senior Member
Thread Starter

decosse's Avatar

Join Date: Aug 2013
Location: Las Vegas
Posts: 134

Bikes: 2014 Specialized Vita Sport, 2014 Lapierre Sensium

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 1 Time in 1 Post
Sorry, I didn't do enough proofreading, . Should have said they each wore smoothly, but one was worn much more than the other. Yes, you center the brakes by pivoting the brake assembly. I did mention I checked that they were aligned. Probably an unclear term- align meaning centered. Checking the centering was one of the first things I did.

Thanks for taking the time
decosse is offline
Likes For decosse:
Old 02-04-21, 02:22 AM
  #4
Geepig
Senior Member

Geepig's Avatar

Join Date: Sep 2020
Location: Eastern Poland
Posts: 623

Bikes: Romet Jubilat x 4, Wigry x 1, Turing x 1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 170 Post(s)
Liked 148 Times in 115 Posts
Originally Posted by decosse View Post
Sorry, I didn't do enough proofreading, . Should have said they each wore smoothly, but one was worn much more than the other. Yes, you center the brakes by pivoting the brake assembly. I did mention I checked that they were aligned. Probably an unclear term- align meaning centered. Checking the centering was one of the first things I did.

Thanks for taking the time
Do you have pictures?

If the bike is six years old it might have been through a little or a lot, so being able to see the rim, calliper and pads might help us see something. When I was a mechanic the hardest jobs were always the squeaks the owner lacked the time to demonstrate
Geepig is offline
Likes For Geepig:
Old 02-04-21, 11:21 AM
  #5
AeroGut
Senior Member

Join Date: Jun 2019
Posts: 529
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 195 Post(s)
Likes: 0
Liked 120 Times in 94 Posts
If you watch the brakes while pulling the lever, does one side move a lot more than the other at first? Could be one of the pivots is stiff so one pad is contacting much sooner and you’re braking with one pad a lot.
AeroGut is offline
Likes For AeroGut:
Old 02-04-21, 11:59 AM
  #6
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 1,639

Bikes: lots

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 716 Post(s)
Liked 864 Times in 495 Posts
Pull the lever and watch the center of the tire. Is it being pushed a little to one side? If so there's your answer.
cxwrench is offline
Likes For cxwrench:
Old 02-04-21, 02:14 PM
  #7
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,919

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2925 Post(s)
Liked 1,193 Times in 841 Posts
Agree with the "centering" AFTER pad contact with the rim. Since the two caliper arms have differing leverage their arc of movement that the pads goes through are also different. The gap between rim and pad will be slightly different, side to side, when the lever is not being pulled. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 02-04-21, 10:22 PM
  #8
decosse
Senior Member
Thread Starter

decosse's Avatar

Join Date: Aug 2013
Location: Las Vegas
Posts: 134

Bikes: 2014 Specialized Vita Sport, 2014 Lapierre Sensium

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 1 Time in 1 Post
Originally Posted by Geepig View Post
Do you have pictures?
If the bike is six years old it might have been through a little or a lot, so being able to see the rim, calliper and pads might help us see something. When I was a mechanic the hardest jobs were always the squeaks the owner lacked the time to demonstrate

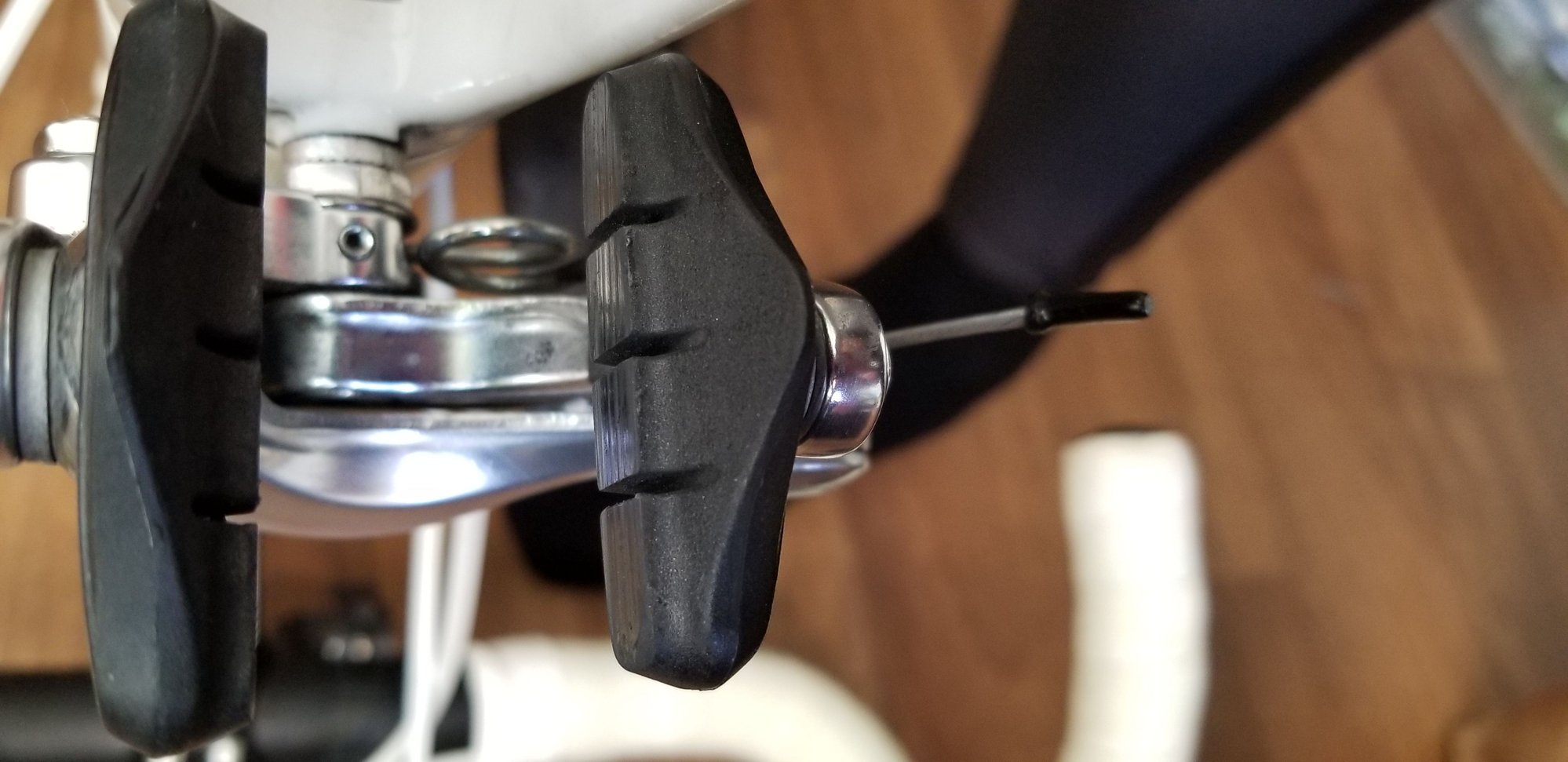

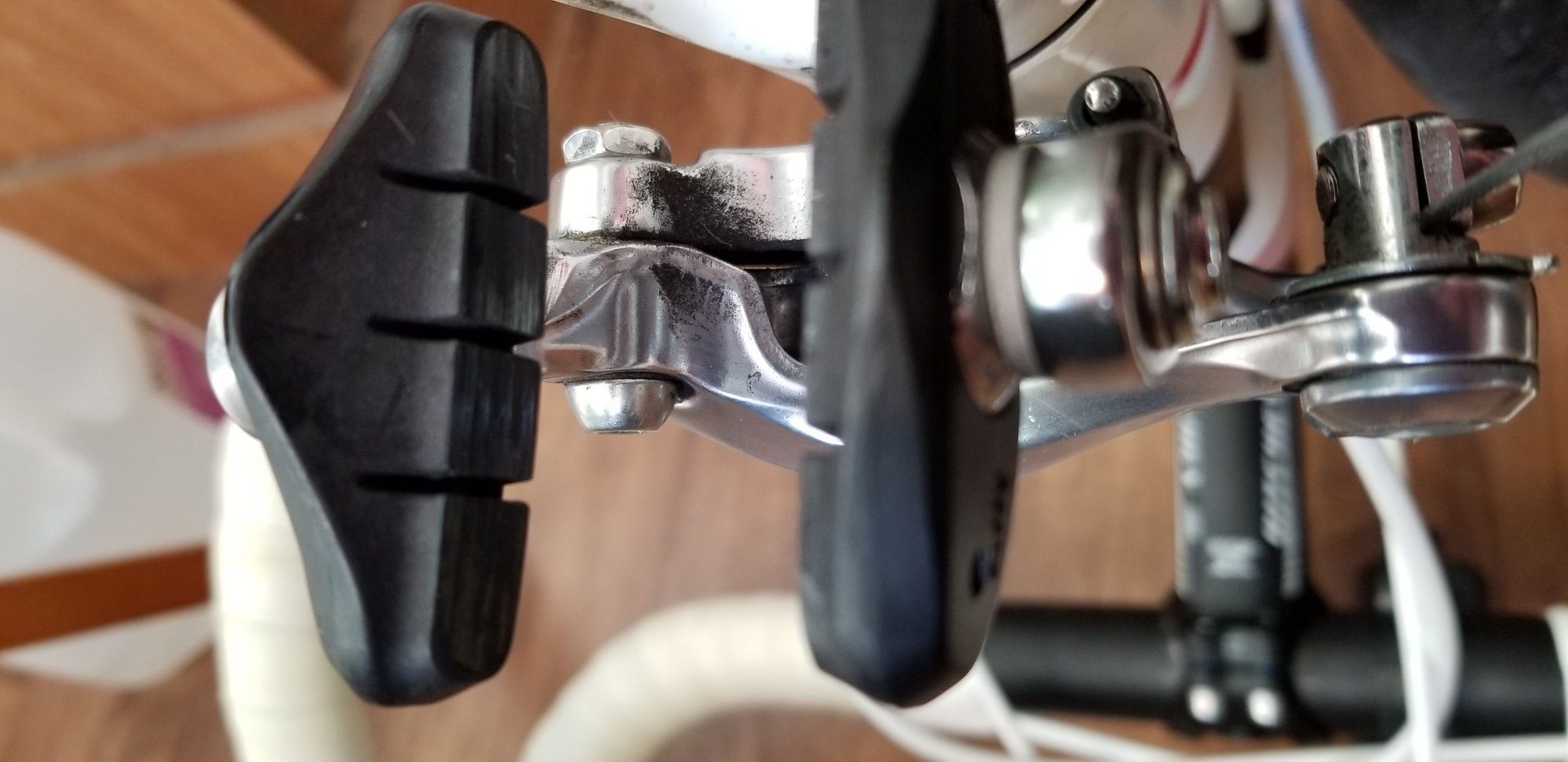

Thanks for taking the time to have a look. It's hard to see the difference in photos. A couple of things- the pads look glazed, not sure if that's a thing, and these brakes get a workout on part of my normal ride. I climb 1100 feet in 12 miles, a bit of zigzag route. The return is those 1100 feet straight downhill in about 10. With about a dozen stoplights, so I'm hauling down from 25-30 mph to a stop at about half of them (doing this on a phone, so please excuse the mess)







decosse is offline
Old 02-04-21, 10:42 PM
  #9
decosse
Senior Member
Thread Starter

decosse's Avatar

Join Date: Aug 2013
Location: Las Vegas
Posts: 134

Bikes: 2014 Specialized Vita Sport, 2014 Lapierre Sensium

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 1 Time in 1 Post
Originally Posted by Andrew R Stewart View Post
Agree with the "centering" AFTER pad contact with the rim. Since the two caliper arms have differing leverage their arc of movement that the pads goes through are also different. The gap between rim and pad will be slightly different, side to side, when the lever is not being pulled. Andy
I'm wondering if you may have hit on something. I've been pivot/adjusting them so that the gap is the same side to side when the lever is not being pulled. Before today's ride, I moved the less worn pad closer to the rim than the worn one.
AeroGut , cxwrench , thanks for the help!
Near as I can guess, the bike has at least 5000 miles on it. I have over 4000 recorded, but there were quite a few times I didn't bother or forgot the app-or it didn't work. There were also a couple of 6 month periods I didn't ride due to injuries.
decosse is offline
Old 02-04-21, 10:51 PM
  #10
Ferrouscious
Some Weirdo

Ferrouscious's Avatar

Join Date: Dec 2017
Location: Rexburg, ID
Posts: 502

Bikes: '86 Maruishi Excellence, '86 Schwinn Prelude, '88 Cannondale SR2000, '74 C. Itoh "Racer"

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 139 Times in 90 Posts
If you want improved braking and reduced noise (read: no scraping sounds), get pad holders/cartridges and use kool stop salmons inserts. Your rims will thank you.
__________________
Somewhere, a village is missing its idiot.
Ferrouscious is offline
Likes For Ferrouscious:
Old 02-04-21, 11:27 PM
  #11
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,919

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2925 Post(s)
Liked 1,193 Times in 841 Posts
When the pads are centered, at the moment they contact the rim, there can be a soft whack sound sometimes. That is what I aim for.

When one pad contacts first the wheel has to warp over to the other pad a bit. This can make the feel at the lever mushier. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 02-05-21, 12:05 AM
  #12
Geepig
Senior Member

Geepig's Avatar

Join Date: Sep 2020
Location: Eastern Poland
Posts: 623

Bikes: Romet Jubilat x 4, Wigry x 1, Turing x 1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 170 Post(s)
Liked 148 Times in 115 Posts
Well, you have certainly given those pads a workout!

I am interested in the glazing on the pads, as they maybe trying to handle more heat than they are capable of. When you cleaned up the rim, did you do the same for the pads? It is a very long time since I last deglazed any kind of pads, probably when I was karting in the 80s, but if you remove them, place a sheet of fine abrasive sheet on a flat surface and then carefully and lightly caress the pads across the sheet. If you have a nail file you might just take off a tiny bit of the edges, especially the leading edge.

Or just try a different type of pad.
Geepig is offline
Likes For Geepig:
Old 02-05-21, 12:21 AM
  #13
cjenrick
Senior Member

Join Date: May 2020
Posts: 263
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked 77 Times in 58 Posts
check to see if your front rim is dished properly.

or flip the wheel around and see if the other pad starts to wear quicker.
cjenrick is offline
Likes For cjenrick:
Old 02-05-21, 09:43 AM
  #14
Iride01
Hits [ENTER] b4 thinking

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 7,082

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 2765 Post(s)
Liked 1,386 Times in 1,013 Posts
How long did these pads last you? If these are original pads on your six year old bike, then maybe not worry too much. Though if you do find an obvious issue, fix it.

But will the cost of new pads every six years be a budget buster?
Iride01 is offline
Likes For Iride01:
Old 02-06-21, 12:16 AM
  #15
decosse
Senior Member
Thread Starter

decosse's Avatar

Join Date: Aug 2013
Location: Las Vegas
Posts: 134

Bikes: 2014 Specialized Vita Sport, 2014 Lapierre Sensium

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 1 Time in 1 Post
Originally Posted by Ferrouscious View Post
If you want improved braking and reduced noise (read: no scraping sounds), get pad holders/cartridges and use kool stop salmons inserts. Your rims will thank you.
I am seriously going to look at that option. Wet is not an issue, so I think I'd look a their Dual Pads. I'd rather replace pads than rims

Originally Posted by Iride01 View Post
How long did these pads last you? If these are original pads on your six year old bike, then maybe not worry too much. Though if you do find an obvious issue, fix it.
But will the cost of new pads every six years be a budget buster?
Agree- I was concerned there was an issue with the brakes, but yes, replacing the pads is in the works-they are the originals, I'm going to consult with my LBS about which route to take.

Originally Posted by Geepig View Post
Well, you have certainly given those pads a workout!
I am interested in the glazing on the pads, as they maybe trying to handle more heat than they are capable of. When you cleaned up the rim, did you do the same for the pads? It is a very long time since I last deglazed any kind of pads, probably when I was karting in the 80s, but if you remove them, place a sheet of fine abrasive sheet on a flat surface and then carefully and lightly caress the pads across the sheet. If you have a nail file you might just take off a tiny bit of the edges, especially the leading edge.
Or just try a different type of pad.
I'm going to deglaze the pads as you suggested, and touch up the leading edge. Temporarily, then replace them with an upgrade. Yes, they do get a workout. I'm pretty tall for a woman-5'10" (178cm) and have what we call the covid-15 (gain 15 lbs weight ) And I don't just coast downhill, I pedal, lol.

Thank you all
decosse is offline
