Replacing 105 pulleys with Dura Ace

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Replacing 105 pulleys with Dura Ace

Old 02-07-21, 10:43 AM
  #1
Brad Bike
That guy
Thread Starter

Join Date: May 2018
Location: The heart of Ohio
Posts: 47

Bikes: 2012 Felt FC build

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Replacing 105 pulleys with Dura Ace

Hi, a few quick questions:

Can I replace my 105 pulleys with Dura Ace pulleys? (I'm thinking yes, but want to be sure)

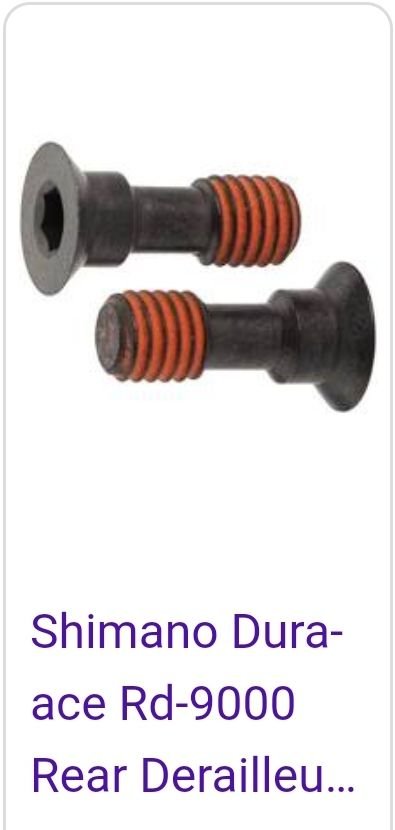

If yes, can I use the 105 pulley bolt with the Dura Ace pulley? I saw online somewhere that there is a Dura Ace-specific bolt that looks a little different than the 105 one (there's a threadless indentation between the head and where the threads start).

If I have to use the Dura Ace bolt, will that bolt fit okay in the 105 cage?

Thanks!
Brad Bike is offline
Old 02-07-21, 10:56 AM
  #2
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,303

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1429 Post(s)
Liked 1,062 Times in 710 Posts
Never Fix A Running Piece. What benefit do you expect to enjoy with this change?
dsbrantjr is offline
Likes For dsbrantjr:
Old 02-07-21, 11:21 AM
  #3
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,999

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3740 Post(s)
Liked 2,804 Times in 1,740 Posts
As long as the replacement pulley is of the same width (as in chain width, 8,9,10... cogs) and of the same tooth count (pulley diameter) there should be no issues. We do this at work when we can't find an OEM grade replacement. All but the earliest DA pulleys have used a superior bearing (initially a ceramic bushing and more recently a true set of cartridge bearings that still allow some float) then the lower grade groupos used.

Why do you want to do this? Because the original pulley is worn out? Because you think it will benefit your speed? Better shifting? Cool factor? In my world only one of these reasons will hold water. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 02-07-21, 12:08 PM
  #4
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 8,117

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 14 Post(s)
Tagged: 1 Thread(s)
Quoted: 4388 Post(s)
Liked 1,326 Times in 862 Posts
Originally Posted by dsbrantjr View Post
Never Fix A Running Piece. What benefit do you expect to enjoy with this change?
No more stinkin' upgrades!!?
Sy Reene is offline
Old 02-07-21, 12:57 PM
  #5
Brad Bike
That guy
Thread Starter

Join Date: May 2018
Location: The heart of Ohio
Posts: 47

Bikes: 2012 Felt FC build

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks guys, my pulleys are indeed worn out and I read that Dura Ace would make a low cost upgrade to bearings from simple bushings. Any thoughts about my bolt questions ml
Brad Bike is offline
Old 02-07-21, 01:31 PM
  #6
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,526

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1956 Post(s)
Likes: 0
Liked 959 Times in 666 Posts
Depending on the head configuration of the Dura Ace bolts you may have to reuse the 105 bolts. What's the problem with the 105 bolts? In my experience all Shimano rd cage bolts are the same.
HillRider is offline
Old 02-07-21, 03:56 PM
  #7
Brad Bike
That guy
Thread Starter

Join Date: May 2018
Location: The heart of Ohio
Posts: 47

Bikes: 2012 Felt FC build

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
To clarify, nothing is wrong with the current bolts. The Dura Ace bolts just seem different when I look them up online. If you guys are saying vthe standard bolts will work with the DA pulleys, then that's exactly the info I'm looking for.

​​
Brad Bike is offline
Old 02-07-21, 07:44 PM
  #8
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 11,202

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), R+M Supercharger2 Rohloff, Habanero Ti 26

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 3438 Post(s)
Liked 2,738 Times in 1,830 Posts
You should be fine assuming all is the same. I would probably try to re-use the 105 bolts and if they don't work try the DA bolts again making sure everything matches up not that I believe pulley wheel bolts have changed that much over the years but I don't really know because I so rarely replace them. My favorite replacement pulley wheels especially on the vintage side were Tacx. They are the same material but can be had with ceramic bearings without a ton of cost but it appears they have stopped making them for some dumb reason.
veganbikes is offline
Old 02-07-21, 08:13 PM
  #9
Brad Bike
That guy
Thread Starter

Join Date: May 2018
Location: The heart of Ohio
Posts: 47

Bikes: 2012 Felt FC build

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Cool, all good to know. Thanks guys!
Brad Bike is offline
Old 02-07-21, 08:44 PM
  #10
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,293

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1560 Post(s)
Liked 887 Times in 632 Posts
Originally Posted by Brad Bike View Post
Thanks guys, my pulleys are indeed worn out and I read that Dura Ace would make a low cost upgrade to bearings from simple bushings. Any thoughts about my bolt questions ml
You're kidding, right? Dura Ace & cheap just doesn't fit.
Dura Ace & 105 have been through a lot of different generations.
If your 105 pulleys are worn out, they're probably several generations old.
I'd at least look at the exploded views of the parts to look for obvious dissimilarities.
Bill Kapaun is offline
Old 02-07-21, 10:00 PM
  #11
Brad Bike
That guy
Thread Starter

Join Date: May 2018
Location: The heart of Ohio
Posts: 47

Bikes: 2012 Felt FC build

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Bill Kapaun View Post
You're kidding, right? Dura Ace & cheap just doesn't fit.
Dura Ace & 105 have been through a lot of different generations.
If your 105 pulleys are worn out, they're probably several generations old.
I'd at least look at the exploded views of the parts to look for obvious dissimilarities.
Nope, no joke. I went ahead and pulled the trigger on a pair of DA pulleys which, at about $40 US, falls into the category of "low cost" will enough for my liking. We'll see how they perform. If I have any concerns, it certainly won't be an issue to just go back to the style I have currently.
Brad Bike is offline
Old 02-08-21, 01:10 AM
  #12
SoSmellyAir
Method to My Madness

Join Date: Nov 2020
Location: Orange County, California
Posts: 2,219

Bikes: Trek FX 2, Cannondale Synapse, Cannondale CAAD4, Santa Cruz Stigmata GRX

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Liked 717 Times in 530 Posts
Originally Posted by Brad Bike View Post
Nope, no joke. I went ahead and pulled the trigger on a pair of DA pulleys which, at about $40 US, falls into the category of "low cost" will enough for my liking. We'll see how they perform. If I have any concerns, it certainly won't be an issue to just go back to the style I have currently.
I spent < $20 for an Ultegra RD-6800 pulley set (Shimano part no. Y5YC98140) for a 105 RD-5800 rear derailleur.
The key difference is that the Ultegra set uses ball bearings in both pulleys, whereas the 105 set uses ball bearings on one and a plastic washer on the other.
When you make as little power as I do, every 1/2 W counts.
SoSmellyAir is offline
Likes For SoSmellyAir:
Old 02-08-21, 04:06 AM
  #13
kingjason
Member

Join Date: Jan 2021
Posts: 26
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by SoSmellyAir View Post
I spent < $20 for an Ultegra RD-6800 pulley set (Shimano part no. Y5YC98140) for a 105 RD-5800 rear derailleur.
The key difference is that the Ultegra set uses ball bearings in both pulleys, whereas the 105 set uses ball bearings on one and a plastic washer on the other.
When you make as little power as I do, every 1/2 W counts.
I had a SLX pulley snap so I ordered some 20.00 ceramic ball bearing pulleys off amazon and man those things are smooth. So much so that when I got my new old stock XTR in I used them on it. All 9 speed stuff but a huge improvement.
kingjason is offline
Old 02-08-21, 07:38 AM
  #14
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 2,340

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 468 Post(s)
Liked 418 Times in 306 Posts
More like 0.005 watts.
easyupbug is offline
Old 02-08-21, 09:58 AM
  #15
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,188
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 691 Post(s)
Liked 704 Times in 527 Posts
Originally Posted by Brad Bike View Post
Nope, no joke. I went ahead and pulled the trigger on a pair of DA pulleys which, at about $40 US, falls into the category of "low cost" will enough for my liking. We'll see how they perform. If I have any concerns, it certainly won't be an issue to just go back to the style I have currently.
I hope these will fit. You haven't said which generation of 105 you have...5600,5700,5800 and which generation Dura Ace you ordered. It can make a difference.
Crankycrank is offline
Old 02-08-21, 01:52 PM
  #16
SoSmellyAir
Method to My Madness

Join Date: Nov 2020
Location: Orange County, California
Posts: 2,219

Bikes: Trek FX 2, Cannondale Synapse, Cannondale CAAD4, Santa Cruz Stigmata GRX

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Liked 717 Times in 530 Posts
Originally Posted by Crankycrank View Post
I hope these will fit. You haven't said which generation of 105 you have...5600,5700,5800 and which generation Dura Ace you ordered. It can make a difference.
True! I had assumed that the OP would at least order from the same or later generations having the same number of cogs/speeds as his RD. (As far as I know that ensures compatibility even across generations, at least with respect to 105 and Ultegra.)
SoSmellyAir is offline
