Chainring compatibility

I purchased an SL7 and I put a 53/39 on it due to the advice of a guy at my LBS. After riding a couple of times Iím nowhere near strong enough to push that gear ratio and Iím looking to move down to a 52/36. They are praxis chainrings and Iím wanting to know if I will run into compatibility issues with my quarq Spider since Iím going from 130 BCD to 110 BCD?

Last edited by Cassopher; 02-20-21 at 06:58 PM.
Cassopher is offline
Old 02-20-21, 07:25 PM
  #2
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,929

Bikes: Several, mostly not name brands.

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 3119 Post(s)
Liked 2,355 Times in 1,390 Posts
110mm BCD rings will not mount on a 130mm BCD arm, so at a minimum you will need a different crank. Depending on which specific crank you use, you may also need a different bottom bracket.
JohnDThompson is offline
Old 02-20-21, 07:50 PM
  #3
Cassopher
Member
Thread Starter

Join Date: Oct 2020
Posts: 42
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 6 Times in 6 Posts
Originally Posted by JohnDThompson View Post
110mm BCD rings will not mount on a 130mm BCD arm, so at a minimum you will need a different crank. Depending on which specific crank you use, you may also need a different bottom bracket.

Sounds expensive and yes Iíd have to replace the quarq PM also. Could I put a 12/28 or 12/30 cassette to ease the ratios a bit? I currently have an 11/28 with that 53/39.
Cassopher is offline
Old 02-20-21, 08:04 PM
  #4
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,929

Bikes: Several, mostly not name brands.

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 3119 Post(s)
Liked 2,355 Times in 1,390 Posts
Originally Posted by Cassopher View Post
Sounds expensive and yes Iíd have to replace the quarq PM also. Could I put a 12/28 or 12/30 cassette to ease the ratios a bit? I currently have an 11/28 with that 53/39.
In principle, yes. The wider gear range will likely require a longer chain, and perhaps a different derailleur to properly handle the additional chain length.
JohnDThompson is offline
Old 02-20-21, 08:43 PM
  #5
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,254

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1546 Post(s)
Liked 848 Times in 610 Posts
Originally Posted by Cassopher View Post
Sounds expensive and yes I’d have to replace the quarq PM also. Could I put a 12/28 or 12/30 cassette to ease the ratios a bit? I currently have an 11/28 with that 53/39.
A 12-28 shouldn't require any change.
A 12-30 means you'd need (on paper) another 1/2" of chain for the 2 additional teeth of the largest cog.

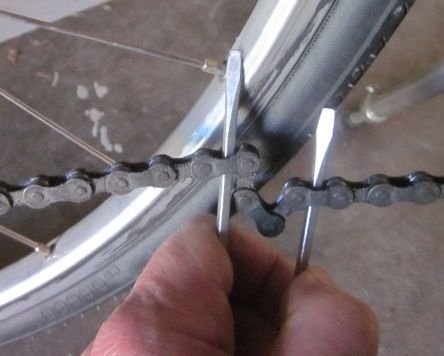

Do the test in the pic below- Chain on largest ring & cog.
IF you have at least 3 half links slack, you won't need a longer chain for a 30T cog.
Without knowing what RDER you have, one doesn't know how much chain wrap capacity OR the largest cog it could handle. You "might" be ok with a 30T?
You "might" have a bit of chain sag in small:small.

Bill Kapaun is offline
Old 02-20-21, 08:52 PM
  #6
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 5,945

Bikes: RSO E-tire dropper fixie brifter

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 2,070 Times in 1,389 Posts
53F 30R might be a bit short on links. Which shouldn't matter as Big Big causes frogs to fall from the sky. If it were me, I'd risk it & try the 12-30 with 39t - 53t
__________________
-Oh Hey!
Troul is offline
Old 02-20-21, 11:01 PM
  #7
Toespeas
Senior Member

Join Date: Feb 2020
Posts: 302
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Likes: 0
Liked 44 Times in 41 Posts
id just get a larger cassette first , or then a custom gear ratio,
really you are not going to get an easier ride , you are just going to loose efficiency and feel like its easier by sizing down , but you will just be wearing your parts out ,
try to match your gears to your cadence and keep the chain line strait as possible by adjusting your cassette ,
for example i ran a 55 tooth chain ring and it actually made my ride easier on the flats because my chain was strait on , and the larger the gear size the more efficient your drive train , but the down side was i was running a 11/28 so i lost any climbing ability , but i could have just got a 11/36 , it was also 1x so i didn't have an lower chain ring , but it was definitely smoother and changed my ride a ton ,
if you are prepared to invest in your drive train try to get that most commonly used gear that maximizes your cadence efficiency in the straightest position on the chain , that doesn't always mean just size down , although it might just be a cheaper option and if you dont care you will just get used to it , but thats a psychological effect , good luck
Toespeas is offline
Old 02-20-21, 11:01 PM
  #8
woodcraft
Senior Member

woodcraft's Avatar

Join Date: Apr 2012
Location: Nor Cal
Posts: 6,016
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1814 Post(s)
Likes: 0
Liked 919 Times in 567 Posts
There's no point in spending a bunch of money to go from 53/39 to 52/36. You get about the same low gear using an 11/30 cassette with maybe no other changes.
On the high side you are 3 or 4 gears above Eddy Merckx in any case, and you are not him.

Contrary to JohnDThompson the crank and bottom bracket could stay and replace only the spider/PM.

I suggest leaving the front and using an 11/36 cassette, with a long cage RD that will run it. That and a longer chain will get about 28 gear inches, down from the 36 G.I. that you have now.

That , or HTFU, I guess, but when I was in that situation, I changed to 48/34 withe the smaller spider, later adding the spider PM. Ran that with 11/28 for quite a while, but now have devolved to an 11/34, for a 1:1 (26GI) low gear.

Last edited by woodcraft; 02-20-21 at 11:05 PM.
woodcraft is offline
Old 02-20-21, 11:07 PM
  #9
Russ Roth
Senior Member

Join Date: Dec 2019
Location: South Shore of Long Island
Posts: 2,128

Bikes: 2010 Carrera Volans, 2015 C-Dale Trail 2sl, 2017 Raleigh Rush Hour, 2017 Blue Proseccio, 1992 Giant Perigee, 80s Gitane Rallye Tandem

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 807 Post(s)
Liked 645 Times in 487 Posts
Change the cassette and live with the gears you can't push. There are aftermarket cassettes that start with a 12t or sometimes even a 13t or 14t, brands like Miche. I'd live with the slightly heavier cassette and run wider gears and a new chain over swapping a crank. Might always need the old chain and cassette on something else at a later date.
Russ Roth is offline
Old 02-21-21, 09:21 AM
  #10
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,142
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 675 Post(s)
Liked 678 Times in 512 Posts
Another option is to get the proper crank you want in a 50/34 combo as just going to a 52/36 isn't much different than what you have. Sell the barely used crank you have to recoup some of your losses. Seems to me like the cheapest option plus you'll have the gearing you want although I don't know too many people who can use an 11t cog even with a 50t chainring but you can change that when the cassette wears out. I'm a little curious about why the shop recommended the 53/39 combo unless you convinced them you were a pro racer.

Last edited by Crankycrank; 02-21-21 at 09:27 AM.
Crankycrank is offline
Old 02-21-21, 12:59 PM
  #11
Cassopher
Member
Thread Starter

Join Date: Oct 2020
Posts: 42
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 6 Times in 6 Posts
Originally Posted by Crankycrank View Post
I'm a little curious about why the shop recommended the 53/39 combo unless you convinced them you were a pro racer.

They must have been impressed by my calf muscles 😆
Cassopher is offline
Old 02-21-21, 01:46 PM
  #12
Cassopher
Member
Thread Starter

Join Date: Oct 2020
Posts: 42
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 6 Times in 6 Posts
Originally Posted by woodcraft View Post
Contrary to JohnDThompson the crank and bottom bracket could stay and replace only the spider/PM.
Are you certain about this? I ordered a 12-28 to see if that helps. If that doesnít help me the worse case scenario is just selling the PM & standard chainring and then go to a 52.
Cassopher is offline
Old 02-21-21, 03:44 PM
  #13
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,142
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 675 Post(s)
Liked 678 Times in 512 Posts
Originally Posted by Cassopher View Post
They must have been impressed by my calf muscles 😆
Ha ha, When they see me they recommend I stick with an exercycle.
Crankycrank is offline
Old 02-21-21, 03:58 PM
  #14
woodcraft
Senior Member

woodcraft's Avatar

Join Date: Apr 2012
Location: Nor Cal
Posts: 6,016
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1814 Post(s)
Likes: 0
Liked 919 Times in 567 Posts
Originally Posted by Cassopher View Post
Are you certain about this? I ordered a 12-28 to see if that helps. If that doesnít help me the worse case scenario is just selling the PM & standard chainring and then go to a 52.
Actually, that is only true with SRAM or S works cranks with replaceable spider. Not true with Shimano- my bad.

Changing from 53 to 52 chainring would reduce speed at 100 rpm from 37.8 to 37.1 mph. That is likely not the reason for changing gearing. Most folks go to 34/50.

Play with this:

https://mike-sherman.github.io/shift/
woodcraft is offline
Old 02-21-21, 08:38 PM
  #15
Cassopher
Member
Thread Starter

Join Date: Oct 2020
Posts: 42
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 6 Times in 6 Posts
Originally Posted by Cassopher View Post
Are you certain about this? I ordered a 12-28 to see if that helps. If that doesnít help me the worse case scenario is just selling the PM & standard chainring and then go to a 52.
Originally Posted by woodcraft View Post
Actually, that is only true with SRAM or S works cranks with replaceable spider. Not true with Shimano- my bad.https://mike-sherman.github.io/shift/
They are sram red cranks.
Cassopher is offline
Old 02-22-21, 01:28 PM
  #16
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 5,318
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1539 Post(s)
Liked 1,221 Times in 724 Posts
Originally Posted by Cassopher View Post
Are you certain about this? I ordered a 12-28 to see if that helps. .
A 12-28 cassette gives you the exact same lowest gear as an 11-28
alcjphil is offline
Old 02-22-21, 01:36 PM
  #17
Iride01
Plz hurry Dec 22!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,920

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4882 Post(s)
Liked 3,403 Times in 2,358 Posts
Do you only have one gear on the back of that bike? Unless all your riding is on the upside of a hill with 8% grade, I'm having trouble understanding why say it's too much for you.

You don't normally ride in the smallest rear cog. Nor do you normally ride in the biggest rear cog. When in either the small front or large front, you really want most of your riding to be in the middle cogs of the rear cassette.

At least that's my opinion and I'm sticking to it.
Iride01 is offline
Old 02-22-21, 01:42 PM
  #18
Cassopher
Member
Thread Starter

Join Date: Oct 2020
Posts: 42
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 6 Times in 6 Posts
Originally Posted by alcjphil View Post
A 12-28 cassette gives you the exact same lowest gear as an 11-28

True but I donít use that gear anyway, but what the 12-28 does do is add a 21 and moves the 19 & everything else further down the cassette. It also removes the 11 which is another gear I donít use.
