Wide-posts and V-brakes?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Wide-posts and V-brakes?

Old 03-25-21, 09:53 PM
  #1
RubeRad
Keepin it Wheel
Thread Starter

RubeRad's Avatar

Join Date: Aug 2011
Location: San Diego
Posts: 9,870

Bikes: Surly CrossCheck, Krampus

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 2,374 Times in 1,720 Posts
Wide-posts and V-brakes?

So the next problem with the rockhopper is trying to get some V-brakes on there. Turns out, the posts are spaced 9cm, vs the other bike I have with working V-brakes they're 8cm. So with the wide-spaced posts, the arms of the V-brakes have to be squeezed together extra far to get the pads to hit the rims, and there's no room for the boot. I wouldn't care about just tossing the boots, but it just seems wrong, and I bet I couldn't get the pads square, and couldn't get good braking leverage.

What kind of brakes came stock with a rockhopper like this? What brakes can I put on it that will work well?

NOTE this picture shows cantis, they are not stock, they were a first try, now I'm trying V-brakes


Last edited by RubeRad; 03-26-21 at 09:06 AM.
RubeRad is offline
Old 03-25-21, 10:04 PM
  #2
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,221

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1717 Post(s)
Liked 1,796 Times in 1,114 Posts
Cantilever brakes?

John
70sSanO is online now
Old 03-25-21, 10:09 PM
  #3
2cam16
Senior Member

2cam16's Avatar

Join Date: Oct 2016
Location: San Mateo,Ca.
Posts: 4,130

Bikes: TRIMMED DOWN THE HERD

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 1031 Post(s)
Liked 690 Times in 475 Posts
Aren't those cantis on it? Those are what came with that era of mtb's.
2cam16 is offline
Likes For 2cam16:
Old 03-25-21, 10:12 PM
  #4
cobba
Senior Member

Join Date: Aug 2006
Posts: 1,867
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
Likes: 0
Liked 52 Times in 41 Posts
Those are cantilever brakes on the bike in the photo, did you remove them and put v-brakes on the bike?
cobba is offline
Likes For cobba:
Old 03-25-21, 10:39 PM
  #5
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,185

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1519 Post(s)
Liked 806 Times in 589 Posts
Your brakes should have washers that you can relocate to move the pads closer to the rim.
I built a skinny "road" wheel for my hybrid and had a similar problem. You may need to find a couple extra washers out of the spare parts bin to add.


Last edited by Bill Kapaun; 03-25-21 at 10:49 PM.
Bill Kapaun is offline
Old 03-25-21, 10:52 PM
  #6
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,226

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1570 Post(s)
Liked 636 Times in 357 Posts
What does your wheel collection look like? Find a wheelset with wider rims. Rhyno Lites, maybe?

That's the fun part about rebuilding old bikes. Everything on a bicycle works together so, when you change one part, you often find that you have to change something else to make it work.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Likes For Retro Grouch:
Old 03-26-21, 09:09 AM
  #7
RubeRad
Keepin it Wheel
Thread Starter

RubeRad's Avatar

Join Date: Aug 2011
Location: San Diego
Posts: 9,870

Bikes: Surly CrossCheck, Krampus

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 2,374 Times in 1,720 Posts
Originally Posted by 70sSanO View Post
Cantilever brakes?
Originally Posted by 2cam16 View Post
Aren't those cantis on it? Those are what came with that era of mtb's.
Originally Posted by cobba View Post
Those are cantilever brakes on the bike in the photo, did you remove them and put v-brakes on the bike?
Sorry for the confusion, that pic is from a while back, it shows cantis, but those are out and I'm trying V-brakes
RubeRad is offline
Old 03-26-21, 09:11 AM
  #8
RubeRad
Keepin it Wheel
Thread Starter

RubeRad's Avatar

Join Date: Aug 2011
Location: San Diego
Posts: 9,870

Bikes: Surly CrossCheck, Krampus

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 2,374 Times in 1,720 Posts
Originally Posted by Bill Kapaun View Post
Your brakes should have washers that you can relocate to move the pads closer to the rim.
I built a skinny "road" wheel for my hybrid and had a similar problem. You may need to find a couple extra washers out of the spare parts bin to add.
I'll give that a try, I took a brief look and it didn't seem obvious that the pads that are there could just be rearranged, or if I stuck 5mm of spacers in each side to make up the 1cm extra width, that the pads would still be able to be bolted on.

Do they sell extra-long-post replacement pads? (akin I guess to extra-long-reach caliper brakes for reaching 700C wheels from frames built for 27" wheels?)
RubeRad is offline
Old 03-26-21, 09:12 AM
  #9
RubeRad
Keepin it Wheel
Thread Starter

RubeRad's Avatar

Join Date: Aug 2011
Location: San Diego
Posts: 9,870

Bikes: Surly CrossCheck, Krampus

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 2,374 Times in 1,720 Posts
Originally Posted by Retro Grouch View Post
What does your wheel collection look like? Find a wheelset with wider rims. Rhyno Lites, maybe?

That's the fun part about rebuilding old bikes. Everything on a bicycle works together so, when you change one part, you often find that you have to change something else to make it work.
Wheel collection does not have any more rear 26" with a freehub. And these rims don't seem particularly narrow. Indeed, the other bike I checked with V-brakes (posts 8cm apart) has narrower rims
RubeRad is offline
Old 03-26-21, 09:32 AM
  #10
cobba
Senior Member

Join Date: Aug 2006
Posts: 1,867
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
Likes: 0
Liked 52 Times in 41 Posts
Originally Posted by RubeRad View Post
Sorry for the confusion, that pic is from a while back, it shows cantis, but those are out and I'm trying V-brakes
Are you using v-brake levers with the v-brakes?
cobba is offline
Old 03-26-21, 09:41 AM
  #11
RubeRad
Keepin it Wheel
Thread Starter

RubeRad's Avatar

Join Date: Aug 2011
Location: San Diego
Posts: 9,870

Bikes: Surly CrossCheck, Krampus

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 2,374 Times in 1,720 Posts
I'm not sure, I think not, but I'm aware I'll need to deal with that, but first off I need to get the v-brake geometry right
RubeRad is offline
Old 03-26-21, 09:42 AM
  #12
RubeRad
Keepin it Wheel
Thread Starter

RubeRad's Avatar

Join Date: Aug 2011
Location: San Diego
Posts: 9,870

Bikes: Surly CrossCheck, Krampus

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 2,374 Times in 1,720 Posts
Is there a standard spacing for v/canti brake posts? Does 9cm make v-brakes impossible?
RubeRad is offline
Old 03-26-21, 12:41 PM
  #13
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,185

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1519 Post(s)
Liked 806 Times in 589 Posts
Originally Posted by RubeRad View Post
I'll give that a try, I took a brief look and it didn't seem obvious that the pads that are there could just be rearranged, or if I stuck 5mm of spacers in each side to make up the 1cm extra width, that the pads would still be able to be bolted on.

Do they sell extra-long-post replacement pads? (akin I guess to extra-long-reach caliper brakes for reaching 700C wheels from frames built for 27" wheels?)
You may only have room for 3-4mm and have to wing it from there.
I don't have quite as much purchase on the threads as I'd like, but close.
Bill Kapaun is offline
Old 03-26-21, 12:47 PM
  #14
tyrion
Senior Member

tyrion's Avatar

Join Date: Oct 2015
Location: San Diego, California
Posts: 3,784

Bikes: Velo Orange Piolet

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 2032 Post(s)
Liked 1,574 Times in 765 Posts
Velocity Cliffhanger rims are 30mm wide outer (25mm inner). Get new rims and you won't need special brake pads.
tyrion is online now
Old 03-26-21, 01:06 PM
  #15
RubeRad
Keepin it Wheel
Thread Starter

RubeRad's Avatar

Join Date: Aug 2011
Location: San Diego
Posts: 9,870

Bikes: Surly CrossCheck, Krampus

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 2,374 Times in 1,720 Posts
yeah, I'm not going to be relacing wheels for this bike
RubeRad is offline
Old 03-26-21, 01:50 PM
  #16
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 1,432
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 490 Post(s)
Liked 758 Times in 440 Posts
You generally don't need to change or add any washers to make V brakes work on differently spaced posts or rims - each V brake pad come with two convex washers and two concave washers, one thin and one thick. THe convex washers are always directly against the brake arm so they form a ball, and the thick/thin concave washers can be placed on the inside/outside or outside/inside, respectively, depending on your spacing requirements. There is also a flat washer on most sets and you can put this directly against the pad or under the nut, again depending on spacing requirements - against the pad will give you maximum extension for widely spaced posts.
ClydeClydeson is offline
Old 03-26-21, 02:32 PM
  #17
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,221

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1717 Post(s)
Liked 1,796 Times in 1,114 Posts
You will never get it to work with cantilever brake levers. They will not move the brakes enough to make up the difference unless they are setup with about 1mm gap between the rim and brake pad.

It is the perfect storm wide posts and short pull levers. All you need now is a 7 speed cassette and 9 speed triggers to complete the project.

John
70sSanO is online now
Likes For 70sSanO:
Old 03-26-21, 02:58 PM
  #18
RubeRad
Keepin it Wheel
Thread Starter

RubeRad's Avatar

Join Date: Aug 2011
Location: San Diego
Posts: 9,870

Bikes: Surly CrossCheck, Krampus

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 2,374 Times in 1,720 Posts
well the 7-speed cassette is on there already

I just checked on ebay for 9-speed triggers, but found a great deal on 14-speed triggers, Imma get those and just click twice per gear

Before the brake levers even come into play though, I need to be able to manually/directly work the brake arms so that the pads contact the rims. Right now that happens with about 3cm of cable between the tops of the arms. Small enough to significantly compress the boot in the resting position, which I've never seen before.

I'll post a pic tonight if I can remember.

At least I headed off "those are cantis not v-brakes in the picture you dumbass" within only half a dozen posts

Last edited by RubeRad; 03-26-21 at 03:03 PM.
RubeRad is offline
Old 03-26-21, 03:02 PM
  #19
RubeRad
Keepin it Wheel
Thread Starter

RubeRad's Avatar

Join Date: Aug 2011
Location: San Diego
Posts: 9,870

Bikes: Surly CrossCheck, Krampus

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 2,374 Times in 1,720 Posts
Originally Posted by ClydeClydeson View Post
You generally don't need to change or add any washers to make V brakes work on differently spaced posts or rims - each V brake pad come with two convex washers and two concave washers, one thin and one thick. THe convex washers are always directly against the brake arm so they form a ball, and the thick/thin concave washers can be placed on the inside/outside or outside/inside, respectively, depending on your spacing requirements. There is also a flat washer on most sets and you can put this directly against the pad or under the nut, again depending on spacing requirements - against the pad will give you maximum extension for widely spaced posts.
I'll look into that more closely, thx. Maybe if I just bought replacement pads I could sort it out like you say.
RubeRad is offline
Old 03-26-21, 04:14 PM
  #20
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,782

Bikes: Schwinn Varsity

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1884 Post(s)
Liked 657 Times in 385 Posts
Why no pics of the problem???

trailangel is offline
Old 03-26-21, 04:19 PM
  #21
RubeRad
Keepin it Wheel
Thread Starter

RubeRad's Avatar

Join Date: Aug 2011
Location: San Diego
Posts: 9,870

Bikes: Surly CrossCheck, Krampus

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 2,374 Times in 1,720 Posts
patience, grasshopper

I'll post a pic tonight
RubeRad is offline
Old 03-26-21, 05:31 PM
  #22
Freerojo
Junior Member

Join Date: May 2008
Posts: 165

Bikes: 1997 Specialized Hardrock GX, 2008 Specialized Roubaix Triple 105, 1996 Cannondale RT2000 tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 16 Times in 11 Posts
My 97 Hardrock GX came with cantis, still have the bike, brakes are awesome.
Freerojo is offline
Old 03-26-21, 06:46 PM
  #23
RubeRad
Keepin it Wheel
Thread Starter

RubeRad's Avatar

Join Date: Aug 2011
Location: San Diego
Posts: 9,870

Bikes: Surly CrossCheck, Krampus

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 2,374 Times in 1,720 Posts

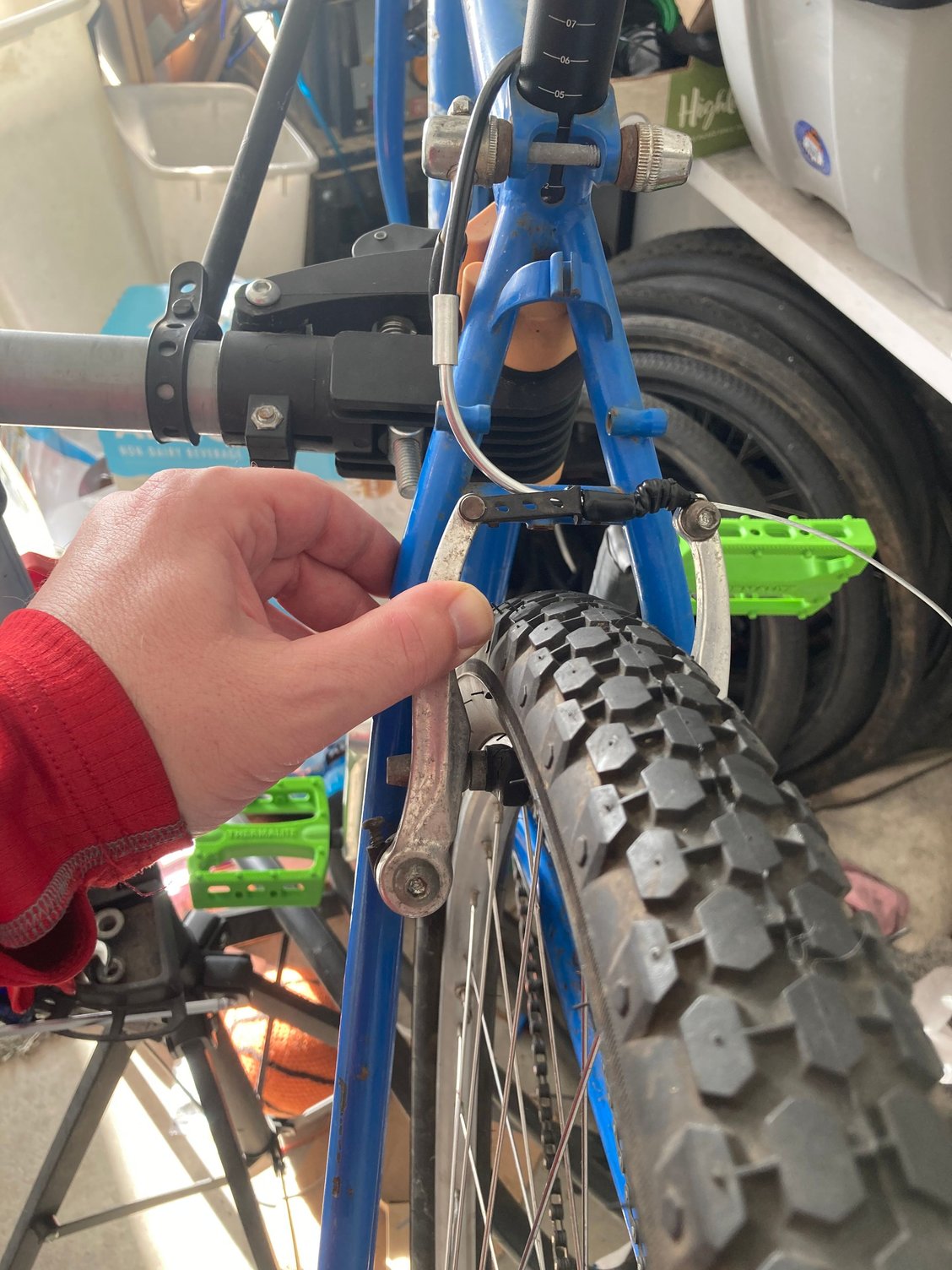

I gotta work on the centering, but this is where the brake cable would need to be set to get the pads reasonably close to the rim.

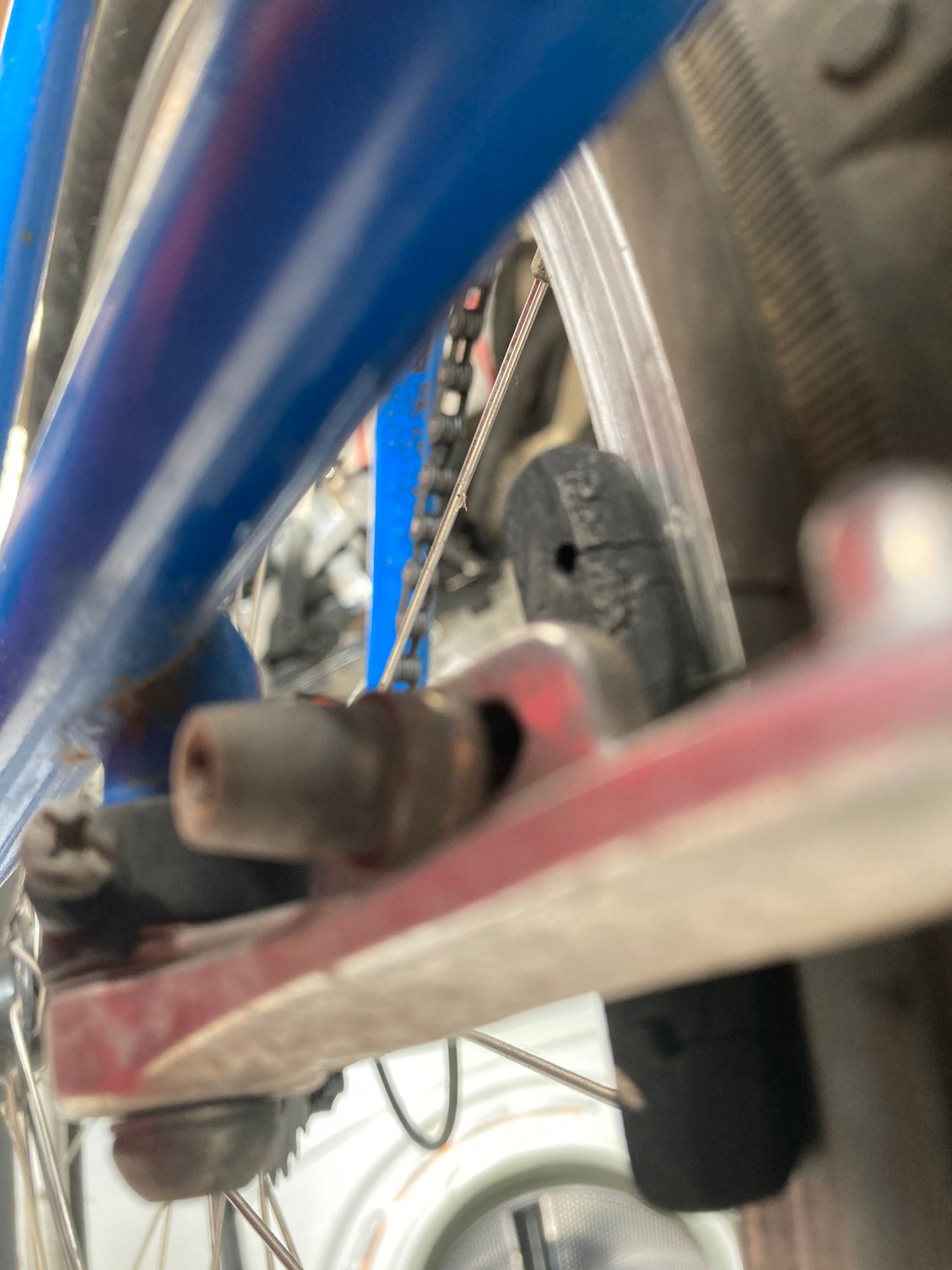

In this astoundingly-focused picture, you can see my nipple. You can also probably tell that there is a sizable washer stack available for rearrangement. Probably that will do the trick.

RubeRad is offline
Old 03-26-21, 06:47 PM
  #24
RubeRad
Keepin it Wheel
Thread Starter

RubeRad's Avatar

Join Date: Aug 2011
Location: San Diego
Posts: 9,870

Bikes: Surly CrossCheck, Krampus

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 2,374 Times in 1,720 Posts
Thx Bill Kapaun, I think you were first to what is probably the right answer, try rearranging washers.

Once again I'm guilty of not looking close enough / thinking hard enough before posting.

I can gare-on-frickin-tea it won't be the last time...
RubeRad is offline
Old 03-26-21, 06:57 PM
  #25
KCT1986
Full Member

Join Date: Jan 2016
Posts: 403
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 155 Post(s)
Liked 117 Times in 87 Posts
Originally Posted by RubeRad View Post
Is there a standard spacing for v/canti brake posts? Does 9cm make v-brakes impossible?
Post width for V brakes are normally spec'd at 77-85mm.

Shimano's frame specs are a good example of what is normal.
Attached Files
File Type: pdf
Shimano_V_Spec.pdf (41.1 KB, 5 views)
KCT1986 is online now

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
