Swapping rims.

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Swapping rims.

Old 03-26-21, 12:25 AM
  #1
bwilli88
Senior Member
Thread Starter

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,753

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 709 Post(s)
Liked 450 Times in 271 Posts
Swapping rims.

Swapping rims.

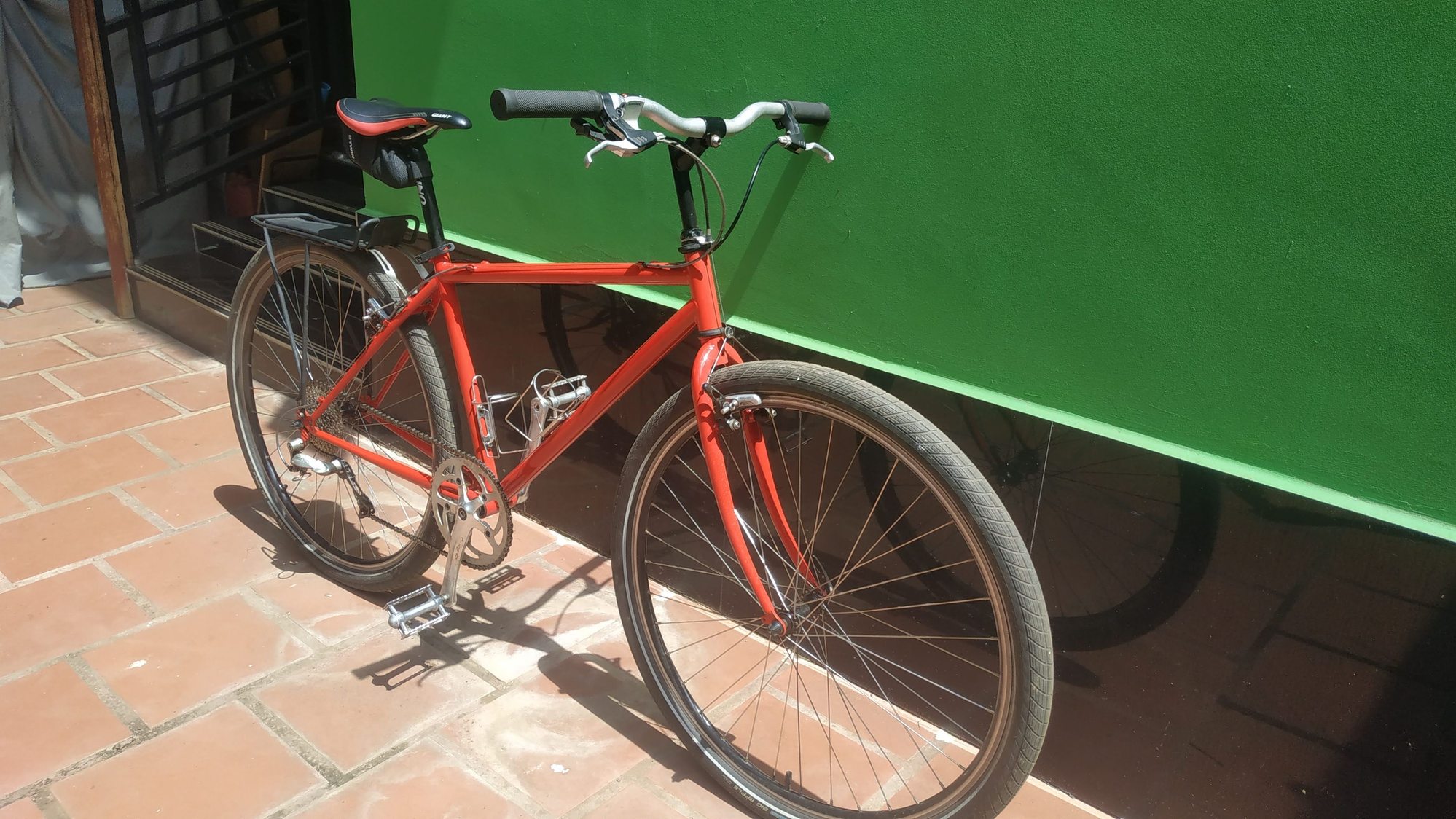

I have a nicely built All-road bike with a decent set of wheels consisting Shimano Deore 650 hubs and nice SS spokes and MDA rims. I have a nice set of Mavic A319 rims that are 26mm outside width and the MDAs are 21mm. The Mavics have eyelets while the MDAs do not. I am running Schwalbe Big Apples and am wondering what will happen with those tires going to a wider rim.
Both sets of rims have the same ERD and swapping the rim will entail removing the nipples one at a time and swapping the spoke and nipple over to the new rim, truing, and then tensioning.

Is it worth it in this new time of quarantine here in Cambodia to do this.


Last edited by bwilli88; 03-26-21 at 01:16 AM.
bwilli88 is offline
Old 03-26-21, 12:47 AM
  #2
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 678

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 190 Post(s)
Liked 113 Times in 82 Posts
And.......
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is offline
Old 03-26-21, 12:58 AM
  #3
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,852

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1389 Post(s)
Liked 626 Times in 467 Posts
You'll put your eye out!
Bill Kapaun is offline
Old 03-26-21, 01:11 AM
  #4
Geepig
Senior Member

Geepig's Avatar

Join Date: Sep 2020
Location: Eastern Poland
Posts: 736

Bikes: Romet Jubilat x 4, Wigry x 1, Turing x 1

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 194 Post(s)
Liked 188 Times in 144 Posts
Rim swapping sounds good in theory, but then later one rim and hub make a better fit and you are left with another rim and a hub that do not match at all.
Geepig is offline
Old 03-26-21, 01:25 AM
  #5
bwilli88
Senior Member
Thread Starter

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,753

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 709 Post(s)
Liked 450 Times in 271 Posts
So Sorry, my computer sent out the post before I finished it, the above posts do not have my full original post.
bwilli88 is offline
Old 03-26-21, 02:13 AM
  #6
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,852

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1389 Post(s)
Liked 626 Times in 467 Posts
Originally Posted by bwilli88 View Post
......Is it worth it in this new time of quarantine here in Cambodia to do this.
What does the time & place have to do with anything?
You'll probably put someone else's eye out.
What are you actually trying to accomplish & why?
You won't see that much difference.
Bill Kapaun is offline
Old 03-26-21, 03:11 AM
  #7
alo
Senior Member

Join Date: Feb 2020
Posts: 1,059
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 529 Post(s)
Likes: 0
Liked 254 Times in 185 Posts
I would not destroy good wheels, when it may or may not be a good idea.

You could pick up another set of hubs, build your new wheels, and have two sets.
alo is offline
Old 03-26-21, 03:26 AM
  #8
bwilli88
Senior Member
Thread Starter

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,753

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 709 Post(s)
Liked 450 Times in 271 Posts
Actually I have 3 sets of wheels in this scenario,1, the set on the bike, 2, the set with the mavic A319 rims, built with SS spokes and shimano 105 hubs(more road bikey), and 3, a set with Shimano Deore 530 hubs and Bontrager rims with eyelets and SS spokes.
The existing wheels have 18mm inside 21mm outside size rims without eyelets.
The 105 wheels have the A319 rims with 22mm inside and 26mm outside rims with eyelets
the bontrager wheelset has 18+mm inside and 22mm outside rims with eyelets.
I am thinking that the Deore 650 hubs with the A319 rims will provide a stronger set of wheels.
OBTW, I am a Clyde at over 230 lbs.
bwilli88 is offline
Old 03-26-21, 04:34 AM
  #9
Geepig
Senior Member

Geepig's Avatar

Join Date: Sep 2020
Location: Eastern Poland
Posts: 736

Bikes: Romet Jubilat x 4, Wigry x 1, Turing x 1

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 194 Post(s)
Liked 188 Times in 144 Posts
Originally Posted by bwilli88 View Post
Swapping rims.
I have a nicely built All-road bike with a decent set of wheels consisting Shimano Deore 650 hubs and nice SS spokes and MDA rims. I have a nice set of Mavic A319 rims that are 26mm outside width and the MDAs are 21mm. The Mavics have eyelets while the MDAs do not. I am running Schwalbe Big Apples and am wondering what will happen with those tires going to a wider rim.
Both sets of rims have the same ERD and swapping the rim will entail removing the nipples one at a time and swapping the spoke and nipple over to the new rim, truing, and then tensioning.

Is it worth it in this new time of quarantine here in Cambodia to do this.

That is a handsome looking machine!

Have you considered removing a tire and tube and gently fitting them to one of the other rims, gently inflating the tire so it just takes the shape? If you happen to have a spare hub and set of spokes you could do a temporary wheel build - I laced a wheel the other evening simply to test how far off the spoke lengths were for a replacement hub.
Geepig is offline
Old 03-26-21, 07:45 AM
  #10
bwilli88
Senior Member
Thread Starter

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,753

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 709 Post(s)
Liked 450 Times in 271 Posts
I could easily swap the tire to the A319 rims as they are built up with the Shimano 105 hubs.
bwilli88 is offline
Old 03-26-21, 08:57 AM
  #11
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 24,606

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 129 Post(s)
Tagged: 1 Thread(s)
Quoted: 4460 Post(s)
Liked 1,992 Times in 1,195 Posts
Originally Posted by bwilli88 View Post
Swapping rims.
I have a nicely built All-road bike with a decent set of wheels consisting Shimano Deore 650 hubs and nice SS spokes and MDA rims. I have a nice set of Mavic A319 rims that are 26mm outside width and the MDAs are 21mm. The Mavics have eyelets while the MDAs do not. I am running Schwalbe Big Apples and am wondering what will happen with those tires going to a wider rim.
Both sets of rims have the same ERD and swapping the rim will entail removing the nipples one at a time and swapping the spoke and nipple over to the new rim, truing, and then tensioning.

Is it worth it in this new time of quarantine here in Cambodia to do this.
I wouldn’t. At least not until something goes wrong with the original rims. ‘Tain’t broke. Don’t fix it. Swapping rims is fairly trivial but if it’s unnecessary, why do it? Ride your current wheels until they break (or try to break them) and go from there.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 03-27-21, 09:11 AM
  #12
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,872

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1069 Post(s)
Liked 266 Times in 201 Posts
You have quite a few relatives in Lancaster, PA? Are you Amish?

Anyway, if you want to swap rims it does take some effort but its not rocket surgery. All the advice above (if it ain't broke, don't fix it) applies, but sometimes "man's reach should exceed his grasp, else what's a heaven for?".

First thing is to fine the ERD (effective rim diameter) of the current rim. Should be posted for your exact rim. Then find the ERD for the new rim. If they're the same you'll be able to use your original spokes. Take off tire, tube, rimstrip from the original. Loosen each spoke a fixed number of turns (5 or 10? What do the experts say?). The hub should be loose and easily moved from side to side at this point. Tape the new rim to the old, aligning the hole for the stem, and ensuring that the hole offset (every other hole may be offset to one side or the other) matches. Then take the nipple off a spoke (start with the spokes on one side of the hub, the side that's on the side of the new hub) and pull the spoke out, transferring it to the corresponding hole in the other rim. Screw the nipple on a fixed number of turns (say 5) - you should have a little play. Repeat until you have all the spokes from that side transferred. Then do the other side.

If you've a new rim with a different ERD than the original, you may have to buy new spokes. There is some info on-line, and some spoke-length calculators available too. Calculate length and price new spokes. This can be expensive depending upon how "optimal" you want your spokes to be. You can buy ultra-high strength polyethylene spokes (!) for about $250/rim, or everyday plain-jane stainless spokes for ~20 bucks per wheel. But get the right size!

After this, you probably should read up a lot on how to tighten, true, and prestress the wheel. For years, folks put new rims and adjusted overall tension by feel. Or by tone: they'd pluck the tightened spokes to ensure consistent pitch. Some people have good enough pitch to specify the actual pitch (G with plain spokes, A with butted). Or, you can buy a spoke tension meter and look up optimum pitch. Or you can use your 2nd wheel as a gauge to inform the tension of the new wheel. The tension has to be about correct (exact is not super critical, and too loose probably worse than a little bit too tight) but the wheel has to be true. If you have good mechanical insight and are good with your hands, the first wheel may take a day or two. The second wheel, a few hours. And so forth. In the shop I worked in as a lad, Perry O. could do a wheel in about ten minutes, maybe less. I was always impressed by speed and skill he used to make a wheel.

For an orientation, check out the late Sheldon Brown's site on wheelbuilding. Books you might consider are The Bicycle Wheel 3rd Edition: Jobst Brandt, Roger Musson's Professional Guide to Wheel Building 7th Edition. Gerd Schraner's "The art of wheelbuilding has some nice info, but some of the arguments (tying and soldering spoke crossings) is not, errrr, "orthodox"". I think Musson's book may have the most practical stuff and its available on-line. But I like Brandt, too.

Your bike looks very nice- very clean and functional. The area in your pictures looks like a great place to ride. Good luck.

Last edited by WizardOfBoz; 03-27-21 at 09:21 AM.
WizardOfBoz is online now
Old 03-27-21, 01:46 PM
  #13
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,208

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1564 Post(s)
Liked 595 Times in 343 Posts
Originally Posted by cyccommute View Post
I wouldn’t. At least not until something goes wrong with the original rims. ‘Tain’t broke. Don’t fix it. Swapping rims is fairly trivial but if it’s unnecessary, why do it? Ride your current wheels until they break (or try to break them) and go from there.
cyccommute has given you the correct answer from an engineer's point of view. To an engineer, by the way, that's the only possible correct answer.

An artist would tell you to keep changing things on the bike until it makes you happy. To an artist, by the way, that's the only possible correct answer.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 03-27-21, 04:50 PM
  #14
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 24,606

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 129 Post(s)
Tagged: 1 Thread(s)
Quoted: 4460 Post(s)
Liked 1,992 Times in 1,195 Posts
Originally Posted by Retro Grouch View Post
cyccommute has given you the correct answer from an engineer's point of view. To an engineer, by the way, that's the only possible correct answer.

An artist would tell you to keep changing things on the bike until it makes you happy. To an artist, by the way, that's the only possible correct answer.
Not an engineer. Just being practical.

And, to be sure, this is coming from a guy who took a bike with perfectly serviceable Avid BB7 front discs and rear Avid Arch Rival V-brakes and swapped those out for TRP Spykes and Paul Motolite. And then, just because I wanted green brakes, swapped out the Spykes for Paul Klampers. I also changed from plain black spoke nipples to green ones for no other reason than I wanted that color.

I’m a chemist, by the way. To explain the difference, a chemist and an engineer walk into a bathroom. They both do their business at the urinal. The engineer walks over to the sink and starts to wash his hands. The chemist heads for the door. The engineer says, ”Hey, buddy! They taught use to wash our hands after going to the bathroom in engineering school!”

The chemist answers, “Well in chemistry school they taught us not to pee on our hands.”
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 03-27-21, 09:32 PM
  #15
bwilli88
Senior Member
Thread Starter

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,753

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 709 Post(s)
Liked 450 Times in 271 Posts
Two of the wheel sets were built by me and the one is factory. The rims are all within a mm or 2 of the same ERD. It would be relatively easy to do this just time consuming.
The end result would be a wider set on my all-road and a narrower set for my 105 equipped road bike.
bwilli88 is offline
Old 03-27-21, 09:47 PM
  #16
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,872

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1069 Post(s)
Liked 266 Times in 201 Posts
Ok, it sounds like you know exactly what it takes to build wheels, and the rims are about the same size.

Isn't the answer really your personal preference?
WizardOfBoz is online now
Old 03-29-21, 04:56 AM
  #17
bwilli88
Senior Member
Thread Starter

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,753

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 709 Post(s)
Liked 450 Times in 271 Posts
So, My decision ended up as.
Leave them all as they are and use the wheels with the M530 hubs.
The Mavic rims with the 105 hubs will go back on my Fuji if I ever get it repainted as it will get the rest of the 105 group.
The wheels with the T610 hubs were removed from the All-Road bike and left as they are and put in storage for another bike some time.
So that leaves the better eyeletted rims with the M530 hubs, they went on the All-Road since they are Mt Bike hubs they have a better set of seals on the bearings.
bwilli88 is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
