Pedals hard to turn backwards

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Pedals hard to turn backwards

Old 03-26-21, 05:01 PM
  #1
CrowSeph
On the crow's wings
Thread Starter

CrowSeph's Avatar

Join Date: Mar 2016
Location: South Italy
Posts: 601

Bikes: (Whistle Roadbike) (Cannondale Trail) (Robur Roadbike1956)(Chiorda Condorino)(Erre from circa 1930) (Tomasini Roadbike 1970)(A folding commuter)

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 137 Post(s)
Liked 62 Times in 38 Posts
Pedals hard to turn backwards

The series of the strange problems is not over yet.
On my mountainbike if you turn the crank backwards you will notice a strange thing , basically you can feel a sort of friction somewhere.
To give you an idea , with a normal bike and a dynometer you can use 1,5kg of force to swipe around the crankset but on my mountainbike you had to push until 2,8kg!
i removed the wheel and checked the cassette , once in a ride the cassette became loose. But the cassette is super smooth right now!
the derailleur works fine , the crankset works fine , the chain is still new (dirty but still new). The bottom bracket bearing seems working properly too.

what else i can cheeck? everything seems fine but when i mount the bike back i can feel the problem

i'am using a deore m4100 2x10 26-36/11-42
and mostly i notice the friction when i use the 11+26
CrowSeph is offline
Old 03-26-21, 05:04 PM
  #2
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 4,552
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1,226 Times in 869 Posts
bad hub assembly. I'd start looking for a replacement.
__________________
-Oh Hey!
Troul is offline
Old 03-26-21, 05:04 PM
  #3
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,859

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1397 Post(s)
Liked 629 Times in 470 Posts
You are cross chaining BADLY.
Put it on 26-11.
Stand behind the bike and look at the angle of the chain. BAD!!!
It should be obvious why you don't use that combination.
Bill Kapaun is offline
Likes For Bill Kapaun:
Old 03-26-21, 05:11 PM
  #4
Iride01
Hits [ENTER] b4 thinking

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 8,856

Bikes: '20 Tarmac Disc Comp '91, '78 Raleigh Competition GS

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 3525 Post(s)
Liked 2,090 Times in 1,474 Posts
Too long a chain and when pedaling backwards in the 26F/11R the top run of chain is going slack and getting mixed up with other stuff.

Don't pedal backwards. More useless than coasting. <grin>

You really put your bikes on a dynamometer? Don't know what to tell you about those readings.
Iride01 is offline
Old 03-26-21, 05:34 PM
  #5
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,168

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1378 Post(s)
Liked 918 Times in 638 Posts
Originally Posted by Iride01 View Post
Too long a chain and when pedaling backwards in the 26F/11R the top run of chain is going slack and getting mixed up with other stuff.

Don't pedal backwards. More useless than coasting. <grin>

You really put your bikes on a dynamometer? Don't know what to tell you about those readings.
At least the OP presented some actual data, which as an engineer I appreciate.
dsbrantjr is offline
Likes For dsbrantjr:
Old 03-26-21, 06:08 PM
  #6
Moisture
Drip, Drip.

Moisture's Avatar

Join Date: Oct 2020
Posts: 1,341
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 906 Post(s)
Liked 149 Times in 126 Posts
Clean and re lube the rear derailleur pivot points and pulleys
Moisture is offline
Old 03-26-21, 06:19 PM
  #7
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 2,898
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1011 Post(s)
Liked 837 Times in 483 Posts
Originally Posted by Bill Kapaun View Post
You are cross chaining BADLY.
Put it on 26-11.
Stand behind the bike and look at the angle of the chain. BAD!!!
It should be obvious why you don't use that combination.
This sufficiently accounts for the (non)problem, not that that ever stops anyone posting other hypotheses.

Proof: run the chain up to the middle chainring and middle sprocket and measure again.
Trakhak is offline
Likes For Trakhak:
Old 03-27-21, 08:19 AM
  #8
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO and Tucson, AZ
Posts: 2,260

Bikes: 2016 Fuji Tread, 1983 Trek 520

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 487 Post(s)
Liked 255 Times in 183 Posts
A bent rear derailleur or derailleur hanger could be making it worse too.
andrewclaus is offline
Old 03-27-21, 09:50 AM
  #9
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,453

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 163 Post(s)
Liked 120 Times in 89 Posts
Dirty or worn freehub pushing back on your chain. To test, shift to your lowest gearing and try it. If this is the problem, pedaling backward will be significantly easier.

Last edited by oldbobcat; 03-27-21 at 10:02 AM.
oldbobcat is offline
Old 03-27-21, 10:49 AM
  #10
CrowSeph
On the crow's wings
Thread Starter

CrowSeph's Avatar

Join Date: Mar 2016
Location: South Italy
Posts: 601

Bikes: (Whistle Roadbike) (Cannondale Trail) (Robur Roadbike1956)(Chiorda Condorino)(Erre from circa 1930) (Tomasini Roadbike 1970)(A folding commuter)

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 137 Post(s)
Liked 62 Times in 38 Posts
okay guys i'll keep updated after i clean my chain and make a new test with the lowest gearing.
CrowSeph is offline
Old 03-27-21, 11:04 AM
  #11
base2
Doesn't brain good.

base2's Avatar

Join Date: Jun 2015
Location: Pacific Northwest
Posts: 1,776

Bikes: 5 good ones, and the occasional project.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 921 Post(s)
Liked 528 Times in 323 Posts
Freehub grease.
Disassemble.
Clean.
Reapply.
Reassemble.
Ride.
__________________
My lights are obscenly bright because drivers are dim.

I shouldn't have to "make myself more visible;" Drivers should just stop running people over.
base2 is offline
Old 03-27-21, 12:08 PM
  #12
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 2,898
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1011 Post(s)
Liked 837 Times in 483 Posts
Originally Posted by CrowSeph View Post
okay guys i'll keep updated after i clean my chain and make a new test with the lowest gearing.
Cleaning is good. But your new test with the lowest gearing will prove nothing. The test that will prove that the problem is nonexistent will be to use the durometer with the chain running in as straight a line a possible from the middle of the cassette to the center chainring. It's a given for every derailleur-equipped bike ever built that friction losses increase as the chain angle from the cassette to the chainring increases.

And, as noted by other posters above, if you can't resist the urge to backpedal, please keep it to a minimum. The best that can happen is that you can get away with backpedaling once in a while without damaging the bike. But be forewarned that, with some bikes in some gear combinations, breaking the rear derailleur or chain or rear dropout is a real possibility. Why risk it for no benefit?
Trakhak is offline
Old 04-03-21, 01:41 PM
  #13
CrowSeph
On the crow's wings
Thread Starter

CrowSeph's Avatar

Join Date: Mar 2016
Location: South Italy
Posts: 601

Bikes: (Whistle Roadbike) (Cannondale Trail) (Robur Roadbike1956)(Chiorda Condorino)(Erre from circa 1930) (Tomasini Roadbike 1970)(A folding commuter)

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 137 Post(s)
Liked 62 Times in 38 Posts

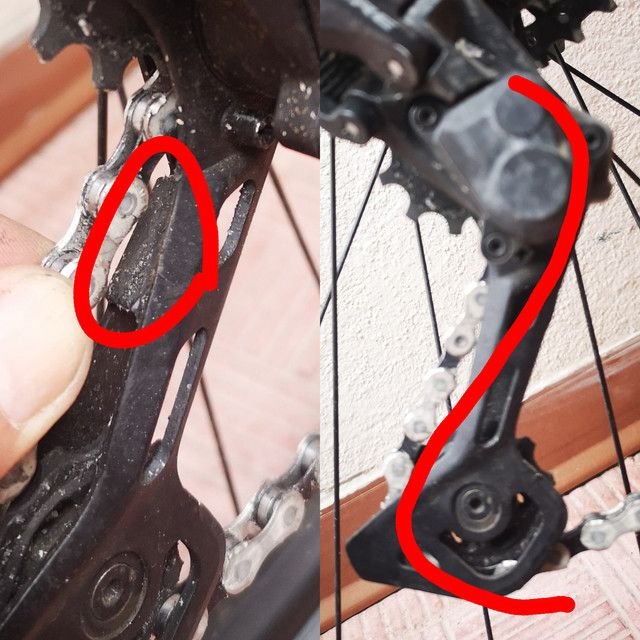

Seems i found the problem. The chain were in a wrong position. Originally were under that metal plate, causing the chain itself pushing into the metal.
Seems more easy to show in the photo than explaining.


CrowSeph is offline
Old 04-03-21, 02:23 PM
  #14
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,437

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3097 Post(s)
Liked 1,530 Times in 1,038 Posts
We see this problem every so often as more try to fix their bikes at home. But usually when the chain is running on the wrong side of that cage tab it also makes some noise and has a rough/notchy feel. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 04-04-21, 10:01 AM
  #15
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,770
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 772 Post(s)
Liked 351 Times in 204 Posts
Originally Posted by Andrew R Stewart View Post
We see this problem every so often as more try to fix their bikes at home. But usually when the chain is running on the wrong side of that cage tab it also makes some noise and has a rough/notchy feel. Andy
I would love to meet a pro mechanic who has never done this. As I always say, there are two kinds of mechanics, those who have incorrectly routed the chain through a derailleur and liars.
Dan Burkhart is offline
Likes For Dan Burkhart:
Old 04-04-21, 05:04 PM
  #16
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,437

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3097 Post(s)
Liked 1,530 Times in 1,038 Posts
Originally Posted by Dan Burkhart View Post
I would love to meet a pro mechanic who has never done this. As I always say, there are two kinds of mechanics, those who have incorrectly routed the chain through a derailleur and liars.
Well, I don't lie if I can help it. I've done this too. But the difference is that an experienced wrench will, usually..., realize pretty quickly what they've done and correct it before the bike leaves the repair stand.

One of my favorite statements about what separates a pro from others is that the pro knows how to hide their mistakes before anyone knows it. This from the mouth of the current generation's grandfather frame builder, Al Eisentraut. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 04-04-21, 06:11 PM
  #17
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,770
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 772 Post(s)
Liked 351 Times in 204 Posts
Originally Posted by Andrew R Stewart View Post
Well, I don't lie if I can help it. I've done this too. But the difference is that an experienced wrench will, usually..., realize pretty quickly what they've done and correct it before the bike leaves the repair stand.

One of my favorite statements about what separates a pro from others is that the pro knows how to hide their mistakes before anyone knows it. This from the mouth of the current generation's grandfather frame builder, Al Eisentraut. Andy
Yeah Iím sure I never let one go out the door like that but I have done it a time or two. Itís better if there is a quick link involved.
