Half Radial lacing rear wheel

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Half Radial lacing rear wheel

Old 03-27-21, 11:58 PM
  #1
Symox
Senior Member
Thread Starter

Join Date: Jul 2020
Posts: 302

Bikes: '07 Specialized Roubaix Comp Triple, '12 Gravity Fixie, '21 Liv Rove 4, '06? Giant EB Spirit

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 60 Times in 47 Posts
Half Radial lacing rear wheel

I got bit by the wheel lacing bug. I did a rim brake rear 28Hole with 3X lacing both sides and its great. Now I'm addicted to doing other patterns. I'm thinking of trying a radial non drive side pattern with 3X drive side. Other than the small weight savings due to the radial spokes, are there other benefits? According to Sheldon Brown it appears it will make the tension of the spokes more equal if the heads of the spokes go "out" for the radial spokes.

Also, I'm thinking of using butted spokes for weight, potentially more shock absorption (is this a myth?) and better fatigue life of the spokes. Again, this is for a RIM brake bike with 28 holes (mavic open pro) and Bitex RAR12 hub. Probably Sapim spokes and nipples (brass).

I'm NOT a racer but appreciate a high performance machine.

Thoughts?
Thanks for your insight
Symox is offline
Likes For Symox:
Old 03-28-21, 01:48 AM
  #2
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 9,113

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1162 Post(s)
Liked 432 Times in 312 Posts
Butted spokes all the way, especially on the NDS of a rear.

Only real issue with radial is hub flange has to be up to it, shouldn't be an issue for the low tension of NDS, pretty much just applies to front hubs. There's less metal in the way of a radial spoke wanting to pull through the flange; recent hub flanges are beefier than older ones.
Kimmo is offline
Old 03-28-21, 06:33 AM
  #3
AlmostTrick
Tortoise Wins by a Hare!

AlmostTrick's Avatar

Join Date: Feb 2006
Location: Looney Tunes, IL
Posts: 7,350

Bikes: Wabi Special FG, Raleigh Roper, Nashbar AL-1, Miyata One Hundred, '70 Schwinn Lemonator and More!!

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1516 Post(s)
Liked 876 Times in 470 Posts
Originally Posted by Symox View Post
I got bit by the wheel lacing bug. I did a rim brake rear 28Hole with 3X lacing both sides and its great. Now I'm addicted to doing other patterns. I'm thinking of trying a radial non drive side pattern with 3X drive side. Other than the small weight savings due to the radial spokes, are there other benefits? According to Sheldon Brown it appears it will make the tension of the spokes more equal if the heads of the spokes go "out" for the radial spokes.

Also, I'm thinking of using butted spokes for weight, potentially more shock absorption (is this a myth?) and better fatigue life of the spokes. Again, this is for a RIM brake bike with 28 holes (mavic open pro) and Bitex RAR12 hub. Probably Sapim spokes and nipples (brass).

I'm NOT a racer but appreciate a high performance machine.

Thoughts?
Thanks for your insight
Coolness factor / looks. Please post pics when you get it done.
AlmostTrick is offline
Old 03-28-21, 07:14 AM
  #4
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,537

Bikes: Several, mostly not name brands.

Mentioned: 133 Post(s)
Tagged: 0 Thread(s)
Quoted: 2570 Post(s)
Liked 1,198 Times in 759 Posts
Thee's really no functional benefit to radial spoking. And as mentioned above, if your hub isn't designed for radial spoking, there's a chance the hub flange may fail.
JohnDThompson is offline
Likes For JohnDThompson:
Old 03-28-21, 07:35 AM
  #5
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 32,802

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 1649 Post(s)
Likes: 0
Liked 503 Times in 380 Posts
As disc brakes become more prevalent on road bikes, the radial spoked wheel is going to be less and less common.
HillRider is offline
Likes For HillRider:
Old 03-28-21, 10:50 PM
  #6
Symox
Senior Member
Thread Starter

Join Date: Jul 2020
Posts: 302

Bikes: '07 Specialized Roubaix Comp Triple, '12 Gravity Fixie, '21 Liv Rove 4, '06? Giant EB Spirit

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 60 Times in 47 Posts
Originally Posted by Kimmo View Post
Butted spokes all the way, especially on the NDS of a rear.

Only real issue with radial is hub flange has to be up to it, shouldn't be an issue for the low tension of NDS, pretty much just applies to front hubs. There's less metal in the way of a radial spoke wanting to pull through the flange; recent hub flanges are beefier than older ones.
Why do you recommend butted spokes, especially for the NDS rear?
Symox is offline
Old 03-29-21, 01:00 AM
  #7
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 9,113

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1162 Post(s)
Liked 432 Times in 312 Posts
Originally Posted by Symox View Post
Why do you recommend butted spokes, especially for the NDS rear?
They stretch more for the same tension. The NDS spokes are quite loose, and are usually the first to suffer fatigue failures from going completely slack as they go past the ground. Butted spokes, being more elastic, are less likely to lose all tension when the wheel's loaded.

If you want to learn all about wheels, it's possible find a free copy of Jobst Brandt's book on wheelbuilding with a bit of digging. There's a lot of bunk out there about wheels, but Jobst knew his stuff and wrote the bible on it (although he wasn't around for the advent of low-spoke count wheels, so they're not covered).
Kimmo is offline
Likes For Kimmo:
Old 03-29-21, 07:32 AM
  #8
AeroGut
Senior Member

Join Date: Jun 2019
Posts: 530
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 195 Post(s)
Likes: 0
Liked 120 Times in 94 Posts
To the question of benefits of half-radial spoking, occasionally you will see radial on the drive side and crossed on the non-drive side which I think is supposed to reduce the asymmetry of the tension due to the dishing, but it requires a beefy hub to transmit the torque to the nondrive side and not stress the drive side spokes too much. Shimano's 105 R561 wheels are an example. I have no idea if it actually makes any difference in performance. I got more annoyed by the fact that the shimano linear pull spokes on those wheels used an odd size nipple that needed a special spoke wrench, and you had to take the cassette off to get at the nipples on the drive side, but that's an aside.
AeroGut is offline
Old 03-29-21, 06:48 PM
  #9
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,394

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Liked 104 Times in 77 Posts
Originally Posted by JohnDThompson View Post
Thee's really no functional benefit to radial spoking. And as mentioned above, if your hub isn't designed for radial spoking, there's a chance the hub flange may fail.
What he said.
oldbobcat is offline
Old 03-29-21, 08:12 PM
  #10
Symox
Senior Member
Thread Starter

Join Date: Jul 2020
Posts: 302

Bikes: '07 Specialized Roubaix Comp Triple, '12 Gravity Fixie, '21 Liv Rove 4, '06? Giant EB Spirit

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 60 Times in 47 Posts
Originally Posted by oldbobcat View Post
What he said.
Well radial spoking does reduce spoke length and hence weight. So, there is always that.
Symox is offline
Old 03-29-21, 08:15 PM
  #11
Symox
Senior Member
Thread Starter

Join Date: Jul 2020
Posts: 302

Bikes: '07 Specialized Roubaix Comp Triple, '12 Gravity Fixie, '21 Liv Rove 4, '06? Giant EB Spirit

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 60 Times in 47 Posts
Got a copy of Jobst Brandt's book. Very well written.

He seems to really like the butted ("swaged" in Brandt's terminology) spokes. He isn't a fan of radial spoking which is interesting.
Symox is offline
Old 03-29-21, 08:42 PM
  #12
Symox
Senior Member
Thread Starter

Join Date: Jul 2020
Posts: 302

Bikes: '07 Specialized Roubaix Comp Triple, '12 Gravity Fixie, '21 Liv Rove 4, '06? Giant EB Spirit

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 60 Times in 47 Posts
According to Sheldon Brown:



"Radial front wheels offer mainly esthetic benefits, but half-radial rear wheels can be substantially more durable than conventional ones, if the wheel is highly dished. The high amount of dishing with more and more sprockets has caused an increase in spoke breakage on the left side of rear wheels. This is caused by metal fatigue. Just as you can break a paperclip by bending it back and forth a few times, you can break spokes by flexing them back and forth by a much smaller amount, millions of times -- even if they don't flex enough to take a permanent set."



"With half-radial spoking, the amount of dish is very slightly less to begin with if you run the radial spokes up along the inside of the flange ("heads out.") In addition, since there are no left-side "leading" spokes, no amount of torque on the hub can reduce the tension on any of the left-side spokes. In fact, if you have an old wheel that has been breaking left-side spokes, "half rebuilding" the wheel into a half radial will solve the problem once and for all."



https://sheldonbrown.com/wheelbuild.html#half-radial
Symox is offline
Old 03-29-21, 08:57 PM
  #13
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,661

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1337 Post(s)
Liked 558 Times in 422 Posts
Originally Posted by Symox View Post
According to Sheldon Brown:



"Radial front wheels offer mainly esthetic benefits, but half-radial rear wheels can be substantially more durable than conventional ones, if the wheel is highly dished. The high amount of dishing with more and more sprockets has caused an increase in spoke breakage on the left side of rear wheels. This is caused by metal fatigue. Just as you can break a paperclip by bending it back and forth a few times, you can break spokes by flexing them back and forth by a much smaller amount, millions of times -- even if they don't flex enough to take a permanent set."



"With half-radial spoking, the amount of dish is very slightly less to begin with if you run the radial spokes up along the inside of the flange ("heads out.") In addition, since there are no left-side "leading" spokes, no amount of torque on the hub can reduce the tension on any of the left-side spokes. In fact, if you have an old wheel that has been breaking left-side spokes, "half rebuilding" the wheel into a half radial will solve the problem once and for all."



https://sheldonbrown.com/wheelbuild.html#half-radial
Obviously you had your mind made up before you posted.
Why not do a 1X NDS with a thinner spoke?

Last edited by Bill Kapaun; 03-29-21 at 09:02 PM.
Bill Kapaun is offline
Old 03-29-21, 09:00 PM
  #14
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,394

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Liked 104 Times in 77 Posts
Originally Posted by Symox View Post
Got a copy of Jobst Brandt's book. Very well written.

He seems to really like the butted ("swaged" in Brandt's terminology) spokes. He isn't a fan of radial spoking which is interesting.
Jobst Brandt always chose strength and durability over, erm, other considerations. At the time he wrote that book, all serious riding and racing was done on hand-built wheels. Only a handful of race mechanics built radially spoked wheels, and then only the front, and only for time trialing, climbing, and track for the lightest riders. It's presumable that these wheels did not last long.

Radial spokes pull raidially from the spoke hole in the flange. To prevent the flange from eventually cracking, it needs more material in the direction of pull--either by drilling fewer holes closer to the center, or by forging a higher flange.

A buddy of mine once built a rear wheel with a radial spokes straddled by a pair of tangential spokes on the non-drive side. It looked cool but was rather pointless.
oldbobcat is offline
Old 03-29-21, 10:32 PM
  #15
Mackers
Senior Member

Join Date: Mar 2008
Posts: 202
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Liked 36 Times in 33 Posts
Originally Posted by Kimmo View Post
They stretch more for the same tension. The NDS spokes are quite loose, and are usually the first to suffer fatigue failures from going completely slack as they go past the ground. Butted spokes, being more elastic, are less likely to lose all tension when the wheel's loaded.
How is this supposed to work? Surely NDS tension as a function of DS tension and hub geometry will be identical for whatever butting and gauge spoke you use? And a spoke will go slack at the same moment regardless of butting or gauge. It will just have elongated more while under tension.
Mackers is offline
Old 03-29-21, 11:01 PM
  #16
Bike Gremlin
Mostly harmless

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,174

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 994 Post(s)
Liked 45 Times in 30 Posts
Originally Posted by Mackers View Post
How is this supposed to work? Surely NDS tension as a function of DS tension and hub geometry will be identical for whatever butting and gauge spoke you use? And a spoke will go slack at the same moment regardless of butting or gauge. It will just have elongated more while under tension.
My thinking out loud - haven't been able to measure this:
Downwards, or sideways force pushing the rim towards the NDS can both effectively shorten the distance from the NDS flange to the rim of certain NDS spokes.
Similar goes for the leading ("pushing") spokes when the drive torque is applied.

The more elongated spokes are when the wheel is built, the less likely they are to become completely slack from such temporary rim deflections and very slight rotations relative to the hub.

Of course, without having measured this, it is just theory. The other advantage of swagged spokes: the thinned down mid-section effectively acting as a spoke-shock-absorber, unloading the more stressed spoke ends, hence making the spokes a lot more durable, is what I would consider to be tried and tested - and confirmed.
Bike Gremlin is offline
Old 03-29-21, 11:15 PM
  #17
Symox
Senior Member
Thread Starter

Join Date: Jul 2020
Posts: 302

Bikes: '07 Specialized Roubaix Comp Triple, '12 Gravity Fixie, '21 Liv Rove 4, '06? Giant EB Spirit

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 60 Times in 47 Posts
Originally Posted by Bill Kapaun View Post
Obviously you had your mind made up before you posted.
Why not do a 1X NDS with a thinner spoke?
because you are obviously trolling
Symox is offline
Old 03-29-21, 11:28 PM
  #18
cpach
Senior Member

Join Date: Oct 2009
Location: Mt Shasta, CA, USA
Posts: 1,859

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 414 Post(s)
Liked 202 Times in 160 Posts
Originally Posted by Symox View Post
I got bit by the wheel lacing bug. I did a rim brake rear 28Hole with 3X lacing both sides and its great. Now I'm addicted to doing other patterns. I'm thinking of trying a radial non drive side pattern with 3X drive side. Other than the small weight savings due to the radial spokes, are there other benefits? According to Sheldon Brown it appears it will make the tension of the spokes more equal if the heads of the spokes go "out" for the radial spokes.

Also, I'm thinking of using butted spokes for weight, potentially more shock absorption (is this a myth?) and better fatigue life of the spokes. Again, this is for a RIM brake bike with 28 holes (mavic open pro) and Bitex RAR12 hub. Probably Sapim spokes and nipples (brass).

I'm NOT a racer but appreciate a high performance machine.

Thoughts?
Thanks for your insight
Go for it if you want, it's fun and almost entirely harmless. My personal road bike has a radial/2x 28h rear wheel, mostly because it looks neat and it was fun. It has held up fine, despite the very low weight of the wheelset (~1300g, all aluminum) and my voluptuous butt. NDS radial lets you choose putting the heads in our out: heads in will increase triangulation and thus lateral stiffness slightly, heads out will decrease triangulation and increase NDS tension/longevity slightly. Also, if you lace radial NDS if the hub shell tries to transfer torque to the NDS all the spokes will just wind up and increase tension--if they're crossed, half the spokes will loose tension. Given that the NDS is under less tension, this slightly decreases the chances that a spoke might be at lowered tension due to load and due to torque, and thus theoretically increase fatigue life on the NDS very slightly. As you mentioned, it will extremely slightly reduce weight. If your hub shell doesn't accommodate radial lacing well, it places more stress on the hub flange and can lead to hub flange failure. On a crossed wheel the opposing spokes compress sections of the hub shell, rather than pull out on it.

Butted spokes save weight and reduce fatigue failure of the spokes. That wheels absorb shock meaningfully is mostly BS--Jobst Brandst explains this pretty well in his book. The greatest deflection of wheels measured is orders of magnitude smaller than several other parts of the bike. As the spokes on the bottom of the wheel lose tension, they shorten to an incredibly small degree until they entirely lose tension. Note that very thin butted sections are more prone to wind up and require more active wind up management/skill to build well.
cpach is offline
Likes For cpach:
Old 03-29-21, 11:28 PM
  #19
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,661

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1337 Post(s)
Liked 558 Times in 422 Posts
Originally Posted by Symox View Post
because you are obviously trolling
And you're not?
Ignore List
Bill Kapaun is offline
Likes For Bill Kapaun:
Old 03-30-21, 12:42 AM
  #20
Symox
Senior Member
Thread Starter

Join Date: Jul 2020
Posts: 302

Bikes: '07 Specialized Roubaix Comp Triple, '12 Gravity Fixie, '21 Liv Rove 4, '06? Giant EB Spirit

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 60 Times in 47 Posts

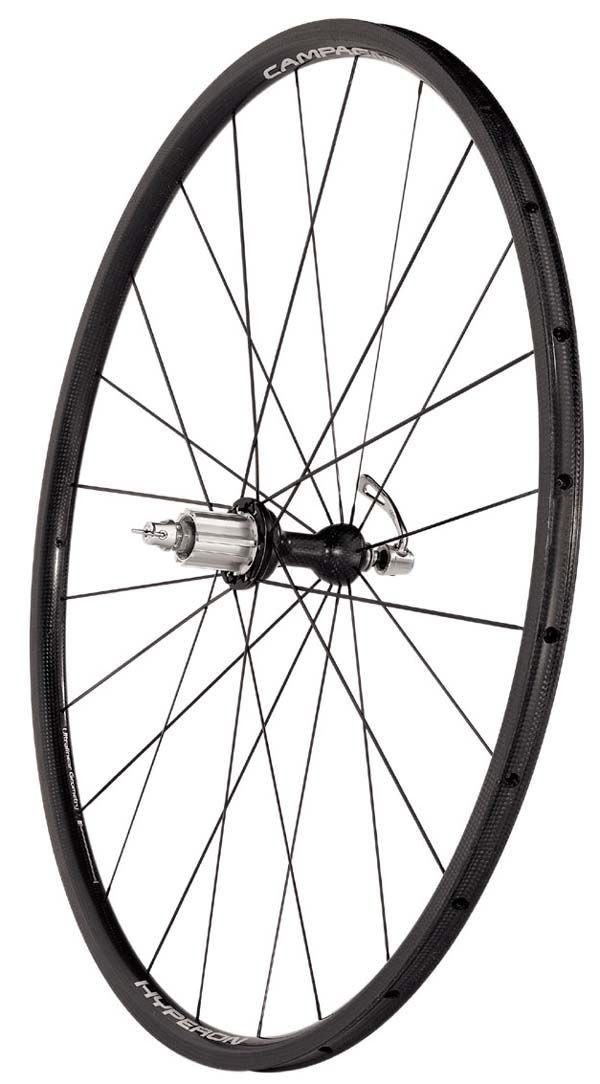

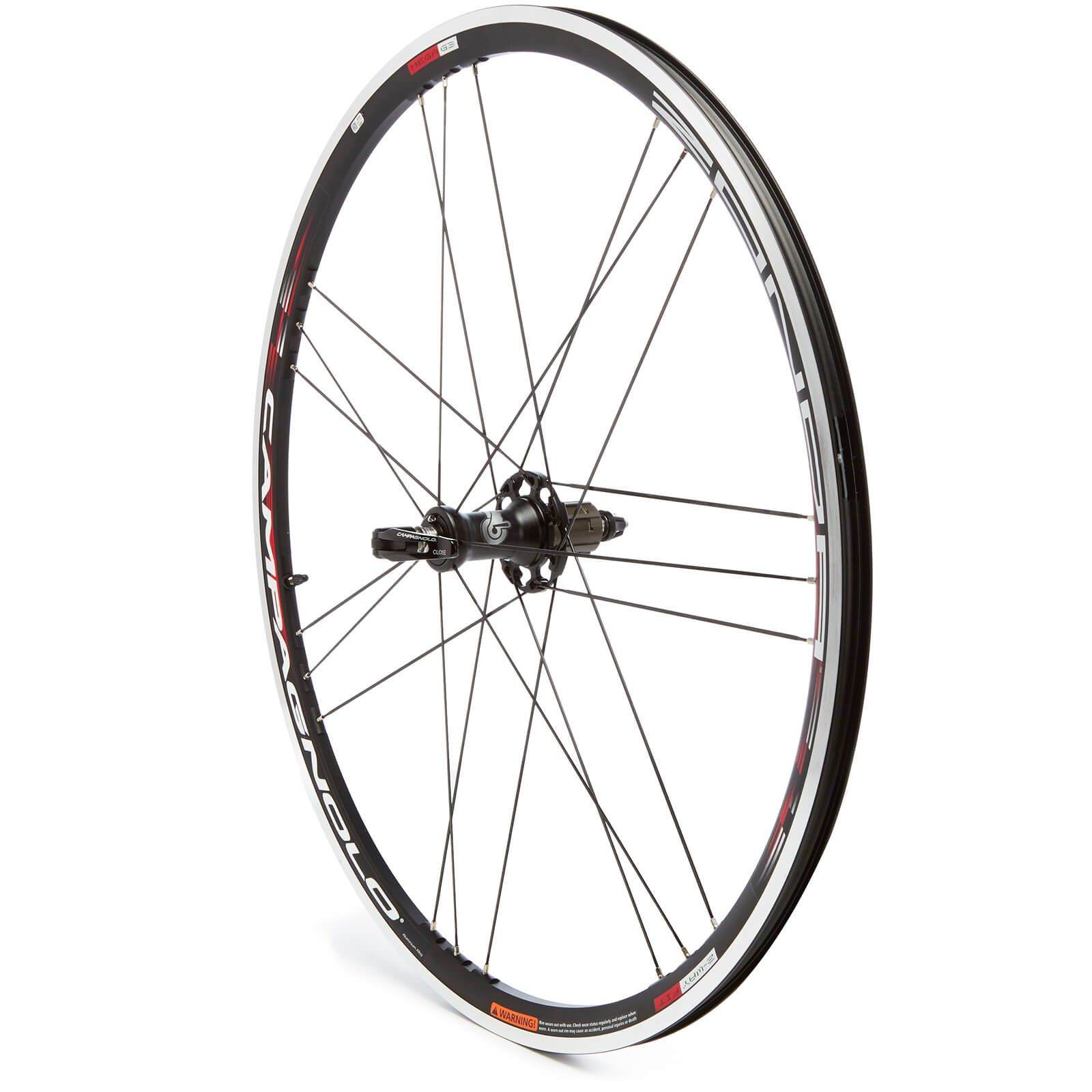

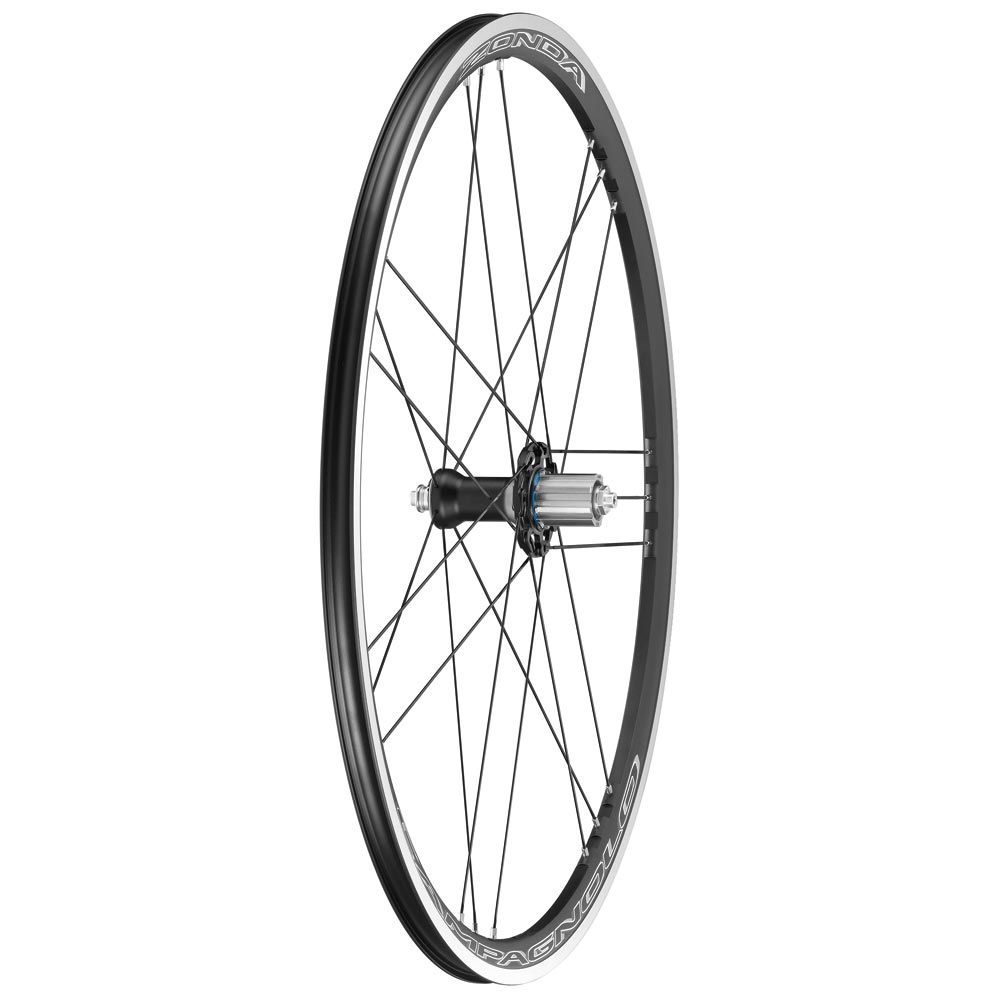

Looks like Campagnolo rear wheels are regularly built half radially. I think I'll give it a go!




Symox is offline
Old 03-30-21, 04:07 PM
  #21
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,394

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Liked 104 Times in 77 Posts
Originally Posted by Symox View Post
According to Sheldon Brown:



"Radial front wheels offer mainly esthetic benefits, but half-radial rear wheels can be substantially more durable than conventional ones, if the wheel is highly dished.

https://sheldonbrown.com/wheelbuild.html#half-radial
If the wheel is highly dished. With the prevalence of 130 and 135 mm road hubs, 140 mm and wider MTB hubs, and disk brake rotors on the non-drive side, dishing on non-boutique wheels has actually decreased since the days of 126 mm.

Some boutique wheel manufacturers do build rear wheels with radial patterns. Mavic actually puts the radial pattern on the drive side of their Ksyrium wheels, with a wider flange. Even with a rim offset to the non-drive side, non-drive side spokes are significantly longer. I'll probably never know Mavic's rationale for this. I do know Lance Armstrong's US Postal team raced on tubular Ksyriums one year, and my 14 year-old Ksyrium SLs are still going strong with routine freehub servicing and minor occasional rim truing. I can't kill these wheels. But these are boutique wheels. Trust that the manufacturer knows what they're doing, and if you try it at home and it breaks, hey, you're on your own.
oldbobcat is offline
Old 03-30-21, 10:26 PM
  #22
Symox
Senior Member
Thread Starter

Join Date: Jul 2020
Posts: 302

Bikes: '07 Specialized Roubaix Comp Triple, '12 Gravity Fixie, '21 Liv Rove 4, '06? Giant EB Spirit

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 60 Times in 47 Posts
Originally Posted by oldbobcat View Post
If the wheel is highly dished. With the prevalence of 130 and 135 mm road hubs, 140 mm and wider MTB hubs, and disk brake rotors on the non-drive side, dishing on non-boutique wheels has actually decreased since the days of 126 mm.

Some boutique wheel manufacturers do build rear wheels with radial patterns. Mavic actually puts the radial pattern on the drive side of their Ksyrium wheels, with a wider flange. Even with a rim offset to the non-drive side, non-drive side spokes are significantly longer. I'll probably never know Mavic's rationale for this. I do know Lance Armstrong's US Postal team raced on tubular Ksyriums one year, and my 14 year-old Ksyrium SLs are still going strong with routine freehub servicing and minor occasional rim truing. I can't kill these wheels. But these are boutique wheels. Trust that the manufacturer knows what they're doing, and if you try it at home and it breaks, hey, you're on your own.
I'm sure Mavic knows what they are doing, but everything I've read says the radial should be on the non drive side.
Glad to hear your Ksyriums are doing great!
Symox is offline
Old 03-30-21, 10:28 PM
  #23
Symox
Senior Member
Thread Starter

Join Date: Jul 2020
Posts: 302

Bikes: '07 Specialized Roubaix Comp Triple, '12 Gravity Fixie, '21 Liv Rove 4, '06? Giant EB Spirit

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 60 Times in 47 Posts
FYI I've decided to build 3X drive side and radial NDS using butted spokes (Sapim Race) and brass nipples (Sapim Polyax) after reading Jobst Brandt's excellent book and heeding (most) of his advice.

I'll keep you posted
Symox is offline
Old 04-01-21, 10:33 PM
  #24
Symox
Senior Member
Thread Starter

Join Date: Jul 2020
Posts: 302

Bikes: '07 Specialized Roubaix Comp Triple, '12 Gravity Fixie, '21 Liv Rove 4, '06? Giant EB Spirit

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 60 Times in 47 Posts
It looks like radial NDS is more common than I thought. Here's another from Mercury wheels:
wheel
and from
trimax
Profile Designs

Surprisingly (to me at least), Vision wheels uses radial NDS on a DISC brake wheel

Last edited by Symox; 04-01-21 at 10:40 PM.
Symox is offline
Old 04-02-21, 12:55 AM
  #25
cpach
Senior Member

Join Date: Oct 2009
Location: Mt Shasta, CA, USA
Posts: 1,859

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 414 Post(s)
Liked 202 Times in 160 Posts
The Ksyrium thing was mostly to bring the DS flange out a little farther without hitting the cassette, particularly with the stupid zircal spokes. It relies on the hub shell to transmit torque. They're honestly pretty underwhelming wheels, but they were some of the first system integrated wheelsystems popular on the market.

A lot of the Campy stuff is actually triplet laced, with twice as many spokes on the DS as the NDS to increase NDS tension. There are advantages and disadvantages to this, as you might imagine.

The one thing to ignore on Brandt is his advise on bringing tension up until the rim starts deforming in waves when stress relieving. Lightweight road rims in the 80s would do this, modern rims will be on the verge of spoke hole failure before this happens. Use a tensiometer.
cpach is offline
Likes For cpach:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
