Thoughts on belt-drive and/or IGH?

I have been looking at Brilliant/Priority bikes lately. Lots of people love them.

But I have been reading some negatives. In particular:
  • difficult to change back tire
  • frictional loses from belt & IGH
Any thoughts appreciated.
walterbyrd is offline
Old 04-08-21, 07:44 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,937

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2927 Post(s)
Liked 1,208 Times in 848 Posts
Just make sure that the IHG is rated for the tension that a belt drive needs to have. Belts place a lot of force on the BB and hub/freehub body, driver. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 04-09-21, 07:00 AM
  #3
bwilli88
Senior Member

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,665

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 690 Post(s)
Liked 391 Times in 243 Posts
I have 2 bikes with belt drives, both from Japan. One is a Miyata and one is a Bridgestone. The Miyata has this weird crankset to keep tension on the belt. The Bridgestone has a Bio-pace type with a weird set of rollers to keep tension on the belt.




bwilli88 is offline
Old 04-09-21, 08:49 AM
  #4
walterbyrd
Junior Member
Thread Starter

Join Date: Jun 2020
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1 Time in 1 Post
Is it difficult to change the tire? Does the bike roll as easily as a chain drive? Do you think the belt drive is worth it? Would you recommend a belt drive?
walterbyrd is offline
Old 04-09-21, 10:27 AM
  #5
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 8,474

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame, Ti 26 MTB

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 2314 Post(s)
Liked 1,275 Times in 870 Posts
What are you looking for in a bike? What are your plans?

A bike with a Rohloff or Pinion drive and a belt is an excellent combination for touring and commuting but if I am looking to do some faster road rides, it is probably not what I want. If my option is get a cheap 3 speed and a belt on some low end frame I am out give me a geared bike with quality parts (10 speed and up if new) and save the money on the belt.
veganbikes is offline
Old 04-09-21, 11:57 AM
  #6
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,937

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2927 Post(s)
Liked 1,208 Times in 848 Posts
We have a couple of customers with belt drives and IGHs and they agree with the flat/wheel removal issues. They both run flat protection tires and one, IIRC, also slimes the tubes. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 04-09-21, 12:09 PM
  #7
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,937

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2927 Post(s)
Liked 1,208 Times in 848 Posts
A co worker and I were just talking about drivetrain efficiency a few days ago. He mentioned a chain drive system has mid 90s% efficiency, this jives with what I've learned (likely from Bicycle Science, Bicycling Science, Third Edition | The MIT Press ). He said that driveshaft systems are around 80/85%, gear design dependent. But it was his belt drive suggestion of 70% that made me think. My experience with servicing and then test riding various bikes with belts had me thinking that belts were less efficient then chains but the amount less surprised me.

We agreed on the added loads the hub/driver and BB bearings see. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 04-09-21, 12:15 PM
  #8
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 7,507

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) '82 nishiski,

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 1346 Post(s)
Liked 634 Times in 444 Posts
the bikes the OP could range from the @$700 to $800 range with gate belt and shimano 7 speed IGH. to $2300 with 12 speed pinion.

look like these have track style rear drop outs, that may make flat changes on the rear a little easier, but would still have to deal with getting belt back to correct tension...it does look like there is a fixie sort of tensioning screw also

I have not hands on experience, but for a just get on and ride bike with low maintenance for errands and commuting they could work well. I would do a practice flat fix in the comfortable confines of home first, rather than try to do one one on the road the first time.
__________________
Life is too short not to ride the best bike you have, as much as you can
squirtdad is offline
Old 04-09-21, 12:39 PM
  #9
guy153
Senior Member

Join Date: Dec 2019
Posts: 563
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 205 Post(s)
Liked 112 Times in 91 Posts
Originally Posted by Andrew R Stewart View Post
A co worker and I were just talking about drivetrain efficiency a few days ago. He mentioned a chain drive system has mid 90s% efficiency, this jives with what I've learned (likely from Bicycle Science, Bicycling Science, Third Edition | The MIT Press ). He said that driveshaft systems are around 80/85%, gear design dependent. But it was his belt drive suggestion of 70% that made me think. My experience with servicing and then test riding various bikes with belts had me thinking that belts were less efficient then chains but the amount less surprised me.

We agreed on the added loads the hub/driver and BB bearings see. Andy
There's a guy on YouTube called CYCLINGABOUT who goes on long tours in places like Patagonia. Really nice channel and beautiful scenery. Anyway he loves belt drives (and they do work really well for what he's doing) and he says if you have stiff chainstays, as he does on his Al Koga Miyata, you can run with a lot less tension which greatly improves the efficiency.
guy153 is online now
Old 04-09-21, 12:50 PM
  #10
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,937

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2927 Post(s)
Liked 1,208 Times in 848 Posts
Originally Posted by guy153 View Post
There's a guy on YouTube called CYCLINGABOUT who goes on long tours in places like Patagonia. Really nice channel and beautiful scenery. Anyway he loves belt drives (and they do work really well for what he's doing) and he says if you have stiff chainstays, as he does on his Al Koga Miyata, you can run with a lot less tension which greatly improves the efficiency.
One of my riding buddies (and generally great friend) runs a belt on his co motion (with Pinion transmission). He loves his bely drive but wore out the Al rear pulley before the belt was used up. He recently switched to a SS rear pulley (and new belt) after quite a number of thousands of miles. The front pulley was SS and shows only polishing. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 04-09-21, 07:37 PM
  #11
walterbyrd
Junior Member
Thread Starter

Join Date: Jun 2020
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1 Time in 1 Post
I am looking to ride around, maybe pickup a few groceries, some dirt trails - not mountain biking. I can usually do simple maintenance, like change a flat. I am not looking to do anything competitive.
BTW: also a vegan, for seven years now.
walterbyrd is offline
Likes For walterbyrd:
Old 04-09-21, 07:58 PM
  #12
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 8,474

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame, Ti 26 MTB

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 2314 Post(s)
Liked 1,275 Times in 870 Posts
Originally Posted by walterbyrd View Post
I am looking to ride around, maybe pickup a few groceries, some dirt trails - not mountain biking. I can usually do simple maintenance, like change a flat. I am not looking to do anything competitive.
BTW: also a vegan, for seven years now.
If not competitive you can look at belt drives but you might enjoy having some gears so Alfine 11 or Rohloff or Pinion would probably be handy for carting around groceries if you have hills having some easier gears can be handy when loaded down. Co-Motion makes some excellent bikes in general but are well known and respected for their belt drive stuff and all of it right in Eugene, Oregon. Nua Bikes makes some neat stuff in Spain out of titanium (which is super nice riding and lasts forever) with I think all belts or mostly belts. If you are looking to save some coin the Marin Presido 4-DLX seems like a decent bike and it has a dynamo system which makes sense for most bikes but especially commuter and town bikes.

Good to have other vegans.
veganbikes is offline
Old 04-09-21, 08:30 PM
  #13
Rick
Senior Member

Join Date: Feb 2007
Posts: 583
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 263 Post(s)
Likes: 0
Liked 105 Times in 76 Posts
I have a 2013 Co-Motion Pangia Rohloff. Co-Motion designed the rear dropouts so every time you remove the wheel and re insert it the belt tension is the same. If you purchase a bicycle with a belt the bike is designed for that setup. So the frame stiffness is correct for the use of a belt. I believe you would need to get used to the difference in how you remove and re insert the wheel. If you are interested in info of drivetrain efficiency look at articles in Cyclingabout. Once your chain picks up a little dirt or sand it is no longer more efficient. I will never go back to chains on a bicycle and this is why.

01: Not having to straighten or adjust a derailleur
02: Not having to clean a chain
03: Not having the chain come off
04: Not having grease marks on your leg
05: Not needing to carry chain lube, and cleaning equipment on a long trip
I COULD GO ON !
Rick is offline
Old 04-09-21, 08:42 PM
  #14
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,937

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2927 Post(s)
Liked 1,208 Times in 848 Posts
Originally Posted by Rick View Post
I have a 2013 Co-Motion Pangia Rohloff. Co-Motion designed the rear dropouts so every time you remove the wheel and re insert it the belt tension is the same. If you purchase a bicycle with a belt the bike is designed for that setup. So the frame stiffness is correct for the use of a belt. I believe you would need to get used to the difference in how you remove and re insert the wheel. If you are interested in info of drivetrain efficiency look at articles in Cyclingabout. Once your chain picks up a little dirt or sand it is no longer more efficient. I will never go back to chains on a bicycle and this is why.

01: Not having to straighten or adjust a derailleur
02: Not having to clean a chain
03: Not having the chain come off
04: Not having grease marks on your leg
05: Not needing to carry chain lube, and cleaning equipment on a long trip
I COULD GO ON !
Bolded depends on how gritty you let your chain get and whether you like running excessive cross chaining. From what I've read and been told a 5-10% drop (from mid 90s%) of efficiency is typical of dirty chains. A far cry from the loss that I read of belts.

I don't argue with the desire to avoid the issues with metal chains. Just with the somewhat trendy and pie in the sky thinking of belts that many seem to believe in. At 4 posts in this thread I have exceeded my usual quota. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 04-09-21, 09:30 PM
  #15
Rick
Senior Member

Join Date: Feb 2007
Posts: 583
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 263 Post(s)
Likes: 0
Liked 105 Times in 76 Posts
Chains loose efficiency quite quickly. A tight belt causes efficiency problems. When I ride my Tandem it is necessary to clean the chain at least twice a week. Because I have a very stiff frame on my Co-Motion I keep my belt tension some what slack. I hose the dust off the belt and bicycle at the same time.

(trendy and pie in the sky thinking of belts that many seem to believe) Do you have a personal problem with belts
Rick is offline
Old 04-09-21, 09:34 PM
  #16
bwilli88
Senior Member

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,665

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 690 Post(s)
Liked 391 Times in 243 Posts

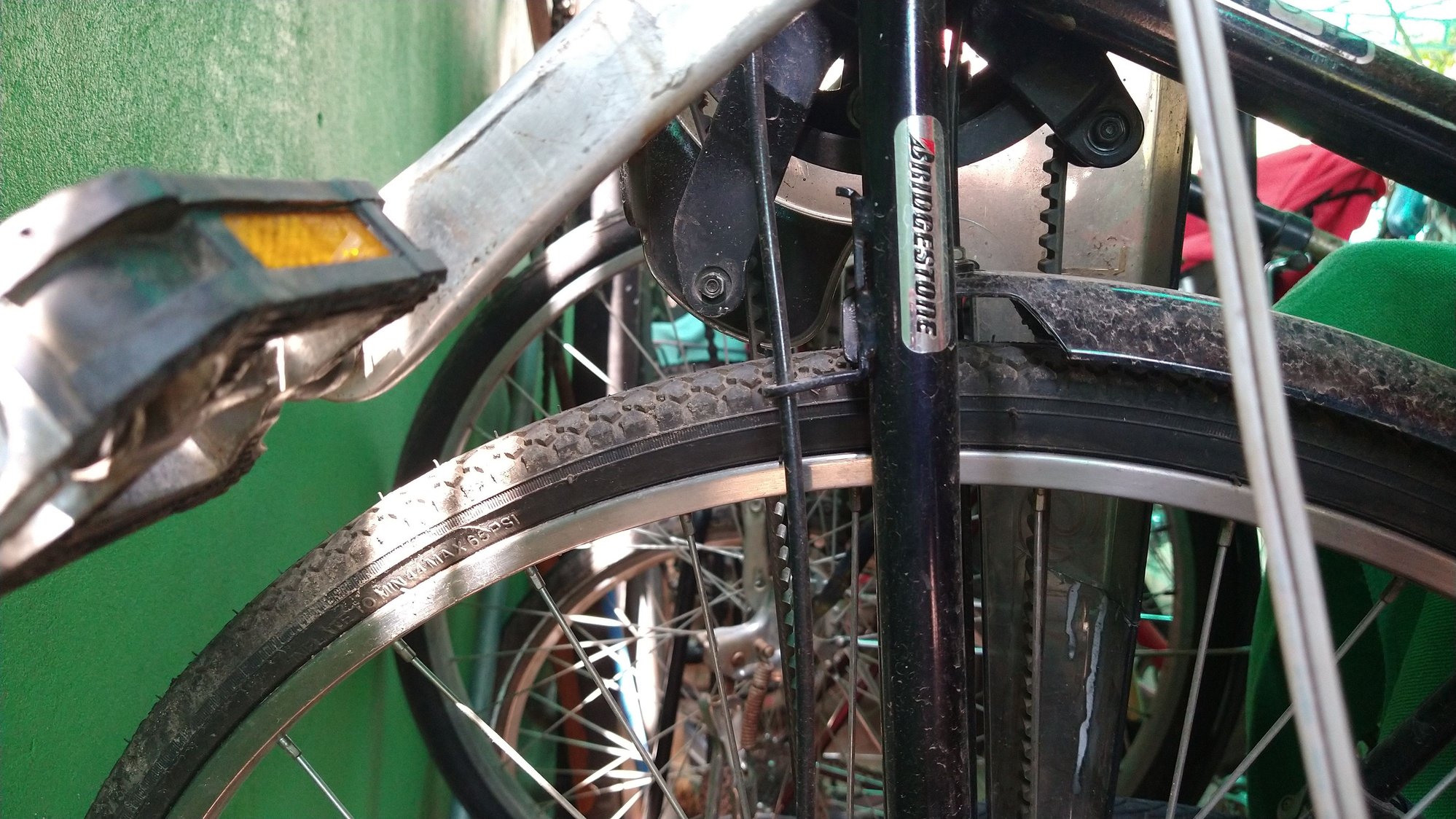

Changing a flat tire is not a problem with a belt. Here it is the other stuff in the way

To change the flat you have to remove the axle nuts, the fender stays, the rack stays, release the tension keepers, taken out the coaster brake arm retainer.
sometimes you have to remove the belt case to remove the belt.


This is that funky belt tensioner system for the biopace like belt ring on the crank.

When it is a 3 speed there is even more to come off.
bwilli88 is offline
