Freehub removal/installation tool

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Freehub removal/installation tool

Old 04-10-21, 06:35 AM
  #1
JoeTBM
Droid on a mission
Thread Starter

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 869

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 268 Post(s)
Liked 204 Times in 145 Posts
Freehub removal/installation tool

I got it how some freehubs can be removed from the hub with a 10mm hex wrench but I have run across another type that needs a different tool and looking for some help ID'ing the tool.

I researched quite a few YouTube items on this and most suggest the 10mm hex and some mentioned a 12mm or 14 mm or even a 15mm hex, seems these don't fit and I have also tried a 55 and 60 size star (torque). I even visited one of my LBS and they couldn't offer a suggestion (I don't think they replace freehubs, just the whole rim). I looked at Park Tool stuff and don't see anything particular there either.

Turning to the forum for some help/direction.

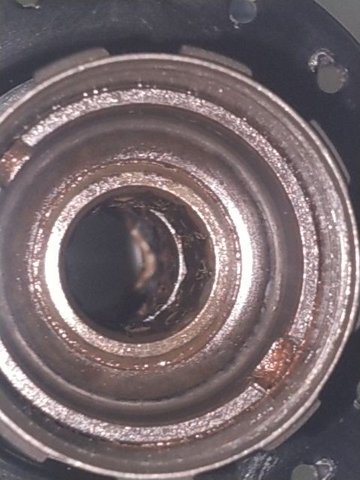

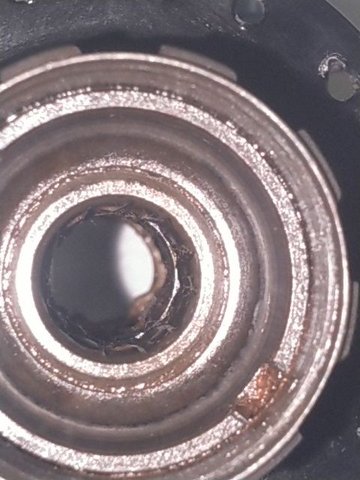

Tried taking a picture of the inside of the hub as I can see some splines but it was tough, here are a couple of shots.

No, there are not and brand markings I can see, the hub does have a place to mount a disk rotor but when the wheel came to me, there was no rotor attached. I am trying to salvage this freehub to mount it on another wheel that has a freehub (paw) problem. I am not looking to disassemble the freehub to service it, just remove and reinstall on another hub.

Thanks to all that can help



__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is offline
Old 04-10-21, 07:06 AM
  #2
RocThrower
Full Member

Join Date: Oct 2013
Posts: 252

Bikes: Space Horse Disc, Domane SL5 Disc

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 26 Times in 14 Posts
I had a hub that required an 11mm hex wrench to remove the freehub body. They are not a common size, but I was able to order one off of Amazon I believe. Park also makes one: https://www.parktool.com/product/11mm-hex-wrench-hr-11. It looks like that hub accepts a hex wrench, and if a 10 and 12mm don't work the 11mm be what you need.
RocThrower is offline
Likes For RocThrower:
Old 04-10-21, 07:38 AM
  #3
JoeTBM
Droid on a mission
Thread Starter

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 869

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 268 Post(s)
Liked 204 Times in 145 Posts
Originally Posted by RocThrower View Post
I had a hub that required an 11mm hex wrench to remove the freehub body. They are not a common size, but I was able to order one off of Amazon I believe. Park also makes one: https://www.parktool.com/product/11mm-hex-wrench-hr-11. It looks like that hub accepts a hex wrench, and if a 10 and 12mm don't work the 11mm be what you need.

Thank you, Found a long Elkind 11mm hex wrench on ebay..... should be here by Wednesday
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is offline
Old 04-10-21, 09:10 AM
  #4
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,767

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1954 Post(s)
Liked 2,925 Times in 1,488 Posts
Originally Posted by JoeTBM View Post
I got it how some freehubs can be removed from the hub with a 10mm hex wrench but I have run across another type that needs a different tool and looking for some help ID'ing the tool.

I researched quite a few YouTube items on this and most suggest the 10mm hex and some mentioned a 12mm or 14 mm or even a 15mm hex, seems these don't fit and I have also tried a 55 and 60 size star (TORX). I even visited one of my LBS and they couldn't offer a suggestion (I don't think they replace freehubs, just the whole WHEEL). I looked at Park Tool stuff and don't see anything particular there either.

Turning to the forum for some help/direction.

Tried taking a picture of the inside of the hub as I can see some splines but it was tough, here are a couple of shots.

No, there are not and brand markings I can see, the hub does have a place to mount a disk rotor but when the wheel came to me, there was no rotor attached. I am trying to salvage this freehub to mount it on another wheel that has a freehub (PAWL) problem. I am not looking to disassemble the freehub to service it, just remove and reinstall on another hub.

Thanks to all that can help



Just correcting your terminology for future use. And that 11mm should be what you're looking for.
cxwrench is offline
Likes For cxwrench:
Old 04-10-21, 11:34 AM
  #5
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,303

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1429 Post(s)
Liked 1,063 Times in 711 Posts
Originally Posted by cxwrench View Post
Just correcting your terminology for future use. And that 11mm should be what you're looking for.
Since it is an Acument Global Technologies trademarked term, to be totally correct it should be written as Torx®
dsbrantjr is offline
Likes For dsbrantjr:
Old 04-10-21, 03:31 PM
  #6
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,767

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1954 Post(s)
Liked 2,925 Times in 1,488 Posts
Originally Posted by dsbrantjr View Post
Since it is an Acument Global Technologies trademarked term, to be totally correct it should be written as Torx®
Great, now I'm gonna get a bill from someone!
cxwrench is offline
Old 04-11-21, 06:00 PM
  #7
MudPie
Senior Member

MudPie's Avatar

Join Date: May 2004
Location: Southern California
Posts: 2,162
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 101 Times in 79 Posts
I have a Bontrager freehub that needed an 11mm hex bit. I successfully used a 7/16 hex bit as as substitute.
11mm = .4331
7/16 = .4375

I remember paying good money for that 1/2” drive socket but with 7/16” hex. It was a professional line of tools, but I like tools. When I bought the replacement free hub from Trek LBS, it came with an 11mm hex that accepted a more common hex bit, like 8 or 10mm. The 7/16” hex tool cost more than the freehub.
MudPie is offline
Likes For MudPie:
Old 04-11-21, 07:03 PM
  #8
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 17,006

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3744 Post(s)
Liked 2,815 Times in 1,743 Posts
And expect the freehub body to be REALLY tightly secured in the shell. We have had serious spoke untensioning happen while two of us turn the wheel with the wrench held in the Wilton vise. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 04-11-21, 09:09 PM
  #9
JoeTBM
Droid on a mission
Thread Starter

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 869

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 268 Post(s)
Liked 204 Times in 145 Posts
Originally Posted by Andrew R Stewart View Post
And expect the freehub body to be REALLY tightly secured in the shell. We have had serious spoke untensioning happen while two of us turn the wheel with the wrench held in the Wilton vise. Andy
Thanks Andy
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is offline
Old 04-13-21, 02:10 PM
  #10
mrrabbit
Senior Member

mrrabbit's Avatar

Join Date: Dec 2007
Location: San Jose, California
Posts: 3,496

Bikes: 2001 Tommasini Sintesi w/ Campagnolo Daytona 10 Speed

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Likes: 0
Liked 31 Times in 26 Posts
Some hubs like the Chosen A5012 are part.

1. Locknut inside hub on non-drive side is loosened first.
2. Then freehub is loosened and removed.

Both sides use a 11mm allen wrench.

=8-|
__________________
5000+ wheels built since 1984...

Disclaimer:

1. I do not claim to be an expert in bicycle mechanics despite my experience.
2. I like anyone will comment in other areas.
3. I do not own the preexisting concepts of DISH and ERD.
4. I will provide information as I always have to others that I believe will help them protect themselves from unscrupulous mechanics.
5. My all time favorite book is:

Kahane, Howard. Logic and Contemporary Rhetoric: The Use of Reason in Everyday Life
mrrabbit is offline
Likes For mrrabbit:
Old 04-14-21, 02:04 AM
  #11
JoeTBM
Droid on a mission
Thread Starter

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 869

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 268 Post(s)
Liked 204 Times in 145 Posts
Originally Posted by mrrabbit View Post
Some hubs like the Chosen A5012 are part.

1. Locknut inside hub on non-drive side is loosened first.
2. Then freehub is loosened and removed.

Both sides use a 11mm allen wrench.

=8-|
Thanks, still waiting on the arrival of the long 11mm hex key, I will keep it in mind when we finally get to disassemble.
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is offline
Old 04-22-21, 03:30 AM
  #12
JoeTBM
Droid on a mission
Thread Starter

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 869

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 268 Post(s)
Liked 204 Times in 145 Posts
Originally Posted by Andrew R Stewart View Post
And expect the freehub body to be REALLY tightly secured in the shell. We have had serious spoke untensioning happen while two of us turn the wheel with the wrench held in the Wilton vise. Andy
Well, finally got the 11mm hex in Tuesday, as the hub is out of the wheel that we want to salvage the freehub from, we secured it to the work bench but could not get it to budge even with a cheater bar on the Allen key. Going to try again today with one of my younger volunteers who is coming in. It did not appear to heave anything in the way of a locknut on the non-drive side
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is offline
Old 04-22-21, 08:16 AM
  #13
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 17,006

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3744 Post(s)
Liked 2,815 Times in 1,743 Posts
Some freehub bodies thread in with a left hand direction, make sure you're trying to loosen it in the correct direction. We have seen spokes become un tensioned with the force to loosen some FH bodies up. Try placing the wrench in a bench vise and using the rim as the lever arm. Having two people do the loosening can help prevent the wheel from collapsing from the efforts. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 04-23-21, 02:44 AM
  #14
JoeTBM
Droid on a mission
Thread Starter

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 869

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 268 Post(s)
Liked 204 Times in 145 Posts
Originally Posted by Andrew R Stewart View Post
Some freehub bodies thread in with a left hand direction, make sure you're trying to loosen it in the correct direction. We have seen spokes become un tensioned with the force to loosen some FH bodies up. Try placing the wrench in a bench vise and using the rim as the lever arm. Having two people do the loosening can help prevent the wheel from collapsing from the efforts. Andy
Well, unless I want to re-spoke this hub into a rim, I won't be able to do it that way. Going to need a longer cheater bar, it won't budge in either direction
