What is the use of this brace/cross bar?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

What is the use of this brace/cross bar?

Old 04-21-21, 04:23 PM
  #1
TooLegit
Member
Thread Starter

Join Date: Feb 2021
Posts: 27
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 11 Times in 8 Posts
What is the use of this brace/cross bar?



What is the use of this brace/cross bar? It clamps down on each side of the bar with hex bolts. I bought this bike on CL and the previous owner didnít say why he installed it. This is on an early 90ís Specialized Rockhopper.
TooLegit is offline
Old 04-21-21, 05:05 PM
  #2
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 13,022

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 191 Post(s)
Tagged: 0 Thread(s)
Quoted: 4272 Post(s)
Liked 2,240 Times in 1,444 Posts
Probably an accessory bar -- lights, computer, phone, etc. Pretty common with mountain bikes converted to commuter use. It's hard to clamp anything on those stock handlebars because the difference in diameter caused most clamp-on accessories fit askew.

Some 1980s rigid mountain bikes had a double cross bar for reinforcement, that often was padded with purpose designed foam rubber, or makeshift stuff like pipe wrap from the plumbing department. Presumably to reduce injuries from cracking ones face on the bar. I rarely see that anymore.
canklecat is offline
Likes For canklecat:
Old 04-21-21, 05:58 PM
  #3
wesmamyke
Senior Member

Join Date: Nov 2009
Posts: 1,029
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 196 Post(s)
Liked 45 Times in 39 Posts
I have seen after market bolt on braces, but it's generally something that came with the bar originally.

It's just an attempt to emulate moto stuff that looks similar, and probably does stiffen the bar to some degree.
wesmamyke is offline
Likes For wesmamyke:
Old 04-21-21, 06:53 PM
  #4
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,777

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1370 Post(s)
Liked 601 Times in 449 Posts
The diameter looks too small for an accessory bar, but I can't think of another reason why one would attach extra weight.
Maybe someplace to put ones hand for a downhill "more aero" position?
Bill Kapaun is offline
Old 04-21-21, 07:22 PM
  #5
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 8,824

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame, Ti 26 MTB

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 2459 Post(s)
Liked 1,488 Times in 994 Posts
Wow people missed out on the 90s. It is a bar to stiffen up the front end. Back when we rode on 25.4 bars they tended to be a bit flexy and so it was a way to make things stiffer and maybe a touch stronger. They are certainly more common on motocross bikes but that is where a lot of the early MTB stuff came from before it fully branched out into its own stuff though a lot of those companies are still doing MX stuff as well.
veganbikes is offline
Likes For veganbikes:
Old 04-21-21, 08:02 PM
  #6
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,956

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 1025 Post(s)
Liked 653 Times in 434 Posts
Saw these a lot with BMX. Not sure why they would use there.
curbtender is offline
Old 04-21-21, 09:55 PM
  #7
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 2,050

Bikes: lots

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 944 Post(s)
Liked 1,218 Times in 686 Posts
Originally Posted by canklecat View Post
Probably an accessory bar -- lights, computer, phone, etc. Pretty common with mountain bikes converted to commuter use. It's hard to clamp anything on those stock handlebars because the difference in diameter caused most clamp-on accessories fit askew.

Some 1980s rigid mountain bikes had a double cross bar for reinforcement, that often was padded with purpose designed foam rubber, or makeshift stuff like pipe wrap from the plumbing department. Presumably to reduce injuries from cracking ones face on the bar. I rarely see that anymore.
Originally Posted by Bill Kapaun View Post
The diameter looks too small for an accessory bar, but I can't think of another reason why one would attach extra weight.
Maybe someplace to put ones hand for a downhill "more aero" position?
It surprises me that you 2 actually thought about the OP's question, then posted these answers. The item in question is a bolt-on cross bar added for strength. Lots of downhilly guys used them in the early-mid-late 90's before handlebar companies started making light and strong rise bars for enduro/downhill. It is most definitely not an 'accessory mount bar' or an 'aero handhold'. Please.
cxwrench is offline
Likes For cxwrench:
Old 04-22-21, 02:28 AM
  #8
Geepig
Senior Member

Geepig's Avatar

Join Date: Sep 2020
Location: Eastern Poland
Posts: 717

Bikes: Romet Jubilat x 4, Wigry x 1, Turing x 1

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 188 Post(s)
Liked 182 Times in 139 Posts
Originally Posted by cxwrench View Post
It is most definitely not an 'accessory mount bar' or an 'aero handhold'. Please.
BUT... since it is no longer the 90s, it looks retro cool and perfect to mount your phone.

On other things, it needs something like a reflector mounted on that hole in the forks where a caliper brake would go, to act as a brake cable catcher - so that it looks even more retro
Geepig is offline
Old 04-22-21, 07:41 AM
  #9
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 32,909

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1689 Post(s)
Likes: 0
Liked 568 Times in 420 Posts
Originally Posted by Geepig View Post
On other things, it needs something like a reflector mounted on that hole in the forks where a caliper brake would go, to act as a brake cable catcher - so that it looks even more retro
Or, more importantly, to act as a stop to keep the straddle cable from falling onto the front tire if the main brake cable breaks.
HillRider is online now
Old 04-22-21, 08:21 AM
  #10
tommymc
Senior Member

Join Date: Sep 2012
Location: Central Florida
Posts: 50

Bikes: Many, mostly old & low tech

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 10 Times in 5 Posts

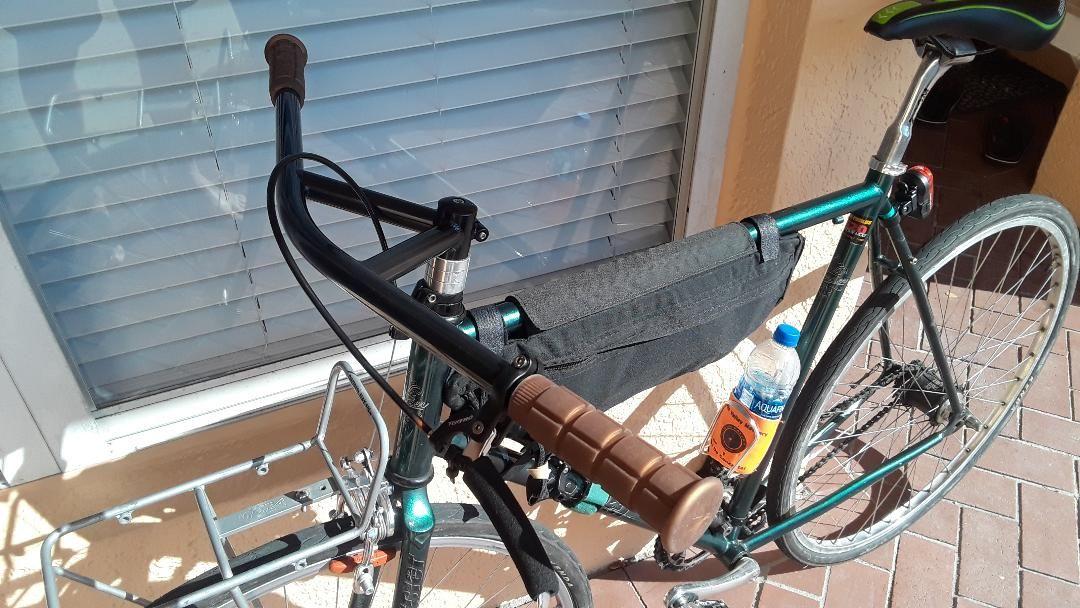

Styles peak, decline and eventually return as retro (like Bermuda shorts). Cross-braced BMX bars made it onto early mountain bikes I think Nitto did a variation called a Bullmoose integrated with a quill stem. Now Nitto is back with another one on a threadless stem. It costs almost as much as a whole BMX bike did back then but the nostalgia effect is cool. This is on my fixed bike. I had to trim the saddle nose up a bit from the previous drop bar setting to sit a little up right.
tommymc is offline
Old 04-22-21, 08:37 AM
  #11
Ironfish653
Dirty Heathen

Join Date: Oct 2015
Location: MC-778, 6250 fsw
Posts: 1,518

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 Softride

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 562 Post(s)
Liked 299 Times in 205 Posts
Accessory mount? Aero Bar?
I've said it many times, for BF, there are only two kinds of MTB's FS 29'ers and '85 Schwinn High Sierras.

"Moto" cross-bar. Keeps this from happening:



From the time when before they made bars like this:

Ironfish653 is offline
Old 04-22-21, 09:39 AM
  #12
woodcraft
Senior Member

woodcraft's Avatar

Join Date: Apr 2012
Location: Nor Cal
Posts: 5,835
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1734 Post(s)
Likes: 0
Liked 803 Times in 497 Posts
It's bolt-on because stems at the time were one-bolt, with the handlebar being slid into the clamp.
woodcraft is offline
Likes For woodcraft:
