Spoke length calculator, where did i go wrong?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Spoke length calculator, where did i go wrong?

Old 04-26-21, 12:58 PM
  #1
PimpMan
Senior Member
Thread Starter

Join Date: Feb 2018
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 3 Times in 2 Posts
Spoke length calculator, where did i go wrong?

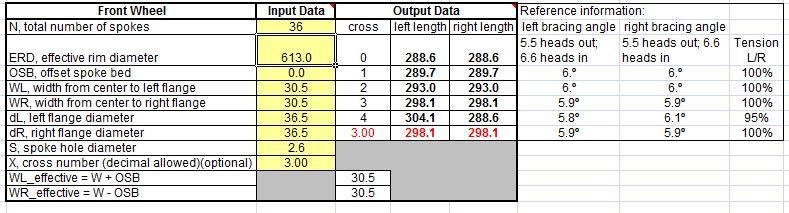

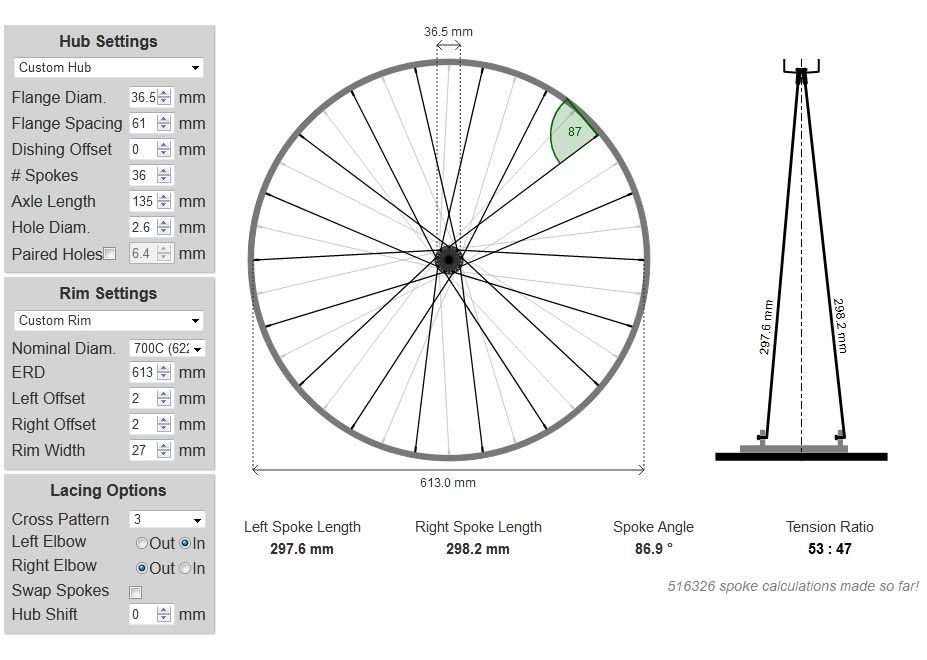

I have used two calculators and both show 284mm spokes, however once i got them installed using 3x cross pattern, tighten them to the max i found out hub was loose, i wonder where did i go wrong with my calculations?

When i bought 281mm spokes it went in perfectly fine.


PimpMan is offline
Old 04-26-21, 02:43 PM
  #2
Rolla
Gyro Captain

Rolla's Avatar

Join Date: Sep 2020
Posts: 721

Bikes: Sycip, Black Mountain Cycles, Kona, Fairdale, WeThePeople

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 291 Post(s)
Liked 771 Times in 329 Posts
Putting the same numbers into two different calculators should yield the same spoke length. Since it did, that means something's wrong with the numbers you entered. Did you arrive at them by measuring, or by specs?
Rolla is offline
Likes For Rolla:
Old 04-26-21, 04:02 PM
  #3
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,140

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1539 Post(s)
Liked 525 Times in 307 Posts
How did you arrive at your effective diameter number number?
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 04-27-21, 12:01 AM
  #4
PimpMan
Senior Member
Thread Starter

Join Date: Feb 2018
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 3 Times in 2 Posts
Originally Posted by Rolla View Post
Putting the same numbers into two different calculators should yield the same spoke length. Since it did, that means something's wrong with the numbers you entered. Did you arrive at them by measuring, or by specs?
I measured the distance, but i used tailor/clothes soft tape measure maybe that's the problem.
PimpMan is offline
Old 04-27-21, 12:49 AM
  #5
Rick
Senior Member

Join Date: Feb 2007
Posts: 587
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 264 Post(s)
Likes: 0
Liked 106 Times in 76 Posts
YouTube shows how to measure for the ERD. You should check 90 degrees from the first measurement. I use Wheelsmith rim rods and get the other info from multiple sources.
Rick is offline
Likes For Rick:
Old 04-27-21, 02:13 PM
  #6
PimpMan
Senior Member
Thread Starter

Join Date: Feb 2018
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 3 Times in 2 Posts
Checked my tape measure, was only shorter off by 1mm.

Originally Posted by Rick View Post
YouTube shows how to measure for the ERD. You should check 90 degrees from the first measurement. I use Wheelsmith rim rods and get the other info from multiple sources.
I measured ERD according to this chart.





i have another set of small rims it has 533 - 20 stamped on inside, and after checking ERD same way as i did with big rims i also get 533mm, so maybe i made error somewhere else other than ERD, i will double check again tomorrow.

Last edited by PimpMan; 04-27-21 at 02:22 PM.
PimpMan is offline
Old 04-27-21, 07:59 PM
  #7
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,633

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1054 Post(s)
Liked 467 Times in 337 Posts
Moved from General.
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Old 04-28-21, 02:33 PM
  #8
PimpMan
Senior Member
Thread Starter

Join Date: Feb 2018
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 3 Times in 2 Posts
I am rebuilding tried another rim that had 291mm spokes three-corss pattern however calculator again gives me 287-298mm










EDIT: Ahh its all right i measured a spoke that was probably not original for that wheel and shorter with tape measure that was 2mm shorter than normal so i get 291mm.
In reality i just built this wheel with 191mm spokes and they are too short, so i calculator was right real size of the spokes is 297mm!

Last edited by PimpMan; 04-29-21 at 02:01 AM.
PimpMan is offline
