So what the heck am I doing wrong?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

So what the heck am I doing wrong?

Old 04-26-21, 04:41 PM
  #1
Helderberg
Senior Member
Thread Starter

Helderberg's Avatar

Join Date: Jul 2018
Location: Rolesville NC
Posts: 727

Bikes: Had an old Columbia in the 80's, here a used Schwinn hybrid, now a Cannondale Quick 3 and a Topstone 105..

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 201 Post(s)
Liked 228 Times in 109 Posts
So what the heck am I doing wrong?

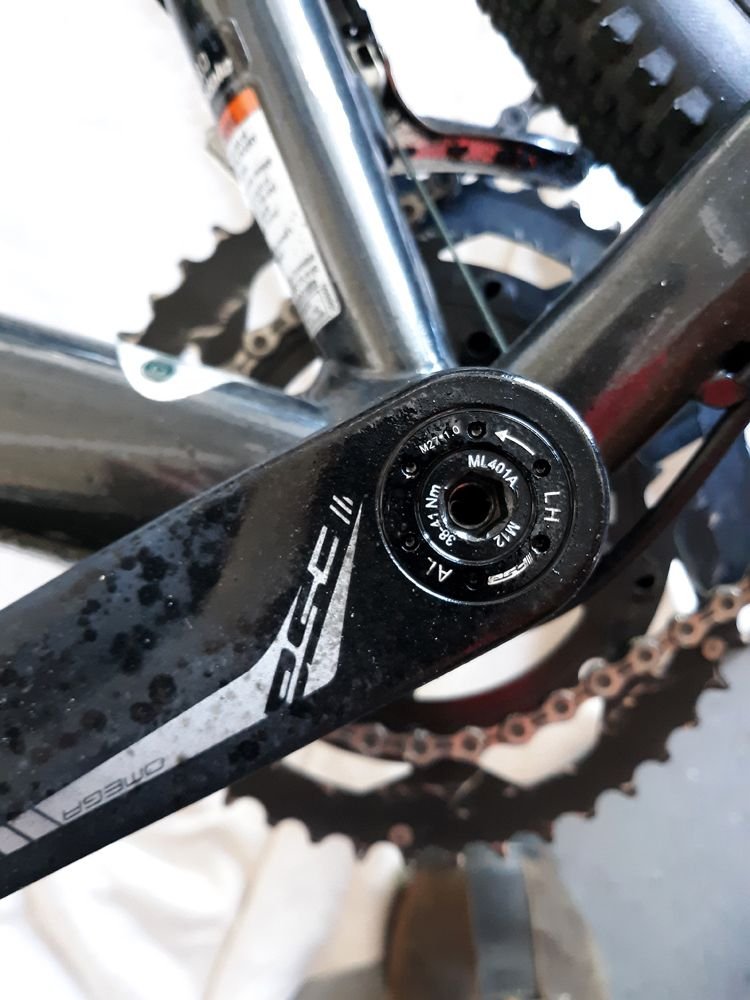

Trying to take the crank off my FSA crankset and it will not budge. I know the direction the nut has to turn. I have watched the videos on Youtube and they use hand pressure and it comes off easily. I am using an impact

driver and have soaked the nut with penetrating oil and it will not budge. What am I doing wrong? Any ideas are welcome as I am about to cut it off with a reciprocating saw. Only kidding but I am frustrated.
Any ideas?
Frank.
Helderberg is offline
Old 04-26-21, 06:13 PM
  #2
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 8,123

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1781 Post(s)
Liked 1,493 Times in 950 Posts
More torque You're looking at 40 nm or about 30 ft/lb on it.

FSA Omega Crank Removal Help
dedhed is offline
Likes For dedhed:
Old 04-26-21, 08:00 PM
  #3
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 7,909

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 1519 Post(s)
Liked 887 Times in 588 Posts
more leverage, no impact driver
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light 56,57 or so)

squirtdad is offline
Likes For squirtdad:
Old 04-26-21, 08:27 PM
  #4
cobba
Senior Member

Join Date: Aug 2006
Posts: 1,847
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 162 Post(s)
Likes: 0
Liked 49 Times in 38 Posts
How did it look before you tried to remove it?


cobba is offline
Old 04-26-21, 08:33 PM
  #5
Helderberg
Senior Member
Thread Starter

Helderberg's Avatar

Join Date: Jul 2018
Location: Rolesville NC
Posts: 727

Bikes: Had an old Columbia in the 80's, here a used Schwinn hybrid, now a Cannondale Quick 3 and a Topstone 105..

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 201 Post(s)
Liked 228 Times in 109 Posts
Originally Posted by cobba View Post
How did it look before you tried to remove it?


Sorry but I don't understand your question? What is on the face of the nut is penetrating oil that I have not wiped off. Otherwise, the nut looked new.
Frank.
Helderberg is offline
Old 04-26-21, 08:53 PM
  #6
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,444

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3098 Post(s)
Liked 1,536 Times in 1,042 Posts
Static fittings friction is generally greater then dynamic friction. So a tighten torque value is usually less then the loosening amount.

Also penetrating fluids are really poor lubricating ones. So replacing the lube between the bolt and the LH threaded cap could have further increased the friction between them, this added to the "stiction" of the axle and arm fit can add up to be pretty high. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 04-26-21, 08:59 PM
  #7
cobba
Senior Member

Join Date: Aug 2006
Posts: 1,847
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 162 Post(s)
Likes: 0
Liked 49 Times in 38 Posts
Originally Posted by Helderberg View Post
the nut looked new
It looks a bit chewed up now.
cobba is offline
Likes For cobba:
Old 04-26-21, 11:52 PM
  #8
cpach
Senior Member

Join Date: Oct 2009
Location: Mt Shasta, CA, USA
Posts: 1,995

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 471 Post(s)
Liked 241 Times in 188 Posts
The solution is leverage, not an impact driver.
cpach is offline
Likes For cpach:
Old 04-27-21, 12:05 AM
  #9
Geepig
Senior Member

Geepig's Avatar

Join Date: Sep 2020
Location: Eastern Poland
Posts: 736

Bikes: Romet Jubilat x 4, Wigry x 1, Turing x 1

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 194 Post(s)
Liked 188 Times in 144 Posts
The solution is a lot more leverage, with something to securely support what you are trying to loosen and your tool. Impact drivers, while they have their uses, are brutish devices that dissipate your energy in all kinds of directions. Many eons ago, when I was a car mechanic back in the days when an air wrench was used almost solely to remove wheel nuts (yes, that long ago...), the company impact drivers rarely saw the light of day while our lever bars wouldn't have shamed a post-apocalyptic warrior's great grandson.

If your tool can take it, a scaffold tube is always an option
Geepig is offline
Likes For Geepig:
Old 04-27-21, 02:01 AM
  #10
Amt0571
Senior Member

Join Date: Dec 2014
Location: Catalonia
Posts: 910

Bikes: Canyon Grand Canyon AL SL 8.0, Btwin Ultra 520 AF GF, Dahon Mu P27, Triban Road 7, Benotto 850

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 382 Post(s)
Liked 179 Times in 120 Posts
Add a long tube to the end of the hex key to have more leverage. It should work.
Amt0571 is offline
Likes For Amt0571:
Old 04-27-21, 07:52 AM
  #11
Helderberg
Senior Member
Thread Starter

Helderberg's Avatar

Join Date: Jul 2018
Location: Rolesville NC
Posts: 727

Bikes: Had an old Columbia in the 80's, here a used Schwinn hybrid, now a Cannondale Quick 3 and a Topstone 105..

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 201 Post(s)
Liked 228 Times in 109 Posts
Thanks all. Will pick up an 8mm on 3/8" drive and lay into it.
Frank.
Helderberg is offline
Old 04-27-21, 08:34 AM
  #12
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,569
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 511 Post(s)
Liked 391 Times in 309 Posts
I recommend taking off the self extracting ring and use a proper crank extractor tool in this case. If the crank is not coming off without a lot of force there is a good chance you'll ruin the SE ring and possibly strip some of the threads on the crank arm.
Crankycrank is offline
Likes For Crankycrank:
Old 04-27-21, 08:45 AM
  #13
Iride01
Hits [ENTER] b4 thinking

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 8,859

Bikes: '20 Tarmac Disc Comp '91, '78 Raleigh Competition GS

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 3525 Post(s)
Liked 2,091 Times in 1,474 Posts
Is the bolt stuck and won't loosen from the crank shaft, or is the bolt tightening against the self removal ring and then getting tight? On my RaceFace crank arm, there is a turn or two of the bolt before it tightens against the self removal ring. But it didn't take much torque to get the crank arm off.

You are turning the wrench counter clockwise as the arrow on the removal ring shows?

Sometimes trying to tighten a bolt will move it enough to break the stiction and it'll be easier to loosen. Just don't over torque it too much.
Iride01 is offline
Likes For Iride01:
Old 04-27-21, 10:14 AM
  #14
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO and Tucson, AZ
Posts: 2,261

Bikes: 2016 Fuji Tread, 1983 Trek 520

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 487 Post(s)
Liked 255 Times in 183 Posts
This is a nice tool for the job.
andrewclaus is offline
Likes For andrewclaus:
Old 04-27-21, 03:28 PM
  #15
Helderberg
Senior Member
Thread Starter

Helderberg's Avatar

Join Date: Jul 2018
Location: Rolesville NC
Posts: 727

Bikes: Had an old Columbia in the 80's, here a used Schwinn hybrid, now a Cannondale Quick 3 and a Topstone 105..

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 201 Post(s)
Liked 228 Times in 109 Posts
So leverage is my new favorite word. 8mm Allen and a 30" piece of 3/4" iron pipe done. Now to find out what the bottom bracket dimension is and I can order my new crank and BB.
Thank you all for the information. I blocked the crank arm and put my 190 lbs on the pipe and the rest is history. Fantastic.
Frank.

Last edited by Helderberg; 04-27-21 at 03:51 PM.
Helderberg is offline
Likes For Helderberg:
Old 04-28-21, 05:56 AM
  #16
Amt0571
Senior Member

Join Date: Dec 2014
Location: Catalonia
Posts: 910

Bikes: Canyon Grand Canyon AL SL 8.0, Btwin Ultra 520 AF GF, Dahon Mu P27, Triban Road 7, Benotto 850

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 382 Post(s)
Liked 179 Times in 120 Posts
Originally Posted by Helderberg View Post
So leverage is my new favorite word. 8mm Allen and a 30" piece of 3/4" iron pipe done. Now to find out what the bottom bracket dimension is and I can order my new crank and BB.
Thank you all for the information. I blocked the crank arm and put my 190 lbs on the pipe and the rest is history. Fantastic.
Frank.
This tends to happen with this type of cranks. I always use a pipe for more leverage when I disassemble my GXP cranks as they have the same "issue". The bolt seems well made though as I never managed to strip it. I think DUB cranks require even more torque, so I suppose they're even worse in this regard.
Amt0571 is offline
Likes For Amt0571:
