Protect bike finish from bags, cables rubbing

I guess this would be the correct forum for this. I've been getting some paint wear on the head tube on one of my bikes with the way one of my handlebar bags pushes the cables in against it. I was thinking of using some kind of tape there, but figured I'd check in with the experts, as I imagine there's some nifty solution I don't know about, something that won't be hard to remove or leave a sticky mess. Any tips (other than re-doing the cables!)?
EDIT: just discovered Racers Tape. Looks like it's made for this very thing but man it is expensive!

Last edited by pbass; 05-10-21 at 02:09 PM.
pbass is offline
Old 05-10-21, 02:25 PM
  #2
aggiegrads
Senior Member

Join Date: Oct 2009
Location: Sherwood, OR
Posts: 1,249
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 313 Post(s)
Liked 275 Times in 161 Posts
Yes, the racer's tape, or "helicopter tape" is what you are looking for. I purchased some on Amazon and it works fantastic, is durable, and is invisible.

pbass, How much do you need? If what you need fits in a #10 envelope, I will mail you some. I have a 2"x30' roll with quite a bit left over, and that is after doing three bikes. You have always been generous with your time and you are always willing to help without judgement.

Last edited by aggiegrads; 05-10-21 at 02:28 PM.
aggiegrads is offline
Likes For aggiegrads:
Old 05-10-21, 02:35 PM
  #3
pbass
Senior Member
Thread Starter

Join Date: Sep 2012
Location: Los Angeles
Posts: 937

Bikes: Surly Cross Check, Kona Rove ST

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 201 Post(s)
Liked 179 Times in 131 Posts
Originally Posted by aggiegrads View Post
Yes, the racer's tape, or "helicopter tape" is what you are looking for. I purchased some on Amazon and it works fantastic, is durable, and is invisible.

pbass, How much do you need? If what you need fits in a #10 envelope, I will mail you some. I have a 2"x30' roll with quite a bit left over, and that is after doing three bikes. You have always been generous with your time and you are always willing to help without judgement.
Wow that is incredibly generous and thoughtful. I do only need a teeny little bit for an area on the headtube. A #10 envelope's worth would be more than enough. I'll shoot you a PM! Thanks!
pbass is offline
Old 05-10-21, 08:46 PM
  #4
shelbyfv
Senior Member

shelbyfv's Avatar

Join Date: Jun 2007
Location: TN
Posts: 8,383
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 2263 Post(s)
Liked 2,196 Times in 1,193 Posts
The tape is the most elegant solution but you can also use rubber grommets on the cables where they contact the frame.
shelbyfv is online now
Old 05-10-21, 10:31 PM
  #5
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,931

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2927 Post(s)
Liked 1,205 Times in 845 Posts
I am feeling some what cynical late at night so...

This focus of preventing paint marring/rub marks is a fools chase IMO. A bicycle is more a tool then an art piece in my world. Sure smooth paint application and gloss evenness is a worthy goal for a paint job, but once in the real world of using the bike stuff happens. So many bikes have poor cable routing/housing movement control, even only with riding range of motions. Add onto that bike carriers with poor support points, bike storage at work or the leaning of a bike during stops while on a ride. How to carry it through doors while also not dropping your pizza slice in it's box(), worrying about some casing paint rub just seems so slight an issue. I see so many much more functional issues (like cables kinked by their rear mounted car/bike racks) with bikes for service yet the riders are focused on stuff like bar tape matching bottle cage colors... I have thoughts of the riders primping their looks before going out to ride, the loss of the content they bring to a ride with others.

OK, I'm done with my rant. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 05-11-21, 01:42 AM
  #6
AngelPedaller
Junior Member

Join Date: May 2021
Posts: 14

Bikes: Giant Defy 3, Cannondale CAAD12

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 1 Time in 1 Post
Electricians tape on the same color like the frame is your friend. I have a white pearl, red, black CAAD12 and I use black and red tape on potential areas. Chainstays on both sides are covered with black tape on the side and below to protect rubbing since the protrude.
AngelPedaller is offline
Old 05-11-21, 08:02 AM
  #7
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,184
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 402 Post(s)
Liked 275 Times in 211 Posts
Originally Posted by aggiegrads View Post
Yes, the racer's tape, or "helicopter tape" is what you are looking for. I purchased some on Amazon and it works fantastic, is durable, and is invisible.

pbass, How much do you need? If what you need fits in a #10 envelope, I will mail you some. I have a 2"x30' roll with quite a bit left over, and that is after doing three bikes. You have always been generous with your time and you are always willing to help without judgement.
+1. Make sure you get the outdoor/UV resistant version tape that will last much longer. And yes, a very generous offer from aggiegrads.
Crankycrank is offline
Old 05-11-21, 08:37 AM
  #8
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 24,004

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 122 Post(s)
Tagged: 1 Thread(s)
Quoted: 4115 Post(s)
Liked 1,606 Times in 981 Posts
Everything you need and more.

But I gotta agree with Andrew (even if his last name is spelled wrong). A bike that sports scratches, wear spots, dirt, maybe the occasional cow pie splash, etc. is a bike that gets used and enjoyed.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 05-11-21, 08:58 AM
  #9
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 14,931

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2927 Post(s)
Liked 1,205 Times in 845 Posts
Originally Posted by cyccommute View Post
Everything you need and more.

But I gotta agree with Andrew (even if his last name is spelled wrong). A bike that sports scratches, wear spots, dirt, maybe the occasional cow pie splash, etc. is a bike that gets used and enjoyed.
Stuart- Our common relatives must have stood in two different lines at Ellis Island Andy (who has twice bike toured through my Great Grandfather's home town of Dufftown, Scotland)
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 05-11-21, 09:09 AM
  #10
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 24,004

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 122 Post(s)
Tagged: 1 Thread(s)
Quoted: 4115 Post(s)
Liked 1,606 Times in 981 Posts
Originally Posted by Andrew R Stewart View Post
Stuart- Our common relatives must have stood in two different lines at Ellis Island Andy (who has twice bike toured through my Great Grandfather's home town of Dufftown, Scotland)
My name actually comes from a family friend of my parents (whom I never met). They only stuck me with his first name. My brother got stuck with the rest...Alec Creighton. Both of us have spent a life time spelling our names and having people misspell them On the plus side, my name was so rare that I never had to worry about having a classmate with the same name. Iíve only met a handful of people with my first name in my entire life.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 05-11-21, 09:21 AM
  #11
pbass
Senior Member
Thread Starter

Join Date: Sep 2012
Location: Los Angeles
Posts: 937

Bikes: Surly Cross Check, Kona Rove ST

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 201 Post(s)
Liked 179 Times in 131 Posts
Originally Posted by AngelPedaller View Post
Electricians tape on the same color like the frame is your friend. I have a white pearl, red, black CAAD12 and I use black and red tape on potential areas. Chainstays on both sides are covered with black tape on the side and below to protect rubbing since the protrude.
Sounds good but this particular finish is sort of a forest green w some sparkle in it, so clear tape is the best bet here! Plus, the area that's rubbing includes the logo on the headtube, and the wear just looks kinda bad, and way premature compared to the rest of the bike. I'm cool with wear and tear on my bikes and believe me w the way I ride they have it, but in this case it just doesn't look like desirable battle scars
pbass is offline
Old 05-11-21, 09:27 AM
  #12
Iride01
Hits [ENTER] b4 thinking

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 7,125

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 2778 Post(s)
Liked 1,405 Times in 1,025 Posts
It's all relative to what you prefer I guess. Wear spots are usually hidden well enough by the things that wear on them.

I'm not likely to see that wear spot on your paint since the strap is in the way. However the edge of a clear strip of helicopter tape is very visible to me and ugly IMO. It's especially ugly when it starts to un-bond at the edges and leave whiteish bubbles or filth starts to get underneath it.
Iride01 is offline
Old 05-11-21, 09:45 AM
  #13
Chuckles1
Senior Member

Join Date: Oct 2019
Location: Foothills of West Central Maine
Posts: 267

Bikes: 2007 Motobecane Fantom Cross Expert, 2020 Motobecane Omni Strada Pro Disc (700c gravel bike), 2021 Motobecane Elite Adventure with Bafang 500W rear hub drive

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 110 Post(s)
Likes: 0
Liked 82 Times in 55 Posts
Do good looks matter?

Surely a matter of personality types. Some are bothered by flaws in finish, some couldn't care less. Ive got 3M paint protection film on vulnerable areas of my three bikes, and yes the cables rubbing on head tube is an easy area to protect. Chain stays are difficult when cables interfere with application of protection film or tape. Back of seat tube and underside of downtube catch a lot of gravel and tar, and are easy to keep clean with film on.

To each their own. I like the way the PPF "lights up" the paint, making it shine. Does it make a difference when riding the bike? Not in the least.

I wish I'd had PPF on my steel frame Raleigh (bike #4) that I'm preparing to donate to some lucky person at the local transfer station exchange. Sweat from 40 years of riding rusted the top bar pretty badly, a real PITA to repair.
Chuckles1 is offline
Old 05-11-21, 09:57 AM
  #14
AngelPedaller
Junior Member

Join Date: May 2021
Posts: 14

Bikes: Giant Defy 3, Cannondale CAAD12

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 1 Time in 1 Post
Originally Posted by pbass View Post
Sounds good but this particular finish is sort of a forest green w some sparkle in it, so clear tape is the best bet here! Plus, the area that's rubbing includes the logo on the headtube, and the wear just looks kinda bad, and way premature compared to the rest of the bike. I'm cool with wear and tear on my bikes and believe me w the way I ride they have it, but in this case it just doesn't look like desirable battle scars

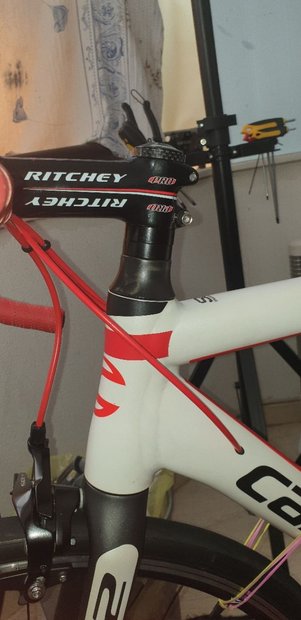

In my case it worked well. Check the third picture with chainstays. This bike has done a lot of Kms and black tape on chainstay save me many time as it is easy to scratch somewhere.


AngelPedaller is offline
Old 05-11-21, 11:46 AM
  #15
icemilkcoffee
Senior Member

Join Date: Aug 2009
Posts: 638
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 367 Post(s)
Liked 266 Times in 167 Posts
Tape is good but I use zip ties to strategically tie the cables so they don't touch the head tube. On my latest project bike:

You can see the RD cable is zip tied to the front caliper brake adjuster and the FD cable is zip tied tightly to the front brake cable high up. Neither cable comes close to touching the headtube, which is a significant problem for bikes with down tube shifters converted to cable stops.
icemilkcoffee is offline
Likes For icemilkcoffee:
Old 05-21-21, 04:39 PM
  #16
VintageSteelEU
Junior Member

Join Date: May 2021
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
You can get self-adhesive vinyl, of the kind used on cars. Doesn't leave residue when you peel it off and is available in a wide range of colours / textures. Recently I was using leather texture, for example. There are some downsides though. Typically, it comes in sheets, so you have to measure pretty exact shape and size before you cut. If you put it underneath anything that clamps on the frame strongly, it will come out of shape. So in such cases you might want to cut it in longer strips and use like a tape. It will probably work pretty ok with things like bags and it's easy to replace when necessary. Other choice is electrician's tape, which is strong, durable and easy to wrap around the tubes as many times, as you wish. Not as sexy when it comes to the way it looks, but then again, at least you can find it in many colours. Another option would be gaffers tape. Not the cheap PVC kind they usually call gaffers tape, but the real, fabric gaffers tape. It will be available in black or white and possibly some other colours and again, it doesn't leave residue. It also looks better than electrician's tape.
