Ebike - Trouble removing rear wheel

Bike: Stunner LT (Rear hub motor)
Issue: Cannot seem to get the rear tire off to change a flat.

So hubby had a run in with a nail, and we have to change the rear tire. Seems like a simple thing. Followed several videos. No matter what we do, can't seem to get that thing to budge at all. It should be pretty strait forward. Neither of us are very mechanical, but we have removed tires before. Front no problem, the rear tire on this bike just doesn't want to work with us.

- unplugged the power to the hub
- loosened the bolts on both sides of the axle
- you'd think you should just have to pull back the Derailleur, and pop it out...but no. and no matter how much force there is no movement on either side.

Photos: (can't add or link any photos to the forum yet)
ArcticGypsy is offline
Old 05-13-21, 11:41 AM
  #2
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,768
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 771 Post(s)
Liked 347 Times in 202 Posts

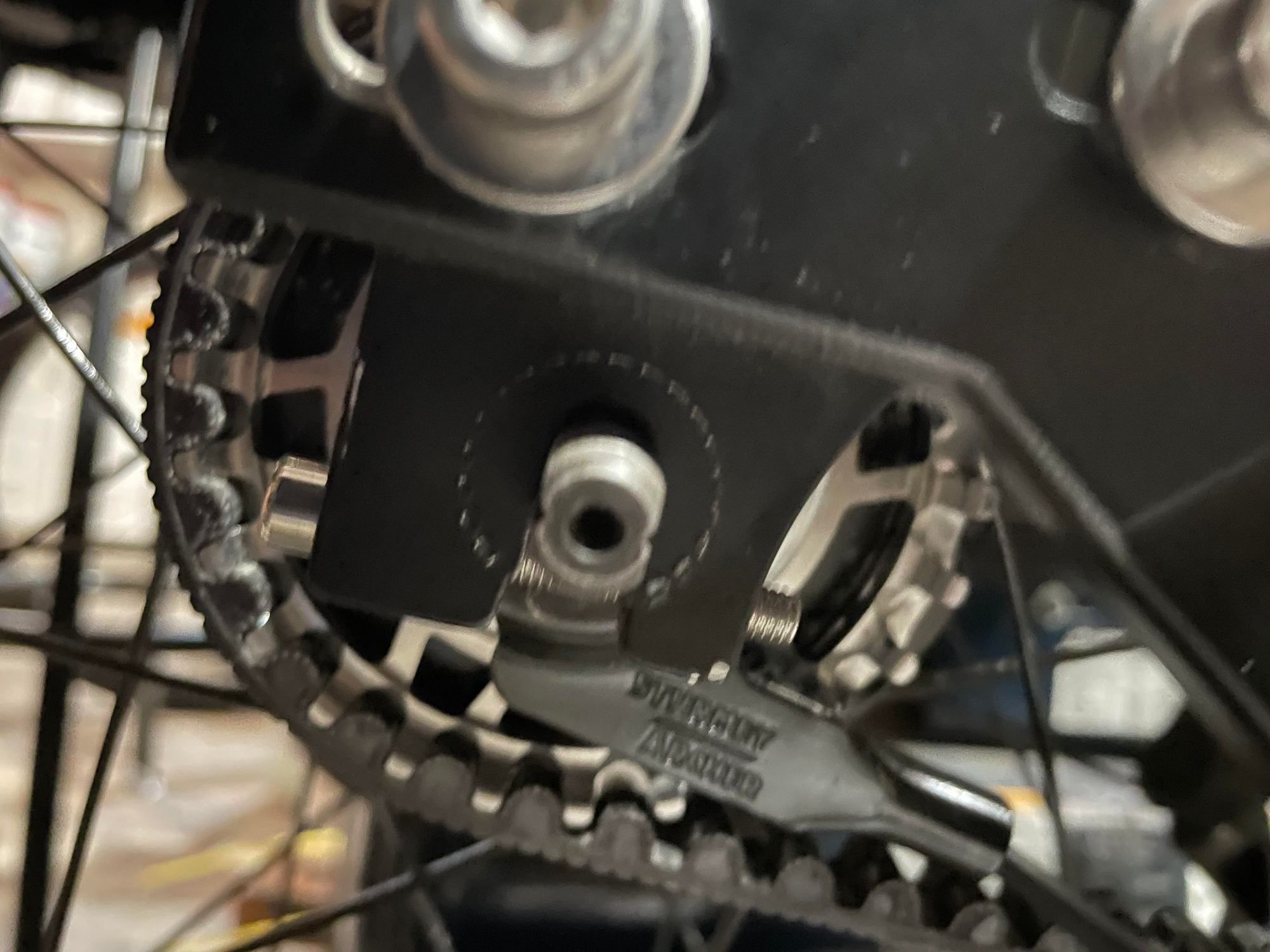

Many ebikes with a rear hub motor have special dropouts that capture the axle across the flats and have a bolt through the dropout from front to rear to keep the axle of the hub motor from torqueing the dropouts apart. Check and see if you have this bolt. You will have to remove them from both sides to remove the wheel.
Dan Burkhart is offline
Likes For Dan Burkhart:
Old 05-13-21, 01:19 PM
  #3
Rick
Senior Member

Join Date: Feb 2007
Posts: 882
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 367 Post(s)
Likes: 0
Liked 224 Times in 148 Posts
Make several short posts and send pictures.
Rick is offline
Old 05-13-21, 03:51 PM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,432

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3091 Post(s)
Liked 1,522 Times in 1,036 Posts
It is this type of time consuming issue that has caused some LBS to not work on E Bikes they don't sell. If they should damage something during a "simple" tire/tube replacement (like the control wiring that often enters the rear axle end) the shop is on the hook for a costly headache. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 05-13-21, 06:24 PM
  #5
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 7,909

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 1518 Post(s)
Liked 887 Times in 588 Posts
I would suggest going to the the manufacturer.....and ask, chat or phone
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light 56,57 or so)

squirtdad is offline
Old 05-14-21, 09:18 AM
  #6
2old
Senior Member

Join Date: Jul 2014
Location: socal
Posts: 3,124
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 594 Post(s)
Liked 377 Times in 282 Posts
Cautionary tale, but you might also post in the "e" forum. Also, Biktrix supposedly has good CS, including "chat"; let us know how you fare.

Last edited by 2old; 05-14-21 at 09:23 AM.
2old is offline
Old 05-14-21, 09:30 AM
  #7
Chuckles1
Senior Member

Join Date: Oct 2019
Location: Foothills of West Central Maine
Posts: 365

Bikes: 2007 Motobecane Fantom Cross Expert, 2020 Motobecane Omni Strada Pro Disc (700c gravel bike), 2021 Motobecane Elite Adventure with Bafang 500W rear hub drive

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Likes: 0
Liked 124 Times in 82 Posts
Torque arm(s)?

Maybe it has a torque arm on one or both sides that has to be removed before the wheel can be removed.
Chuckles1 is offline
Old 05-14-21, 12:39 PM
  #8
Gresp15C
Senior Member

Gresp15C's Avatar

Join Date: Sep 2014
Posts: 3,751
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1012 Post(s)
Liked 577 Times in 374 Posts
My friend had the same problem on his e-bike. The flatted axle had rotated a tiny bit in the dropout, and dug its threads into the dropout, so it was good and stuck. This was visible once we got the nut completely off. (Suggest doing so and sharing a picture). It was visibly rotated. We put an adjustable wrench on the exposed flats, rotated, and it popped free. After that point it was serviceable like any gear hub.

If you know where the nail poked through the wheel, you could patch the tube without removing the wheel from the bike. But you need to address this issue sooner or later when the tire wears out.
Gresp15C is offline
Likes For Gresp15C:
Old 05-14-21, 12:52 PM
  #9
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,432

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3091 Post(s)
Liked 1,522 Times in 1,036 Posts
Originally Posted by Gresp15C View Post
My friend had the same problem on his e-bike. The flatted axle had rotated a tiny bit in the dropout, and dug its threads into the dropout, so it was good and stuck. This was visible once we got the nut completely off. (Suggest doing so and sharing a picture). It was visibly rotated. We put an adjustable wrench on the exposed flats, rotated, and it popped free. After that point it was serviceable like any gear hub.

If you know where the nail poked through the wheel, you could patch the tube without removing the wheel from the bike. But you need to address this issue sooner or later when the tire wears out.
Just like with an IGH, an in hub E motor needs to have the axle resist the rotational force of the motor. Even there's a reaction arm in plat it can come loose from the axle or internal fitting it's held by. I shudder to think about the forces the poor drop out is seeing... hopefully the drop out is steel (saying this knowing that's really un likely) Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 05-14-21, 01:05 PM
  #10
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,768
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 771 Post(s)
Liked 347 Times in 202 Posts
Originally Posted by Gresp15C View Post
My friend had the same problem on his e-bike. The flatted axle had rotated a tiny bit in the dropout, and dug its threads into the dropout, so it was good and stuck. This was visible once we got the nut completely off. (Suggest doing so and sharing a picture). It was visibly rotated. We put an adjustable wrench on the exposed flats, rotated, and it popped free. After that point it was serviceable like any gear hub.

.
That is why some ebike mfgs now add the pinch bolt I showed the photo of above. If the OP ever decides to respond, maybe we will learn more.
Dan Burkhart is offline
Likes For Dan Burkhart:
Old 05-14-21, 01:07 PM
  #11
Gresp15C
Senior Member

Gresp15C's Avatar

Join Date: Sep 2014
Posts: 3,751
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1012 Post(s)
Liked 577 Times in 374 Posts
Originally Posted by Andrew R Stewart View Post
Just like with an IGH, an in hub E motor needs to have the axle resist the rotational force of the motor. Even there's a reaction arm in plat it can come loose from the axle or internal fitting it's held by. I shudder to think about the forces the poor drop out is seeing... hopefully the drop out is steel (saying this knowing that's really un likely) Andy
Definitely. In the case of my friend's bike, it was an early generation e-bike, probably a generic frame rather than one of the newer ones that is built more stout. Most of the people I know who bought the early e-bikes are on their second e-bike.

At least with the IGH on my bike, it has those anti rotation washers, and, the damage is limited by the strength of the motor.
