Where can I find a 'top cover' for my headset?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Where can I find a 'top cover' for my headset?

Old 05-15-21, 03:32 AM
  #1
Jockie
Member
Thread Starter

Join Date: Jul 2010
Posts: 33
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 5 Times in 3 Posts
Where can I find a 'top cover' for my headset?

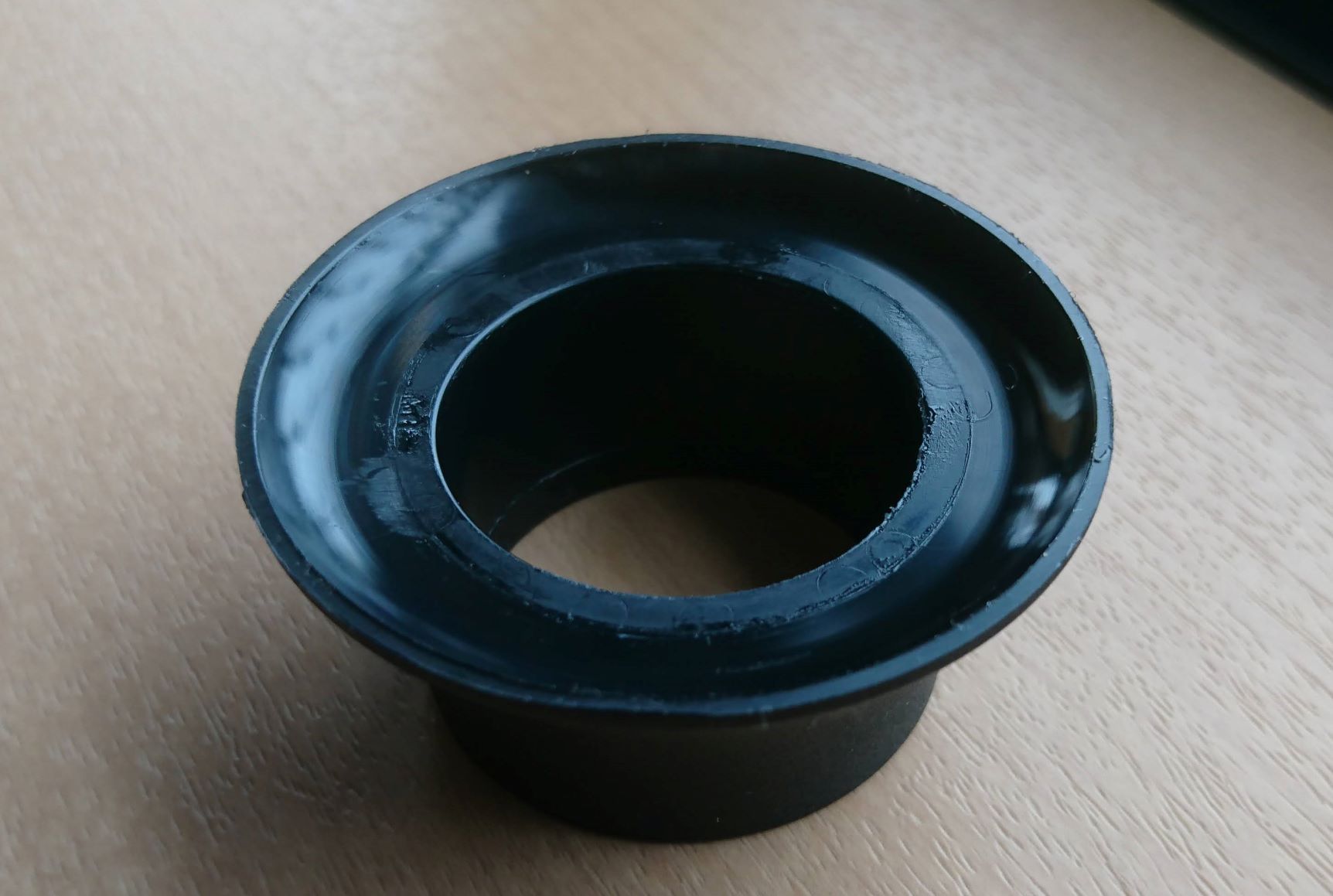

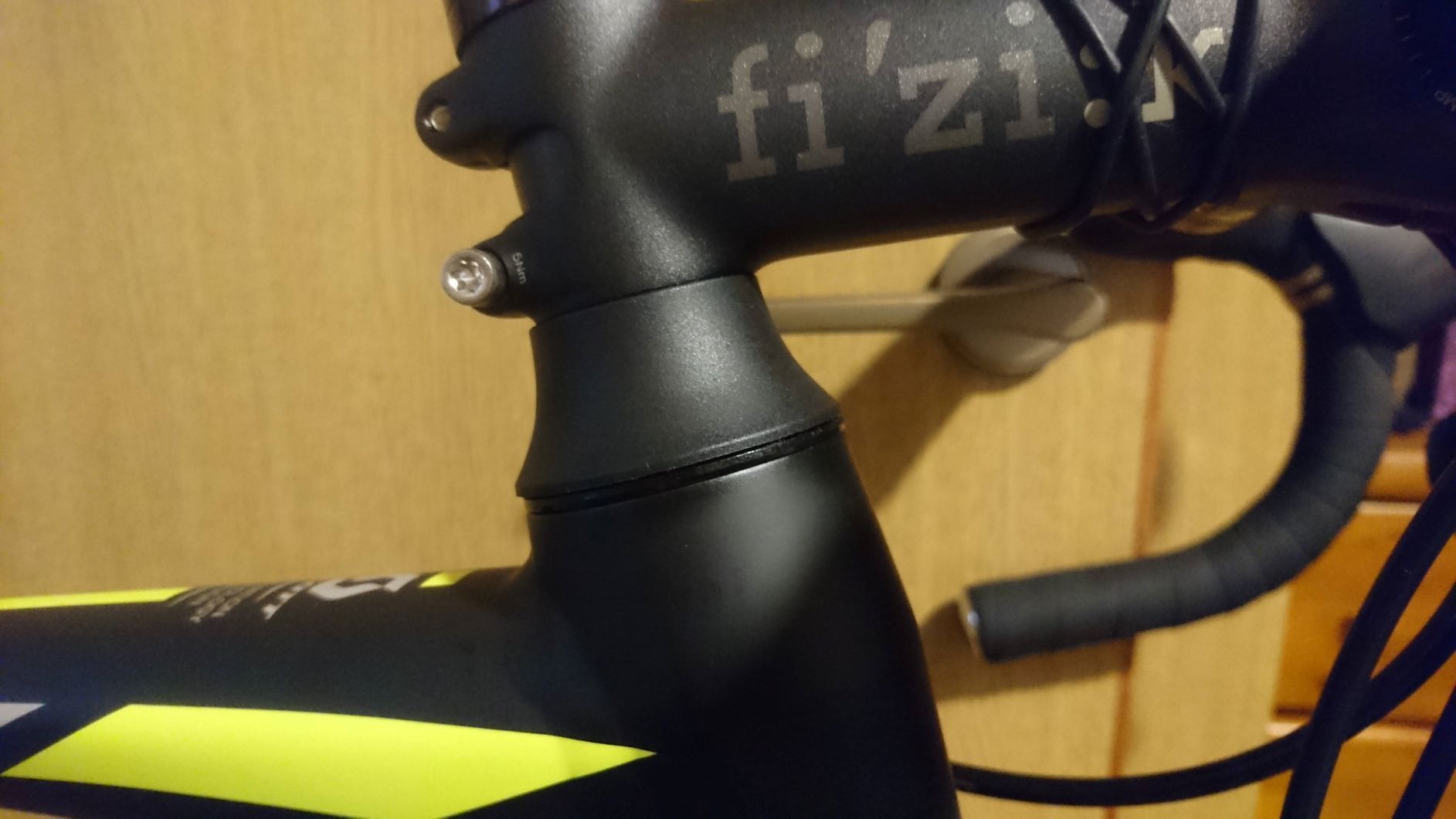

I want to replace the conical 'top cover' of my headset with a shorter one. I've struck out at the LBS and searching online.
The current 'top cover' is too tall and is preventing me from lowering my stem further.
The headset is a Ritchey semi-integrated 1 1/8 (AKA zero-stack). It is a stock part on a 2017 Scott Speedster 10.
I wonder if I'll run into the problem of compatibility that one faces with fork crown races, i.e. AFAIK each headset is idiosyncratic and therefore requires a part that exactly matches.

It may just not be worth the bother. In that case, what replacement headset would you recommend? Perhaps this Ritchey Comp Press Fit or this Wolf Tooth Performance ZS or something else? (Chris King is beyond what I'm willing to pay this time)

Jockie is offline
Old 05-15-21, 06:55 AM
  #2
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,568

Bikes: TWO Cinelli superstar disc with SRAM Force AXS

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Liked 352 Times in 285 Posts
The conical top covers from omni-racer may work. I have them on Cinelli superstar frames.

https://www.omniracer.com/product-pa...-carbon-spacer
DaveSSS is offline
Likes For DaveSSS:
Old 05-15-21, 07:52 AM
  #3
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,166

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1377 Post(s)
Liked 917 Times in 637 Posts
You can lower your bars further with a stem with a greater down-angle.
dsbrantjr is offline
Likes For dsbrantjr:
Old 05-15-21, 10:33 AM
  #4
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,568

Bikes: TWO Cinelli superstar disc with SRAM Force AXS

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Liked 352 Times in 285 Posts
If you have a minus 6 stem now, a -17 will lower the bars about 2cm. I use a -17 with a 30mm headset top cover to increase the chances of future resale. I could have kept the stock 15mm cover with no spacers and a -6 stem, but then there's no adjustment left. Adding spacer on top of the stem doesn't appeal to me.
DaveSSS is offline
Likes For DaveSSS:
Old 05-15-21, 12:54 PM
  #5
urbanknight
Over the hill

urbanknight's Avatar

Join Date: Mar 2006
Location: Los Angeles, CA
Posts: 22,878

Bikes: Specialized Allez Elite, Raleigh Pursuit tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 186 Times in 119 Posts
It might just be a conical spacer. My bike had a cap underneath it so I just took the conical one off to get the stem lower. Hasnít been a problem for over 10 years.
__________________
It's like riding a bicycle
urbanknight is online now
Likes For urbanknight:
Old 05-15-21, 01:19 PM
  #6
jimc101
Senior Member

Join Date: Oct 2007
Location: West Yorkshire, United Kingdom
Posts: 5,664
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 399 Post(s)
Liked 49 Times in 42 Posts
Cane Creek do separates, something like a Cane Creek zs44/28.6/h15 if you can find one, you would need to replace the whole of the top assembly, your bottom one can be left undisturbed.
jimc101 is offline
Likes For jimc101:
Old 05-15-21, 02:17 PM
  #7
zandoval
Senior Member

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 2,563

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 254 Post(s)
Liked 326 Times in 229 Posts
Sounds like another call for some 3D Printer skills...
__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Old 05-15-21, 04:37 PM
  #8
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 9,447

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1443 Post(s)
Liked 658 Times in 468 Posts
Originally Posted by urbanknight View Post
It might just be a conical spacer. My bike had a cap underneath it so I just took the conical one off to get the stem lower. Hasnít been a problem for over 10 years.
I'd say this is pretty likely. Have a look under it.
Kimmo is offline
Old 05-16-21, 10:08 PM
  #9
Jockie
Member
Thread Starter

Join Date: Jul 2010
Posts: 33
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 5 Times in 3 Posts
DaveSSS, the omniracer integrated conical headset spacer has a bottom outside diameter of 46.0mm. My spacer's is around 50mm but it might have been an acceptable solution. Unfortunately the international shipping is prohibitive.
dsbrantjr, I prefer the aesthetic achieved with the stem I'm using now.

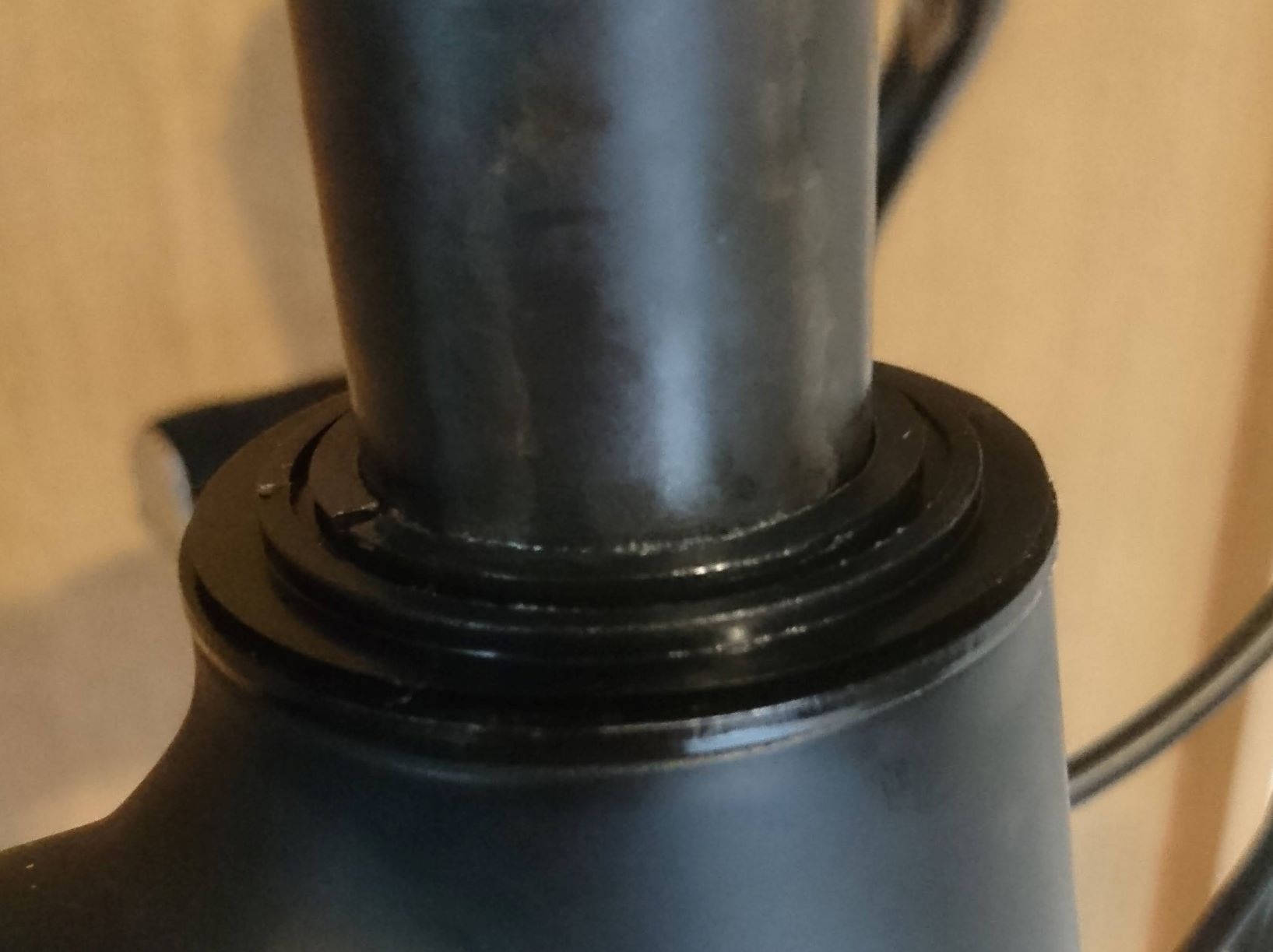

urbanknight and Kimmo, there is no cap underneath, so I cannot just remove the conical spacer.
jimc101, if I can't get a shorter spacer that fits, I may go down the avenue of a completely new top assembly.
zandoval, I assume it would cost a lot more than a pre-fabricated part.

FSA sell a top cover called the Orbit CE. I will probably try the 8mm high version.


Jockie is offline
Old 05-17-21, 07:36 AM
  #10
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,568

Bikes: TWO Cinelli superstar disc with SRAM Force AXS

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Liked 352 Times in 285 Posts
Your top cover is different than the more common type I have. It has some rubber seals to keep water out. The stem angle change is still the better approach, since steering tubes cut extremely short make for a difficult resale and adding spacers above the stem looks dorky. Stems with a -17 to -21 degrees are common on pro bikes. Fizik makes the Cyrano model.

Last edited by DaveSSS; 05-17-21 at 07:39 AM.
DaveSSS is offline
Old 05-17-21, 07:55 AM
  #11
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,567
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Liked 388 Times in 308 Posts
Have you contacted Ritchey or Scott? Either one may have a thinner cone available but not shown on their websites or they may know of an alternative that will work.
Crankycrank is offline
Likes For Crankycrank:
Old 05-17-21, 05:27 PM
  #12
urbanknight
Over the hill

urbanknight's Avatar

Join Date: Mar 2006
Location: Los Angeles, CA
Posts: 22,878

Bikes: Specialized Allez Elite, Raleigh Pursuit tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 186 Times in 119 Posts
I'm confused as to how they call it a "zero stack" headset if the cap it comes with is stacked like 20-30mm?
__________________
It's like riding a bicycle
urbanknight is online now
Old 05-17-21, 05:56 PM
  #13
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 4,529
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1,211 Times in 858 Posts
Originally Posted by urbanknight View Post
I'm confused as to how they call it a "zero stack" headset if the cap it comes with is stacked like 20-30mm?
no different than saying "3 for $10" or "2 for $10 & the 3rd one is FREE!" Marketing.
__________________
-Oh Hey!
Troul is offline
Likes For Troul:
Old 05-17-21, 06:44 PM
  #14
urbanknight
Over the hill

urbanknight's Avatar

Join Date: Mar 2006
Location: Los Angeles, CA
Posts: 22,878

Bikes: Specialized Allez Elite, Raleigh Pursuit tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 186 Times in 119 Posts
Originally Posted by Troul View Post
no different than saying "3 for $10" or "2 for $10 & the 3rd one is FREE!" Marketing.
Oh donít get me started on things like my grocery store saying ď10 for $20Ē when you can buy 1 or 2 and still only be charged $2 each.

Or the clothing stores that say ď50% off... regularly $60Ē. I have never seen that pair of pants for more than $30 since I first started buying them a decade ago.

Now you got me started. Iím going back into that runners/pedestrians thread to argue some more.
__________________
It's like riding a bicycle
urbanknight is online now
Likes For urbanknight:
Old 05-17-21, 06:51 PM
  #15
Troul
:D

Troul's Avatar

Join Date: Oct 2013
Location: Mich
Posts: 4,529
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1,211 Times in 858 Posts
Originally Posted by urbanknight View Post
Oh donít get me started on things like my grocery store saying ď10 for $20Ē when you can buy 1 or 2 and still only be charged $2 each.

Or the clothing stores that say ď50% off... regularly $60Ē. I have never seen that pair of pants for more than $30 since I first started buying them a decade ago.

Now you got me started. Iím going back into that runners/pedestrians thread to argue some more.
hahaha!
__________________
-Oh Hey!
Troul is offline
Old 05-17-21, 08:33 PM
  #16
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,453

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 163 Post(s)
Liked 120 Times in 89 Posts
Originally Posted by jimc101 View Post
Cane Creek do separates, something like a Cane Creek zs44/28.6/h15 if you can find one, you would need to replace the whole of the top assembly, your bottom one can be left undisturbed.
Cobb Cycling also has 5mm top caps. https://speedandcomfort.com/collections/top-caps
oldbobcat is offline
Likes For oldbobcat:
Old 05-18-21, 04:13 PM
  #17
Jockie
Member
Thread Starter

Join Date: Jul 2010
Posts: 33
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 5 Times in 3 Posts
Crankycrank, I contacted both Scott and Ritchey. Scott said: "we do not sell shorter conical spacers", and Ritchey said: "we don’t offer the HS top cap only, you should replace the whole headset upper part".
Jockie is offline
Old 05-18-21, 07:11 PM
  #18
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,567
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Liked 388 Times in 308 Posts
Originally Posted by Jockie View Post
Crankycrank, I contacted both Scott and Ritchey. Scott said: "we do not sell shorter conical spacers", and Ritchey said: "we donít offer the HS top cap only, you should replace the whole headset upper part".
Well that's too bad. Maybe you could sell the old headset with the big spacer. May have some takers looking for that and used parts prices are at a premium now.
Crankycrank is offline
Old 05-18-21, 08:27 PM
  #19
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 9,447

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1443 Post(s)
Liked 658 Times in 468 Posts
It'd be a pretty simple machining job to have one made from scratch in ally. Three cuts, plus a groove for an o ring inside.

But if you ring around a few bike shops, you may well find one that has a collection of them. Or try a co-op, links in my tag.
Kimmo is offline
Old 05-20-21, 09:05 AM
  #20
joejack951
Senior Member

joejack951's Avatar

Join Date: May 2004
Location: Wilmington, DE
Posts: 12,068

Bikes: 2016 Hong Fu FM-079-F, 1984 Trek 660, 2005 Iron Horse Warrior Expert, 2009 Pedal Force CX1, 2016 Islabikes Beinn 20 (son's)

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1227 Post(s)
Liked 71 Times in 51 Posts
Even simpler than Kimmo suggestion, just cut off the amount you want to lower your stem from the original conical spacer. That spacer looks solid so it shouldn't be an issue. The only trick will be getting it flat on top assuming that you make the cut by hand. Anyone with a mill/lathe could do this in minutes. By hand with a saw you'll want to take your time and finish with a sharp file to clean up the cut and level it off. Worst thing that could happen is you wind up going 1-2mm lower than intended. Well, you could ruin the whole spacer, too, but let's assume some level of competence with hand tools!
joejack951 is offline
