Unable to remove crank threads partially stripped

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Unable to remove crank threads partially stripped

Old 05-18-21, 05:01 PM
  #1
tendency
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 355
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Liked 101 Times in 66 Posts
Unable to remove crank threads partially stripped

Hey all - new bike and when I went to take off the drive side crankarm found this:




Someone ground down the threads on the crankarm - aaaaargh! I'm unable to thread on the extractor tool .. what can I do to fix this?
tendency is offline
Old 05-18-21, 08:39 PM
  #2
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO and Tucson, AZ
Posts: 2,462

Bikes: 2016 Fuji Tread, 1983 Trek 520

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 561 Post(s)
Liked 381 Times in 261 Posts
I made a thread chaser out of a broken crank extractor--cut some tap-like slots into the nut--and that works sometimes. Sometimes I can carefully repair the leading threads with a utility knife. If those tricks don't work I get out the pickle fork (automotive ball joint separator).
andrewclaus is offline
Likes For andrewclaus:
Old 05-18-21, 08:43 PM
  #3
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,299

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1841 Post(s)
Likes: 0
Liked 788 Times in 568 Posts
Uhh, did you remove the crank fixing bolt (the hex head bolt in the middle of the opening) first before trying the extractor?
HillRider is offline
Old 05-18-21, 09:00 PM
  #4
tendency
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 355
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Liked 101 Times in 66 Posts
Originally Posted by HillRider View Post
Uhh, did you remove the crank fixing bolt (the hex head bolt in the middle of the opening) first before trying the extractor?
Yes, the pic was taken after I re-assembled - but thanks for checking
tendency is offline
Old 05-18-21, 09:01 PM
  #5
tendency
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 355
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Liked 101 Times in 66 Posts
Originally Posted by andrewclaus View Post
I made a thread chaser out of a broken crank extractor--cut some tap-like slots into the nut--and that works sometimes. Sometimes I can carefully repair the leading threads with a utility knife. If those tricks don't work I get out the pickle fork (automotive ball joint separator).
Cool thanks for tips - I'll see if I can fashion some sort of a thread chaser.
tendency is offline
Old 05-19-21, 12:21 AM
  #6
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,784

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Liked 733 Times in 540 Posts

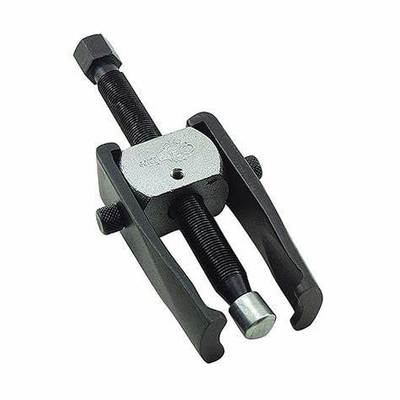

failing that, a pulley remover rented from auto stores also works. you get your money back when you return the tool

like this....


Last edited by thook; 05-19-21 at 12:27 AM.
thook is offline
Old 05-19-21, 03:14 AM
  #7
cjenrick
Senior Member

Join Date: May 2020
Posts: 409
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 127 Times in 94 Posts
i have never done this, just a hypothesis, remove the left hand crank, lock nut and cup,

now the rt crank can rest against the fixed rt cup, take off the bolt, remove the washer, put the bolt back in then back it out maybe 1/8th inch, put some pb blaster oil in there, or liquid wrench, get a drift punch or piece of round stock, tap on the spindle pretty good and see if it pops off,

or buy a bottom tap of the same thread size and chase it,
cjenrick is offline
Old 05-19-21, 05:08 AM
  #8
Pop N Wood
Senior Member

Join Date: Jun 2020
Location: Maryland
Posts: 1,163

Bikes: 1982 Bianchi Sport SX, Rayleigh Tamland 1, Rans V-Rex recumbent, Fuji MTB, 80's Cannondale MTB with BBSHD ebike motor

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 552 Post(s)
Liked 434 Times in 287 Posts
Beaucoup threads on this.

Heat, 2 pickle forks, Jacobs chuck wedges are some of the methods to remove cranks with stripped out extractor threads.

Gear pullers generally haven't worked for me, but the one thook posted looks like it might have a chance of not slipping off. Put it on, get some tension on the arm, heat the arm with a heat gun, retension the puller, then tap the side of the crank arm sharply with a hammer to help vibrate everything loose.

If none of that works than break out the hacksaw...
Pop N Wood is offline
Old 05-19-21, 05:47 AM
  #9
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,489

Bikes: Several, mostly not name brands.

Mentioned: 136 Post(s)
Tagged: 0 Thread(s)
Quoted: 2943 Post(s)
Liked 1,957 Times in 1,170 Posts
Originally Posted by tendency View Post
Cool thanks for tips - I'll see if I can fashion some sort of a thread chaser.
Bicycle Research made a crank thread chaser (below). The piece on the right is a pilot to keep the chaser on axis. The male end threads into a bolt-type spindle, the female end fits on a nut-type spindle. I suspect this tool has been out of production for a while. BikeToolsEtc offers a similar chaser, but without the pilot, so you'd need to be careful to keep the tool on axis.
Attached Images
File Type: jpg
JohnDThompson is offline
Likes For JohnDThompson:
Old 05-19-21, 10:15 AM
  #10
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,784

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Liked 733 Times in 540 Posts
Originally Posted by Pop N Wood View Post
Beaucoup threads on this.

Heat, 2 pickle forks, Jacobs chuck wedges are some of the methods to remove cranks with stripped out extractor threads.

Gear pullers generally haven't worked for me, but the one thook posted looks like it might have a chance of not slipping off. Put it on, get some tension on the arm, heat the arm with a heat gun, retension the puller, then tap the side of the crank arm sharply with a hammer to help vibrate everything loose.

If none of that works than break out the hacksaw...
i had to use a puller once a long time ago to get a deore lx crank off a junky frame i found. i really wanted it because it was smoke colored. i did try a pickle fork, at first, but could quickly see it was only going to mar up the crank before it even came loose. anyway, i think the puller i used had better tabs at the arms' ends, and it worked very well without needing heat or hammer. that image was the only one i could find right away to illustrate, though.
thook is offline
Old 05-19-21, 12:08 PM
  #11
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,673
Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1070 Post(s)
Liked 284 Times in 212 Posts
5-arm crank?
The generic pullers tend not to work well on those. They donít center right. If you insist, they tend to slip off under load. 3-arm pullers might do less poorly. Chuck wedges, pickle Forks work better. Or cutting the BB spindle.
dabac is offline
Old 05-19-21, 12:22 PM
  #12
genejockey
Klaatu..Verata..Necktie?

genejockey's Avatar

Join Date: May 2007
Location: SF Bay Area
Posts: 10,607

Bikes: Canyon Endurace, 105; Battaglin MAX, Chorus; Bianchi 928 Veloce; Ritchey Road Logic, Dura Ace; Cannondale R500 RX100; Schwinn Circuit, Sante; Lotus Supreme, Dura Ace

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 5742 Post(s)
Liked 5,963 Times in 3,063 Posts
Chuck wedges. Do a search for them on BF.
__________________
"Don't take life so serious-it ain't nohow permanent."

"Everybody's gotta be somewhere." - Eccles
genejockey is offline
Likes For genejockey:
Old 05-19-21, 01:19 PM
  #13
Phil_gretz
Zip tie Karen

Phil_gretz's Avatar

Join Date: Aug 2009
Location: Fair Oaks Ranch, TX
Posts: 7,003

Bikes: '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '16 Motobecane Gran Premio Elite, '18 Velobuild VB-R-022, '21 Tsunami SNM-100

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1459 Post(s)
Liked 1,533 Times in 802 Posts
Originally Posted by genejockey View Post
Chuck wedges. Do a search for them on BF.

Chuck Norris wedges. Simply mention them in passing, and the crank will back itself off and apologize...
Phil_gretz is offline
Old 05-19-21, 03:27 PM
  #14
Pop N Wood
Senior Member

Join Date: Jun 2020
Location: Maryland
Posts: 1,163

Bikes: 1982 Bianchi Sport SX, Rayleigh Tamland 1, Rans V-Rex recumbent, Fuji MTB, 80's Cannondale MTB with BBSHD ebike motor

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 552 Post(s)
Liked 434 Times in 287 Posts
Originally Posted by thook View Post
i did try a pickle fork, at first, but could quickly see it was only going to mar up the crank before it even came loose.
I've used a single pickle fork with some sheet metal shims to protect the bike, but someone on here suggested using two pickle forks. that would be most excellent. Pickle forks have the hammer helping to vibrate stuff loose as well.

I bought a set of Jacobs chucks but haven't had need for them yet. I replaced the 35 year old stripped out crank with a campy ultratorque unit. Crank extractors suck.
Pop N Wood is offline
Old 05-19-21, 03:55 PM
  #15
genejockey
Klaatu..Verata..Necktie?

genejockey's Avatar

Join Date: May 2007
Location: SF Bay Area
Posts: 10,607

Bikes: Canyon Endurace, 105; Battaglin MAX, Chorus; Bianchi 928 Veloce; Ritchey Road Logic, Dura Ace; Cannondale R500 RX100; Schwinn Circuit, Sante; Lotus Supreme, Dura Ace

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 5742 Post(s)
Liked 5,963 Times in 3,063 Posts
Originally Posted by Pop N Wood View Post
I've used a single pickle fork with some sheet metal shims to protect the bike, but someone on here suggested using two pickle forks. that would be most excellent. Pickle forks have the hammer helping to vibrate stuff loose as well.

I bought a set of Jacobs chucks but haven't had need for them yet. I replaced the 35 year old stripped out crank with a campy ultratorque unit. Crank extractors suck.
Unless they work, then they're fantastic. But, yeah, when they fail, they really suck.
__________________
"Don't take life so serious-it ain't nohow permanent."

"Everybody's gotta be somewhere." - Eccles
genejockey is offline
Old 05-20-21, 02:16 AM
  #16
cjenrick
Senior Member

Join Date: May 2020
Posts: 409
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 127 Times in 94 Posts
another trick is to leave the bolt off and ride the bike for a while,

of course you want to monitor things closely so

1) you don't crash

2) you don't butcher the taper

and don't stray too far from home.
cjenrick is offline
Likes For cjenrick:
