Dura Ace 144 chainring doesn't fit very well on my old 144bcd Campy pista crank

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Dura Ace 144 chainring doesn't fit very well on my old 144bcd Campy pista crank

Old 05-29-21, 08:23 AM
  #1
h_curtis
Senior Member
Thread Starter

h_curtis's Avatar

Join Date: Nov 2006
Location: Pittsburgh, PA
Posts: 540

Bikes: 80's Roberts road bike, Nashiki, ECR, Guerciotti and Penny Farthing

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 31 Times in 23 Posts
Dura Ace 144 chainring doesn't fit very well on my old 144bcd Campy pista crank

I can get it to fit sort of, but I think I need to file a bit. Would you file the crank seats a little or the ring. I am thinking filing the chainring seats a bit to it will smoothly fit.

I thought this was going to just be a super easy job. lol. Gotta love the old vintage stuff when you need to repair something.

Thoughts?
h_curtis is offline
Old 05-29-21, 09:15 AM
  #2
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 21,023

Bikes: old ones

Mentioned: 293 Post(s)
Tagged: 0 Thread(s)
Quoted: 23856 Post(s)
Liked 7,541 Times in 5,328 Posts
.
...I can only go from personal experience, but 144 BCD as a standard has worked fine for me in all the chain ring swaps I've done between manufacturers (Sugino had 144 as their standard for their Campy imitation, the Mighty Comp for a while, and I've used the Suntour Superbe144 rings on Campy without issues. Can't recall using the Dura Ace rings ? ) My only thought is there might be something else going on. I don't do a whole lot off track chainring swaps, so I'm not much help here.

Are the holes in the old and new rings both drilled with a recess for the seat ?
3alarmer is offline
Old 05-29-21, 09:28 AM
  #3
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,622

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 225 Post(s)
Liked 190 Times in 143 Posts
The flange radii are different. Shimano even has this problem with some 104 mm MTB rings.
oldbobcat is offline
Old 05-29-21, 09:32 AM
  #4
h_curtis
Senior Member
Thread Starter

h_curtis's Avatar

Join Date: Nov 2006
Location: Pittsburgh, PA
Posts: 540

Bikes: 80's Roberts road bike, Nashiki, ECR, Guerciotti and Penny Farthing

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 31 Times in 23 Posts

Originally Posted by oldbobcat View Post
The flange radii are different. Shimano even has this problem with some 104 mm MTB rings.
From what I have been reading people make it work with some filing. I wanted to buy a "round" chainring as an improvement. I guess if I am filing that might change things in that department, but I will try and be consistent with each mounting point.

Would you agree with my direction?

Picture added to show the crank with old chainring.

Last edited by h_curtis; 05-29-21 at 09:36 AM.
h_curtis is offline
Old 05-29-21, 09:49 AM
  #5
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 10,786

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 3577 Post(s)
Liked 2,390 Times in 1,564 Posts
If it were me, I'd set aside that Dura-Ace and get a Sugino Mighty or 75, SunTour, Campy (or probably a host of others; TA?, Zeus?). I have a Sugino 75 crankset and swap between Campy and Sugino and cannot tell which I've got without looking,

I use little Shimano simply because they love to do things slightly differently so you cannot quite swap cleanly.
79pmooney is offline
Old 05-29-21, 10:00 AM
  #6
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,622

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 225 Post(s)
Liked 190 Times in 143 Posts
Originally Posted by h_curtis View Post


From what I have been reading people make it work with some filing. I wanted to buy a "round" chainring as an improvement. I guess if I am filing that might change things in that department, but I will try and be consistent with each mounting point.

Would you agree with my direction?

Picture added to show the crank with old chainring.
The bolt holes will keep everything aligned.
oldbobcat is offline
Old 05-30-21, 05:34 AM
  #7
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,217

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2215 Post(s)
Liked 2,294 Times in 1,417 Posts
Originally Posted by h_curtis View Post
I can get it to fit sort of, but I think I need to file a bit. Would you file the crank seats a little or the ring. I am thinking filing the chainring seats a bit to it will smoothly fit.Thoughts?
File the ring, it's the wear part and will eventually have no value unlike the crank.
dedhed is offline
Old 05-30-21, 03:46 PM
  #8
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,622

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 225 Post(s)
Liked 190 Times in 143 Posts
The guys in the last shop where I worked would spend the time filing the inside of the rings to fit the Shimano cranks. I was lazy, and I also had a problem taking a file to brand new parts, so I'd just order the correct ring. I could tell if the ring would work by looking at the picture.

In your case the correct ring isn't readily available, so I would have no problem taking a file to the one you have. And, yeah, as someone already mentioned, Sugino rings are compatible with Campagnolo.
oldbobcat is offline
Old 06-26-21, 02:05 PM
  #9
h_curtis
Senior Member
Thread Starter

h_curtis's Avatar

Join Date: Nov 2006
Location: Pittsburgh, PA
Posts: 540

Bikes: 80's Roberts road bike, Nashiki, ECR, Guerciotti and Penny Farthing

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 31 Times in 23 Posts

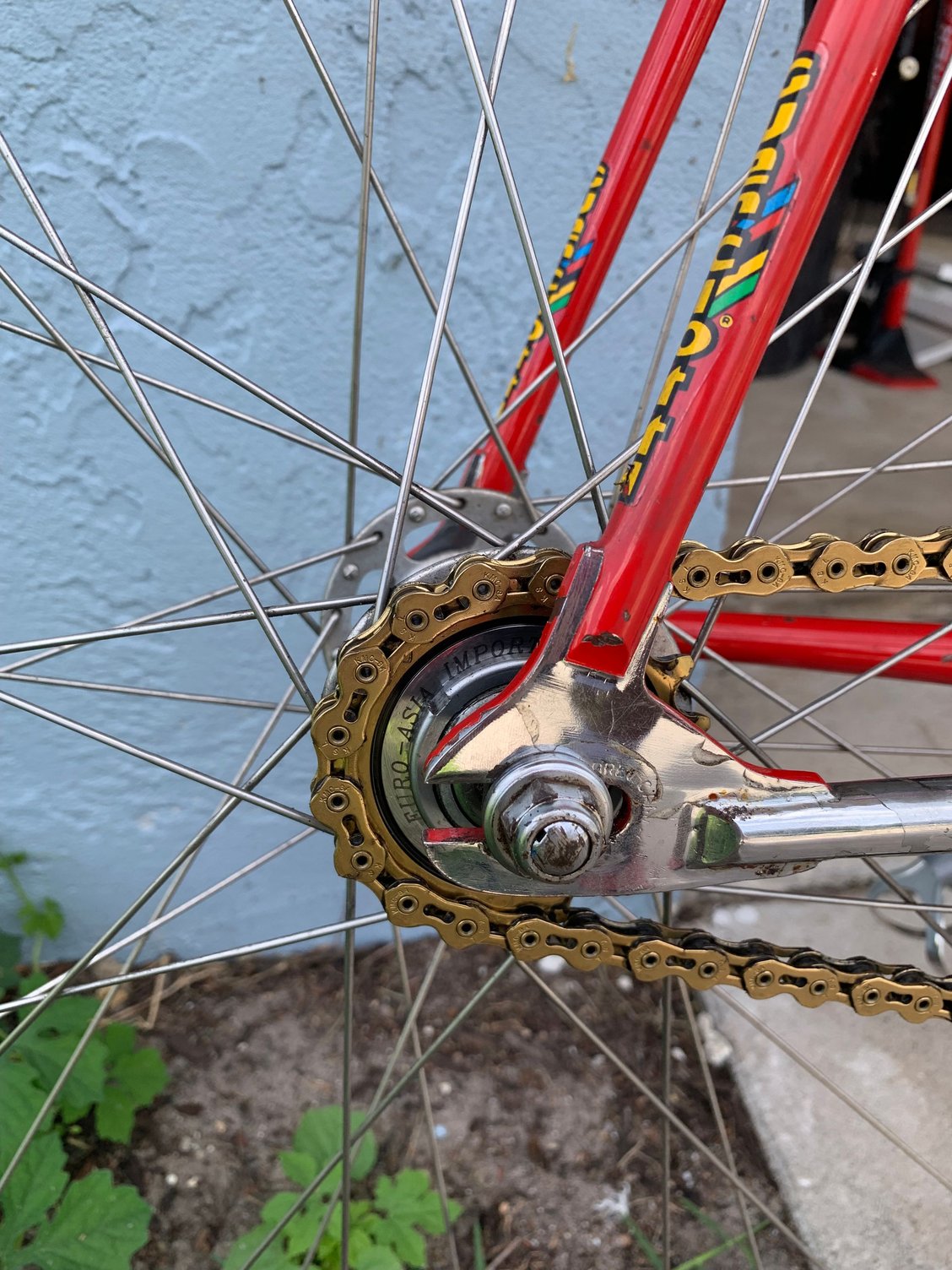

I filed the ring, new chain and had to get a new rear Euro Asia cog for the rear. It has never been this nice. All 1/8" front and rear. Should have taken a picture before I rode it 50 miles or so, but it is smooth and looks good when it is clean. lol



h_curtis is offline
Likes For h_curtis:
Old 06-26-21, 04:08 PM
  #10
h_curtis
Senior Member
Thread Starter

h_curtis's Avatar

Join Date: Nov 2006
Location: Pittsburgh, PA
Posts: 540

Bikes: 80's Roberts road bike, Nashiki, ECR, Guerciotti and Penny Farthing

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 31 Times in 23 Posts
Originally Posted by oldbobcat View Post
Sugino rings are compatible with Campagnolo.
I cannot have substandard parts on one of the nicest fixies in the US, if not the nicest, but thanks.
h_curtis is offline
