Low flange hub with 36 holes, holes too close to eachother?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Low flange hub with 36 holes, holes too close to eachother?

Old 05-29-21, 09:22 AM
  #1
mrmb
Senior Member
Thread Starter

Join Date: May 2015
Posts: 213
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Likes: 0
Liked 9 Times in 8 Posts
Low flange hub with 36 holes, holes too close to eachother?

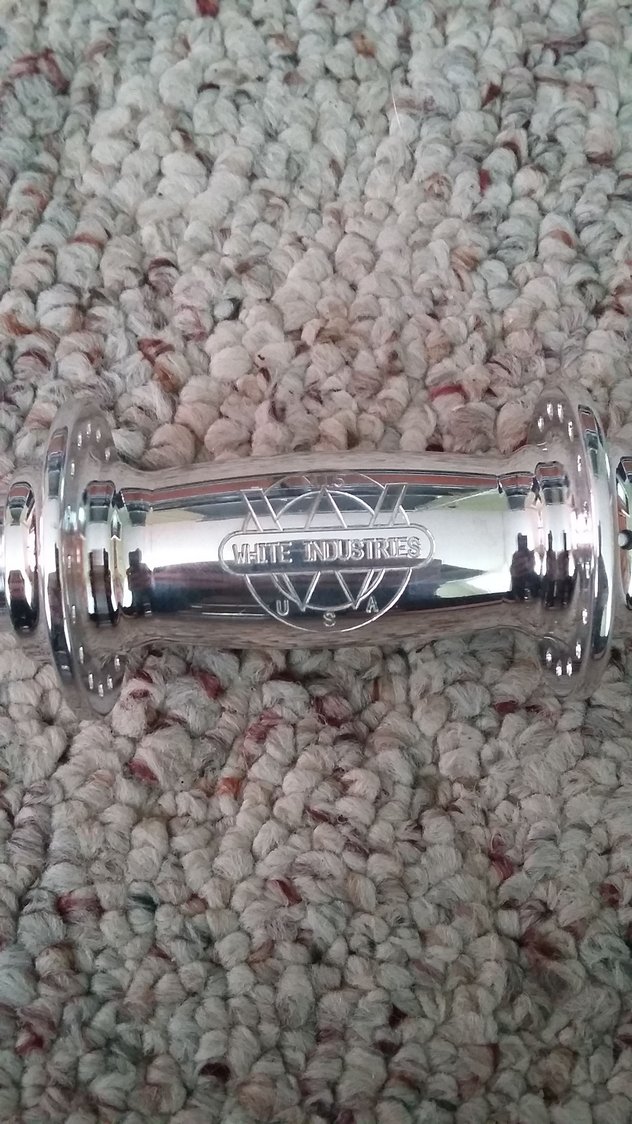

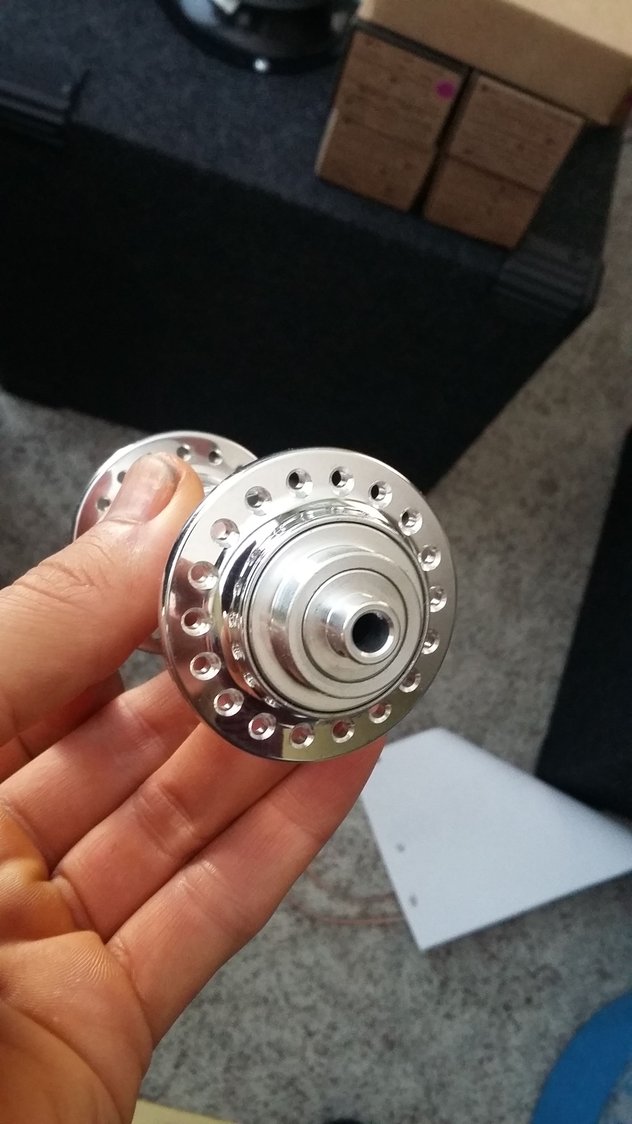

Low flange hub, 36 holes.

I got to wondering about the hole-to-hole distance and potential weak points there.

Is this anything to worry about or not?

mrmb is offline
Old 05-29-21, 09:23 AM
  #2
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,625

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 226 Post(s)
Liked 193 Times in 145 Posts
Quite normal. Tangential pull isn't as stressful as radial. Lace them 3-cross.
oldbobcat is offline
Old 05-29-21, 10:08 AM
  #3
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 10,793

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 3581 Post(s)
Liked 2,392 Times in 1,565 Posts
Originally Posted by oldbobcat View Post
Quite normal. Tangential pull isn't as stressful as radial. Lace them 3-cross.
Or 4X. I got 17,000 miles out a pair until I wore out the sidewalls completely braking. (Sewups; not dangerous, just a very bumpy ride home!)
79pmooney is offline
Likes For 79pmooney:
Old 05-29-21, 10:38 AM
  #4
FBOATSB
Senior Member

FBOATSB's Avatar

Join Date: Jul 2014
Location: Central Indiana
Posts: 2,096

Bikes: Old Stuff

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 841 Post(s)
Liked 380 Times in 263 Posts
Originally Posted by mrmb View Post
Low flange hub, 36 holes.

I got to wondering about the hole-to-hole distance and potential weak points there.

Is this anything to worry about or not?
That looks to be an exceptionally well made hub to me even though I have no clue what it is. I would lace with confidence.
FBOATSB is offline
Likes For FBOATSB:
Old 05-29-21, 01:12 PM
  #5
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 9,623

Bikes: Klein, Merckx, Trek

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 3577 Post(s)
Liked 1,949 Times in 1,059 Posts
Originally Posted by FBOATSB View Post
That looks to be an exceptionally well made hub to me even though I have no clue what it is. I would lace with confidence.
Yeah, I've seen lots of flange failures, and the only time I think the drill spacing was a problem was with a 48-spoke hub.
DiabloScott is online now
Old 05-29-21, 02:26 PM
  #6
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,147
Mentioned: 214 Post(s)
Tagged: 0 Thread(s)
Quoted: 16404 Post(s)
Liked 3,573 Times in 2,653 Posts
Originally Posted by oldbobcat View Post
Quite normal. Tangential pull isn't as stressful as radial. Lace them 3-cross.
I probably would lace them 3x front and rear. However, a few things have changed between vintage hubs and modern hubs.

Vintage Miche (randomly pulled off of the internet).

Hub above:


The new hubs have 1.5x to 2x the flange depth beyond the holes to give a stronger flange.
The deeply countersunk spoke holes also likely indicate a thicker flange, and somewhat of a taper of the flange from the axle side to the outer edge. Again, giving more material around the spoke holes.

Ultimately, with a lot of holes, it still is overall a stronger construction than the vintage hubs.

Of course, some of the strength will also depend on the aluminum alloy, and how the hub was formed. I.E. The big brands likely put more research into strength and fatigue.
CliffordK is offline
Old 05-29-21, 03:13 PM
  #7
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,621
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Liked 159 Times in 128 Posts
Modern decent hubs are cold forged and quite strong.
davidad is offline
Old 05-29-21, 04:16 PM
  #8
mrmb
Senior Member
Thread Starter

Join Date: May 2015
Posts: 213
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Likes: 0
Liked 9 Times in 8 Posts
Originally Posted by FBOATSB View Post
That looks to be an exceptionally well made hub to me even though I have no clue what it is. I would lace with confidence.
Out of curiosity, what is it that you see that gives you an indication as to build quality?
mrmb is offline
Old 05-29-21, 04:57 PM
  #9
FBOATSB
Senior Member

FBOATSB's Avatar

Join Date: Jul 2014
Location: Central Indiana
Posts: 2,096

Bikes: Old Stuff

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 841 Post(s)
Liked 380 Times in 263 Posts
Originally Posted by mrmb View Post
Out of curiosity, what is it that you see that gives you an indication as to build quality?
Same as what has been posted above, the extra distance from the holes to the edge of the hub, the extra thickness and the countersinking of the flanges, much thicker than the Campy small flange hubs I'm holding in my hands. Plus the polish, dust seals and general fit and finish. Now school me: is that a cartridge bearing and or possibly one of those new fangled thru axle hubs? I'm only used to dealing with really ancient cup and cone hubs. What brand? Because I really have no clue. If it's some crappy BSO hub I'll be embarrassed.
FBOATSB is offline
Old 05-29-21, 05:16 PM
  #10
mrmb
Senior Member
Thread Starter

Join Date: May 2015
Posts: 213
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Likes: 0
Liked 9 Times in 8 Posts
Originally Posted by FBOATSB View Post
Same as what has been posted above, the extra distance from the holes to the edge of the hub, the extra thickness and the countersinking of the flanges, much thicker than the Campy small flange hubs I'm holding in my hands. Plus the polish, dust seals and general fit and finish. Now school me: is that a cartridge bearing and or possibly one of those new fangled thru axle hubs? I'm only used to dealing with really ancient cup and cone hubs. What brand? Because I really have no clue. If it's some crappy BSO hub I'll be embarrassed.
Cartridge bearing. Not sure about the "fangled thru axle" thing.

White Industries M15 hub. If it's as good as everyone says it is then i guess I did good!

mrmb is offline
Likes For mrmb:
Old 05-29-21, 05:22 PM
  #11
FBOATSB
Senior Member

FBOATSB's Avatar

Join Date: Jul 2014
Location: Central Indiana
Posts: 2,096

Bikes: Old Stuff

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 841 Post(s)
Liked 380 Times in 263 Posts
Well there ya go. You did good!
