Shwinn Trailway Crown Race Question

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Shwinn Trailway Crown Race Question

Old 06-09-21, 07:27 PM
  #1
WaffleHouse
Member
Thread Starter

WaffleHouse's Avatar

Join Date: Jul 2013
Location: Chicago, IL
Posts: 28

Bikes: Fuji Traverse

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 6 Times in 1 Post
Shwinn Trailway Crown Race Question

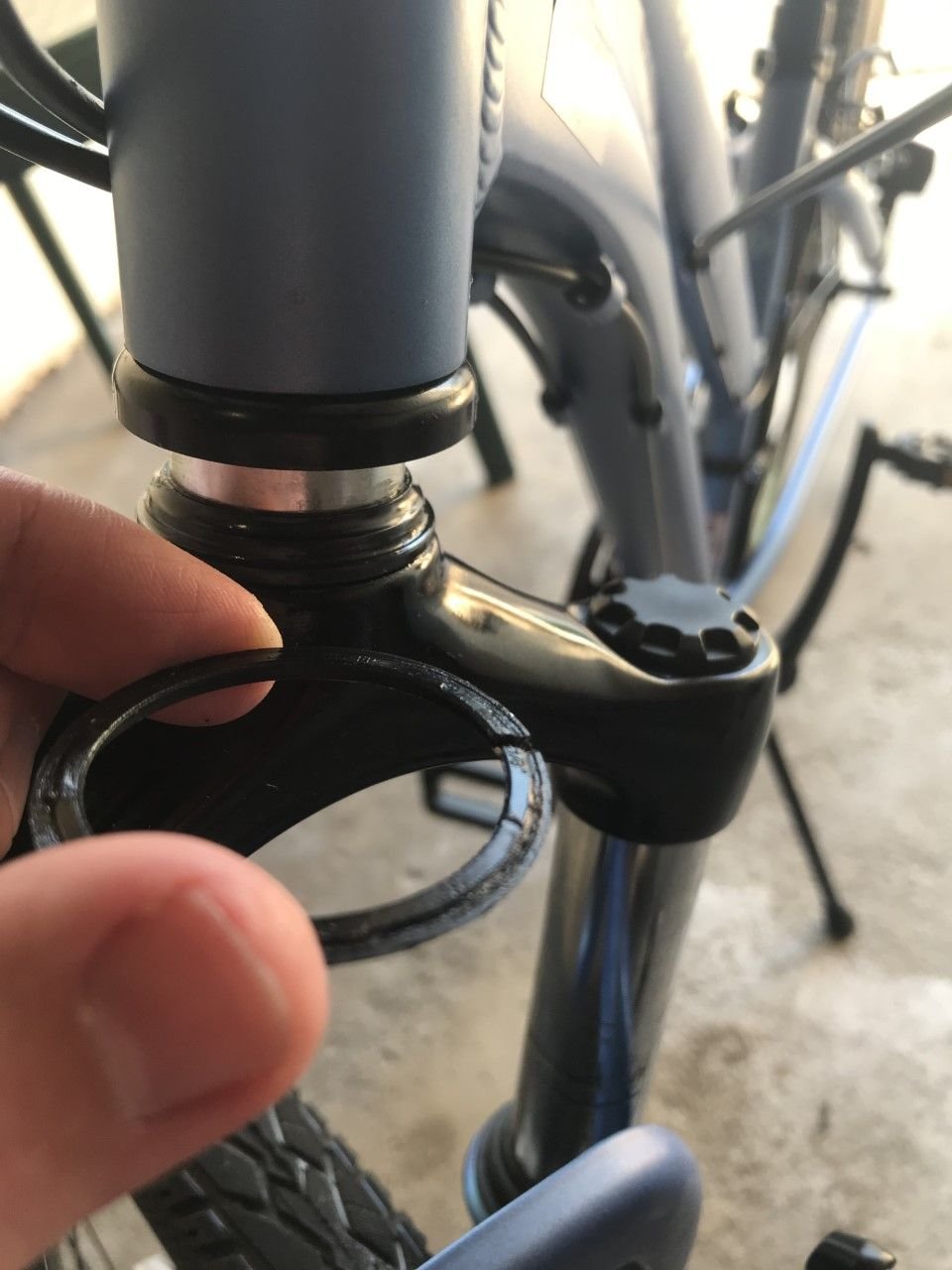

My neighbor just bought a Women's Schwinn Trailway this April, and she recently took a small spill. She asked me to take a look at the bike and see if anything was wrong with it. Looking it over, the bottom headset caged bearing was falling out and the bearing cage was bent (removed in the photo below). Seems easy enough to get a new caged bearing for the headset. My question is: sitting on top of the crown race was this small washer that had split (not intentionally - the edges were jagged).

A) What is this piece? B) How critical is this piece? and C) If I need this piece, where can I get a replacement? Thank you!

WaffleHouse is offline
Old 06-09-21, 07:48 PM
  #2
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,084

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 402 Times in 301 Posts
it's the upper headset seal. you should be able to get it at most any bike shop or online store
thook is offline
Old 06-09-21, 08:47 PM
  #3
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,048

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2973 Post(s)
Liked 1,259 Times in 882 Posts
Agreed that the "small washer" is a bearing seal. Disagree that it will be readily available. But it's not really needed for a headset to do what they do. We also see a lot of these parts in poor condition but as long as the bearing unit is in good shape the seal's condition does little but worsen long term life. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 06-09-21, 08:55 PM
  #4
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,084

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 402 Times in 301 Posts
Originally Posted by Andrew R Stewart View Post
Agreed that the "small washer" is a bearing seal. Disagree that it will be readily available. But it's not really needed for a headset to do what they do. We also see a lot of these parts in poor condition but as long as the bearing unit is in good shape the seal's condition does little but worsen long term life. Andy
bike24.com has them, at least.
i've used them broken before.
thook is offline
Old 06-10-21, 04:22 AM
  #5
WaffleHouse
Member
Thread Starter

WaffleHouse's Avatar

Join Date: Jul 2013
Location: Chicago, IL
Posts: 28

Bikes: Fuji Traverse

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 6 Times in 1 Post
Thank you, Thook & Andy!
WaffleHouse is offline
