Removing Ritchey cranks from BB-6500 Octalink V1

There's a creaking/clicking coming from my bottom bracket/cranks. It's never been serviced in 15+ years so I thought I'd take it apart and see what's up.

The bike has a BB-6500 bottom bracket which I didn't realize until today is hollow all the way through to the other side. I borrowed a crank puller, but of course, there's nothing for the silver tip of the pusher to push against. What's the correct crank puller for this arrangement?

Thanks,
Paul

pennpaul is offline
Old 06-21-21, 06:41 PM
  #2
rosefarts
With a mighty wind

Join Date: May 2015
Posts: 1,827
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 713 Post(s)
Liked 430 Times in 253 Posts
So the special tool for those was exactly like the regular tool with a little disc threaded onto the end to make it work.

I still have the tool but lost the disc. Still works on square cranks.

Anyway, the kludge I heard worked was two coins in there. I bet itís two dimes but might be pennies. Better still would be a nice thick washer with little to no hole. Fiddle around with sizes and see what fits best.

Are you sure they arenít self extracting? Lots of those were? After 15+ years, that option might not work though.
rosefarts is offline
Old 06-21-21, 06:52 PM
  #3
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,750

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Liked 194 Times in 150 Posts
This is the tool: Park CWP-7
If your BB is worn out, you may have a hard time finding a replacement. Octalink V1 was superseded by "V2" fairly soon after it was introduced; needless to say, they are not interchangeable. I bought a spare a couple years ago just in case.
sweeks is offline
Old 06-21-21, 08:05 PM
  #4
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,539

Bikes: Lots. Just...lots.

Mentioned: 184 Post(s)
Tagged: 0 Thread(s)
Quoted: 1555 Post(s)
Liked 1,002 Times in 468 Posts
There are plenty of Octo V1 BB’s out there, both new and used.
No need to panic if you need a replacement.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 06-21-21, 08:34 PM
  #5
pennpaul
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Central America
Posts: 269

Bikes: Diamondback Haanjo Trail, Fuji Team Road

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 36 Times in 21 Posts
Originally Posted by rosefarts View Post
So the special tool for those was exactly like the regular tool with a little disc threaded onto the end to make it work.
....
Anyway, the kludge I heard worked was two coins in there. I bet itís two dimes but might be pennies. Better still would be a nice thick washer with little to no hole. Fiddle around with sizes and see what fits best.
Aha, ok, thanks. I'll ask my friend if he has that extra disk for this.

I guess they don't make pennies like they used to. I stopped turning the screw when it was advancing way too easily and the cranks weren't budging.
pennpaul is offline
Old 06-21-21, 08:39 PM
  #6
rosefarts
With a mighty wind

Join Date: May 2015
Posts: 1,827
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 713 Post(s)
Liked 430 Times in 253 Posts
Originally Posted by pennpaul View Post
Aha, ok, thanks. I'll ask my friend if he has that extra disk for this.

I guess they don't make pennies like they used to. I stopped turning the screw when it was advancing way too easily and the cranks weren't budging.
Well, thatís my 2 cents worth.

Fwiw, I never did this because I had the tool. I heard about it from someone along the way.
rosefarts is offline
Likes For rosefarts:
Old 06-21-21, 08:41 PM
  #7
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 3,847

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1146 Post(s)
Liked 991 Times in 645 Posts
Originally Posted by rccardr View Post
There are plenty of Octo V1 BBís out there, both new and used.
No need to panic if you need a replacement.
Is Shimano still making the 5500 and 5503 BB?

John
70sSanO is offline
Old 06-21-21, 10:07 PM
  #8
KCT1986
Senior Member

Join Date: Jan 2016
Posts: 261
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Liked 55 Times in 43 Posts
Originally Posted by 70sSanO View Post
Is Shimano still making the 5500 and 5503 BB?

John
Shimano's web site doesn't show Octo V1 BBs any longer. Only the BB-7710 in 109.5mm for track use. Not sure if there is any differences that make this unusable for a road double.

There was no BB-5503, just BB-5500 & BB-6500 in 109.5 and 118.5 for triple. Dura ace did have a BB-7703 for triple.
KCT1986 is offline
Old 06-21-21, 10:25 PM
  #9
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 3,847

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1146 Post(s)
Liked 991 Times in 645 Posts
Thanks for the info.

I wasn’t sure on the numberings. I have a 6500/03 crankset and the right is a 6503 and the left is 6500. I figured the BB would follow suit (double/triple).

Fortunately I have a couple stashed away.

I checked and I do see the 5500 in stock at some suppliers. I know that was the fallback for a number of years. Hopefully Shimano will keep providing them as they are the only game in town for Shimano 9 speed systems from that era.

John

Edit added: I wonder if the 7710 is serviceable like the 7700 doubles or a sealed cartridge like the triples. From what I’ve read the 7700 were a love/hate BB.
70sSanO is offline
Old 06-22-21, 02:41 AM
  #10
tommymc
Senior Member

Join Date: Sep 2012
Location: Central Florida
Posts: 50

Bikes: Many, mostly old & low tech

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 10 Times in 5 Posts
The slightly smaller diameter dime might work better to not catch the the arm splines. I tried last week with a standard Park tool for square BB's and one dime but deformed it like the penny. Maybe two stacked will work for you. I finally succeeded with a 1/4 drive 10mm socket and extension to push against the opposite arm with the fixing bolt in. Then did the same with opposite sides. The arms came off easily. Good luck.
tommymc is offline
Likes For tommymc:
Old 06-22-21, 08:04 AM
  #11
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 32,910

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1690 Post(s)
Likes: 0
Liked 571 Times in 421 Posts
Originally Posted by sweeks View Post
This is the tool: Park CWP-7 Octalink V1 was superseded by "V2" fairly soon after it was introduced....
No, the Octalink V1 was supplemented by the V2, not replaced. The V1 was used on most road cranks and the V2 on MTB cranks and the spline designs are a bit different.

BTW, Shimano made a small mushroom shaped steel plug (TL-FC15) that fit into the hollow Octalink spindle and gave a standard crank extractor a strong surface to push against. An older LBS might have a couple of them still around.

Last edited by HillRider; 06-22-21 at 08:14 AM.
HillRider is offline
Likes For HillRider:
Old 06-22-21, 01:23 PM
  #12
KCT1986
Senior Member

Join Date: Jan 2016
Posts: 261
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Liked 55 Times in 43 Posts
Originally Posted by 70sSanO View Post
Thanks for the info.

I wasnít sure on the numberings. I have a 6500/03 crankset and the right is a 6503 and the left is 6500. I figured the BB would follow suit (double/triple).

Fortunately I have a couple stashed away.

I checked and I do see the 5500 in stock at some suppliers. I know that was the fallback for a number of years. Hopefully Shimano will keep providing them as they are the only game in town for Shimano 9 speed systems from that era.

John

Edit added: I wonder if the 7710 is serviceable like the 7700 doubles or a sealed cartridge like the triples. From what Iíve read the 7700 were a love/hate BB.
From the Shimano documents it seem that the 7710 and 7703 are normal cartridge units, without adjustable bearings. Don't know if they have double bearings internals like the 7700.
KCT1986 is offline
Old 06-22-21, 02:43 PM
  #13
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,053
Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 14479 Post(s)
Liked 2,439 Times in 1,816 Posts
Somewhere I have an Allen head bolt that I picked up at a hardware store that was perfect size to slide into the BB spindle, but the head stopped while not interfering with the crank puller.

It pulls the cranks off very nicely.
CliffordK is online now
Likes For CliffordK:
Old 06-22-21, 04:13 PM
  #14
pennpaul
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Central America
Posts: 269

Bikes: Diamondback Haanjo Trail, Fuji Team Road

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 36 Times in 21 Posts
Originally Posted by tommymc View Post
I finally succeeded with a 1/4 drive 10mm socket and extension to push against the opposite arm with the fixing bolt in. Then did the same with opposite sides. The arms came off easily. Good luck.
Originally Posted by CliffordK View Post
Somewhere I have an Allen head bolt that I picked up at a hardware store that was perfect size to slide into the BB spindle, but the head stopped while not interfering with the crank puller.

It pulls the cranks off very nicely.
Good ideas.

Yes, I've got to look in my spare parts bin. Unfortunately my socket extender was too big to fit.
pennpaul is offline
Old 06-23-21, 06:52 PM
  #15
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,750

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Liked 194 Times in 150 Posts
Originally Posted by HillRider View Post
No, the Octalink V1 was supplemented by the V2, not replaced.
Thanks for that information; apparently I was misinformed. When I heard (the suggestion) that V1 was going away, I went looking for a spare BB. It was pretty hard to find an Ultegra V1, and I think I got one of the last few I could find. Anyway, I'm probably set for life now!
sweeks is offline
Old 06-23-21, 07:24 PM
  #16
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,053
Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 14479 Post(s)
Liked 2,439 Times in 1,816 Posts
Originally Posted by HillRider View Post
No, the Octalink V1 was supplemented by the V2, not replaced. The V1 was used on most road cranks and the V2 on MTB cranks and the spline designs are a bit different.
Originally Posted by sweeks View Post
Thanks for that information; apparently I was misinformed. When I heard (the suggestion) that V1 was going away, I went looking for a spare BB. It was pretty hard to find an Ultegra V1, and I think I got one of the last few I could find. Anyway, I'm probabI ly set for life now!
I disagree. So much is going to 24mm external bearing.

Apparently they are still making Dura Ace Octalink V1 track components... Maybe.

Ultegra Octalink is all but gone. I think the same is true for 105.

Claris FC-2450 is a Road-ish Crankset, and got Octalink V2.
CliffordK is online now
Old 06-23-21, 08:12 PM
  #17
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,750

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Liked 194 Times in 150 Posts
Originally Posted by CliffordK View Post
I disagree. So much is going to 24mm external bearing.
It's quite possible I have all the bikes I'll ever need. I'm 70 years old and have very comfortable road, mountain/trail and folding commuter bikes, and all the necessary critical replacement parts.
I have nothing against progress, though. It's just not something I need for my personal fleet.
sweeks is offline
Old 06-23-21, 08:21 PM
  #18
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,750

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Liked 194 Times in 150 Posts
Originally Posted by CliffordK View Post
I disagree. So much is going to 24mm external bearing.
It's quite possible I have all the bikes I'll ever need. I'm 70 years old and have very comfortable road, mountain/trail and folding commuter bikes, and all the necessary critical replacement parts.
I have nothing against progress, though. It's just not something I need for my personal fleet.
sweeks is offline
Old 06-26-21, 08:34 AM
  #19
pennpaul
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Central America
Posts: 269

Bikes: Diamondback Haanjo Trail, Fuji Team Road

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 36 Times in 21 Posts

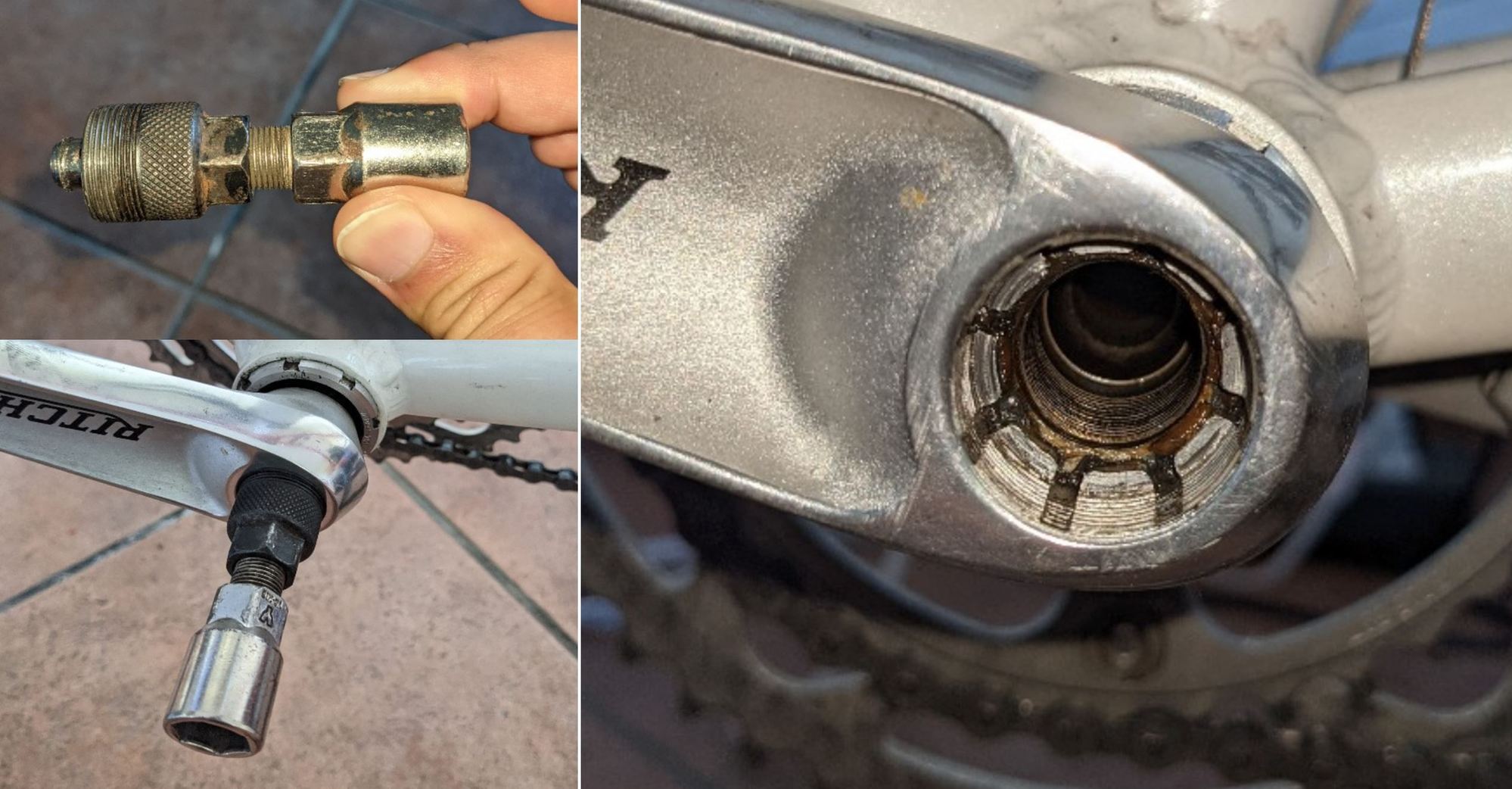

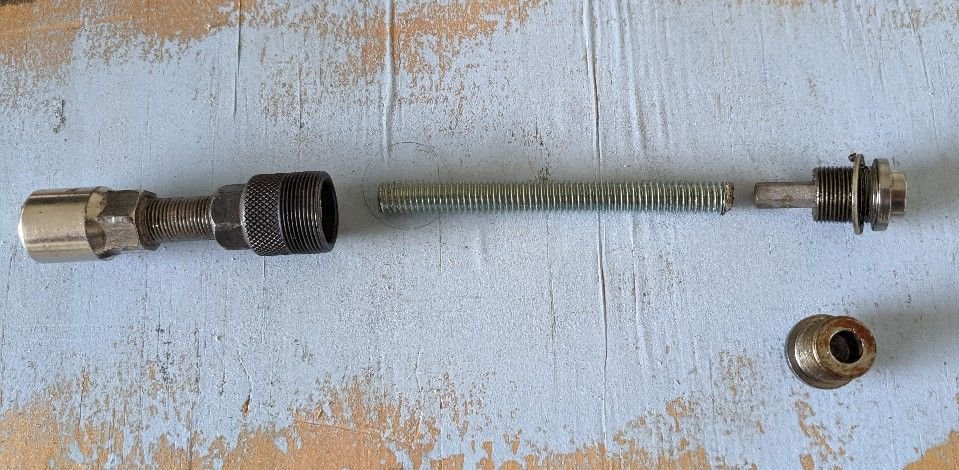

Got the cranks off. I cut down some all-thread I had around and had that pressing against a socket adapter that fit into the recess on the back of the opposite crank bolt. Both cranks popped off relatively easily.

The non drive side part of the BB also came off relatively easily but now I can't get the drive side off (turning clockwise towards the front of the bike). There's not much engagement with the splines. This might require a visit to the shop.

I feel no play in the BB but it doesn't seem to spin as freely as I'd imagine. I have a different BB that's supposed to fit but then that means getting a different crank to match. Decisions, decisions.
pennpaul is offline
Old 06-26-21, 09:29 AM
  #20
pennpaul
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Central America
Posts: 269

Bikes: Diamondback Haanjo Trail, Fuji Team Road

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 36 Times in 21 Posts
Give me a lever long enough and I'll move the world - Archimedes

pennpaul is offline
Old 06-26-21, 02:38 PM
  #21
wesmamyke
Senior Member

Join Date: Nov 2009
Posts: 1,034
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 196 Post(s)
Liked 48 Times in 41 Posts
I've saved one 6500 octalink BB by carefully cleaning around the plastic top hat shaped seal. It can get grit behind it and make the whole thing feel worn out.
wesmamyke is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
