Campy downtube shifter cable stuck in lever

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Campy downtube shifter cable stuck in lever

Old 07-08-21, 01:28 PM
  #1
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 728

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 135 Times in 109 Posts
Campy downtube shifter cable stuck in lever

I know this has been discussed before , but wondering if anyone has come up with a solution ?

There are a few ideas I have read, but not any " follow up" with solutions.

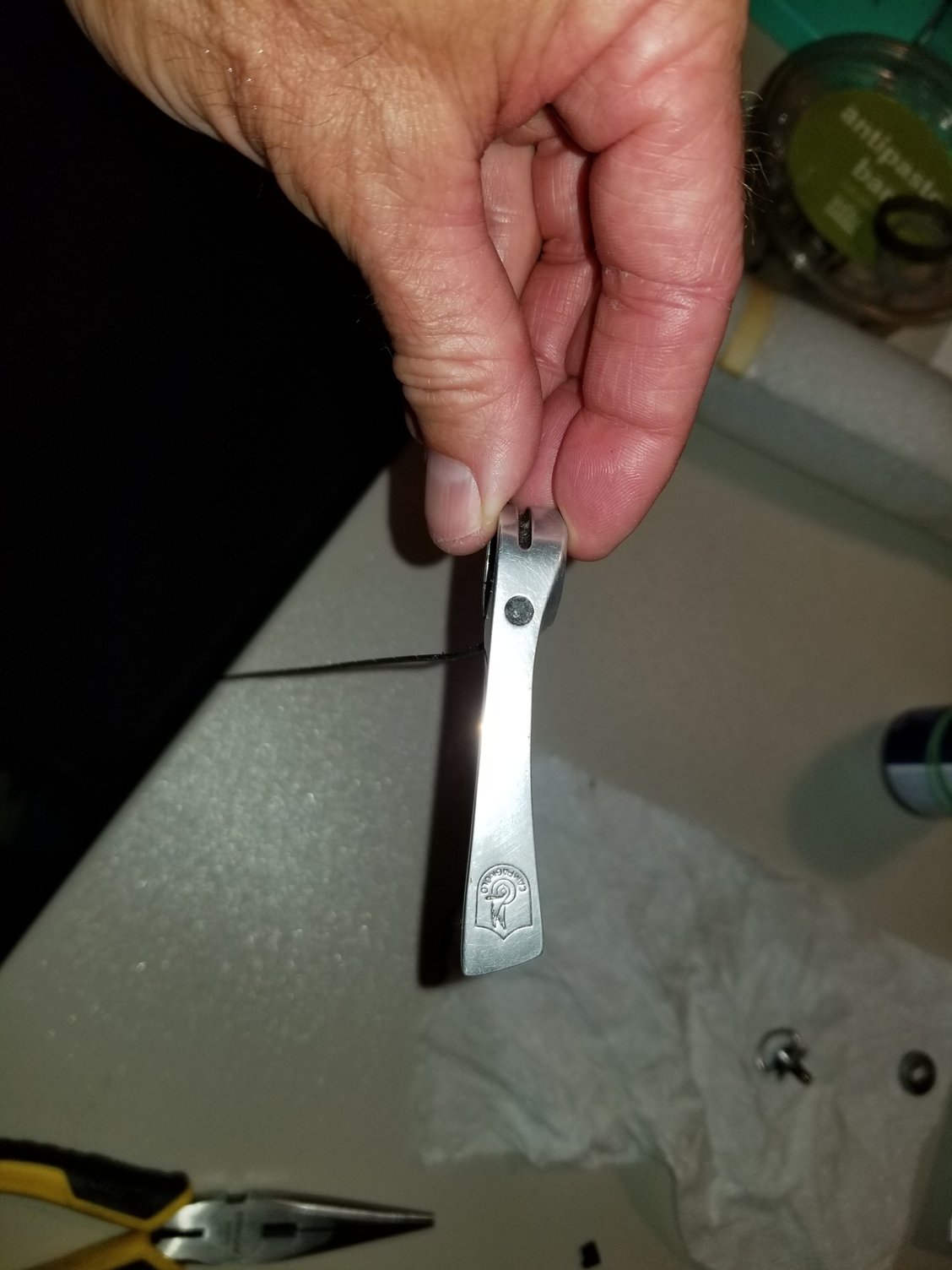

Here are a few pics.

Shifter is off the bike with cable attached.

AND....does anyone know what size head end is ?

Appreciate any and all help.


Last edited by bikemike73; 07-08-21 at 01:39 PM.
bikemike73 is offline
Old 07-08-21, 01:53 PM
  #2
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,141
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 675 Post(s)
Liked 678 Times in 512 Posts
Try clamping the cable with vise grips, a vise, etc. and twist the lever in the direction that tightens the cable spiral. This might loosen the head so it can come out easier. Adding a little penetrating fluid for at least a day can't hurt either. Also a soldering iron can be used to melt the head or get it soft enough to move.

Last edited by Crankycrank; 07-08-21 at 02:01 PM.
Crankycrank is offline
Likes For Crankycrank:
Old 07-08-21, 02:02 PM
  #3
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 728

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 135 Times in 109 Posts
That sounds great Cc !!!!!

I am wondering if a glue gun tip ( without the glue of course) would be hot enough to soften the head .........??

Really appreciate your help !
bikemike73 is offline
Old 07-08-21, 02:04 PM
  #4
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,141
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 675 Post(s)
Liked 678 Times in 512 Posts
Glue gun will probably be nowhere near hot enough. Can't hurt to try though.
Crankycrank is offline
Old 07-08-21, 02:52 PM
  #5
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 840

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 262 Post(s)
Liked 189 Times in 136 Posts
Originally Posted by Crankycrank View Post
Glue gun will probably be nowhere near hot enough. Can't hurt to try though.
Agree a glue gun will not generate enough heat. I might try dimpling the center of the head with an awl and then carefully (slowly) try drilling it out with a bit just smaller then the head to break it up. We have been successful doing this same type of operation in the past.
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is online now
Likes For JoeTBM:
Old 07-08-21, 02:53 PM
  #6
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,942

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1107 Post(s)
Liked 299 Times in 224 Posts
First approach would be to carefully put the lever in a vise, then use a thin needle nosed plier to grab the cable opposite the Bowden stop (this type of cable is called a Bowden cable, in case you're interested) and then push. If the needle nose is thin enough you'll grab the cable really close to the lever. And the first push would be like 0.2 mm. If this didn't work I'd clip the cable as close as possible to the lever, and use a pin vice with 1mm wire to push. The cable should be 1.2mm I think.
WizardOfBoz is offline
Old 07-08-21, 02:58 PM
  #7
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 728

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 135 Times in 109 Posts
I believe you are correct Cc !!

Glue gun probably will not be hot enough.


I have tried to twist it.

I may cut a notch in the head and use screwdriver to loosen.

What do you think of cold??

Like putting in a freezer overnight?

Or letting it soak in fluid??

Thank you again for your time and help.

I did not put this cable in BTW.

I have campy cables ready to go.

Other side cable head comes out
bikemike73 is offline
Old 07-08-21, 03:11 PM
  #8
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,704

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1910 Post(s)
Liked 2,825 Times in 1,445 Posts
Penetrating oil and/or the freezer. That's a 'Shimano' cable end, you should see how the Campy are slightly smaller and a different shape.
cxwrench is offline
Old 07-08-21, 03:37 PM
  #9
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,141
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 675 Post(s)
Liked 678 Times in 512 Posts
Originally Posted by JoeTBM View Post
Agree a glue gun will not generate enough heat. I might try dimpling the center of the head with an awl and then carefully (slowly) try drilling it out with a bit just smaller then the head to break it up. We have been successful doing this same type of operation in the past.
+1, another good method worth trying.
Crankycrank is offline
Old 07-08-21, 03:43 PM
  #10
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,403

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1795 Post(s)
Liked 1,924 Times in 1,183 Posts
Since this isn’t C&V, once it is out does it make sense to enlarge the hole enough to fit a Shimano compatible cable?

On downtube shifters it seems like a pretty easy task.

John
70sSanO is offline
Old 07-08-21, 03:48 PM
  #11
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 728

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 135 Times in 109 Posts
Thanks again everyone for all the great replies!!!

I have many drill bits....pretty new ....and will use this method.

I was thinking about drilling as well.

Very happy that it has worked in the past for someone here on this invaluable site with the best people!!!!

I'll update as soon as I am successful...

Thank you all again!!🚲🚲🚲🚲🚲🚲🙂🙂🙂🙂🙂

Very much appreciated
bikemike73 is offline
Old 07-08-21, 08:22 PM
  #12
Litespud
Senior Member

Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 1,683

Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor S/S

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 644 Post(s)
Liked 791 Times in 444 Posts
Originally Posted by bikemike73 View Post
I know this has been discussed before , but wondering if anyone has come up with a solution ?

There are a few ideas I have read, but not any " follow up" with solutions.

Here are a few pics.

Shifter is off the bike with cable attached.

AND....does anyone know what size head end is ?

Appreciate any and all help.
Pliers on the cable, try to twist it to break the head free. If you manage to twist the cable out of the head, use a small nail and a hammer to tap the head out. Heating the head with a glue gun will likely only expand the head and jam it more tightly in place
Litespud is offline
Old 07-08-21, 09:06 PM
  #13
zandoval
Senior Member

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 3,470

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 568 Post(s)
Liked 897 Times in 579 Posts
I got one of these out using and old metal ball point pen refill. It was dry and it just barely fit over the cable. After cutting off a section I threaded the cable through it and tapped the head out. It worked!!!

I am not sure but I think the pen cartridge was from and old Cross pen.
__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Old 07-09-21, 02:58 AM
  #14
Lazyass
Senior Member

Join Date: Jul 2008
Location: Minas Ithil
Posts: 9,335
Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 2430 Post(s)
Liked 628 Times in 388 Posts
I had that problem once and I heated the shift lever with my heat gun then used some needle nose pliers to grab the cable and "push" it out. Came out pretty easily.

I bought a cheap heat gun about 20 years ago and it's one of the smartest things a home mechanic can get. Used it just a couple of days ago to break the drive cups loose on a cartridge bottom bracket before I stripped them with my tool and then I removed some ugly rim decals on another bike yesterday.
Lazyass is offline
Old 07-09-21, 03:53 AM
  #15
elcraft
elcraft

Join Date: Sep 2008
Location: Greater Boston
Posts: 800
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Liked 89 Times in 64 Posts
I drilled a tiny hole in the lead stop and twisted in a mini wood screw. I was ble to wiggle and pull with a plier until the lead end came out.
elcraft is offline
Likes For elcraft:
Old 07-09-21, 04:59 AM
  #16
100bikes
Industry guy

Join Date: Nov 2007
Location: Minnesota
Posts: 322

Bikes: To many to name - I ride a custom built steel frame.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 104 Post(s)
Liked 57 Times in 39 Posts
The perils of using generic shift wires with Campagnolo.
Campagnolo makes their spec's slightly different on such things.
rusty
100bikes is offline
Old 07-09-21, 06:06 AM
  #17
elcraft
elcraft

Join Date: Sep 2008
Location: Greater Boston
Posts: 800
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Liked 89 Times in 64 Posts
Originally Posted by 100bikes View Post
The perils of using generic shift wires with Campagnolo.
Campagnolo makes their spec's slightly different on such things.
rusty
“The Curse of Proprietary parts”! I am finding this manufacturing tendency becoming more and more common. From Hot Tub filters to watch parts, many manufacturers seem to want a long term “subscription” relationship with their customers. Don’t even get me started about the Trek Madone Seatmast.....
elcraft is offline
Likes For elcraft:
Old 07-09-21, 06:07 AM
  #18
elcraft
elcraft

Join Date: Sep 2008
Location: Greater Boston
Posts: 800
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Liked 89 Times in 64 Posts
Originally Posted by 100bikes View Post
The perils of using generic shift wires with Campagnolo.
Campagnolo makes their spec's slightly different on such things.
rusty
“The Curse of Proprietary parts”! I am finding this manufacturing tendency becoming more and more common. From Hot Tub filters to watch parts, many manufacturers seem to want a long term “subscription” relationship with their customers. Don’t even get me started about the Trek Madone Seatmast.....
elcraft is offline
Old 07-10-21, 05:37 AM
  #19
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 6,375

Bikes: Old school lightweights

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2673 Post(s)
Liked 3,776 Times in 2,006 Posts
Originally Posted by 70sSanO View Post
Since this isn’t C&V, once it is out, does it make sense to enlarge the hole enough to fit a Shimano compatible cable?
No. What makes sense is taking a little file to the head of the cable before you insert it. Takes about 30 seconds.
SurferRosa is offline
Likes For SurferRosa:
Old 07-10-21, 06:43 AM
  #20
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 728

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 135 Times in 109 Posts
Have not drilled it out yet. Going to the bike shop, who is a friend of mine to drill it out.

Waiting to get some " soft jaws" to put in the vise.

Have NEW cables which are campy 1.1 mm

Will update when cable is out.

Thank you again for all the great responses
bikemike73 is offline
