Derailleur jockeys touch cassette on 3 largest rings

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Derailleur jockeys touch cassette on 3 largest rings

Old 07-21-21, 06:55 AM
  #1
amokeu
Senior Member
Thread Starter

Join Date: Mar 2021
Posts: 56
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 4 Times in 3 Posts
Derailleur jockeys touch cassette on 3 largest rings

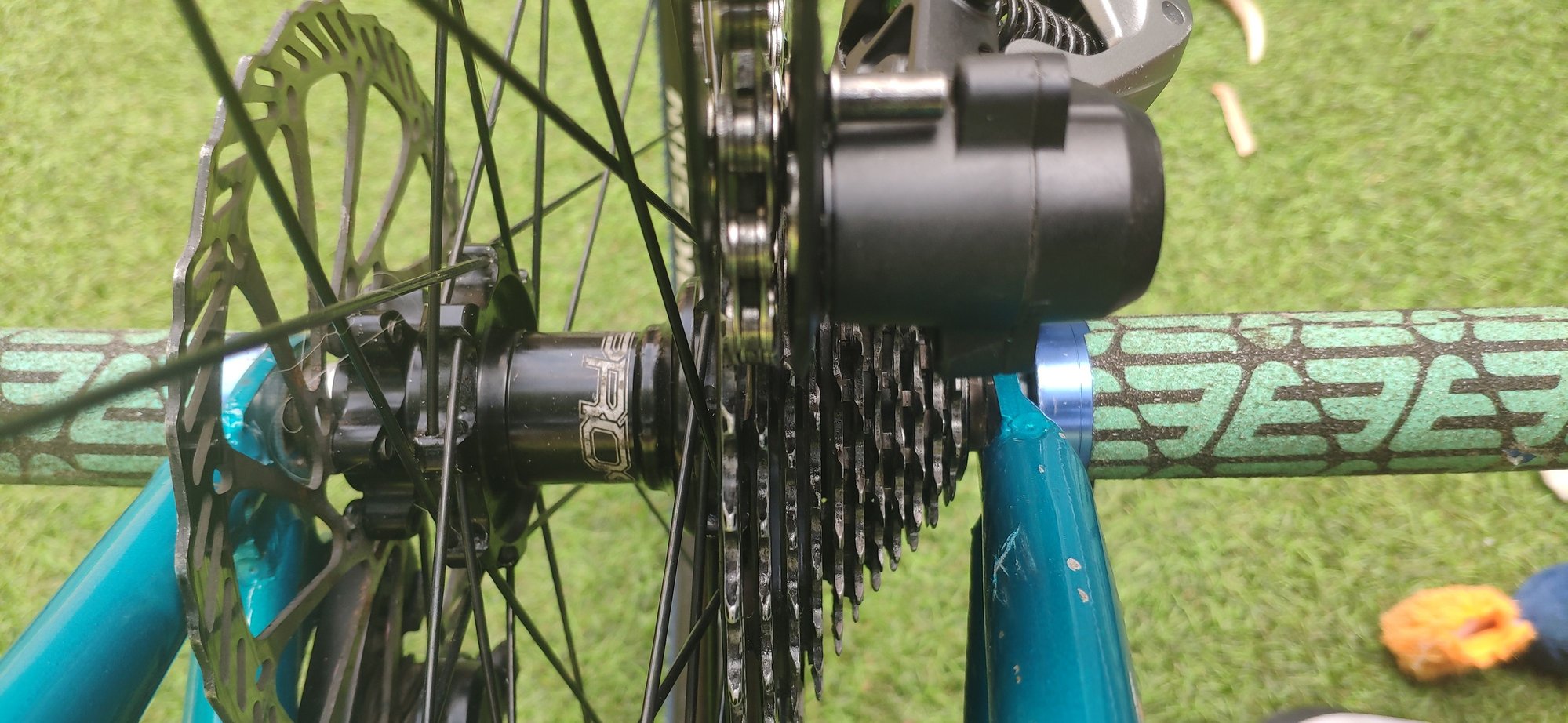

Hi, I've had my derailleur, shifter etc setup. And upon trying it, on the 3 lowest gears, the derailleur jockey touches the sprocket, how do I fix this?





Slx m7000 11spd derailleur
Isnt too many teeth, as 1x11 max is 46, mine is 44.
amokeu is offline
Old 07-21-21, 07:13 AM
  #2
dsaul
Senior Member

Join Date: Jan 2013
Location: South Jersey
Posts: 2,129
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 659 Post(s)
Liked 632 Times in 394 Posts
Tighten the "b" screw to move the jockey wheels further from the cassette.

dsaul is offline
Likes For dsaul:
Old 07-21-21, 08:25 AM
  #3
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,482

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4665 Post(s)
Liked 3,162 Times in 2,203 Posts
Turn the bicycle right side up!

Don't assess and adjust your DR's while the bike is not in the orientation and position you normally ride in. Gravity might be making you think there is a problem when there is none.
Iride01 is offline
Old 07-21-21, 09:04 AM
  #4
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,540

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1791 Post(s)
Liked 2,630 Times in 1,361 Posts
Originally Posted by Iride01 View Post
Turn the bicycle right side up!

Don't assess and adjust your DR's while the bike is not in the orientation and position you normally ride in. Gravity might be making you think there is a problem when there is none.
^This^ Don't take photos w/ the bike upside down. This should be a very simple 'b' screw adjustment as posted previously.
cxwrench is offline
Old 07-22-21, 07:49 PM
  #5
cobba
Senior Member

Join Date: Aug 2006
Posts: 1,867
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
Likes: 0
Liked 52 Times in 41 Posts
Originally Posted by amokeu View Post
Hi, I've had my derailleur, shifter etc setup. And upon trying it, on the 3 lowest gears, the derailleur jockey touches the sprocket, how do I fix this?
Is the bracket axle unit / b-link attached to the derailleur hanger properly?

Yours looks like it's attached in a vertical position, it's supposed to be attached in more horizontal position.



Last edited by cobba; 07-23-21 at 02:50 AM.
cobba is offline
Likes For cobba:
