Campagnolo rear wheel bearing service

Old 07-24-21, 07:48 PM
  #1
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 459

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 83 Times in 67 Posts
Campagnolo rear wheel bearing service

Hi

Need help with rear wheel bearing service.

I have done this a few times with shimano , but never Campy.
After you remove the axle does the cup pop off with careful maneuvering?

And what about the other side where the cassette goes?

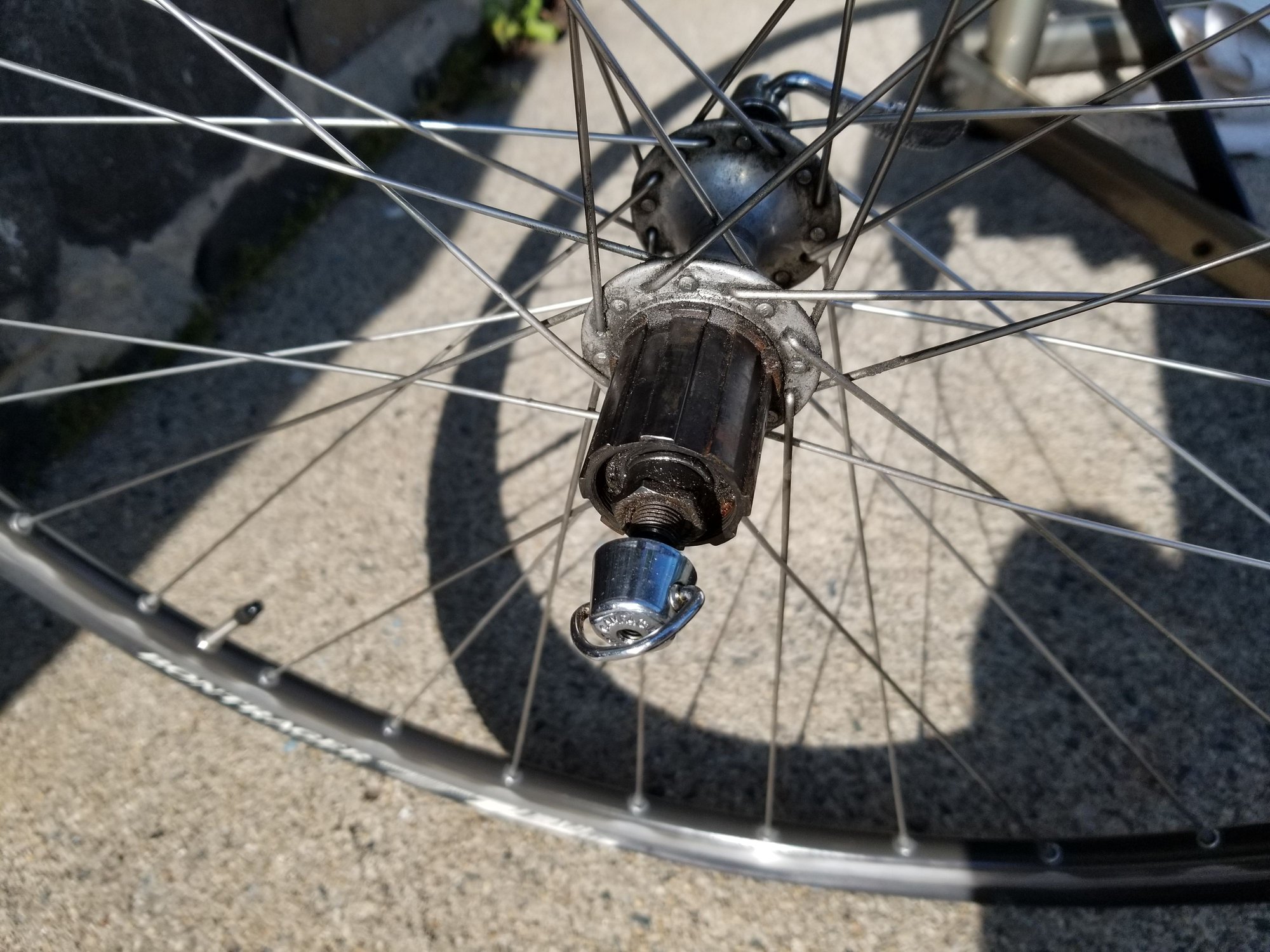

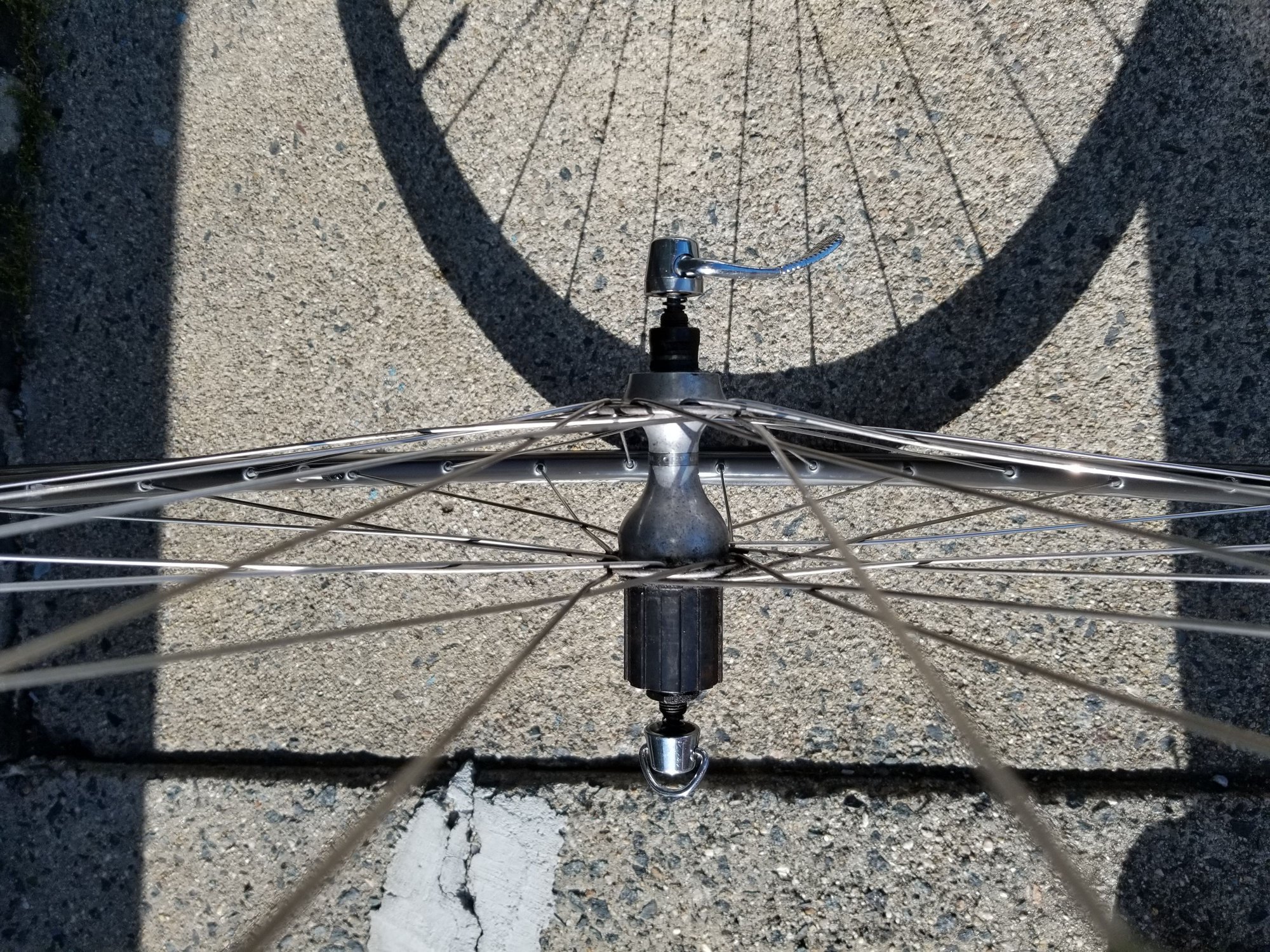

Few pics attached

Appreciate any and all help



bikemike73 is offline
Old 07-26-21, 09:57 AM
  #2
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 459

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 83 Times in 67 Posts
Appears I may have to leave it alone. It's not too bad. Bike shop owner said it's about a 6 out of 10.

It's on a bike that I will not ride all the time.

Still......be nice to have it done.....

Happy to bring to a bike shop, but the few I checked do not do Campagnolo.

Oh well......I have other 🚲🚲🚴‍♀️🚴‍♀️🚲🚲🚲 to ride 😁
bikemike73 is offline
Old 07-26-21, 11:31 PM
  #3
Dave Mayer
Senior Member

Join Date: Dec 2006
Posts: 2,041
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 784 Post(s)
Likes: 0
Liked 138 Times in 89 Posts
To perhaps state the obvious: these hubs use Campagnolo 8-speed cogs. The cog spacing is compatible with Campagnolo 8-speed shifters.

I have taken apart similar hubs many times. Unless a shop has performed this work a few times, they will be less reliable than if you were to do undertake the servicing yourself.

These hubs have grease injection holes in the centers of the hub shells, meaning that they are either Chorus or Record; the good stuff. If it was my first time working on these, and the bearing preload was good, and the bearings were reasonably smooth, I would first inject a few cc's of grease using the handy injection ports. Clean up the ejected grease on both ends of the hub.

Next, remove the rear freehub body by carefully (!) extracting the small grub screw holding the driveside locknut, unwinding, and then cleaning out the freehub cavity. Do not lose or mangle the small springs or pawls, which will fall out and lodge themselves in shag carpet at the slightest provocation. Lubricate the ratchet and pawls with a light grease. Secure the pawls and springs prior to re-installation using a couple of revolutions of dental floss.
Dave Mayer is offline
Old 07-27-21, 04:25 AM
  #4
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 651

Bikes: Raleigh Classic 15, 84; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 59 Times in 36 Posts
See this thread of mine from a few years back:
Tips on mid 90's Athena rear hub service?
John Nolan is offline
Old 07-27-21, 12:18 PM
  #5
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 459

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 83 Times in 67 Posts
Thanks for the replies

There is a hole where you put on the cassette and was wondering if grease goes in there.

I think it's the record group.

It is an 8 speed

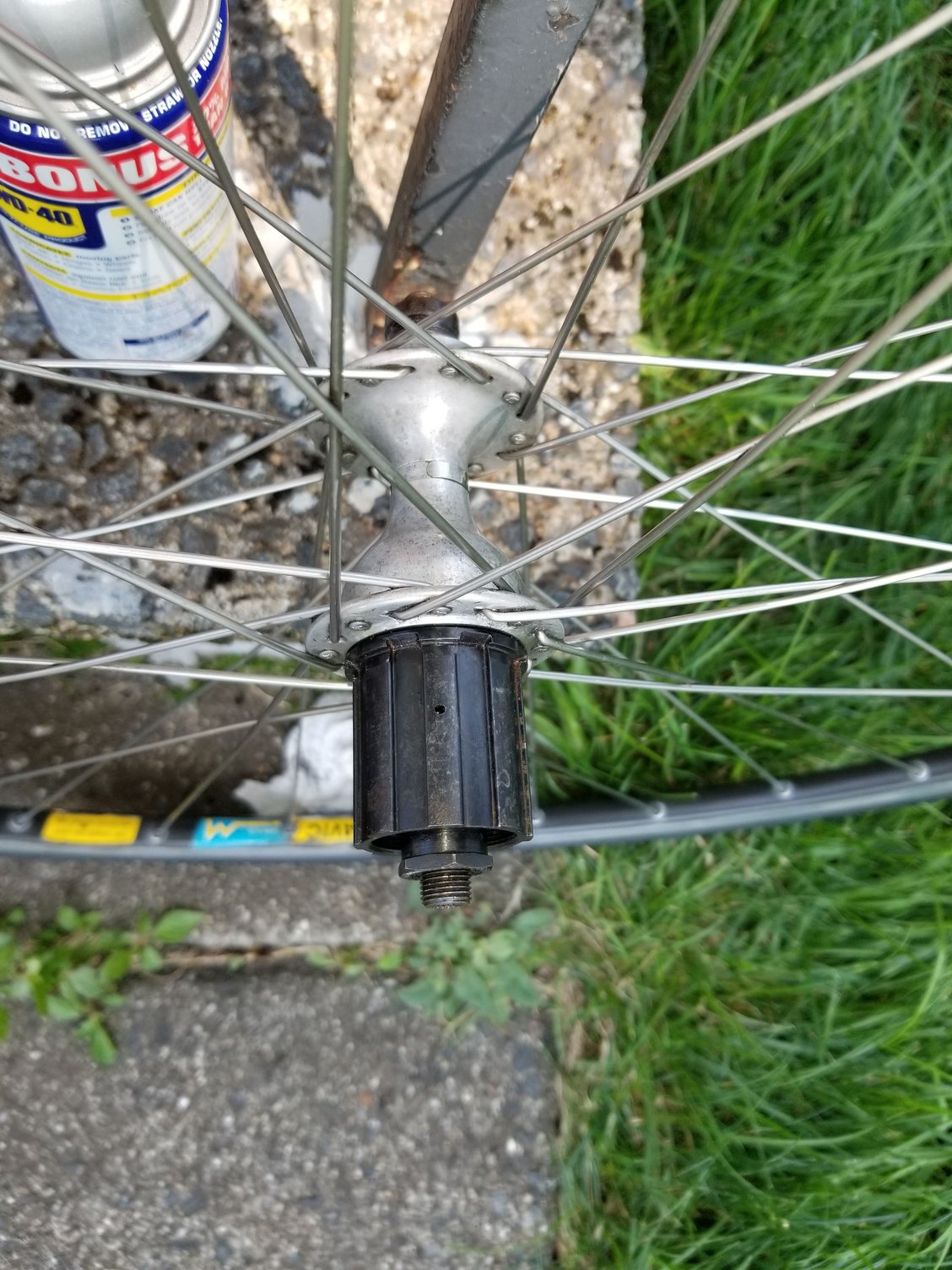

NEW pic showing small hole

How much grease should I put in this hole?

Enough so it would start to come out ?

I have a syringe I can put grease in....or should I go to the bike shop and have them do?

They would not charge me for this.


Really appreciate the help

Last edited by bikemike73; 07-28-21 at 01:09 PM.
bikemike73 is offline
Old 07-29-21, 05:52 PM
  #6
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 459

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 83 Times in 67 Posts
Does anyone know how to and how many holes to put grease in?

Really appreciate the help

Thank you
bikemike73 is offline
