Using 20 inch wheels on a larger bike

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Using 20 inch wheels on a larger bike

Old 08-04-21, 11:46 PM
  #1
shinchan150
Newbie
Thread Starter

Join Date: Aug 2021
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Using 20 inch wheels on a larger bike

Aloha all, first post here.
I bought a bike from a military family that moved here (Hawaii) from Japan. Both tires are flat and the rubber is cracked so I need to replace them. The bike has 22 x 1.5-inch (40-501) tires to fit a 22x 1-3/8 rim. I have looked but I can not find those sizes here. I emailed the company in Japan asking for help but no response yet. I'm still searching Japanese websites to find replacements but no luck so far. So my question is- can I just replace those with smaller tires, 20 inches, or is this an apples vs oranges thing? No idea how this would work so I pose the question to those more knowledgeable than I. The bike is a "mamachari" bike used for shopping/commuting by mothers with kids- Bridgestone Angelino Mini (I can't post pics or links yet). I got it for my wife who used to ride one in Japan and loved it. Any help is appreciated.
Mahalo,
Randy
shinchan150 is offline
Old 08-05-21, 12:08 AM
  #2
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 10,198

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), R+M Supercharger2 Rohloff, Habanero Ti 26

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2969 Post(s)
Liked 2,205 Times in 1,456 Posts
No. You would need new wheels entirely and possibly new brakes and such. Every tire and rim will fit a certain ISO diameter and a smaller one wouldn't fit and a larger one would be too big. Potentially the bike could be converted but honestly I wouldn't want to put a child in front of me at least not if I loved the child. I don't want them as my airbag and there are better less destructive/violent ways to deal with over-population. Plus I don't want to have to steer the child rather just have them on the back having to steer an extra 30-50+ pounds doesn't sound like a lot of fun especially that high up.

You might just see if you can find some commuter shops in Japan who specialize in that stuff and see what is possible. If you speak any Japanese or write it or have someone who can it could help.
veganbikes is offline
Old 08-05-21, 12:22 AM
  #3
hydrocarbon
Senior Member

hydrocarbon's Avatar

Join Date: Jul 2008
Location: Norway
Posts: 84
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 23 Times in 18 Posts

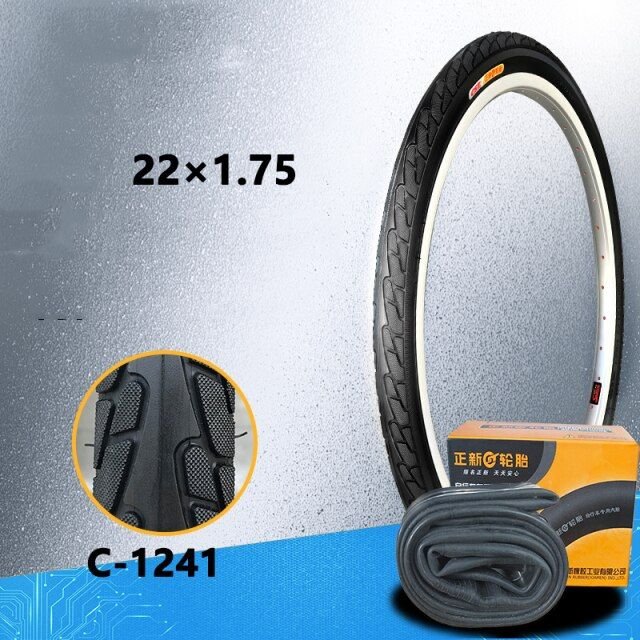

If you're patient when it comes to shipping, there are some 22" tires available pretty cheaply on Aliexpress:

https://www.aliexpress.com/item/32979927080.html
https://www.aliexpress.com/item/32966056184.html
https://www.aliexpress.com/item/4001281624878.html

hydrocarbon is offline
Likes For hydrocarbon:
Old 08-05-21, 12:42 AM
  #4
Kabuto
Full Member

Kabuto's Avatar

Join Date: Jul 2017
Location: Far East
Posts: 251
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 163 Post(s)
Liked 66 Times in 44 Posts
https://www.yodobashi.com/product/100000001003135733/
https://www.yodobashi.com/product/100000001002722333/

Here's two 40-501 Bridgestone options available through Yodobashi Camera. I'm sure there's other options out there.
Kabuto is offline
Old 08-05-21, 01:23 AM
  #5
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,096
Mentioned: 214 Post(s)
Tagged: 0 Thread(s)
Quoted: 16305 Post(s)
Liked 3,533 Times in 2,619 Posts
Go ahead and upload some photos to your album:
https://www.bikeforums.net/g/user/543156

As far as tires...
https://www.schwalbetires.com/tech_info/size_markings
https://www.sheldonbrown.com/tire-sizing.html

There appear to be numerous 22 inch tires. Sheldon brown lists the BSD 501 as:
501 British, 22 x 1 3/8, 22 x 1.00

I hate websites that don't list the BSD/ISO/ETRTO for the tires. Or use a photo that doesn't match what they are selling.

You might be able to fit narrow 24" tires/wheels (ISO 507) on the bike. Of course meaning to replace the entire wheels.
https://www.ebay.com/itm/392274222286
CliffordK is offline
Old 08-05-21, 08:05 PM
  #6
shinchan150
Newbie
Thread Starter

Join Date: Aug 2021
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Wow, thanks guys for all the help! I guess I'm not that internet savvy after all haha. Kabuto, those tires are what I'm looking for, I'll try to order and have them shipped to my in-law's place in Japan and then have my wife pick them up. If not, I'll try the Aliexpress way. Thanks, Clifford for letting me know about the album, I'll clean the bike up and take some pics. Mahalo again!
shinchan150 is offline
Old 08-05-21, 09:39 PM
  #7
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,096
Mentioned: 214 Post(s)
Tagged: 0 Thread(s)
Quoted: 16305 Post(s)
Liked 3,533 Times in 2,619 Posts
Originally Posted by shinchan150 View Post
Kabuto, those tires are what I'm looking for, I'll try to order and have them shipped to my in-law's place in Japan and then have my wife pick them up.
As mentioned, there are several 22" standards.

If you do order from above, I'd probably choose the 22x1 3/8 tire as the most likely one to fit.

https://www.aliexpress.com/item/32966056184.html

If you let your cursor hover over the shop name, there is a "Contact Now" option where you can ask them for the ISO/BSD size.
CliffordK is offline
Old 08-08-21, 09:59 PM
  #8
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,556

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 202 Post(s)
Liked 170 Times in 126 Posts
Here's a 22 x 1.75, by Schwalbe, available through Amazon.
https://www.amazon.com/Schwalbe-Crui...8481361&sr=8-5
oldbobcat is offline
