Suntour derailleur cable connection

Old 08-08-21, 04:12 PM
  #1
Bladeputr13
Member
Thread Starter

Join Date: Oct 2015
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked 2 Times in 2 Posts
Suntour derailleur cable connection

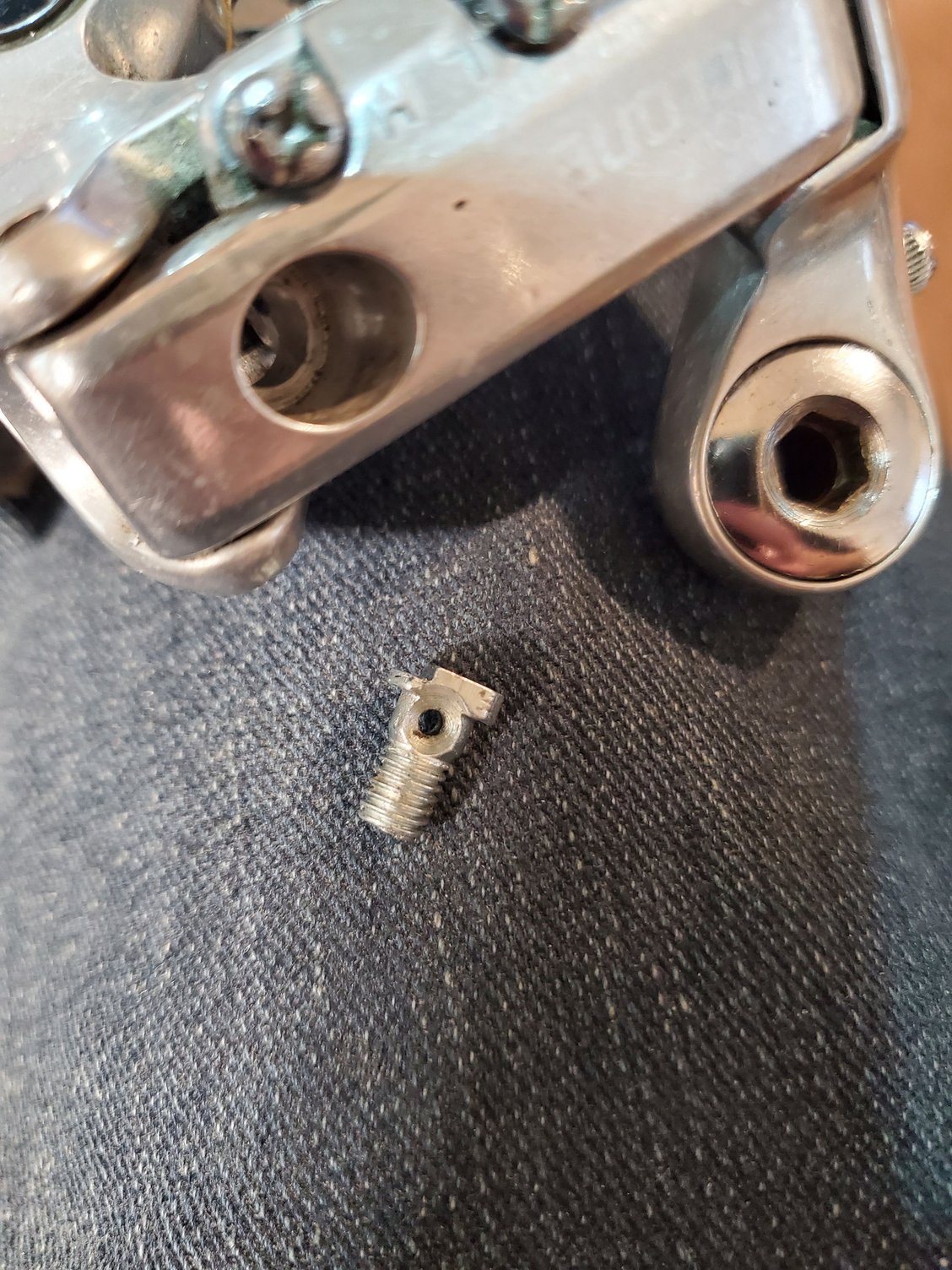

How does the cable connect to this screw? I understand it enters the rear and terminates here but I don't know the exact mechanics. Thanks guys.
Bladeputr13 is offline
Old 08-08-21, 05:25 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,627

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Srewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3590 Post(s)
Liked 2,475 Times in 1,563 Posts
The cable with casing enters the parallelogram from it's rear, there's a casing stop seat there (and on many a barrel adjuster). The inner cable continues through the parallelogram and into the anchor bolt. The bolt's nut (usually having a metric socket, then is tightened trapping the inner cable and bolt. Like any other parallelogram based der then cable tried to pull the parallelogram and the return spring pushes the parallelogram back. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 08-08-21, 05:33 PM
  #3
Bladeputr13
Member
Thread Starter

Join Date: Oct 2015
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked 2 Times in 2 Posts
Thanks Andy! I guess I was wondering why a screw is needed at all. Can't it just exit without a screw there and a put a crimp on the end and call it a day.
Bladeputr13 is offline
Old 08-08-21, 07:29 PM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,627

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Srewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3590 Post(s)
Liked 2,475 Times in 1,563 Posts
The bike industry has chosen anchor bolted cable ends for decades over a crimped on end. Crimped ends can let loose if not set well. Anchor bolts allow for fine tuning the cable length over and over (until a bad clamping design or too heavy handed a tightening frays the cable). Anchor bolts are a simple, reusable and robust method. Andy
