spokes are spinning when truing wheel after spoke repacement

Me again.

different wheel. different problem.

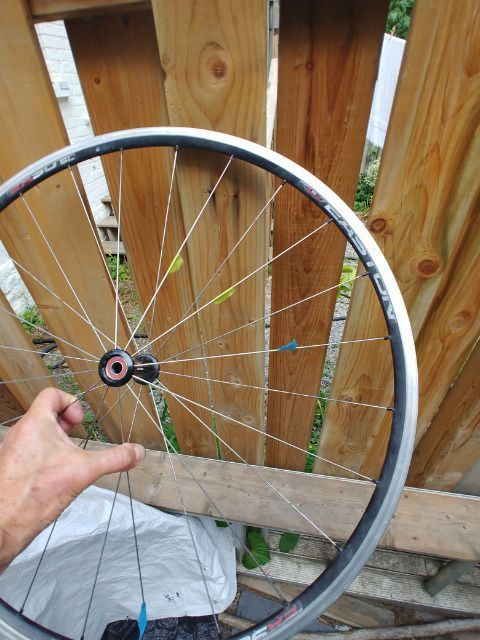

I had to replace two spokes on this Easton wheel a few years ago (green .tape)
then I just put it aside and forgot about it.
this week I pulled it out and realized that it was still WAY out of true.
but when I tighten the nipples, the spokes spin so I am not getting any additional / needed tension.
these are straight spokes. the orignals were butted but as I could not at the time find butted spokes, I used straight gauge spokes. I don't think that should be a problem.

I would have thought this was a common problem but I cannot find anyone else's write up or solution.

initially I thought it was just the two new spokes - maybe their heads did not fit the slot in the hub correctly. But when I put a piece of (blue) tape on the butted spokes I could see that they too were spinning when I adjusted the nipple.

I know that bladed spokes need to be held steady with one hand while the nipple is tightened. But none of these spokes are bladed.

what am I missing here?

Peter


pstock is offline
Old 08-08-21, 04:20 PM
  #2
Rolla
Former Member

Join Date: Sep 2020
Posts: 2,597
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1156 Post(s)
Liked 2,823 Times in 1,250 Posts
Lube the threads and nipples, and/or hold the spoke with your fingers (rubber gloves might help) or cushioned pliers (squeeze gently).
Rolla is offline
Old 08-08-21, 04:45 PM
  #3
mrrabbit
Senior Member

mrrabbit's Avatar

Join Date: Dec 2007
Location: San Jose, California
Posts: 3,474

Bikes: 2001 Tommasini Sintesi w/ Campagnolo Daytona 10 Speed

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 123 Post(s)
Likes: 0
Liked 28 Times in 23 Posts
Other than the obvious, that the spokes need to be braced while tensioning...

...look across the across the side of the rim where the spokes in question are located.

Are the holes bulging inward?

=8-|
__________________
5000+ wheels built since 1984...

Disclaimer:

1. I do not claim to be an expert in bicycle mechanics despite my experience.
2. I like anyone will comment in other areas.
3. I do not own the preexisting concepts of DISH and ERD.
4. I will provide information as I always have to others that I believe will help them protect themselves from unscrupulous mechanics.
5. My all time favorite book is:

Kahane, Howard. Logic and Contemporary Rhetoric: The Use of Reason in Everyday Life
mrrabbit is offline
Old 08-08-21, 05:20 PM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,582

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Srewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3570 Post(s)
Liked 2,427 Times in 1,542 Posts
Peter- Just hold the spokes with a pliers or such. Some will use a cable 4th hand with the spoke where the cable would go. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 08-08-21, 05:32 PM
  #5
pstock
Senior Member
Thread Starter

Join Date: May 2008
Location: Toronto, Canada
Posts: 777

Bikes: (much reduced) Columbus Cyclops Campy Victory, 531 Harry Quinn 1st gen DA, SLX Fuso 8-spd DA, Airfriday. Claude Pottie (France) 753 w. 8S Record, Claude Pottie Columbus with 105,Masi Team 3v

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Liked 12 Times in 9 Posts
Originally Posted by mrrabbit View Post
Other than the obvious, that the spokes need to be braced while tensioning...
...look across the across the side of the rim where the spokes in question are located.
Are the holes bulging inward?
=8-|
if memory serves, these replacement spokes were never tensioned at all after they were installed.
and the WOW in the wheel is exactly where these two replacement spokes are located. so that makes sense.

but No, I don't see any abnormality in the rim where these spokes are.

and I guess my question is that "how do i brace a round spoke? without damaging it? a bladed spoke, I get how to brace it - hold it with a flat key. but round?
pstock is offline
Old 08-08-21, 06:36 PM
  #6
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 2,147

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 822 Post(s)
Liked 363 Times in 268 Posts
Originally Posted by pstock View Post
...and I guess my question is that "how do i brace a round spoke? without damaging it? a bladed spoke, I get how to brace it - hold it with a flat key. but round?
See post #2. "cushioned".
I'd use a pair of vise grips with some aluminum sheet (not foil!) between the jaws and the spoke.
sweeks is offline
Old 08-08-21, 06:41 PM
  #7
mrrabbit
Senior Member

mrrabbit's Avatar

Join Date: Dec 2007
Location: San Jose, California
Posts: 3,474

Bikes: 2001 Tommasini Sintesi w/ Campagnolo Daytona 10 Speed

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 123 Post(s)
Likes: 0
Liked 28 Times in 23 Posts
Originally Posted by pstock View Post
if memory serves, these replacement spokes were never tensioned at all after they were installed.
and the WOW in the wheel is exactly where these two replacement spokes are located. so that makes sense.

but No, I don't see any abnormality in the rim where these spokes are.

and I guess my question is that "how do i brace a round spoke? without damaging it? a bladed spoke, I get how to brace it - hold it with a flat key. but round?
Lotsa ways....doesn't require much.

1. Heavier gauge spokes, very strong finger pinch can do it.

2. vise grips / pliers with coated or wrapped jaws...but the coating / wrap will wear off - can be clumsy / unwieldly.

3. Those plastic clamps (medium) with the plastic swiveled jaws from the hardware stores. (Faster placement and removal.)

If you use any kinda "glue" as part of the installation - the problem is amplified and the solution has to be more "firm" in its application.

=8-|
__________________
5000+ wheels built since 1984...

Disclaimer:

1. I do not claim to be an expert in bicycle mechanics despite my experience.
2. I like anyone will comment in other areas.
3. I do not own the preexisting concepts of DISH and ERD.
4. I will provide information as I always have to others that I believe will help them protect themselves from unscrupulous mechanics.
5. My all time favorite book is:

Kahane, Howard. Logic and Contemporary Rhetoric: The Use of Reason in Everyday Life
mrrabbit is offline
Old 08-08-21, 06:56 PM
  #8
pstock
Senior Member
Thread Starter

Join Date: May 2008
Location: Toronto, Canada
Posts: 777

Bikes: (much reduced) Columbus Cyclops Campy Victory, 531 Harry Quinn 1st gen DA, SLX Fuso 8-spd DA, Airfriday. Claude Pottie (France) 753 w. 8S Record, Claude Pottie Columbus with 105,Masi Team 3v

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Liked 12 Times in 9 Posts
thank you all. Again!
I am well on track again now.
Peter
pstock is offline
Old 08-08-21, 07:34 PM
  #9
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,859
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 817 Post(s)
Liked 418 Times in 241 Posts
Common issue with straight pull spokes. These days, I build at least as many wheels with straight pulls as with J bend, and some way of holding the spoke from rotating is a must.
I use a twist resist tool. Matter of fact, I wore one out I used it so much, so I made a new one.

Dan Burkhart is offline
