front derailer hitting chain stay

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

front derailer hitting chain stay

Old 08-13-21, 09:02 PM
  #1
schnurrp
Junior Member
Thread Starter

Join Date: Jun 2021
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 0 Times in 0 Posts
front derailer hitting chain stay

Changing a Trek 1500 SLR from a road bike into a hybrid for use on the Raleigh, NC greenways, I wanted to change the triple Sora chain set into a two way, 28/38. This means I have to slide the derailer down the seat tube to work on the 38 t from its original higher position for the stock 53 t. When I did this the lower tip end of the derailer contacts the chain stay when it moves in to try to shift to the smaller chain ring. Is there any solution for this?

Also the curve of the derailer is quite different from the curve of the smaller 38 t chain ring.
schnurrp is offline
Old 08-13-21, 09:56 PM
  #2
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,429

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1810 Post(s)
Liked 1,943 Times in 1,191 Posts
Well not exactly, at least how I set up a double that was a triple. Although some might disagree.

I start out “about” where I would set it as if the outer chainring was still there, which means you’ll have a lot larger gap between the 38t and the front derailleur cage.

What I want is to line the derailleur plates at the best position to shift from the 28t to the 38t and back again. If I am concerned I’ll drop a chain, I usually install a chainguard in the outer position. I’ve only done that on mtb’s.

It may take some tweaking, but it has worked well for me.

John
70sSanO is offline
Likes For 70sSanO:
Old 08-13-21, 10:12 PM
  #3
Rick
Senior Member

Join Date: Feb 2007
Posts: 972
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 412 Post(s)
Likes: 0
Liked 263 Times in 172 Posts
Another derailleur or hack off and weld.
Rick is offline
Old 08-13-21, 10:40 PM
  #4
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,080

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3644 Post(s)
Liked 2,092 Times in 1,327 Posts
I would switch to a road FD, or even better, one designed for smaller chainrings for cyclocross, like the Shimano CX70. The cage on triple derailleurs extends lower to accommodate the granny ring.

The SunTour ARX I'm using with my 42/28 double leaves about 3mm clearance to the chainstay. So a 40/28 double would most likely work without making anything more complicated. And that FD can be found pretty cheap!
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Likes For ThermionicScott:
Old 08-14-21, 06:56 AM
  #5
schnurrp
Junior Member
Thread Starter

Join Date: Jun 2021
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 0 Times in 0 Posts
I decided to buy a

SHIMANO XT FD-M8020-D 2x11 Front Derailleur and clip. I'll let you know how it works out.


Thanks for your suggestions.
schnurrp is offline
Old 08-14-21, 07:21 AM
  #6
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,429

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1810 Post(s)
Liked 1,943 Times in 1,191 Posts
Since I don’t know what front shifter you have/were going to use, I’m assuming you did your homework on cable pull.

With a 2x, you can sometimes fudge it a bit if you have more than you need, but if it is less it won’t get there. It is academic if a friction thumb shifter is being used.

John
70sSanO is offline
Old 08-14-21, 10:39 AM
  #7
DorkDisk
Senior Member

Join Date: May 2013
Location: Kips Bay, NY
Posts: 2,096

Bikes: Ritchey Swiss Cross | Teesdale Kona Hot | Haro Extreme | Specialized Stumpjumper Comp | Cannondale F1000 | Shogun 1000 | Cannondale M500 | Norco Charger | Marin Muirwoods 29er | Shogun Kaze | Breezer Lightning

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 531 Post(s)
Liked 817 Times in 423 Posts
Have you tries just raising the derailleur so it clears the stays?

XT front derailleur will not work with Sora shifters.

ive had good luck with Sora R3k, 28/38 Deore M6K cranks, and Ultegra 6700 front derailleur

DorkDisk is offline
Likes For DorkDisk:
Old 08-14-21, 12:57 PM
  #8
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,429

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1810 Post(s)
Liked 1,943 Times in 1,191 Posts
Originally Posted by DorkDisk View Post
Have you tries just raising the derailleur so it clears the stays?

XT front derailleur will not work with Sora shifters.

ive had good luck with Sora R3k, 28/38 Deore M6K cranks, and Ultegra 6700 front derailleur

Look at the picture. It doesn’t take a mental giant to see that if a triple front derailleur that can shift just the middle and inner chainrings without lowering it, it can equally shift a double if the rings are “close enough” to the derailleur spec.

I’m running an early 80’s Suntour Cyclone double with a 42/30. It is friction so I don’t have to worry about cable pull, but I’m also using flat rings.

John
70sSanO is offline
Likes For 70sSanO:
Old 08-14-21, 01:20 PM
  #9
DorkDisk
Senior Member

Join Date: May 2013
Location: Kips Bay, NY
Posts: 2,096

Bikes: Ritchey Swiss Cross | Teesdale Kona Hot | Haro Extreme | Specialized Stumpjumper Comp | Cannondale F1000 | Shogun 1000 | Cannondale M500 | Norco Charger | Marin Muirwoods 29er | Shogun Kaze | Breezer Lightning

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 531 Post(s)
Liked 817 Times in 423 Posts
Originally Posted by 70sSanO View Post
Look at the picture. It doesn’t take a mental giant to see that if a triple front derailleur that can shift just the middle and inner chainrings without lowering it, it can equally shift a double if the rings are “close enough” to the derailleur spec.

John
Who, me? I don't have any issues with my drivetrains.
DorkDisk is offline
Old 08-14-21, 01:47 PM
  #10
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,429

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1810 Post(s)
Liked 1,943 Times in 1,191 Posts
Originally Posted by DorkDisk View Post
Who, me? I don't have any issues with my drivetrains.
No, definitely not you.

Your pic is a great example of how to set up a smaller chainring double with more gap above the chainring.

The only thing I did, as a pre-caution, was add a bash/chain guard in the outer position on my mtb’s because of rough terrain and the potential of dropping a chain on the outside.

John
70sSanO is offline
Old 08-14-21, 04:19 PM
  #11
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,080

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3644 Post(s)
Liked 2,092 Times in 1,327 Posts
Since we're sharing pictures, here's mine.



As it's a "road" front derailleur, I don't have to set it abnormally high over the big ring -- it's at about 2mm.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Likes For ThermionicScott:
Old 08-14-21, 04:44 PM
  #12
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,429

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1810 Post(s)
Liked 1,943 Times in 1,191 Posts
Originally Posted by ThermionicScott View Post
Since we're sharing pictures, here's mine.



As it's a "road" front derailleur, I don't have to set it abnormally high over the big ring -- it's at about 2mm.
That is pretty impressive for a 42/28.

Not sure of chainstay angle and the FD specs, but nice job!

John
70sSanO is offline
Old 08-14-21, 07:45 PM
  #13
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,080

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3644 Post(s)
Liked 2,092 Times in 1,327 Posts
Originally Posted by 70sSanO View Post
That is pretty impressive for a 42/28.

Not sure of chainstay angle and the FD specs, but nice job!

John
Thanks! The frame has a 73° seat tube angle and 60-65mm of bottom bracket drop. I was only a math minor in college, so I don't know if I could figure out the chainstay angle without some help.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 08-14-21, 09:04 PM
  #14
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,429

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1810 Post(s)
Liked 1,943 Times in 1,191 Posts
Just wondering.

John
70sSanO is offline
Old 08-15-21, 06:17 AM
  #15
schnurrp
Junior Member
Thread Starter

Join Date: Jun 2021
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 0 Times in 0 Posts
How far above the front chain ring can a derailer be installed without sacrificing function?
schnurrp is offline
Old 08-15-21, 08:38 AM
  #16
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,429

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1810 Post(s)
Liked 1,943 Times in 1,191 Posts
Well my flat bar conversion with the old Cyclone road FD and 42t is at 6mm.

My Serotta mtb with Columbus MAX tubing that gets more oval at the dropout wouldn’t let me get closer than 25mm with a 34/24. And even then I had to sand the clamp a bit to fit.

I’d either start as close to the chainstay and move up if needed, or close to the original location for the triple and move down.

One caveat, large gap and large chainring is the kiss of death. Inner-middle only, seems to work fine; or maybe a low 40’s tooth ring and below.

John
70sSanO is offline
Likes For 70sSanO:
Old 08-15-21, 11:49 AM
  #17
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,929

Bikes: Several, mostly not name brands.

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 3119 Post(s)
Liked 2,356 Times in 1,390 Posts
Originally Posted by schnurrp View Post
How far above the front chain ring can a derailer be installed without sacrificing function?
There's no single answer. It depends on the specific derailleur and the tooth count range it has to span when shifting. In general, you want it to be pretty close; within a few millimeters.
JohnDThompson is offline
Old 08-15-21, 12:27 PM
  #18
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,429

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1810 Post(s)
Liked 1,943 Times in 1,191 Posts
Originally Posted by JohnDThompson View Post
There's no single answer. It depends on the specific derailleur and the tooth count range it has to span when shifting. In general, you want it to be pretty close; within a few millimeters.
The problem is, in most cases, you can’t get to a few mms above the middle chainring after you remove the outer chainring on a triple and only use the inner-middle rings.

I imagine there are specific derailleurs for smaller inner-outer/(old middle) and small chainring doubles.

It is like setting the FD high limit to only shift the inner and middle positions, leaving it in the same place, and lock out the outer position. You’ll go happily along having no clue that the FD now sits an inch above the middle ring.

The caveat, I believe, is a potential issue with throwing a chain off the middle/outer ring because the FD is so far above the chainring.

I never lost a chain on my mtb without a chain guard, but trying, but not always succeeding, to not do something stupid, I thought it might be prudent to add one in the outer position.

As demonstrated above a double road FD, at least older ones, seem to work, but maybe not be compatible with index STI/trigger shifters.

John

Last edited by 70sSanO; 08-15-21 at 12:31 PM.
70sSanO is offline
Old 08-15-21, 12:43 PM
  #19
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 8,763

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1830 Post(s)
Liked 1,576 Times in 955 Posts
is there really a need to do this? what triple sora does OP have? what are the chain rings?

current Sora is 53/39/30 which is pretty close to 38/28

why not just keep it a triple if really wanted get newer crank or change the rings

what is the advantage for going 2x vs 3x ????
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light 56,57 or so)

squirtdad is online now
Likes For squirtdad:
Old 08-15-21, 03:25 PM
  #20
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,929

Bikes: Several, mostly not name brands.

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 3119 Post(s)
Liked 2,356 Times in 1,390 Posts
Originally Posted by 70sSanO View Post
The problem is, in most cases, you can’t get to a few mms above the middle chainring after you remove the outer chainring on a triple and only use the inner-middle rings.

I imagine there are specific derailleurs for smaller inner-outer/(old middle) and small chainring doubles.
With the growing popularity of "compact" cranks, I wouldn't be surprised if someone offers a front derailleur with a shorter cage to allow it to sit closer to the chainrings.
JohnDThompson is offline
Likes For JohnDThompson:
Old 08-15-21, 03:44 PM
  #21
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,429

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1810 Post(s)
Liked 1,943 Times in 1,191 Posts
Originally Posted by JohnDThompson View Post
With the growing popularity of "compact" cranks, I wouldn't be surprised if someone offers a front derailleur with a shorter cage to allow it to sit closer to the chainrings.
I agree. I’m not up to speed on the more current offerings.

And I really do respect your opinion.

John
70sSanO is offline
Old 08-15-21, 04:00 PM
  #22
Ross200
Junior Member

Join Date: Feb 2019
Posts: 153
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Liked 44 Times in 34 Posts
IRD Sub-C FD at least to 10 speed
Ross200 is offline
Old 08-15-21, 04:09 PM
  #23
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,080

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3644 Post(s)
Liked 2,092 Times in 1,327 Posts
Originally Posted by JohnDThompson View Post
With the growing popularity of "compact" cranks, I wouldn't be surprised if someone offers a front derailleur with a shorter cage to allow it to sit closer to the chainrings.

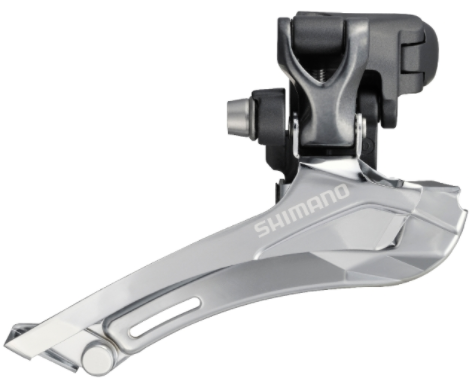

That's why I suggested the CX70 front derailleur upthread (assuming one could still be found.) It's designed specifically for a 46/36 cyclocross double.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 08-15-21, 06:30 PM
  #24
BCDrums
Recreational Road Cyclist

BCDrums's Avatar

Join Date: Sep 2013
Location: MetroWest, Mass.
Posts: 478

Bikes: 1990 Peter Mooney road bike

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 220 Post(s)
Liked 181 Times in 109 Posts
Originally Posted by ThermionicScott View Post
That's why I suggested the CX70 front derailleur upthread (assuming one could still be found.) It's designed specifically for a 46/36 cyclocross double.
I am using the CX70. Though not spec'ed as a triple FD, it works fine.

My bike's original derailler was a Shimano Deore for a 48-38-24 triple. Many years later, I went to a 42T big ring, and I could not lower the Deore enough without hitting the chain stay. The Deore still shifted okay, but looked crazy high over the now-smaller big ring.The CX70 had a shorter/less tall cage and worked just fine with the 42T. Lately I have put a 46T on the outer ring position and had to raise the FD up a bit to accommodate it. The CX70 works just fine with it too.

But the simplest solution, already mentioned, would be to keep the original derailler and just trim the outer limit screw to prevent overshoot, and maybe put on a bash guard for aesthetics.

I understand that the OP has already made his move. Best of luck.
BCDrums is offline
Likes For BCDrums:
Old 08-15-21, 09:23 PM
  #25
schnurrp
Junior Member
Thread Starter

Join Date: Jun 2021
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 0 Times in 0 Posts
My bike before I started modifying was 52-42-30. I knew the style of riding I was going to do on the paved greenway trails would be maybe 12-14 mph max (trails are shared with walkers) but the trails can be quite hilly so climbing ability is important. But you are right it's not that much different.
schnurrp is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2022 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
