What’s wrong with this BB and/or crank?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

What’s wrong with this BB and/or crank?

Old 08-19-21, 08:25 PM
  #1
GBK233
Senior Member
Thread Starter

Join Date: Feb 2021
Location: Syracuse NY
Posts: 230

Bikes: 2020 Giant Advanced 2, 2020 Giant Contend AR1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 65 Times in 29 Posts
What’s wrong with this BB and/or crank?

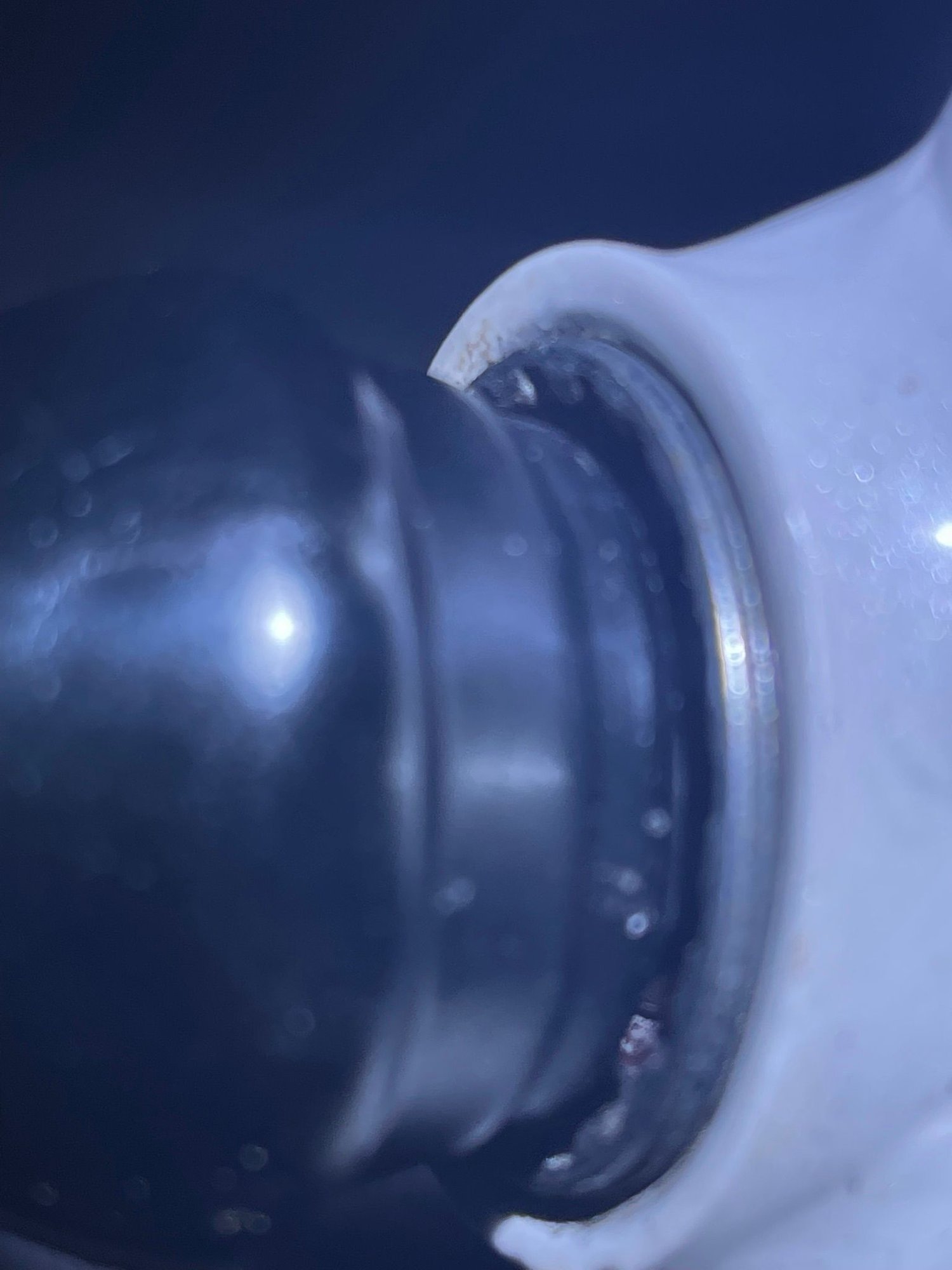

Picked up a Trek Alpha 1.5 beater bike to use with my Cycleops trainer. Bike pedals fine. Was lubing my spd pedals and noticed the gap between the crank arm and bottom bracket. Is the arm just not tightened down enough…or is there a collar or something missing?
I just ordered a crank puller and bottom bracket tool. Crank is an FSA Vero square crank.



GBK233 is offline
Old 08-19-21, 08:32 PM
  #2
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 21,935

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3570 Post(s)
Liked 1,960 Times in 1,251 Posts
If the crank isn't loose, don't do anything. It's normal to see a gap with square-taper cranks. Old-school square-taper cranks showed a lot of spindle.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Likes For ThermionicScott:
Old 08-19-21, 08:34 PM
  #3
GBK233
Senior Member
Thread Starter

Join Date: Feb 2021
Location: Syracuse NY
Posts: 230

Bikes: 2020 Giant Advanced 2, 2020 Giant Contend AR1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 65 Times in 29 Posts
Originally Posted by ThermionicScott View Post
If the crank isn't loose, don't do anything. It's normal to see a gap with square-taper cranks. Old-school square-taper cranks showed a lot of spindle.
it’s def not loose. Tried to get crank loose, but zero luck…that’s why I ordered a crank puller. So dirt etc getting in that gap won’t affect BB bearings?
GBK233 is offline
Old 08-19-21, 08:38 PM
  #4
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 21,935

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3570 Post(s)
Liked 1,960 Times in 1,251 Posts
Originally Posted by GBK233 View Post
it’s def not loose. Tried to get crank loose, but zero luck…that’s why I ordered a crank puller. So dirt etc getting in that gap won’t affect BB bearings?
The bottom bracket has sealed cartridge bearings, so they should be fine. It's not the crank's job to protect them.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 08-19-21, 08:41 PM
  #5
GBK233
Senior Member
Thread Starter

Join Date: Feb 2021
Location: Syracuse NY
Posts: 230

Bikes: 2020 Giant Advanced 2, 2020 Giant Contend AR1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 65 Times in 29 Posts
Originally Posted by ThermionicScott View Post
The bottom bracket has sealed cartridge bearings, so they should be fine. It's not the crank's job to protect them.
That’s good news. Well, now I’ll have tools to service/replace the BB cartridge if/when it’s necessary. Is a cartridge setup serviceable(regreasing etc)….or do you just replace them when they start to fail?
GBK233 is offline
Old 08-19-21, 08:55 PM
  #6
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 21,935

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3570 Post(s)
Liked 1,960 Times in 1,251 Posts
Originally Posted by GBK233 View Post
That’s good news. Well, now I’ll have tools to service/replace the BB cartridge if/when it’s necessary. Is a cartridge setup serviceable(regreasing etc)….or do you just replace them when they start to fail?
Sadly, most of them are non-serviceable, but it'll be good to have all the tools you need. Hopefully, that day is far off.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 08-19-21, 08:57 PM
  #7
GBK233
Senior Member
Thread Starter

Join Date: Feb 2021
Location: Syracuse NY
Posts: 230

Bikes: 2020 Giant Advanced 2, 2020 Giant Contend AR1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 65 Times in 29 Posts
Originally Posted by ThermionicScott View Post
Sadly, most of them are non-serviceable, but it'll be good to have all the tools you need. Hopefully, that day is far off.
From what I’ve read….the cartridges seem pretty cheap should I need to replace it.
GBK233 is offline
