need good air gage for compressor.

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

need good air gage for compressor.

Old 08-20-21, 10:00 AM
  #1
RH Clark
Senior Member
Thread Starter

Join Date: Jun 2019
Posts: 457
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Liked 233 Times in 118 Posts
need good air gage for compressor.

Hey guys,I have a nice compressor and need a recommendation for a good tire pressure gage that attaches to the compressor line. I need something fairly cheap ,but still isn't just junk.
RH Clark is offline
Old 08-20-21, 10:56 AM
  #2
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,656

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4305 Post(s)
Liked 2,865 Times in 1,994 Posts
You do realize you can't just attach it to the line and measure your tire pressure. At least not unless you regulate the pressure of the compressor to what you want your tire to be. Then there is no need for the extra gauge.

This is one air chuck and gauge combo that I see a lot being used by LBS's..... https://www.parktool.com/product/sho...category=Pumps

They have it configured so you are measuring tire pressure and not line or tank pressure of your compressor.
Iride01 is offline
Old 08-20-21, 11:18 AM
  #3
scottfsmith
I like bike

scottfsmith's Avatar

Join Date: Feb 2021
Location: Merry Land USA
Posts: 460

Bikes: Roubaix Comp 2020

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 189 Post(s)
Liked 201 Times in 131 Posts
I use one of these: https://www.amazon.com/gp/product/B08K47SRGP

The head on it would not attach reliably to Presta valves so I spent another couple bucks for a new head. Other than that it works great, the main gauge is very well-made.
scottfsmith is offline
Old 08-20-21, 12:50 PM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,272

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3426 Post(s)
Liked 2,128 Times in 1,390 Posts
The Op asks for a good gauge but a cheap one. The typical is that the cheap stuff isn't as good at measuring then the more expensive stuff is. Pick one because you are likely to not get both. Of course we don't really know what the OP means by "good". It is easy to install an in line gauge (usually hard threaded into the compressor's outlet with a "T" connector). Gauges that are a part of a air chuck tend to be more expensive and the plumbing needs to be such that the line pressure isn't being read and only the tire's is in play WRT the gauge.

I'll tangent here- so many people talk about a gauge's accuracy, how "good" it is. I will postulate that consistency is the more practical aspect. I don't care what my measured tire pressures are. I do very much care that when I fill the tire so the gauge needle reads "X" AND the ride/performance of the tire at "X" is what I like, the next time I pump up the tires to "X" the pressure is pretty much the same. Of course this means that the rider will be willing to find out what pressures work for them in what conditions and not rely on published numbers that were measured by some other gauge of unknown accuracy.

I have used many different gauges, built into the air chuck and freehand versions from a number of brands, and they all have some drift from each other (and I'm allowing for the slight pressure loss with each gauging). I've seen as much as about 10% difference from the same brand/model when comparing gauges. It is because of this that I discount accuracy claims. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 08-20-21, 01:11 PM
  #5
scottfsmith
I like bike

scottfsmith's Avatar

Join Date: Feb 2021
Location: Merry Land USA
Posts: 460

Bikes: Roubaix Comp 2020

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 189 Post(s)
Liked 201 Times in 131 Posts
Originally Posted by Andrew R Stewart View Post
I have used many different gauges, built into the air chuck and freehand versions from a number of brands, and they all have some drift from each other (and I'm allowing for the slight pressure loss with each gauging). I've seen as much as about 10% difference from the same brand/model when comparing gauges. It is because of this that I discount accuracy claims. Andy
Were those digital? I have three cheap digital gauges (including the one I mentioned above for my compressor) and I did a test on my car tire (loses less pressure between tests) and they were all within 1psi. I have some horrible analog gauges but the digital ones are all very accurate.

In any case I agree repeatability is more important. My built-in hand pump gauge (analog) is always 18psi low, no more no less. So I just get used to adding 18.
scottfsmith is offline
Old 08-20-21, 03:08 PM
  #6
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,272

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3426 Post(s)
Liked 2,128 Times in 1,390 Posts
precision vs accuracy - Bing

The digital gauges mentioned above display precision but of unknown accuracy. So what's the OP's definition for "good"? Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 08-21-21, 02:50 AM
  #7
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 764

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Liked 155 Times in 108 Posts

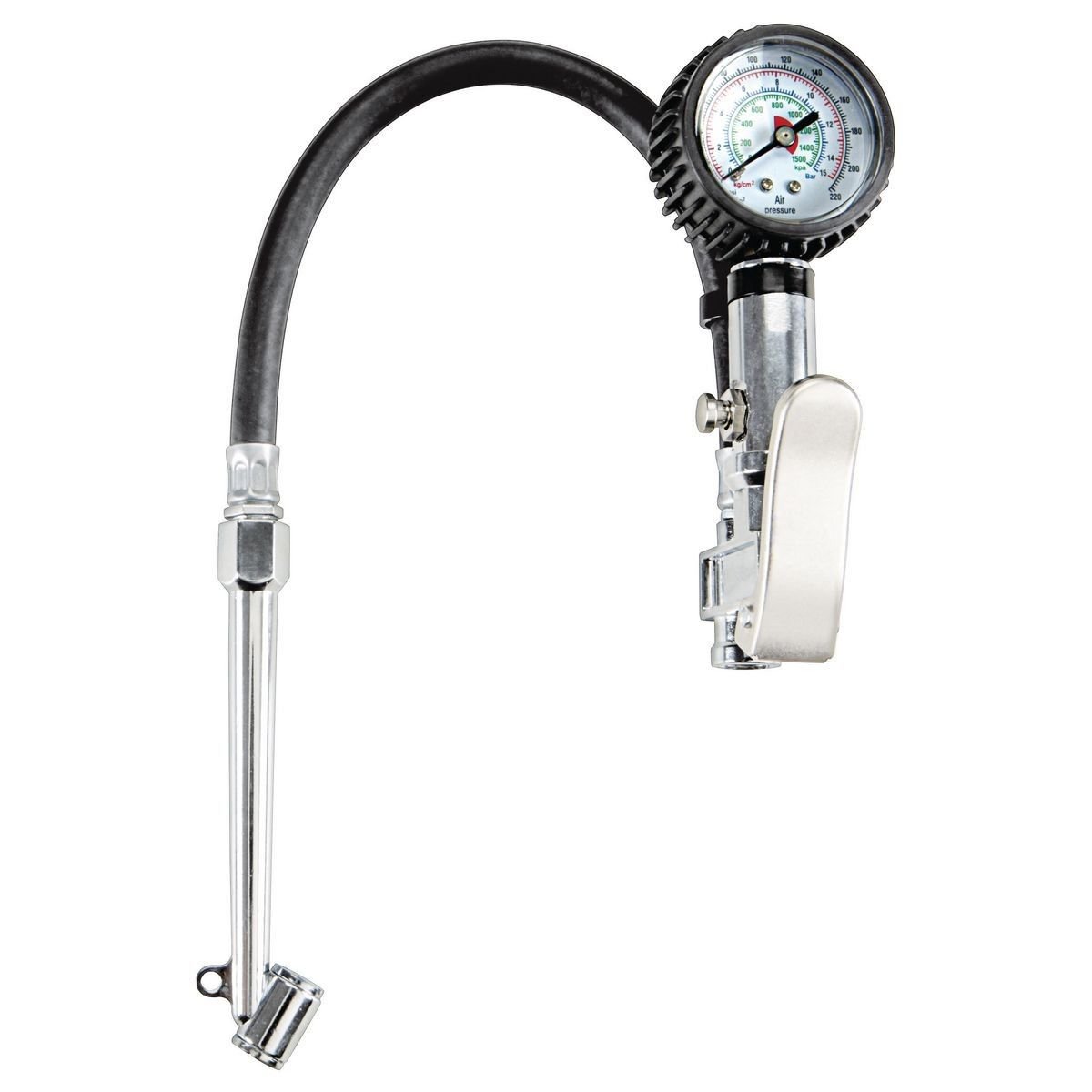

Do you mean something like this ?

Harbor Freight https://shop.harborfreight.com/media.../3/63049_I.jpg

About $12
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is offline
Old 08-21-21, 06:15 AM
  #8
RH Clark
Senior Member
Thread Starter

Join Date: Jun 2019
Posts: 457
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Liked 233 Times in 118 Posts
Sorry guys. If it takes a $150 tool to be any "good" I'll just stick to a separate gage to check my pressure.
RH Clark is offline
Old 08-21-21, 08:45 AM
  #9
CACycling
Senior Member

CACycling's Avatar

Join Date: Feb 2008
Location: Oxnard, CA
Posts: 4,571

Bikes: 2009 Fuji Roubaix RC; 2011 Fuji Cross 2.0; '92 Diamond Back Ascent EX

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 15 Times in 12 Posts
I managed to mate one of these:

https://carsoncitybikeshop.com/pump-...BoCMgQQAvD_BwE

with one of these:

https://www.harborfreight.com/pistol...xoCogYQAvD_BwE

and it works great.
CACycling is offline
Likes For CACycling:
Old 08-21-21, 10:03 AM
  #10
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,726

Bikes: Two Cinelli superstar disc with SRAM Force AXS

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 820 Post(s)
Liked 398 Times in 324 Posts
I buy winters brand liquid filled gauges from Amazon for around $20. I put a 0-100 psi model on my ancient silca pump. The same sort of gauge can be attached to a variety of heads, with the 1/4 inch pipe threads and used for car tires. I'm not a fan of measuring bike tire pressure, except when pumping them up with my silca pump. There are other pressure ranges available. Pressures above 100 psi are mostly a thing of the past, at least for me.


https://www.amazon.com/Winters-Stain...9561623&sr=8-4
DaveSSS is offline
Old 08-21-21, 12:48 PM
  #11
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,222

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1569 Post(s)
Liked 629 Times in 354 Posts
I made one a lot like JoeTBM's about 25 years ago. I cut the Schrader inflator off at the hose and clamped a Silca Presta chuck in it's place. I don't remember what it cost me, but it was way less than $130.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Likes For Retro Grouch:
Old 08-21-21, 01:27 PM
  #12
Warbird21
Senior Member

Warbird21's Avatar

Join Date: May 2021
Location: Maryland (Western)
Posts: 186

Bikes: Salsa Warbird

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 91 Times in 58 Posts

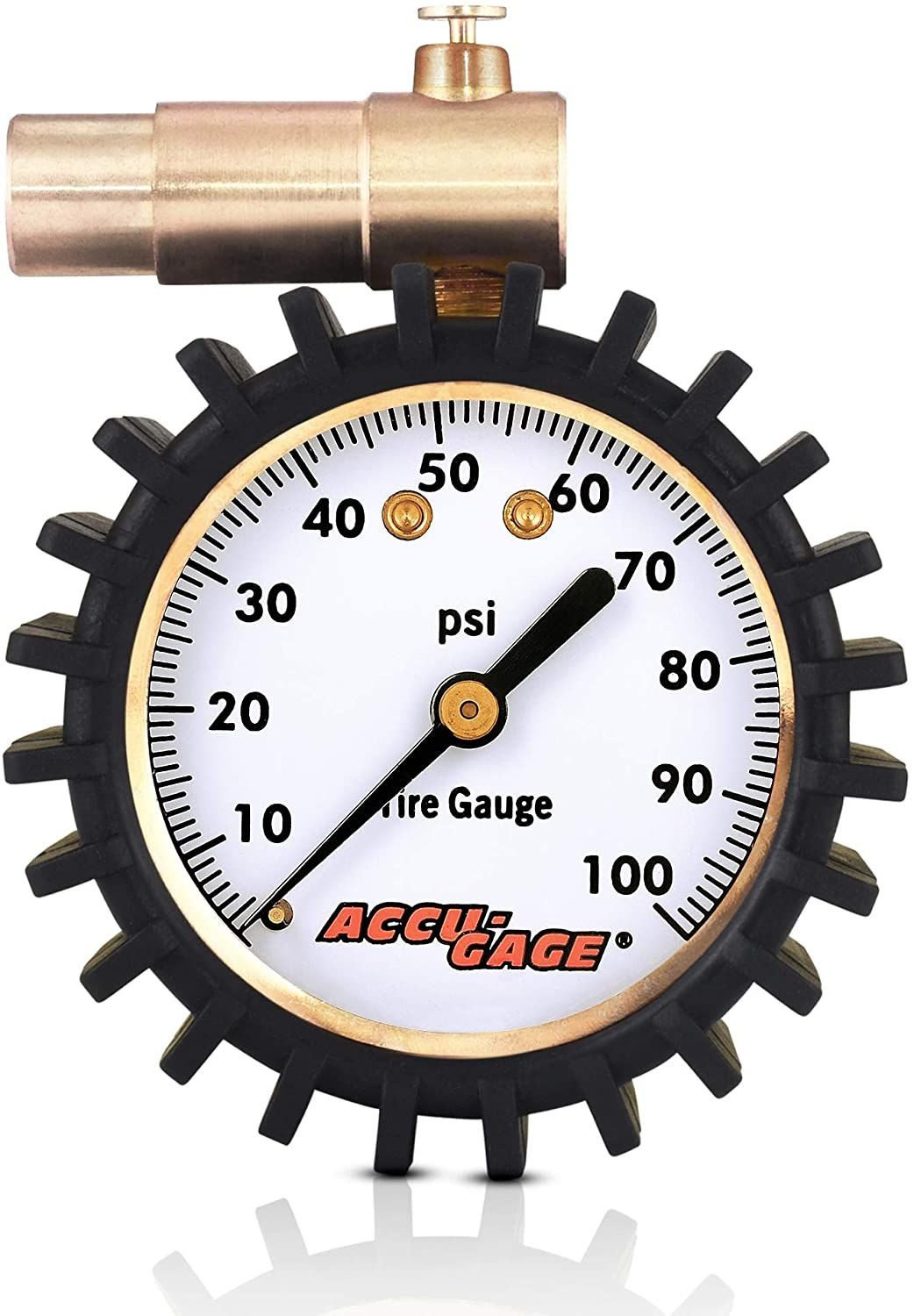

https://www.amazon.com/dp/B07SKMLP3Q...roduct_details
This was delivered today, via Amazon. I have a gauge on my Walmart pump (Zefal) but I'm skeptical as to the accuracy.


Warbird21 is offline
Old 08-21-21, 04:24 PM
  #13
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,656

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4305 Post(s)
Liked 2,865 Times in 1,994 Posts
Accu-Gage!

Wow, the very name itself will have me running scared and dubious of any pressure reading.

But I have been surprised by the accuracy of some of my cheap gauges. One being the one on the cheap floor pump I bought from Walmart. It too a Zefal.
Iride01 is offline
Old 08-21-21, 07:50 PM
  #14
Warbird21
Senior Member

Warbird21's Avatar

Join Date: May 2021
Location: Maryland (Western)
Posts: 186

Bikes: Salsa Warbird

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 91 Times in 58 Posts
Originally Posted by Iride01 View Post
Accu-Gage!

Wow, the very name itself will have me running scared and dubious of any pressure reading.

But I have been surprised by the accuracy of some of my cheap gauges. One being the one on the cheap floor pump I bought from Walmart. It too a Zefal.
Accu-Guage is a pretty well respected name in auto tire gauges (I have four, one in each of our vehicles and one in the garage). My Zefal gauge was reading about 1 lb low, compared to the new gauge.
Warbird21 is offline
Old 08-22-21, 07:54 AM
  #15
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,971
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 621 Post(s)
Liked 571 Times in 436 Posts
Originally Posted by Warbird21 View Post
Accu-Guage is a pretty well respected name in auto tire gauges (I have four, one in each of our vehicles and one in the garage). My Zefal gauge was reading about 1 lb low, compared to the new gauge.
+1. Accu-Gage also offers a lifetime warranty and they honor it. They're not super high-end gauges but plenty accurate for cyclists unless you're going for the world hour record in which case you might want to spend $300+ for one. Also handle your pressure gauge like any precision measuring instrument and don't drop it or bang it around and store it where it's protected.

Last edited by Crankycrank; 08-22-21 at 08:00 AM.
Crankycrank is offline
Old 08-22-21, 08:29 AM
  #16
Warbird21
Senior Member

Warbird21's Avatar

Join Date: May 2021
Location: Maryland (Western)
Posts: 186

Bikes: Salsa Warbird

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 91 Times in 58 Posts
Originally Posted by Crankycrank View Post
+1. Accu-Gage also offers a lifetime warranty and they honor it. They're not super high-end gauges but plenty accurate for cyclists unless you're going for the world hour record in which case you might want to spend $300+ for one. Also handle your pressure gauge like any precision measuring instrument and don't drop it or bang it around and store it where it's protected.
Good advice. I'm postponing my world record attempt, until I get a better gauge. The Accu-Gauge will have to soldier thru for now. But, I feel the world record is within my grasp.
Warbird21 is offline
Likes For Warbird21:
Old 08-22-21, 10:00 AM
  #17
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,446

Bikes: Soma Fog Cutter, Surly Wednesday, Turner 5-Spot, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2405 Post(s)
Liked 2,032 Times in 1,134 Posts
I bought 3 Accu-gauges of different ranges (0-15, 0-30, 0-60) a couple years ago. 2 of them were so far off as to be useless. They were so bad I wondered if there had been a mismatch between the innards and printed faces.

Guess I just got a bad batch.
Kapusta is online now
Old 08-22-21, 08:03 PM
  #18
speedy25
Senior Member

Join Date: Mar 2012
Location: NE oHIo
Posts: 1,030

Bikes: Specialized, Trek, Diamondback, Schwinn, Peugeot

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Liked 34 Times in 30 Posts
Get away from the crap sold on amazon. Go to an industrial supply house. You can get a great gauge that will lead a long accurate life for around $20.

-SP
speedy25 is offline
Likes For speedy25:
Old 08-23-21, 08:02 AM
  #19
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 2,094

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 395 Post(s)
Liked 293 Times in 213 Posts
Originally Posted by Warbird21 View Post
https://www.amazon.com/dp/B07SKMLP3Q...roduct_details
This was delivered today, via Amazon. I have a gauge on my Walmart pump (Zefal) but I'm skeptical as to the accuracy.
I have this gauge, it is specified to be Grade B by ASME B40.1 which means if you got the one you show it's accuracy is 2% within the middle 50% of range or 25psi to 75psi and 3% outside that range. I use mine for road bikes so I get the 0 to 160 psi range so that it's accuracy is 2% at road bike tire pressured which is much better than I need.
easyupbug is offline
Old 08-23-21, 02:20 PM
  #20
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 2,094

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 395 Post(s)
Liked 293 Times in 213 Posts
Originally Posted by Kapusta View Post
I bought 3 Accu-gauges of different ranges (0-15, 0-30, 0-60) a couple years ago. 2 of them were so far off as to be useless. They were so bad I wondered if there had been a mismatch between the innards and printed faces.

Guess I just got a bad batch.
Unless you have dead weight tester access I would be cautious of calibration. If so you should return them as they were a bad batch. They are grade B ASME B40.1 certified so within 2% of scale in the middle 50% of scale and 3% outside that. So on the 0-15 gauge the error when reading 15 psi can be only 0.45 psi, with the 0-30 gauge for a 15 psi reading it can only be an error of 0.6 psi and with the 0-60 for a 15 psi reading it can only be an error 1.2 psi.
easyupbug is offline
Old 08-23-21, 05:26 PM
  #21
Warbird21
Senior Member

Warbird21's Avatar

Join Date: May 2021
Location: Maryland (Western)
Posts: 186

Bikes: Salsa Warbird

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 91 Times in 58 Posts
Originally Posted by easyupbug View Post
I have this gauge, it is specified to be Grade B by ASME B40.1 which means if you got the one you show it's accuracy is 2% within the middle 50% of range or 25psi to 75psi and 3% outside that range. I use mine for road bikes so I get the 0 to 160 psi range so that it's accuracy is 2% at road bike tire pressured which is much better than I need.
Great minds think alike. That's the one I bought, in the link above, which seemed to more than satisfy my needs. I can add that it fits on well, without air loss and easily bleeds down to the desired PSI.
Warbird21 is offline
Old 08-24-21, 07:58 AM
  #22
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,446

Bikes: Soma Fog Cutter, Surly Wednesday, Turner 5-Spot, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2405 Post(s)
Liked 2,032 Times in 1,134 Posts
Originally Posted by easyupbug View Post
Unless you have dead weight tester access I would be cautious of calibration. If so you should return them as they were a bad batch. They are grade B ASME B40.1 certified so within 2% of scale in the middle 50% of scale and 3% outside that. So on the 0-15 gauge the error when reading 15 psi can be only 0.45 psi, with the 0-30 gauge for a 15 psi reading it can only be an error of 0.6 psi and with the 0-60 for a 15 psi reading it can only be an error 1.2 psi.
They were absolutely off. They were not even close. I have 4 other gauges. (Two digital, two analog) that are all ptretty close to each other. These two were wildly off of those, and from each other. I was only half joking when I said the innards and the faces might have been mixed up. They were that far off.

i would have returned them, but I had opened them up and see if I could fix them, and just made it worse and was unsure if that was going to make returning a hassle. And in the end these were cheap enough that is just was not worth the the effort at the time.

Anyway, next time I will just return them right off the bat.
Kapusta is online now

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
