Converting 5 sp to 7 sp how much to widen rear triangle

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Converting 5 sp to 7 sp how much to widen rear triangle

Old 08-20-21, 05:39 PM
  #1
sortieavelo
Member
Thread Starter

sortieavelo's Avatar

Join Date: Jun 2020
Location: Boston
Posts: 40

Bikes: A-D Superleicht; Colnago Strada, 1985 Trek 460, Ibis and Giant MTB..

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 2 Times in 2 Posts
Converting 5 sp to 7 sp how much to widen rear triangle

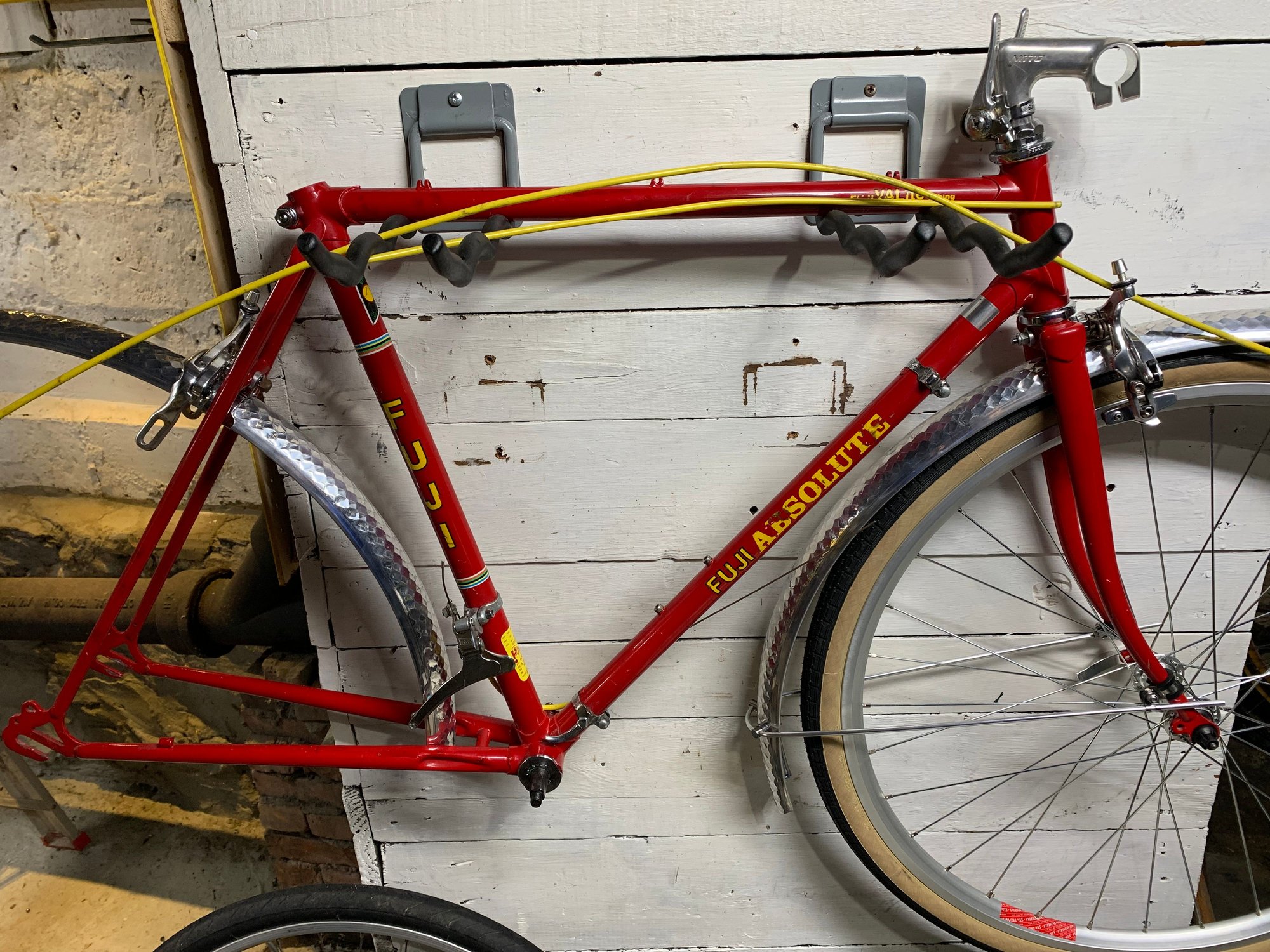

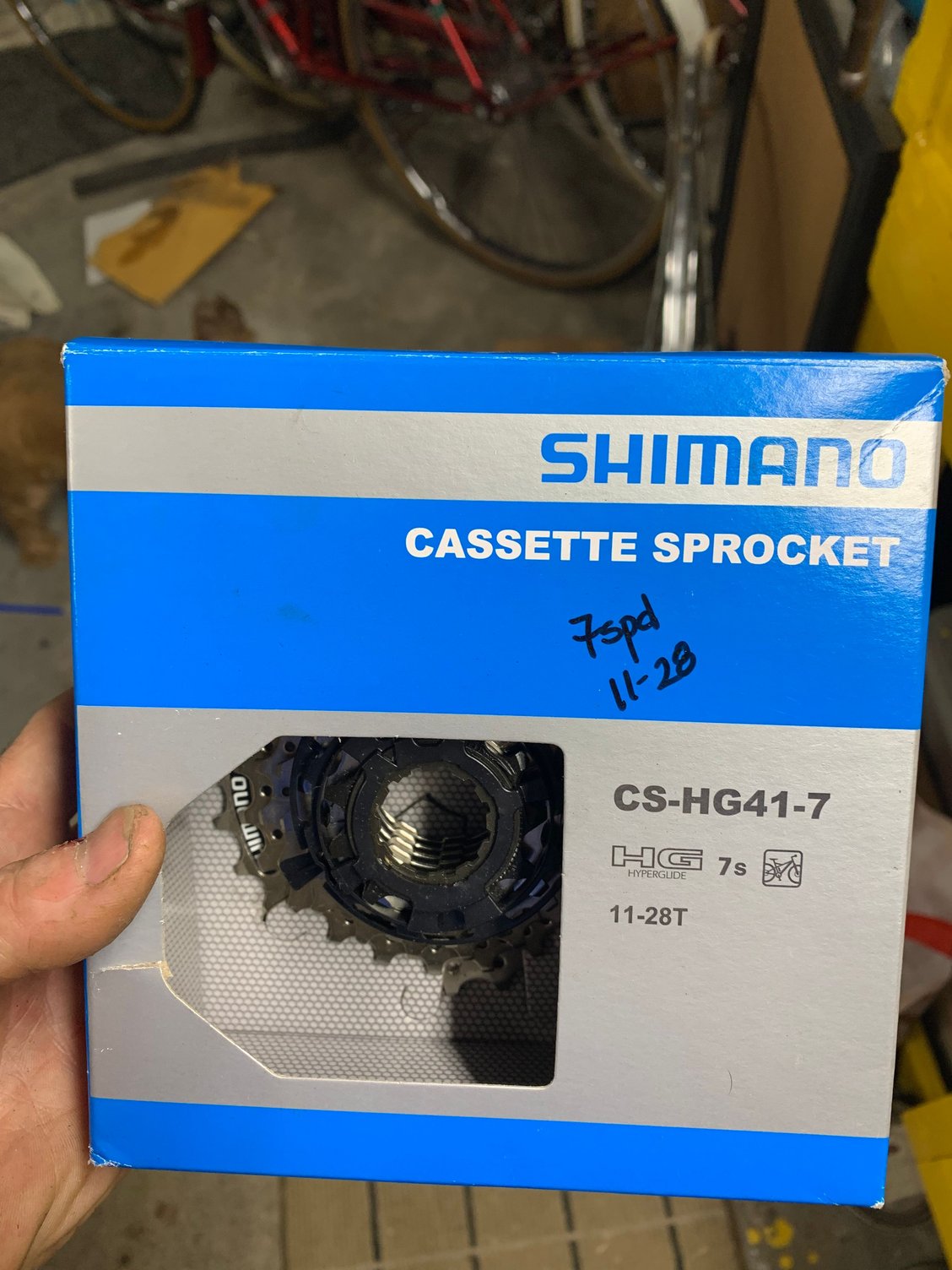

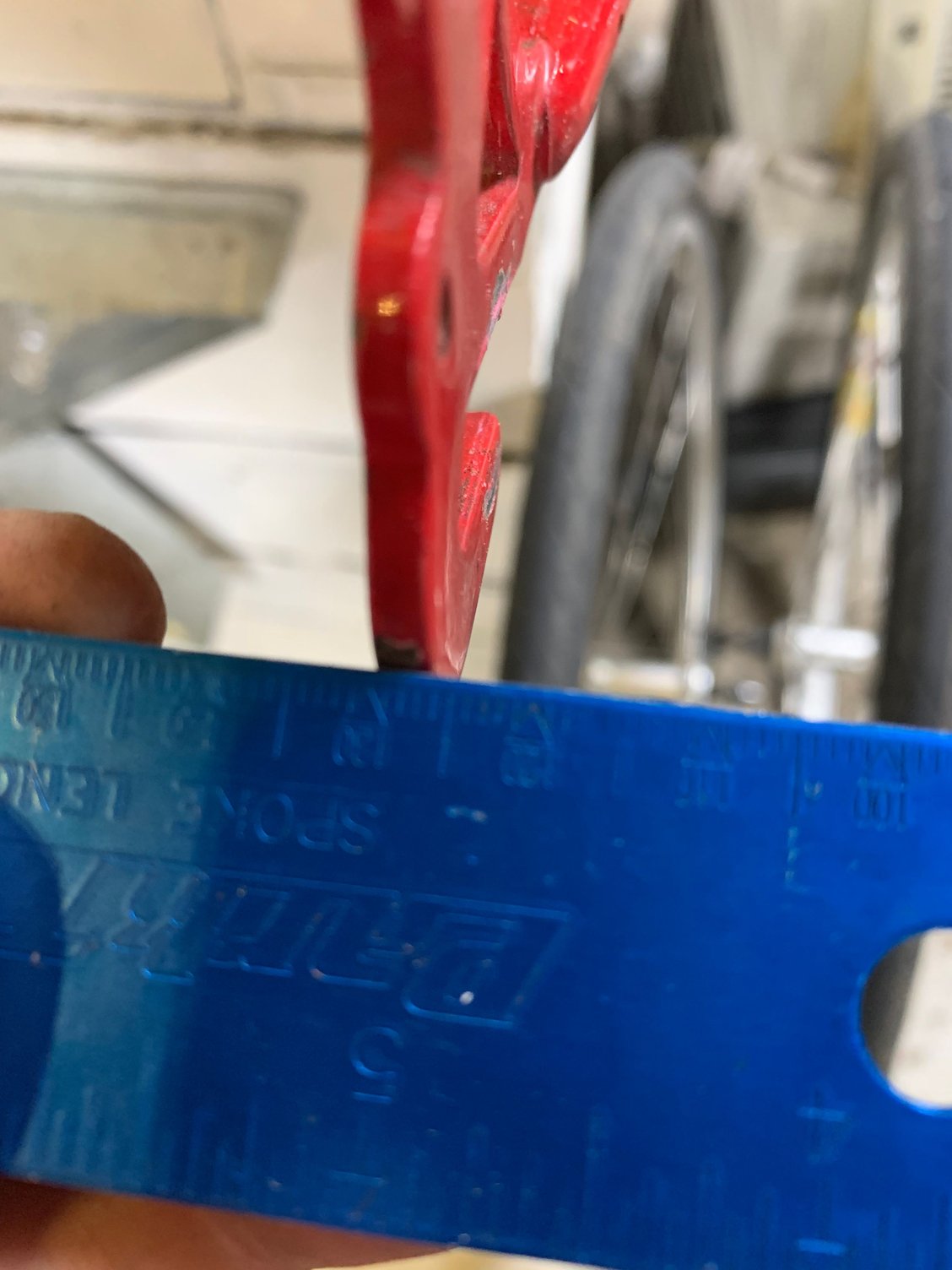

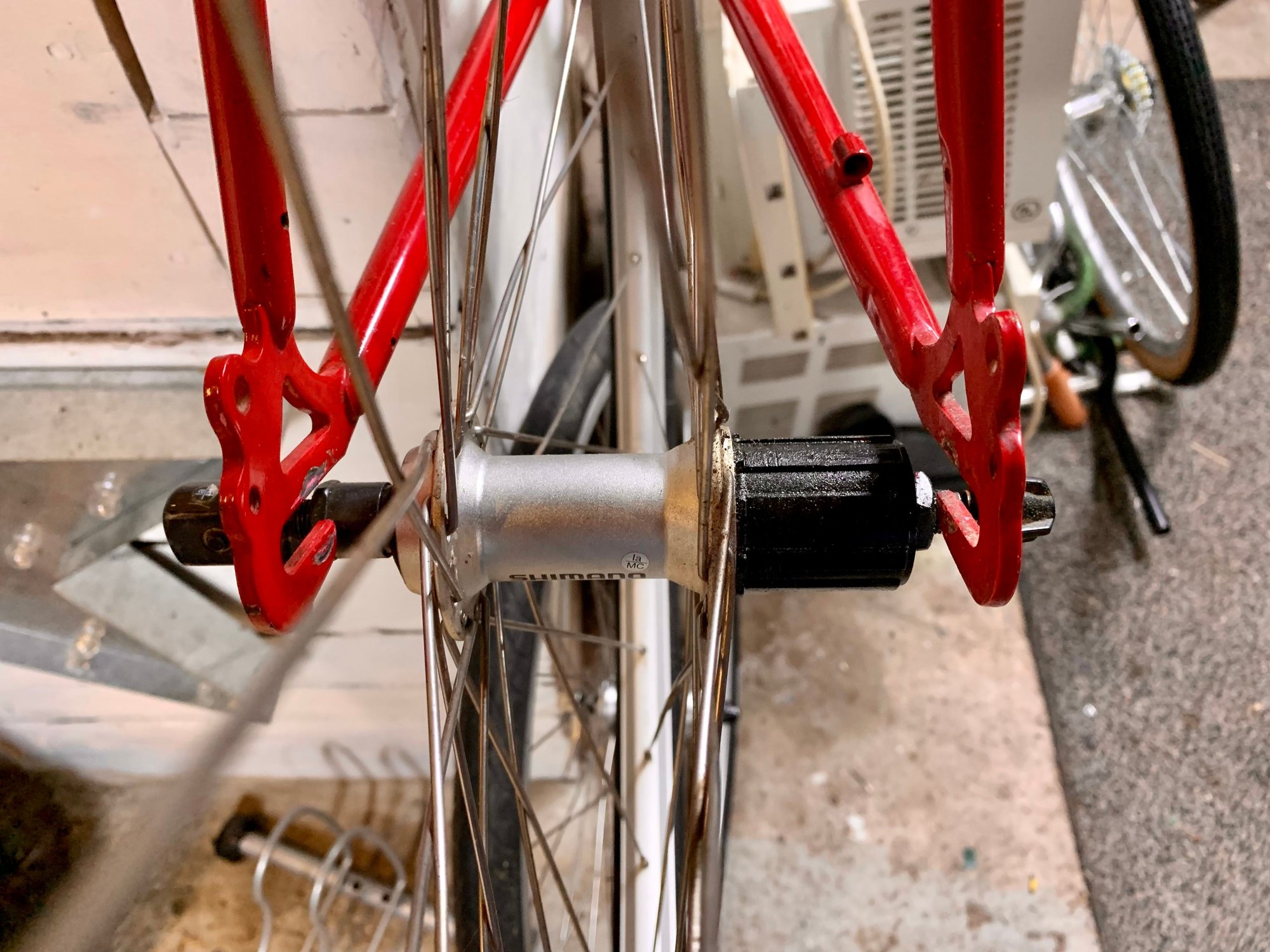

Hi all, Im hoping to convert this sweet old fuji 10 sp to a 650b ride. But my 650b rear wheel is a 7/8 Shimano and is too wide for the frame. Rear dropouts are about 125mm? And new rear wheel looks to be about 140mm. My question isnt so much how to widen dropouts (Im going with the RJ bike guy threaded rod method) but more whats the rule of spacing between the smallest cog and the right chainstay? Do you go by a set range of mm/inches btw cog and frame or do you just go by the chain line?




sortieavelo is offline
Old 08-20-21, 05:45 PM
  #2
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 21,210

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3233 Post(s)
Liked 1,374 Times in 927 Posts

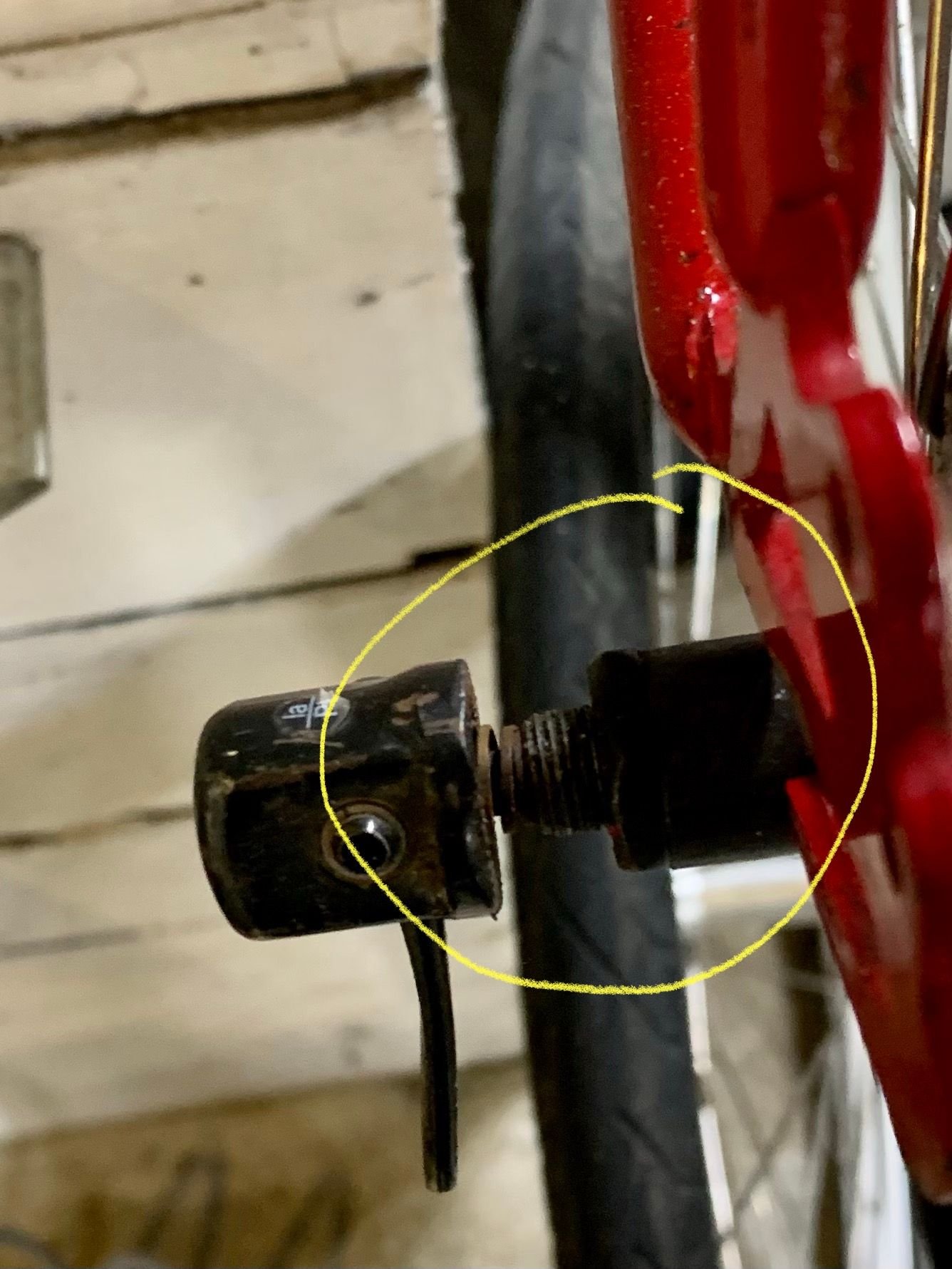

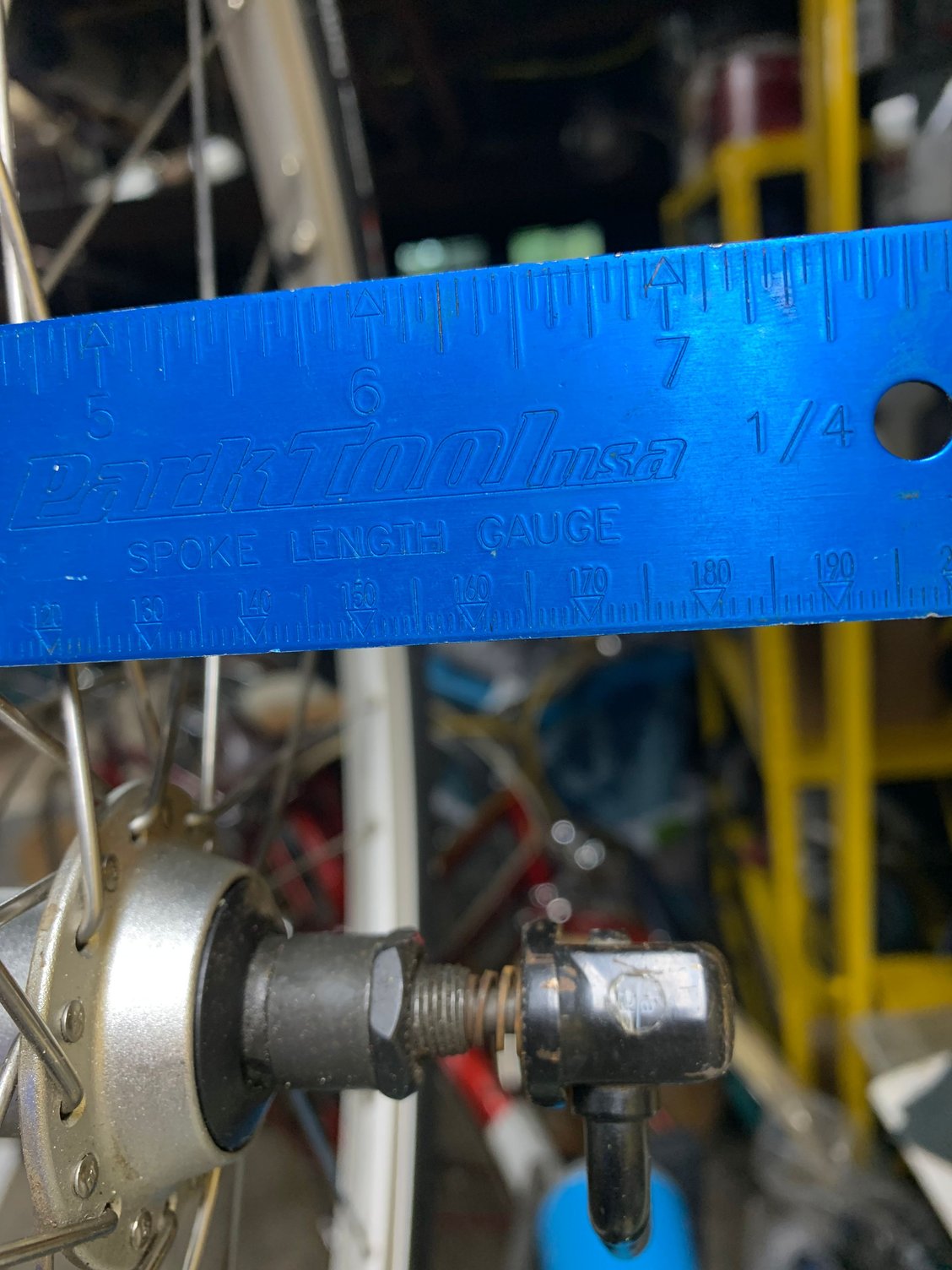

If it were my bike, I would not respace the frame at all. I would remove that big honkin' spacer on the left side of the hub, trim that amount off the axle, and re-dish the wheel so that it will fit in the bike with a minimum of effort. The cassette will overhang the end of the freehub body, so you need a couple mm of locknut sticking out...

Unless you're mountain biking, 7-speed *should* be 126mm in my book.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498

Last edited by ThermionicScott; 08-20-21 at 05:50 PM.
ThermionicScott is offline
Likes For ThermionicScott:
Old 08-20-21, 05:57 PM
  #3
icemilkcoffee
Senior Member

Join Date: Aug 2009
Posts: 871
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 502 Post(s)
Liked 366 Times in 228 Posts
If you just want to go to 7 speed, there is no need to mess with the frame. Just swap to a 7 speed HG hub. The RSX, RX100, 105 and 600 groups all had 7 speed HG hubs in 126mm width. Another option is to buy a 7 speed freehub body and swap it onto your existing hub.

Another way is to take the original freewheel hub that came with the bike, and swap a 7 speed freewheel on there. You might have to reshim the hub to the left though.
icemilkcoffee is offline
Likes For icemilkcoffee:
Old 08-20-21, 08:19 PM
  #4
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO and Tucson, AZ
Posts: 2,260

Bikes: 2016 Fuji Tread, 1983 Trek 520

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 487 Post(s)
Liked 255 Times in 183 Posts
I found an old Trek 620 frame with a 5 speed Helicomatic hub, and 126 mm spacing. I also found an old 7-speed freewheel hub with 126 mm spacing. Good, easy match.
andrewclaus is offline
Likes For andrewclaus:
Old 08-20-21, 09:44 PM
  #5
SurferRosa
Seor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,834

Bikes: Old school lightweights

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1987 Post(s)
Liked 2,337 Times in 1,271 Posts
Originally Posted by ThermionicScott View Post
Remove that big honkin' spacer on the nds. Hacksaw the axle. Re-dish the wheel.
^ This!

And hope your spokes are long enough/not too long, 'cause that's a huge spacer.
SurferRosa is online now
Likes For SurferRosa:
Old 08-22-21, 02:18 PM
  #6
sortieavelo
Member
Thread Starter

sortieavelo's Avatar

Join Date: Jun 2020
Location: Boston
Posts: 40

Bikes: A-D Superleicht; Colnago Strada, 1985 Trek 460, Ibis and Giant MTB..

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 2 Times in 2 Posts
thank you. Is the 126mm spacing measured from outside of R hub to outside of L hub?



Originally Posted by andrewclaus View Post
I found an old Trek 620 frame with a 5 speed Helicomatic hub, and 126 mm spacing. I also found an old 7-speed freewheel hub with 126 mm spacing. Good, easy match.
sortieavelo is offline
Old 08-22-21, 03:05 PM
  #7
SurferRosa
Seor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,834

Bikes: Old school lightweights

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1987 Post(s)
Liked 2,337 Times in 1,271 Posts
Originally Posted by sortieavelo View Post
Is the 126mm spacing measured from outside of R hub to outside of L hub?
Sheldon is your go-to on hub spacing (o.l.d.) and most all things basic or vintage:

https://www.sheldonbrown.com/frame-spacing.html
SurferRosa is online now
Likes For SurferRosa:
Old 08-22-21, 04:05 PM
  #8
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,411

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3084 Post(s)
Liked 1,508 Times in 1,027 Posts
I have a different view. I would respace the frame to the likely 135 that the new hub has. This way the wheel dish won't become way steep. Or in other words the spoke tension difference between the two sides of the new wheel will remain less then if the spacer is removed and the RH spokes need further tightening to shift over the rim into the "new dished: centering. Of course this assumes that the OP knows how to respace the frame so the rear end is still centered and the drop outs remain parallel to each other. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 08-22-21, 04:51 PM
  #9
sortieavelo
Member
Thread Starter

sortieavelo's Avatar

Join Date: Jun 2020
Location: Boston
Posts: 40

Bikes: A-D Superleicht; Colnago Strada, 1985 Trek 460, Ibis and Giant MTB..

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 2 Times in 2 Posts
Originally Posted by SurferRosa View Post
Sheldon is your go-to on hub spacing (o.l.d.) and most all things basic or vintage:

https://www.sheldonbrown.com/frame-spacing.html
that was SUPER helpful. Thank you. Now I need one of those calipers w the long arms!
sortieavelo is offline
Old 08-22-21, 05:26 PM
  #10
SurferRosa
Seor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,834

Bikes: Old school lightweights

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1987 Post(s)
Liked 2,337 Times in 1,271 Posts
Originally Posted by sortieavelo View Post
Now I need one of those calipers w the long arms!
Those are good tools to have on hand. My super cheap one from eBay (under $4) works great. However, you can usually measure the o.l.d just by using a table top, metric ruler, sheet of paper, and a pencil. Or put the hub in your rear dropouts and compare those two measurements (o.l.d and frame) using the ruler. If the hub is in a wheel it can be a little more tricky.
SurferRosa is online now
