Stuck seat post question

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Stuck seat post question

Old 08-31-21, 10:15 PM
  #1
Nishiki89
Junior Member
Thread Starter

Join Date: Jul 2021
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 9 Times in 3 Posts
Stuck seat post question

I picked up a vintage Schwann Le Tour for $30 for the purpose of converting to a gravel/commuter/beater/kid hauler. Itís got a badly stuck seat post, go figure. Itís an aluminum post in a steel seat tube. Iíve failed to remove it by twisting or hammering, and Iíve started to saw it to no avail (it cuts but seat post walls a extremely thick and this hasnít allowed me to roll it out). Iím slowly (and cautiously) coming around to the idea of using lye. My question is, is it essential to remove the bottom bracket?

I ask because Iím not sure if there are any non-steel materials in the bottom bracket that would be exposed if I poured lye down the seat tube. Note, there are no water bottle mounts on the seat tube, so that is not an option. If I leave the bottom bracket in there will it be damaged by lye?
Nishiki89 is offline
Old 08-31-21, 11:09 PM
  #2
zandoval
Senior Member

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 3,349

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 531 Post(s)
Liked 805 Times in 526 Posts
Assuming you have been trying different methods but to no avail. Before going to lye you should try CRC Freeze-off. Or try Liquid Air used for cleaning key boards only hold the can upside down to spray the post with Trifloroethaine.
__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Likes For zandoval:
Old 09-01-21, 06:51 AM
  #3
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO and Tucson, AZ
Posts: 2,564

Bikes: 2016 Fuji Tread, 1983 Trek 520

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 584 Post(s)
Liked 452 Times in 304 Posts
I can't imagine going through the lye process and not cleaning out the BB afterwards, so I'd remove it.
andrewclaus is offline
Likes For andrewclaus:
Old 09-01-21, 07:08 AM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,621

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Srewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3589 Post(s)
Liked 2,468 Times in 1,561 Posts
Most likely the BB shell is open to the seat tube, vented with a hole or the lug socket. So either the vent has to be plugged to keep the lye from just draining out or the frame will need to be dunked into a container of lye upside down.

I agree with andrewclaus in wanting to clean and grease the BB, even if no lye was used the BB will benefit from servicing. To answer the narrow question- it's likely that the BB is only steel and maybe some plastic. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 09-01-21, 09:24 AM
  #5
Canker
Senior Member

Join Date: Aug 2005
Posts: 1,589
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 270 Post(s)
Liked 123 Times in 75 Posts
Well when I did it I had to pour through the BB so yeah I removed it.
Canker is offline
Likes For Canker:
Old 09-01-21, 04:26 PM
  #6
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 2,007

Bikes: Schwinn Paramounts, Othon Ochsner, Masi, Faggin

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 838 Post(s)
Liked 906 Times in 615 Posts
Try using the 50/50 acetone and atf mix and let it sit upside down for a few days. The mix normally allows a post to come loose. Smiles, MH
Mad Honk is offline
Likes For Mad Honk:
Old 09-02-21, 09:10 AM
  #7
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,491
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 794 Post(s)
Liked 937 Times in 564 Posts
I would use a sawsall and just carefully cut parallel to the seattube, use a "wood" blade if you can. A couple of things will happen, the blade sounds different on the steel and you will get a puff of a galvanic corrosion. If the post is real thick I'll make two cuts. At that point you can probably snap the grove cut and pull or fashion a slide hammer to help break the bond. I'm sure that you have been using a PB Blaster already.

My last stuck seat post was 8" of insert, I had to buy really long blades for the sawsall. I cut two grooves one all the way through, and made a slide hammer from threaded rod a 1/2" socket and nut to hold the socket on the rod.
Mr. 66 is offline
Likes For Mr. 66:
Old 09-02-21, 06:45 PM
  #8
cyclezen
OM boy

cyclezen's Avatar

Join Date: Jul 2005
Location: Goleta CA
Posts: 4,123

Bikes: a bunch

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 422 Post(s)
Liked 485 Times in 336 Posts
I've had some success on this kinda thing, by:
1. remove BB
2. Put bike frame upside down
3. Spray liquid wrench down the sides of the seat tube - that assuming that the seat tube is accessible from BB - I don;t know anything about Schwinn LeTour...
4. don;t overdo the Liq Wrench, make sure it goes onto the tube walls, spray enough for it to migrate all the way down.
5. Let stand for a day, upside down.
6. Next day, apply Liquid Wrench again - a lot of the first application will not reach all the way down and will coat the entire tube walls - but best is slow migration, so you don;t have it go past the post/seattube interface.
7. get hands on as large pair of visegrips as you can, get a 'lever'/breakerbar to attach to adjustment end of visegrips - gaspipe works a charm
8. secure frame in some fashion, upside down, grip the seat post with visegrips,
9. start trying to rotate the seat post, if you break it loose, work it a bit... then do the Liq Wrench application again , let stand overnight again
10, repeat until the seatpost spins easy enough to start a downward rotating extraction... Frame is still upside down.
Patience counts...
best of luck
Yuri
cyclezen is offline
Old 09-02-21, 07:23 PM
  #9
cyrano138
Senior Member

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 575

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 53 Times in 32 Posts
Originally Posted by Mr. 66 View Post
I would use a sawsall and just carefully cut parallel to the seattube, use a "wood" blade if you can. A couple of things will happen, the blade sounds different on the steel and you will get a puff of a galvanic corrosion. If the post is real thick I'll make two cuts. At that point you can probably snap the grove cut and pull or fashion a slide hammer to help break the bond. I'm sure that you have been using a PB Blaster already.

My last stuck seat post was 8" of insert, I had to buy really long blades for the sawsall. I cut two grooves one all the way through, and made a slide hammer from threaded rod a 1/2" socket and nut to hold the socket on the rod.
What if we don't have a sawzall? Does anybody know of a jab saw type of tool that would hold a hacksaw blade? I have a stock seat post and a Fuji frame that has about six or eight inches of post inserted. I've tried ammonia, PB blaster ,and a 24 inch pipe wrench. No luck so far.
cyrano138 is offline
Old 09-03-21, 06:34 AM
  #10
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,219

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2215 Post(s)
Liked 2,294 Times in 1,417 Posts
Originally Posted by cyrano138 View Post
What if we don't have a sawzall? Does anybody know of a jab saw type of tool that would hold a hacksaw blade? .
A bare blade wrapped in electric tape on one end for a handle. Or something like this.

​​​​​​https://www.amazon.com/12-Inch-Bi-Me.../dp/B07GSK5JKX
dedhed is offline
Old 09-03-21, 07:47 AM
  #11
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,491
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 794 Post(s)
Liked 937 Times in 564 Posts
A sheet rock saw could do the trick.

Harbor Freight has very cheap power tools if you want to spend low. I'm not a big fan of Harbor Freight but they probably have a sawzall type for under $30. That's where I got my long blades for my last extraction.
Mr. 66 is offline
Old 09-03-21, 08:09 AM
  #12
Jeff Neese
Senior Member

Join Date: Jul 2014
Posts: 747
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 404 Post(s)
Liked 275 Times in 185 Posts
If you don't remove the BB, how are you going to pour the lye into the seat tube?

In any case, that's an extreme measure. A lot of people have good luck with PB Blaster, and as you're reading there are other products and techniques. Lye would be a last resort. And that's a dangerous process - it generates a lot of very toxic fumes.
Jeff Neese is offline
Old 09-03-21, 08:13 AM
  #13
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,110
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 656 Times in 498 Posts
Cutting would be a last resort IMO but if it has to be done there are some that have attached a bow type of spring that goes the length of a bare hacksaw blade. I searched for photos but couldn't find any but I know some previous posters in other threads have included photos. The idea is that the bow provides the pressure against the blade leaving you with only having to draw the blade up and down against the seatpost. Makes the job faster and less tedious.

Last edited by Crankycrank; 09-03-21 at 08:38 AM.
Crankycrank is offline
Old 09-03-21, 08:26 AM
  #14
cyrano138
Senior Member

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 575

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 53 Times in 32 Posts
Originally Posted by dedhed View Post
A bare blade wrapped in electric tape on one end for a handle. Or something like this.

​​​​​​https://www.amazon.com/12-Inch-Bi-Me.../dp/B07GSK5JKX
That's exactly what I was looking for, thanks. I hope the blade length is adjustable because I believe there's a bit more than six inches of seat post in there.
I'm not super invested in this particular frame but I'd like to give it a shot. It's an old Fuji Monterey I was going to convert to a fixed gear for my wife, but the paint is so bad that even if I get the seat post out I'll need to have it sandblasted or stripped somehow and repainted.
Thank you!
cyrano138 is offline
Old 09-06-21, 05:21 PM
  #15
cyrano138
Senior Member

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 575

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 53 Times in 32 Posts

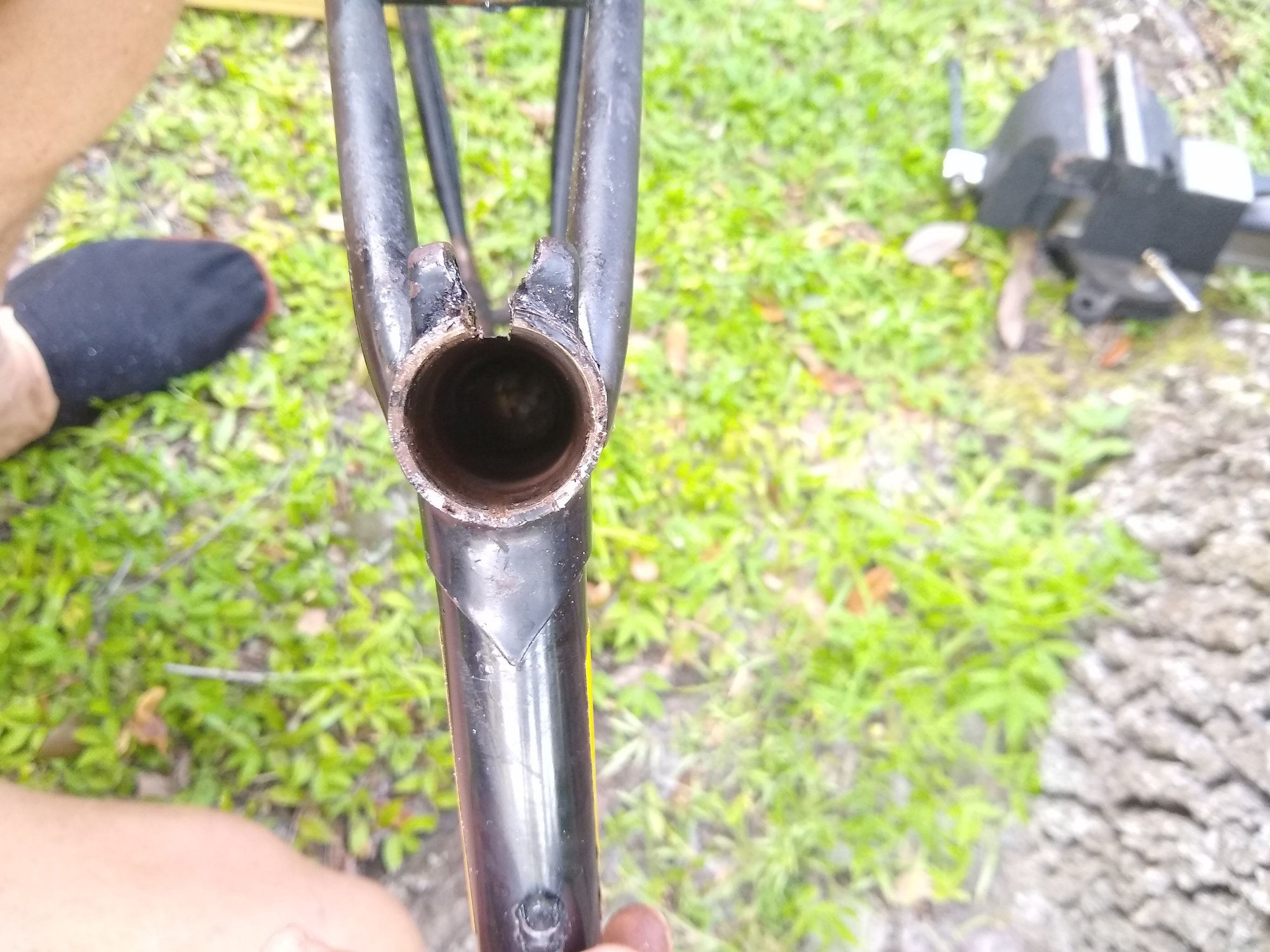

Well, I got it. I used a lot of things but ultimately wound up buying kind of a hand saw that would fit down the tube and cutting and that worked pretty well. What got it loose in the end was putting it in a bench vise, cranking down as hard as I possibly could to tighten it, and then turning the frame.

Here's the weird thing though. It's a 27 mm seat post, they opening of the seat tube seems to be 27 mm, there was pretty minimal corrosion (though I don't have a frame of reference since this is my first stuck seat post removal), and it had grease on it. So why the heck was it stuck?

I guess it's possible the opening of the seat tube has been spread apart a little bit and this is like a 26.8 mm seat post or something like that. Does anybody happen to know what the Fuji Monterey with the valite 414 tubing seat post size is? 🤓


Last edited by cyrano138; 09-06-21 at 05:31 PM.
cyrano138 is offline
Likes For cyrano138:
Old 09-06-21, 08:16 PM
  #16
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 21,026

Bikes: old ones

Mentioned: 293 Post(s)
Tagged: 0 Thread(s)
Quoted: 23871 Post(s)
Liked 7,550 Times in 5,336 Posts
.
....first, that's not pretty minimal corrosion. And I've removed a fair number of stuck posts over at the co-op.
Second, the only sure way to get the right sized post in there is to clean out the frame's seat tube, for at least the top foot or so, using some kind of brake cylinder hone or sanding it with abrasive paper wrapped around a form ( you can use some sort of pipe, or a smaller seat post than needed works well...you tape the abrasive paper on one end, and then roll it on. only sand in the direction that pulls the paper tighter. Then grease up you candidate posts and insert until you feel like you have a nice tight sliding fit.

In your case, I would guess your candidates are 26.8 and 27.0, but I 'm not there in the room. If you need to choose between a tight 27.0 and a loose 26,8, sand down the 27.0 one until it feels like the insertion portion slides well agains the sides of the seat tube.
3alarmer is offline
Old 09-06-21, 09:19 PM
  #17
cyrano138
Senior Member

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 575

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 53 Times in 32 Posts
Originally Posted by 3alarmer View Post
.
....first, that's not pretty minimal corrosion. And I've removed a fair number of stuck posts over at the co-op.
Second, the only sure way to get the right sized post in there is to clean out the frame's seat tube, for at least the top foot or so, using some kind of brake cylinder hone or sanding it with abrasive paper wrapped around a form ( you can use some sort of pipe, or a smaller seat post than needed works well...you tape the abrasive paper on one end, and then roll it on. only sand in the direction that pulls the paper tighter. Then grease up you candidate posts and insert until you feel like you have a nice tight sliding fit.

In your case, I would guess your candidates are 26.8 and 27.0, but I 'm not there in the room. If you need to choose between a tight 27.0 and a loose 26,8, sand down the 27.0 one until it feels like the insertion portion slides well agains the sides of the seat tube.
Good advice, thank you! I will get on it.
cyrano138 is offline
Old 09-07-21, 08:07 AM
  #18
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,110
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 656 Times in 498 Posts
I recommend taking it to a shop and getting the ST reamed properly. Ask if they think going to a 27.2 size is OK as there are far more seatpost choices available in that size. Even if you keep it at 27.0 at least you'll know it's the correct diameter, will be perfectly round and the same diameter for the length of seatpost to fit into.
Crankycrank is offline
Old 09-07-21, 11:35 AM
  #19
cyrano138
Senior Member

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 575

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 53 Times in 32 Posts
Originally Posted by Crankycrank View Post
I recommend taking it to a shop and getting the ST reamed properly. Ask if they think going to a 27.2 size is OK as there are far more seatpost choices available in that size. Even if you keep it at 27.0 at least you'll know it's the correct diameter, will be perfectly round and the same diameter for the length of seatpost to fit into.
Worth a shot to see if any of the shops around me do this. There aren't a lot of great ones. Thank you.
cyrano138 is offline
Old 09-07-21, 11:45 AM
  #20
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 21,026

Bikes: old ones

Mentioned: 293 Post(s)
Tagged: 0 Thread(s)
Quoted: 23871 Post(s)
Liked 7,550 Times in 5,336 Posts
Originally Posted by cyrano138 View Post
Worth a shot to see if any of the shops around me do this. There aren't a lot of great ones. Thank you.
...you can buy a reamer on Amazon, and do it yourself, but it's more adventurous than the finer abrasive methods I mentioned.
Done correctly, it does produce a superior result, but I had the impression you were doing this on a budget.

3alarmer is offline
Old 09-07-21, 11:54 AM
  #21
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,219

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2215 Post(s)
Liked 2,294 Times in 1,417 Posts
Originally Posted by 3alarmer View Post
.Second, the only sure way to get the right sized post in there is to clean out the frame's seat tube, for at least the top foot or so, using some kind of brake cylinder hone or sanding it with abrasive paper wrapped around a form ( you can use some sort of pipe, or a smaller seat post than needed works well...you tape the abrasive paper on one end, and then roll it on. only sand in the direction that pulls the paper tighter. .
https://www.woodcraft.com/blog_entri...ni-drum-sander
dedhed is offline
Likes For dedhed:
Old 09-07-21, 11:58 AM
  #22
cyrano138
Senior Member

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 575

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 53 Times in 32 Posts
Originally Posted by 3alarmer View Post
...you can buy a reamer on Amazon, and do it yourself, but it's more adventurous than the finer abrasive methods I mentioned.
Done correctly, it does produce a superior result, but I had the impression you were doing this on a budget.

The limiting factor here is more the cost-benefit ratio than the cost alone. It's a beat up valite frame from an entry level fuji. I'm sure it'll ride well enough, but I'm not sure if it wouldn't be easier to find a frame in better shape. I don't mind buying tools, but I try not to buy stuff I'm only going to use once. I think after my experience with this stuck seat post if I ever come across one again I'll probably just walk away from that bike rather than buy it.
cyrano138 is offline
Likes For cyrano138:
Old 09-07-21, 01:19 PM
  #23
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 21,026

Bikes: old ones

Mentioned: 293 Post(s)
Tagged: 0 Thread(s)
Quoted: 23871 Post(s)
Liked 7,550 Times in 5,336 Posts
.
...I had pretty good luck with freeing them for people at the co-op, using ATF/acetone, and the bench vise/twisting the frame method that was finally successful for you. But I do remember one that was resistant to all my urging, and another one that gave way while ripping the top of the seat tube, right at the expansion slot. So I tend to check pretty carefully, before I invest in a bike with either a stuck stem or a stuck post. It's always a PIA, and on a small minority of frames, the cure kills them.

If you know you're gonna repaint the frame, there are very few stuck things that won't torch loose, but the original paint usually suffers.
3alarmer is offline
Old 09-07-21, 09:45 PM
  #24
cyrano138
Senior Member

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 575

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 53 Times in 32 Posts
Originally Posted by 3alarmer View Post
.
...I had pretty good luck with freeing them for people at the co-op, using ATF/acetone, and the bench vise/twisting the frame method that was finally successful for you. But I do remember one that was resistant to all my urging, and another one that gave way while ripping the top of the seat tube, right at the expansion slot. So I tend to check pretty carefully, before I invest in a bike with either a stuck stem or a stuck post. It's always a PIA, and on a small minority of frames, the cure kills them.

If you know you're gonna repaint the frame, there are very few stuck things that won't torch loose, but the original paint usually suffers.
I appreciate that. I don't flip bikes or have a business or anything, and I know well enough how to put a seat post in my own bikes so that it will never get stuck..

I didn't try acetone. Just ammonia, liquid wrench, PB blaster, drilling, hammering, pounding, cursing, a few brief tantrums, hacksawing, and finally a bench vice.
cyrano138 is offline
Likes For cyrano138:
Old 09-07-21, 11:11 PM
  #25
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 21,026

Bikes: old ones

Mentioned: 293 Post(s)
Tagged: 0 Thread(s)
Quoted: 23871 Post(s)
Liked 7,550 Times in 5,336 Posts
.
...it's a 50/50 mix of acetone and automatic trans fluid. You mix it up in small amounts, in some kind of small acetone resistant plastic bottle like an old Tri Flow bottle, with an application straw on the end to drip it where you want a penetrating oil. It's the best thing for taking apart old stuck stuff, like bicycles that have been together for a long time. Very useful for dismantling things without wrecking the parts beyond re-use.
3alarmer is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
