Are my 3 speed cottered cranks bent?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Are my 3 speed cottered cranks bent?

Old 09-04-21, 04:07 PM
  #1
univega.duder
Senior Member
Thread Starter

Join Date: Aug 2014
Posts: 55
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 3 Times in 3 Posts
Are my 3 speed cottered cranks bent?

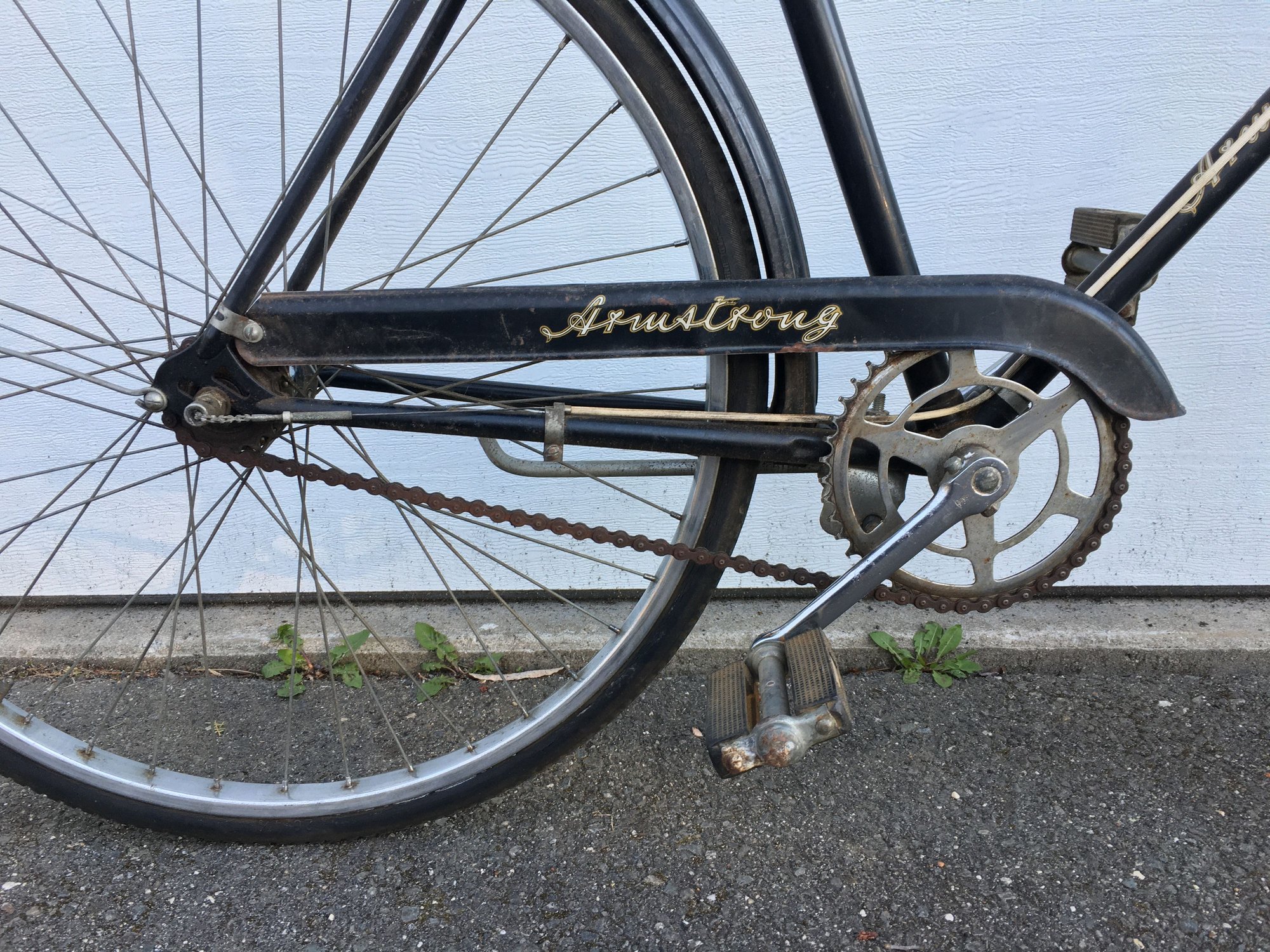

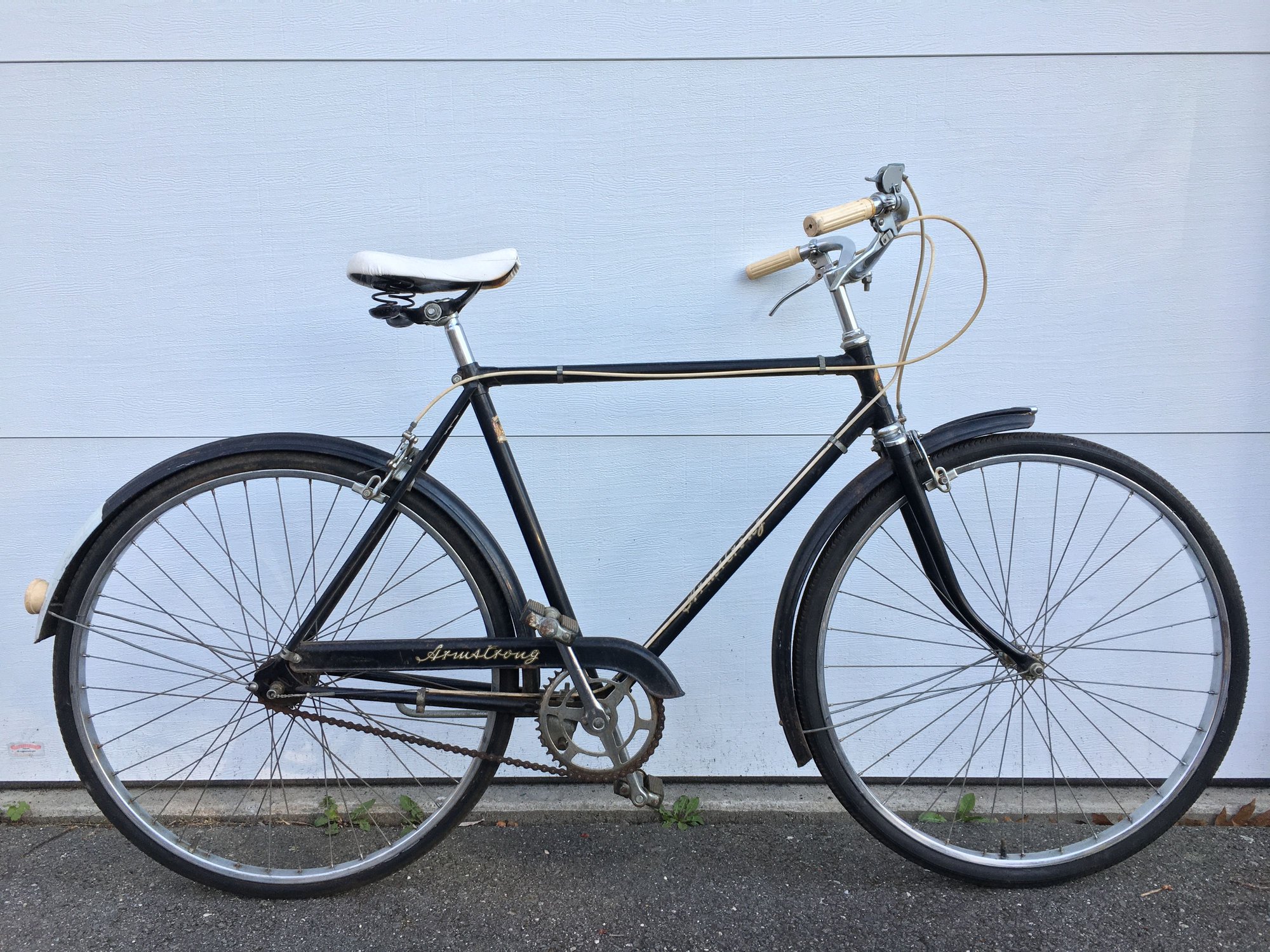

I've noticed an odd lopsided feeling when I pedal my Armstrong 3 speed. It feels almost as if the cranks are bent or the pedals are bent. Or perhaps it's something inside the bottom bracket? I'd be grateful for any thoughts or opinions. Thank you!








univega.duder is offline
Old 09-04-21, 04:25 PM
  #2
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,568
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 510 Post(s)
Liked 389 Times in 308 Posts

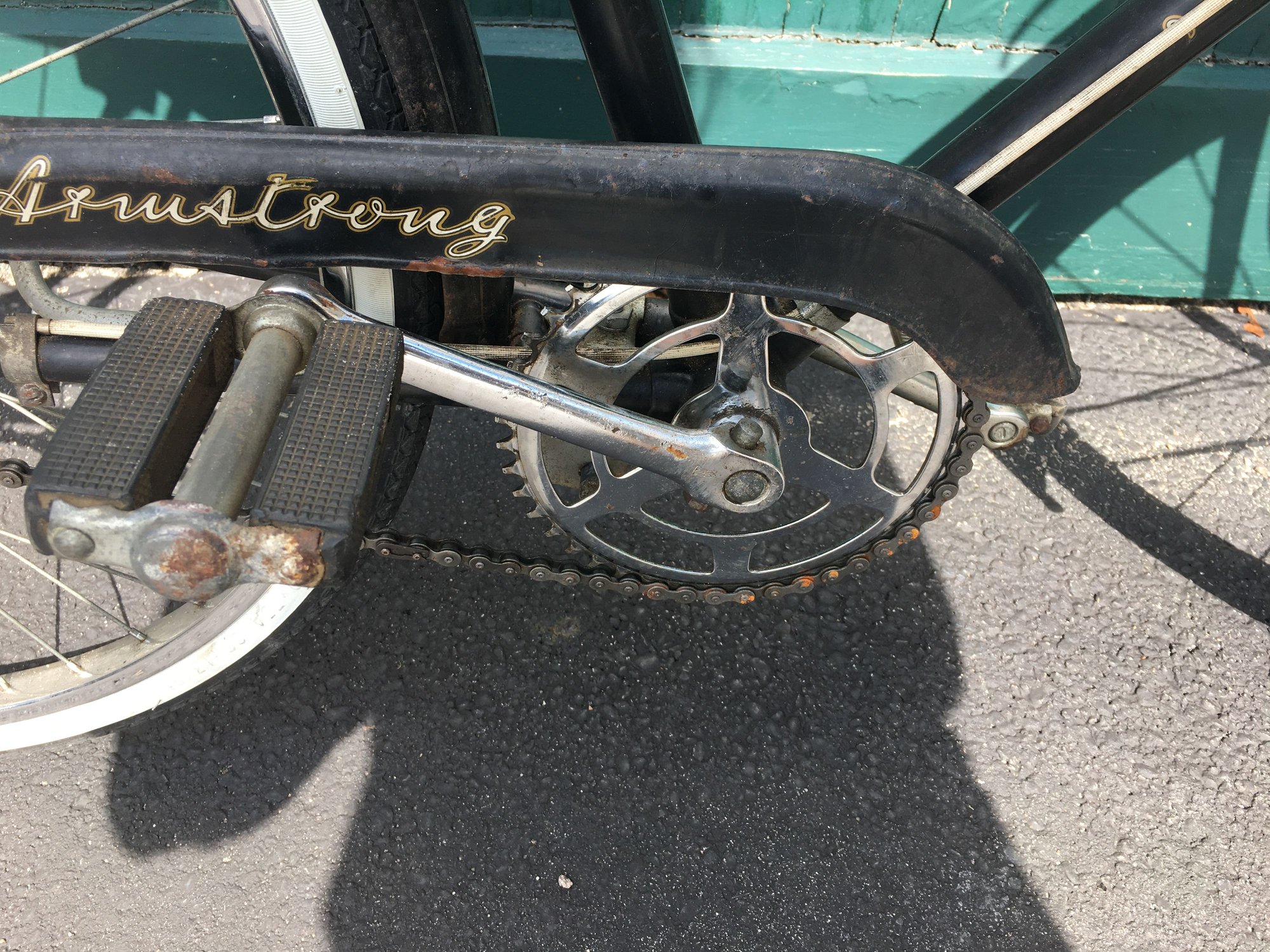

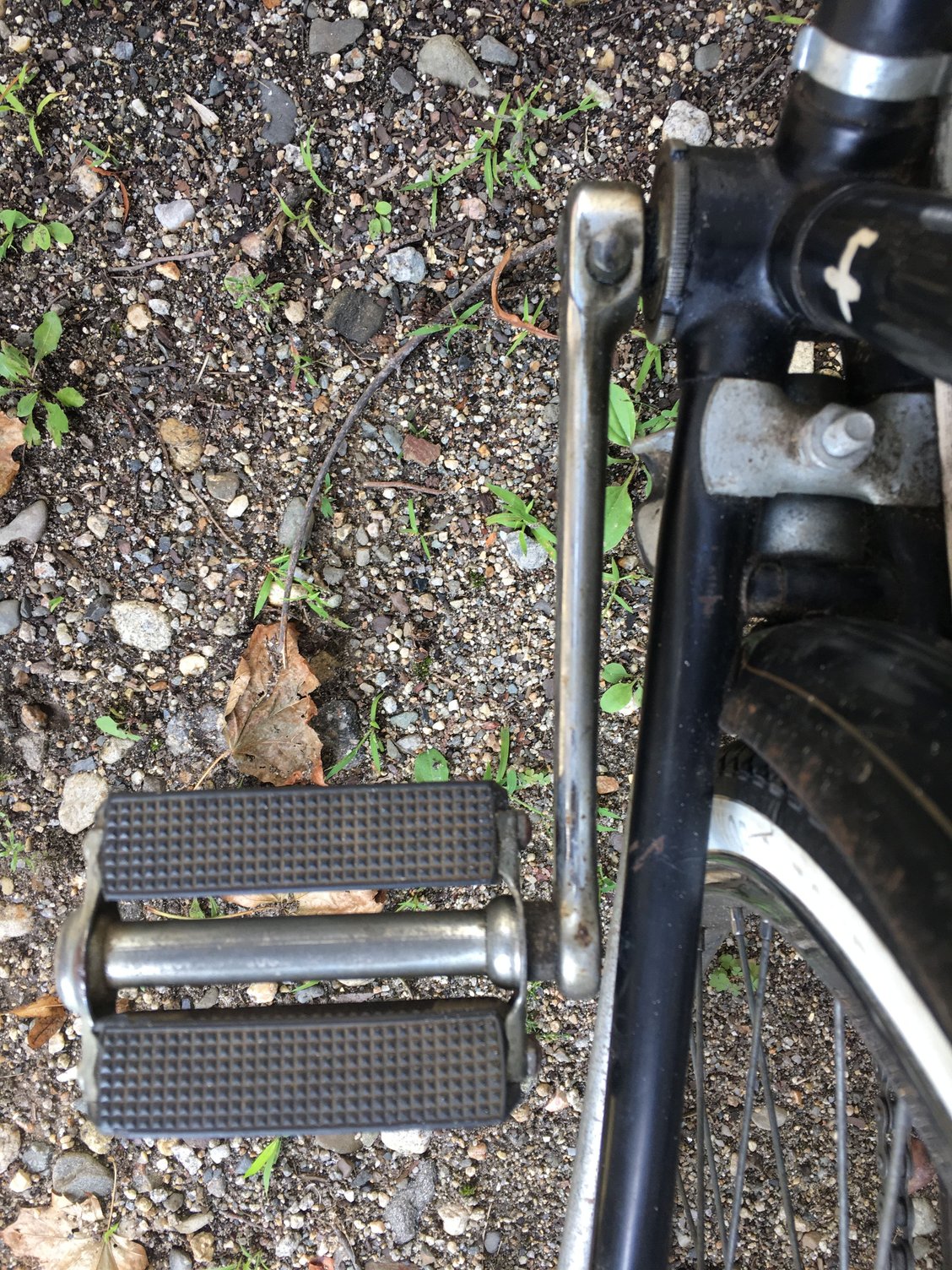

It LOOKS like the left crank is bent inwards from the angle of the pedal but always hard to tell if there is any optical distortion from photos. If so an old steel crank like that can be bent back. A good sturdy vice and a cheater bar with the crank/pedal removed will make it much easier.
