Broken Derailleur hanger twice

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Broken Derailleur hanger twice

Old 09-04-21, 06:42 PM
  #1
skloon
Junior Member
Thread Starter

Join Date: Oct 2019
Posts: 21
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Broken Derailleur hanger twice

This is on a KMX Cobra trike- the previous Sram X5 was bent and the hanger cracked- I replaced both and noticed that I was getting some skipping on 3-6 on an 8 speed- then it went and snapped the mount again, at $90 per mount I don't want to be doing this weekly- any ideas why this might be happening
skloon is offline
Old 09-04-21, 07:47 PM
  #2
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 2,336

Bikes: lots

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1092 Post(s)
Liked 1,405 Times in 785 Posts
$90.00 for a hanger?!? That's crazy. It shouldn't 'snap' all by itself, there is zero tension on it when you're pedaling. You're gonna need to provide some photos if we're going to have any idea what's happening.
cxwrench is offline
Old 09-04-21, 08:19 PM
  #3
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 8,946

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame, Ti 26 MTB

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 2503 Post(s)
Liked 1,548 Times in 1,033 Posts
Are you shifting under load (like up a hill or putting a lot of pressure on the pedals)? Are you hitting rocks or other obstacles? All of that can cause issues. Also not adjusting things properly from the derailleur to aligning the hanger will cause issues. Generally poor shifting or crashes tend to be the biggest issue in broken hangers or derailleurs but improperly adjusted derailleurs and hangers will also cause issues.

I can't imagine the hanger is $90 as the trike is hi-ten steel and cheaper components. Utah Trikes which is the website that KMX sent me to, when I clicked home, has a derailleur hanger for the KMX trikes for $19.95. Generally most decent hangers from Wheels MFG are going to be around $30-40 in a shop which is not terrible.

You might be a good candidate for a proper hanger adjustment tool and watching plenty of videos to learn how to use it properly. Park Tool makes the DAG.3, Abbey makes the HAG, Wolf Tooth makes the portable Pack Hanger Alignment Tool and there are others out there like Shimano or EVT (both quite similar as EVT helped design the Shimano tool) but get something of good quality as cheap tools are for rich folks who can buy new tools all the time or can just attempt to use the tool fail and bring it to a shop. A good tool is always worth it if it keeps you riding and makes sure everything is properly adjusted not stripped or damaged...
veganbikes is offline
Old 09-04-21, 08:43 PM
  #4
skloon
Junior Member
Thread Starter

Join Date: Oct 2019
Posts: 21
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 3 Times in 3 Posts

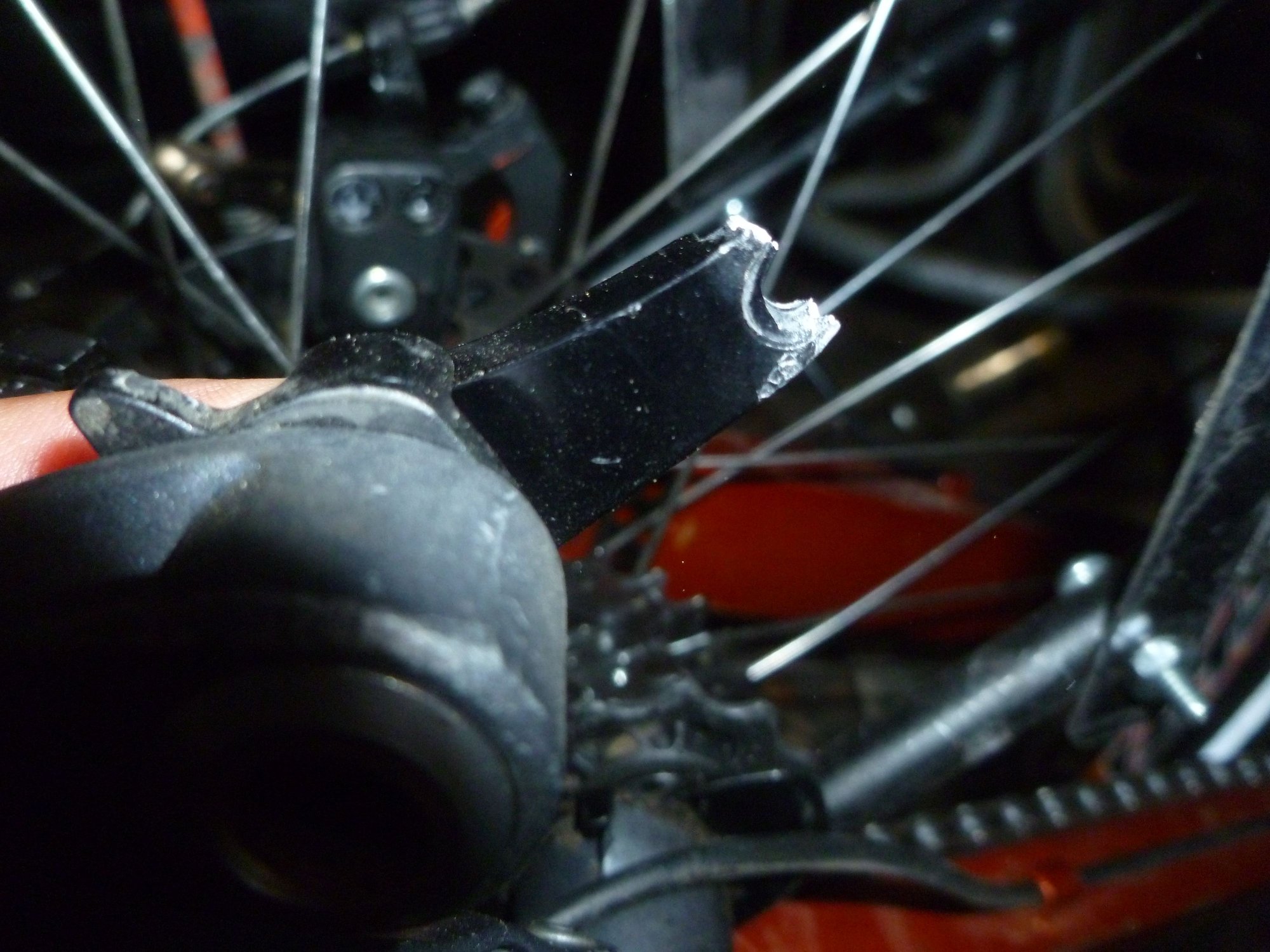

Perfectly flat ground low speed wife was riding and this bracket has 10km on in and it broke in exactly the same place a s the previous They are $30 plus $30 shipping to Canada and then the exchange- I did find them locally for$32 though but something is wrong here


skloon is offline
Old 09-04-21, 08:51 PM
  #5
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,046

Bikes: Several, mostly not name brands.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 2770 Post(s)
Liked 1,539 Times in 951 Posts
You shouldn't be breaking hanger s that often. Is the derailleur properly adjusted? Is the hanger properly aligned (even new hangers need to have alignment checked)?
JohnDThompson is offline
Old 09-04-21, 09:27 PM
  #6
Rick
Senior Member

Join Date: Feb 2007
Posts: 882
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 367 Post(s)
Likes: 0
Liked 224 Times in 148 Posts
In addition to alignment I would make sure that the chain isn't locking up the derailleur or a bad derailleur jockey wheel. It takes quite a bit of force to tear the hanger apart like that.
Rick is offline
Old 09-04-21, 10:30 PM
  #7
skloon
Junior Member
Thread Starter

Join Date: Oct 2019
Posts: 21
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
The jockey wheels are fine- I will check the chain- as it is on a tadpole trike the derailleur alignment tools won't fit it
skloon is offline
Old 09-04-21, 10:36 PM
  #8
base2
Doesn't brain good.

base2's Avatar

Join Date: Jun 2015
Location: Pacific Northwest
Posts: 1,774

Bikes: 5 good ones, and the occasional project.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 920 Post(s)
Liked 527 Times in 322 Posts
Have you paid any mind to the derailleurs capacity?
__________________
My lights are obscenly bright because drivers are dim.

I shouldn't have to "make myself more visible;" Drivers should just stop running people over.
base2 is offline
Likes For base2:
Old 09-05-21, 01:23 AM
  #9
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 678

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 190 Post(s)
Liked 113 Times in 82 Posts
How low does it sit to the ground? Any chance she is hitting it on a curb or parking stanchion ? Is there a "B" screw adjustment on the derailleur?
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is offline
Likes For JoeTBM:
Old 09-05-21, 07:03 AM
  #10
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,166

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1377 Post(s)
Liked 917 Times in 637 Posts
Is the chain long enough?
dsbrantjr is offline
Likes For dsbrantjr:
Old 09-05-21, 08:17 AM
  #11
Litespud
Senior Member

Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 1,478

Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor S/S, Nashbar 3sp commuter

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 555 Post(s)
Liked 619 Times in 346 Posts
Originally Posted by skloon View Post
This is on a KMX Cobra trike- the previous Sram X5 was bent and the hanger cracked- I replaced both and noticed that I was getting some skipping on 3-6 on an 8 speed- then it went and snapped the mount again, at $90 per mount I don't want to be doing this weekly- any ideas why this might be happening
Iím thinking too short chain. The only reason the RD hasnít failed is that the hanger has a lousy design (screw hole in the middle of the extension) and failed first (sacrificial RD hanger). Barring direct impact, the only significant force an RD will encounter is the forward pull of a too-short chain, which can pull the RD right off the frame
Litespud is offline
Old 09-05-21, 11:14 AM
  #12
skloon
Junior Member
Thread Starter

Join Date: Oct 2019
Posts: 21
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by Litespud View Post
Iím thinking too short chain. The only reason the RD hasnít failed is that the hanger has a lousy design (screw hole in the middle of the extension) and failed first (sacrificial RD hanger). Barring direct impact, the only significant force an RD will encounter is the forward pull of a too-short chain, which can pull the RD right off the frame
I did have to shorten the chain as I shortened the boom but only 4 links and that was just enough to stop the chain from slapping the boom in the front granny ring

+
skloon is offline
Likes For skloon:
Old 09-05-21, 12:37 PM
  #13
canopus
Senior Member

canopus's Avatar

Join Date: Mar 2009
Location: Kingwood, TX
Posts: 1,540

Bikes: Road, Touring, BMX, Cruisers...

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked 142 Times in 89 Posts
That is a poor design for a hanger... With the bolt through the highest stress point. That being said. What is up with your chain? Two different chains? What is the width on them and is it catching in the cage or jockey and ripping the RD during a shift?
I would place it in stand and run through the gears and shift it around (after a new cage is installed), rough, nice, fast, slow, (Try and shift the worst way you have on the road) to see if it is catching something and pulling the derailleur away. Measure the chain and the cage to make sure it is within spec and replace the chain if it isn't.
__________________
1984 Cannondale ST
1985 Cannondale SR300
1980 Gary Littlejohn Cruiser
1984 Trek 760
1981 Trek 710
Pics
canopus is offline
Old 09-05-21, 02:04 PM
  #14
skloon
Junior Member
Thread Starter

Join Date: Oct 2019
Posts: 21
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
I will try that- it is the original chain but is made up of two or three to get the length needed
skloon is offline
