Shimano canti question

Old 09-26-21, 08:01 PM
  #1
Lbxpdx
Senior Member
Thread Starter

Join Date: Oct 2020
Location: Portland
Posts: 171
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Likes: 0
Liked 69 Times in 33 Posts
Shimano canti question

Iím putting the brakes back on, Shimano BR650 if I recall, and there are silver and gold springs. Gold on the left side, silver on the right?

Secondly, is the drive side the right side? I get confused as to whether the left side is when you are sitting on it or facing it.

and which way do the plastic backers point, up or down?
Lbxpdx is offline
Old 09-26-21, 08:49 PM
  #2
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 2,335

Bikes: lots

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1091 Post(s)
Liked 1,403 Times in 783 Posts
I can't remember the answers to your canti questions but obviously the DS is the right side of the bike as you're riding it.
cxwrench is offline
Old 09-26-21, 10:46 PM
  #3
Lbxpdx
Senior Member
Thread Starter

Join Date: Oct 2020
Location: Portland
Posts: 171
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Likes: 0
Liked 69 Times in 33 Posts
I think I figured it out. The black plastic spring keepers have an R and an L on them. I foolishly assumed that the L side was the left side of the bike and the R side was the right. I now realize the L and the R are for when you are looking at the brakes head on. I had the L keepers on the non-drive side and the R keepers on the drive side.

this is only my second time rebuilding(cleaning and lubricating) cantis.
Lbxpdx is offline
Old 09-27-21, 02:40 PM
  #4
AeroGut
Senior Member

Join Date: Jun 2019
Posts: 585
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 216 Post(s)
Likes: 0
Liked 133 Times in 107 Posts
I'm guessing you actually have BR-R550 brakes? I don't think there was a 650, as they went to the CX numbers after 550 (I think?). Manual for the 550 is here
AeroGut is offline
Old 09-27-21, 04:39 PM
  #5
Lbxpdx
Senior Member
Thread Starter

Join Date: Oct 2020
Location: Portland
Posts: 171
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Likes: 0
Liked 69 Times in 33 Posts
Originally Posted by AeroGut View Post
I'm guessing you actually have BR-R550 brakes? I don't think there was a 650, as they went to the CX numbers after 550 (I think?). Manual for the 550 is here



I went to a local bike coop to pickup an A72 Shimano brake straddle cable and ended up buying another full set of brakes for $16 with cables. They wanted $3 for just the straddle cable which I also bought.

Last edited by Lbxpdx; 09-27-21 at 04:45 PM.
Lbxpdx is offline
Old 09-27-21, 04:44 PM
  #6
AeroGut
Senior Member

Join Date: Jun 2019
Posts: 585
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 216 Post(s)
Likes: 0
Liked 133 Times in 107 Posts
Originally Posted by Lbxpdx View Post
sorry. For some reason my brain was thinking road group not mountain. Here' the link for those with the exploded diagram of how to put them together.
AeroGut is offline
Old 09-27-21, 07:12 PM
  #7
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 2,335

Bikes: lots

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1091 Post(s)
Liked 1,403 Times in 783 Posts
Originally Posted by Lbxpdx View Post
I think I figured it out. The black plastic spring keepers have an R and an L on them. I foolishly assumed that the L side was the left side of the bike and the R side was the right. I now realize the L and the R are for when you are looking at the brakes head on. I had the L keepers on the non-drive side and the R keepers on the drive side.

this is only my second time rebuilding(cleaning and lubricating) cantis.
I'm pretty sure you've got a front mounted on the back of the bike or vice versa. Left is left and right is right.
cxwrench is offline
Old 09-27-21, 09:02 PM
  #8
Lbxpdx
Senior Member
Thread Starter

Join Date: Oct 2020
Location: Portland
Posts: 171
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Likes: 0
Liked 69 Times in 33 Posts
Originally Posted by cxwrench View Post
I'm pretty sure you've got a front mounted on the back of the bike or vice versa. Left is left and right is right.

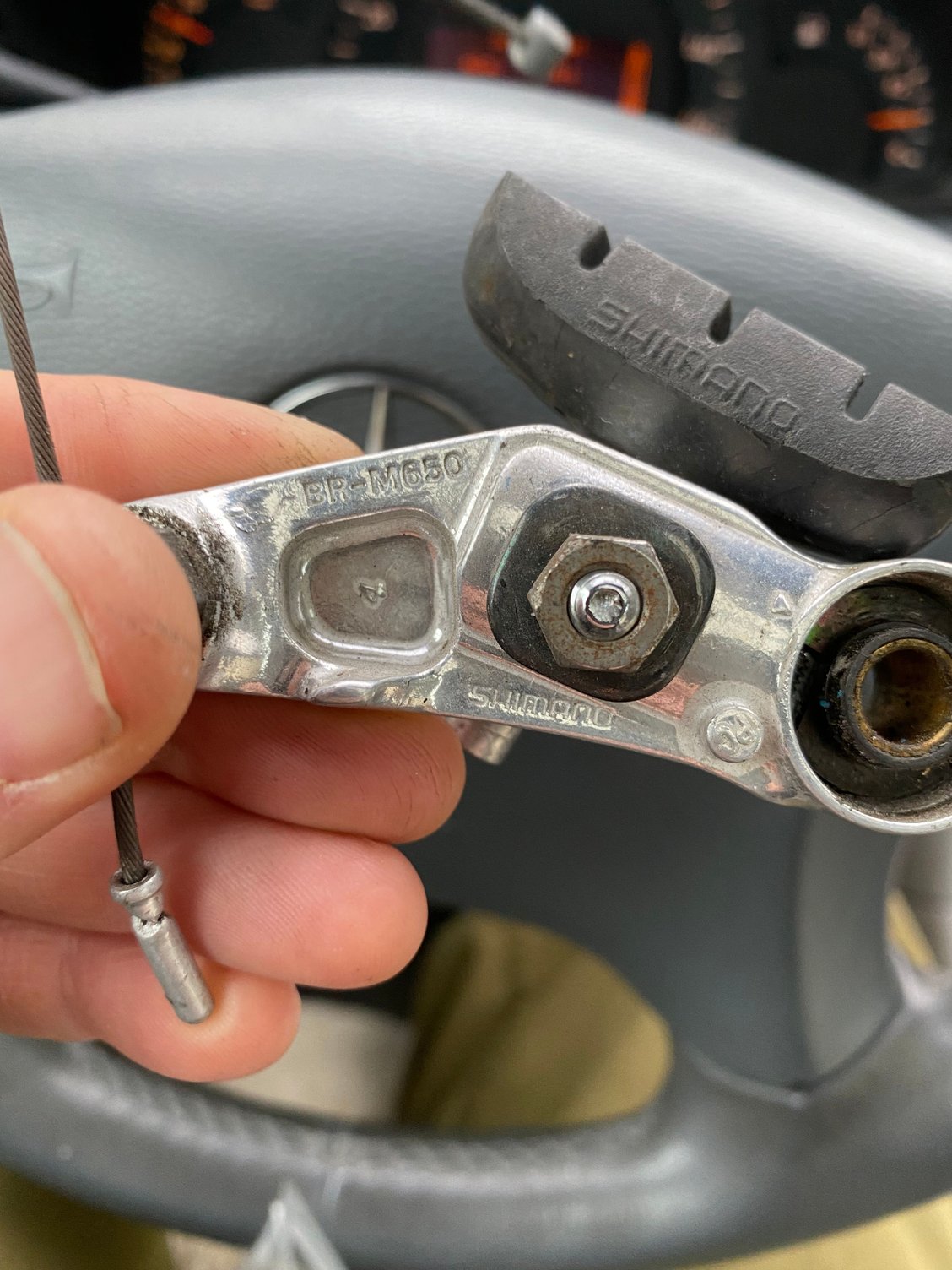

do you know which numbers are for the front? I noticed they are numbered 1-4
Lbxpdx is offline
