Is my RD bent ?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Is my RD bent ?

Old 10-11-21, 03:47 AM
  #1
dirtydozen
Senior Member
Thread Starter

Join Date: Mar 2017
Posts: 203
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
Is my RD bent ?

Hello,

The ****fing on my RD is not working well, sometimes one click down does nothing, and the next click down goes from cog 3 to cog 1 let's say, it skips a gear.
I have a triple chainring and when in the middle one (i never use the smallest one) and smaller end of the cassette it just does crazy stuff and it's unridable.
I struggle to index the RD even though it's something that usually I can do quite easily.

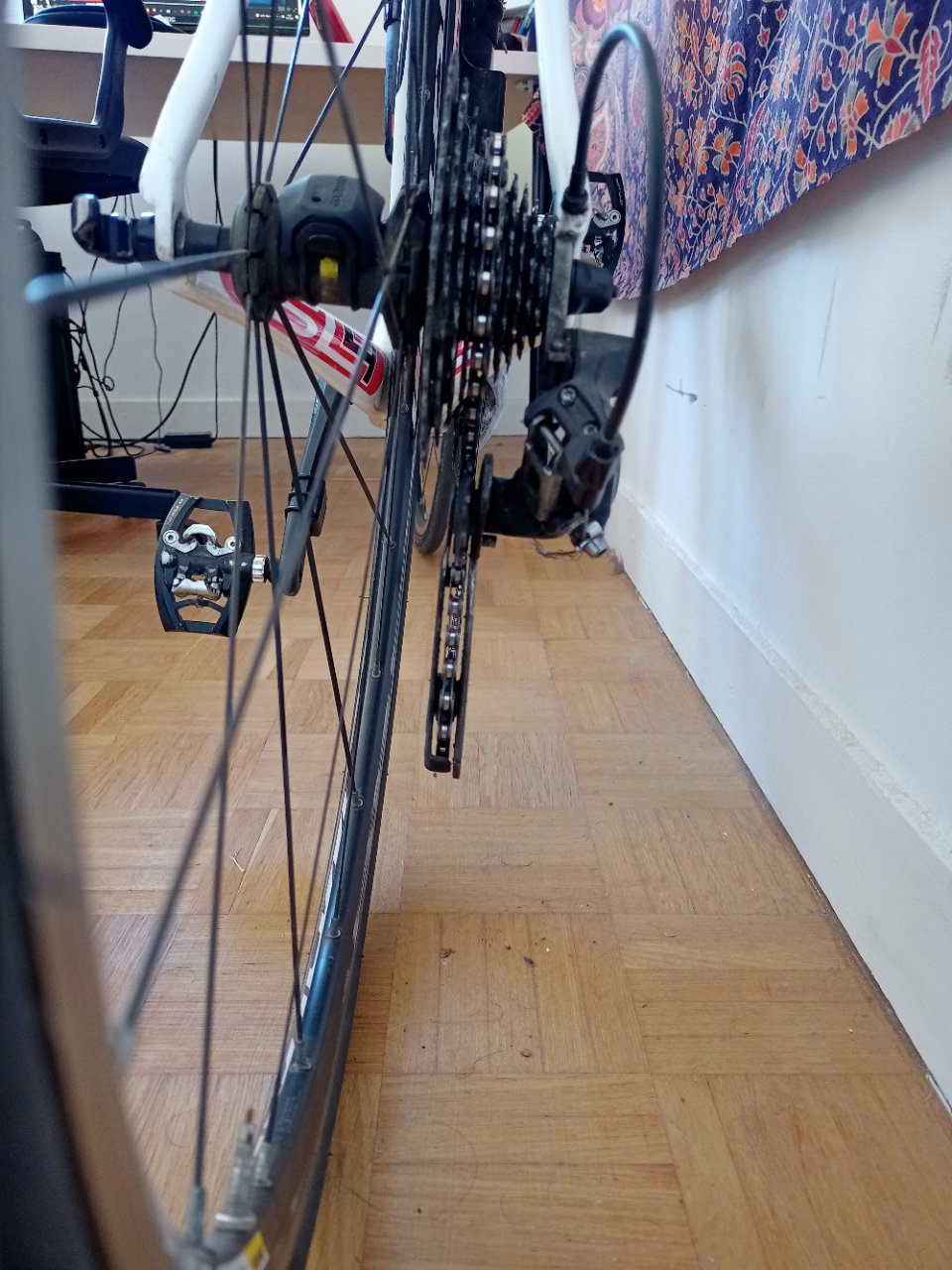

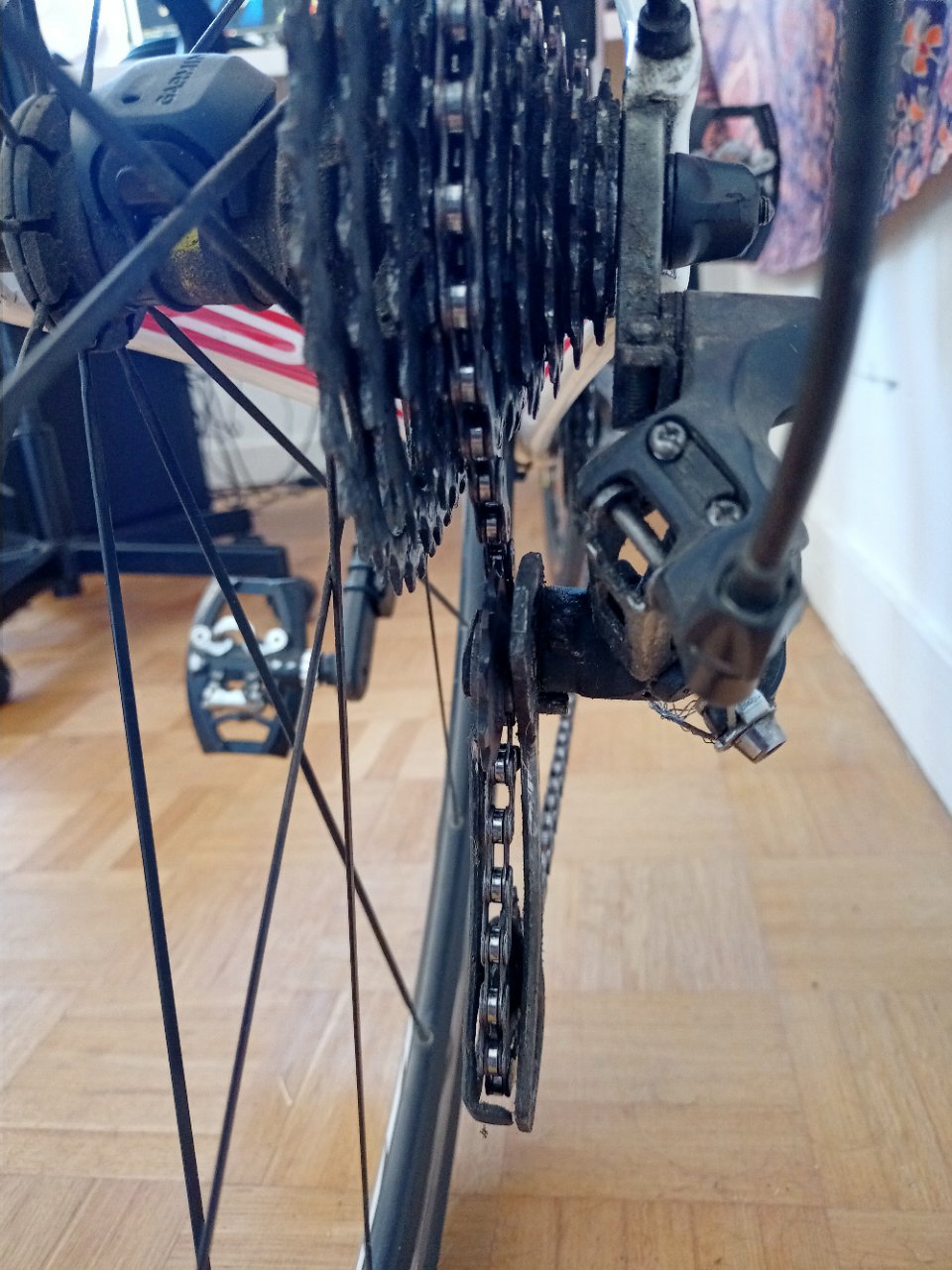

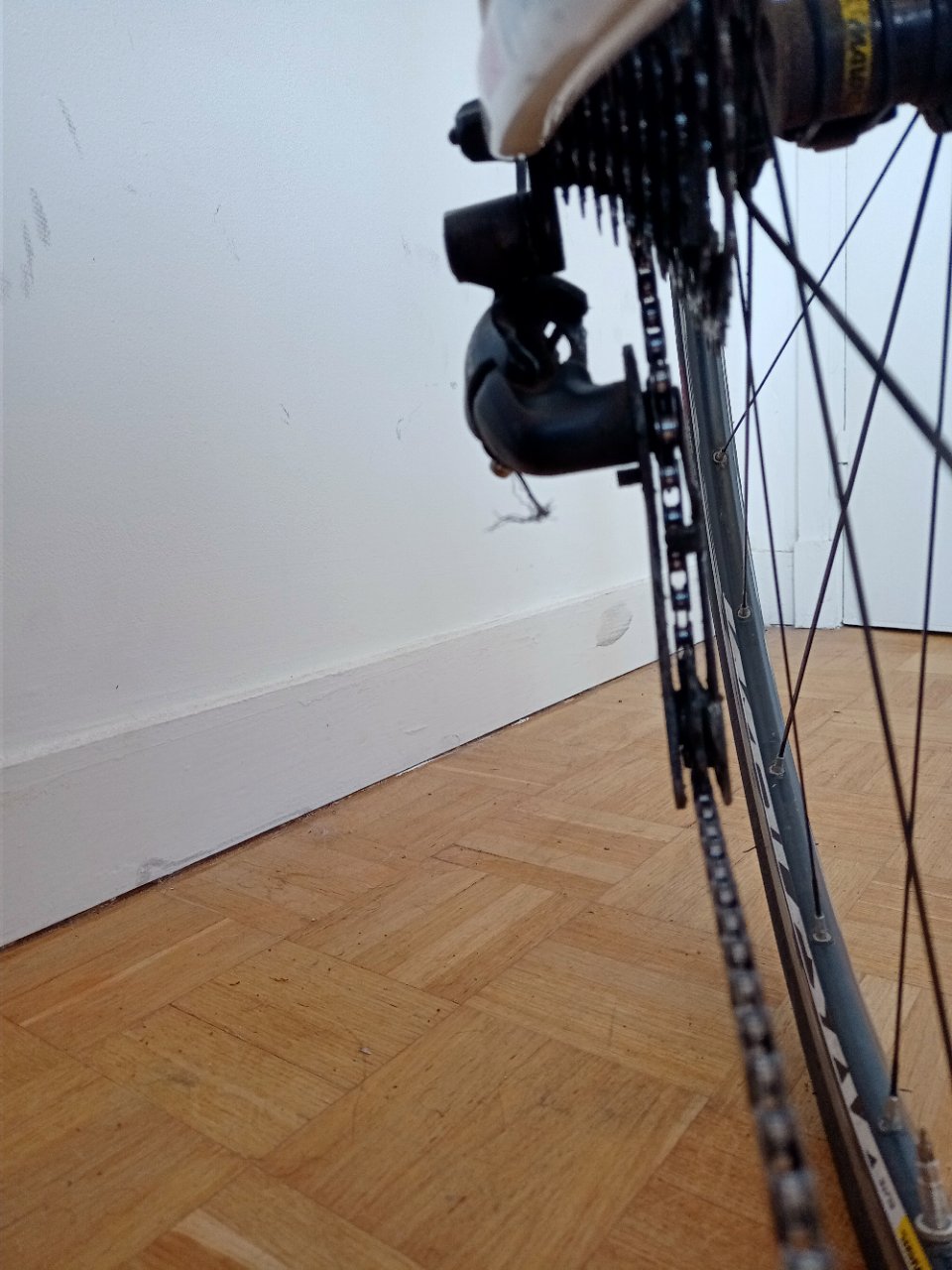

My RD seems bent and I think this is the reason causing all this, the bend is slight but I guess this is precise machinery.
I wanted to have confirmation of you guys before I get a new RD.

Thanks!



dirtydozen is offline
Old 10-11-21, 04:09 AM
  #2
Badger6
Obsessed with Eddington

Badger6's Avatar

Join Date: Jun 2013
Location: Brussels (BE) 🇧🇪
Posts: 1,058

Bikes: '16 Spesh Diverge, '14 Spesh Fatboy, '18 Spesh Epic, '18 Spesh SL6, '21 Spesh SL7, '21 Spesh Diverge...and maybe n+1?

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 390 Post(s)
Liked 409 Times in 264 Posts
More commonly, the derailleur hangar (the metal bit that bolts to the frame, that the RD bolts onto) is what gets bent. Yes, slight-as in not discernible without a special tool-bends in the hangar can lead to what you're describing.
Badger6 is offline
Old 10-11-21, 05:38 AM
  #3
ARider2
Senior Member

Join Date: Dec 2009
Posts: 505
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Liked 84 Times in 63 Posts
Possible issues:
1-Your chain and cassette are worn and need to be replaced. Start by checking the chain for wear using a chain checker tool.
2-Your derailleur hanger is bent and needs to be aligned.
3-Your shifter cable needs to be replaced. Try to isolate it by disconnecting it and see if you feel drag.
4-The high limit screw needs to be adjusted on your rear derailleur.
It may be a combination of some of the above.
PS: your chain looks very dry and in need of lube.
ARider2 is offline
Old 10-11-21, 08:15 AM
  #4
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO and Tucson, AZ
Posts: 2,259

Bikes: 2016 Fuji Tread, 1983 Trek 520

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 487 Post(s)
Liked 255 Times in 183 Posts
First try cleaning and lubing the shifter cable, and start with the rear loop at the derailleur. And since you don't have a cable tip, you're going need a new cable to do that. And you might as well replace the housings when you do that. And clean and check the shifter as well.
andrewclaus is offline
Old 10-11-21, 08:49 AM
  #5
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 1,098

Bikes: 79 Holdsworth Special, 93 C-dale MT3000 Tandem, 96 C-dale F700CAD3, 2018 Cervelo R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 412 Post(s)
Liked 428 Times in 267 Posts
Options….
1. Buy the hanger alignment tool.
You’ll use it more often than you think.
And your buddies will bring you beer!

2. Take bike to shop. Wait X number of weeks.

3. Remove chain, remove derailleur.
Roll bike into store and beg!
If you pass the attitude test and don’t require them to reassemble and adjust the bike, it’s a 5min fix.
pay in cash!

4. Bring buddy that has the tool….. beer.


Barry

Last edited by Barry2; 10-11-21 at 08:53 AM.
Barry2 is offline
Likes For Barry2:
Old 10-11-21, 09:21 AM
  #6
Chuckles1
Senior Member

Join Date: Oct 2019
Location: Foothills of West Central Maine
Posts: 365

Bikes: 2007 Motobecane Fantom Cross Expert, 2020 Motobecane Omni Strada Pro Disc (700c gravel bike), 2021 Motobecane Elite Adventure with Bafang 500W rear hub drive

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Likes: 0
Liked 124 Times in 82 Posts
It sounds like your RD hanger may be bent. You can make an alignment tool from an old axle and a paint stirrer stick, or use a wheel with an axle that protrudes far enough to screw into hanger, and also provides plenty of leverage to bend the hanger until the two wheel rims are parallel. Don't bend the hanger any more than you need to; they will break if pried back and forth too much.
Chuckles1 is offline
Old 10-11-21, 09:57 AM
  #7
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 1,098

Bikes: 79 Holdsworth Special, 93 C-dale MT3000 Tandem, 96 C-dale F700CAD3, 2018 Cervelo R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 412 Post(s)
Liked 428 Times in 267 Posts
Originally Posted by Barry2 View Post
Options.

Forgot to mention.....

NOT an option... buy and install new hanger.
Even brand new hangers require alignment to suit your frame, when first installed.

Barry
Barry2 is offline
Old 10-11-21, 02:29 PM
  #8
Litespud
Senior Member

Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 1,479

Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor S/S, Nashbar 3sp commuter

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 557 Post(s)
Liked 619 Times in 346 Posts
Originally Posted by dirtydozen View Post
Hello,

The ****fing on my RD is not working well, sometimes one click down does nothing, and the next click down goes from cog 3 to cog 1 let's say, it skips a gear.
I have a triple chainring and when in the middle one (i never use the smallest one) and smaller end of the cassette it just does crazy stuff and it's unridable.
I struggle to index the RD even though it's something that usually I can do quite easily.

My RD seems bent and I think this is the reason causing all this, the bend is slight but I guess this is precise machinery.
I wanted to have confirmation of you guys before I get a new RD.

Thanks!
Nothing wrong with the RD that I can discern from the pics. I'd put money on the problem being your cable. Replacing the housing and inner cable would be a cheaper first step before placing the RD and hanger. Not to put too fine a point on it, but what little of your cable I can see looks pretty gnarly
Litespud is offline
Old 10-11-21, 06:19 PM
  #9
wheelreason
Senior Member

Join Date: Aug 2009
Posts: 732
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Hanger IS bent. While you are at it, change the cable, and clean the drivetrain. You can use a wheel (old school one with threads) as a hanger tool. I'm gonna be wrenching FT now that I'm retiring from the Navy.
ps: The Abbey hag tool is nice.
wheelreason is offline
Old 10-11-21, 09:24 PM
  #10
canopus
Senior Member

canopus's Avatar

Join Date: Mar 2009
Location: Kingwood, TX
Posts: 1,543

Bikes: Road, Touring, BMX, Cruisers...

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked 142 Times in 89 Posts
your chain is dry, clean it, lube it.
your RD is dirty, clean it, lube it. Make sure the pulleys are clean roll easy and the upper pulley has a little side to side play.
your cassette is dirty, clean it.
your B-screw is screwed in to far, pulling the upper pulley to far away from cassette, adjust it.
if you pull you cable out or off, replace it, if not make sure tension is good.

if this has come gradually without any external reason (i.e. wreck), then it is usually a maintenance issue. RD
__________________
1984 Cannondale ST
1985 Cannondale SR300
1980 Gary Littlejohn Cruiser
1984 Trek 760
1981 Trek 710
Pics

Last edited by canopus; 10-11-21 at 09:27 PM.
canopus is offline
Old 10-12-21, 11:34 AM
  #11
dirtydozen
Senior Member
Thread Starter

Join Date: Mar 2017
Posts: 203
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
Thanks a lot everybody!

Actually I bought cables a couple of days ago because clearly I need to clean & lube and put a brand new cable in.
I made this post basically to know if I had to do all that and see if it's working, of if the RD was the problem meaning that if would have to be replaced anyway.

I'm quite busy with work at the moment but i'll do everything you guys suggested in a near future and let you know how it goes!

Thanks again everybody for the help
