Now I'm in trouble. (little washers in DA levers)

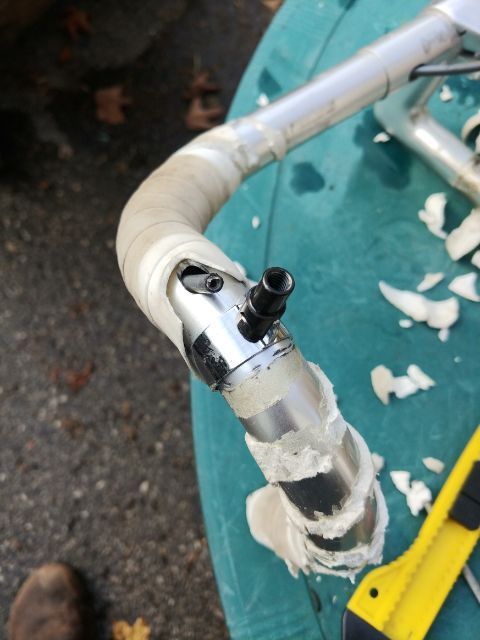

oooopps.
i should not have removed theae levers from the loops.
now two little washers have come loose.

how in goodness name can i get them back in place?



pstock is offline
Old 10-20-21, 12:31 PM
  #2
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,624

Bikes: Lots. Just...lots.

Mentioned: 187 Post(s)
Tagged: 0 Thread(s)
Quoted: 1585 Post(s)
Liked 1,054 Times in 500 Posts
Put mounting bolt through round washer and then through fixing washer.
Use forcceps, tweezers or small needlenose pliers to maneuver them back into place.
There’s a diagram on line if you need to see how the parts go together.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is online now
Old 10-21-21, 09:27 AM
  #3
pstock
Senior Member
Thread Starter

Join Date: May 2008
Location: Toronto, Canada
Posts: 758

Bikes: (much reduced) Columbus Cyclops Campy Victory, 531 Harry Quinn 1st gen DA, SLX Fuso 8-spd DA, Airfriday. Claude Pottie (France) 753 w. 8S Record, Claude Pottie Columbus with 105,Masi Team 3v

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Liked 9 Times in 6 Posts
I cannot extract the mounting bolt.
at least not without disassmbling the lever (which I fear would lead me into another pile of trouble, with the little recoil spring)
Its head is bigger than the gap when the lever is fully engaged.

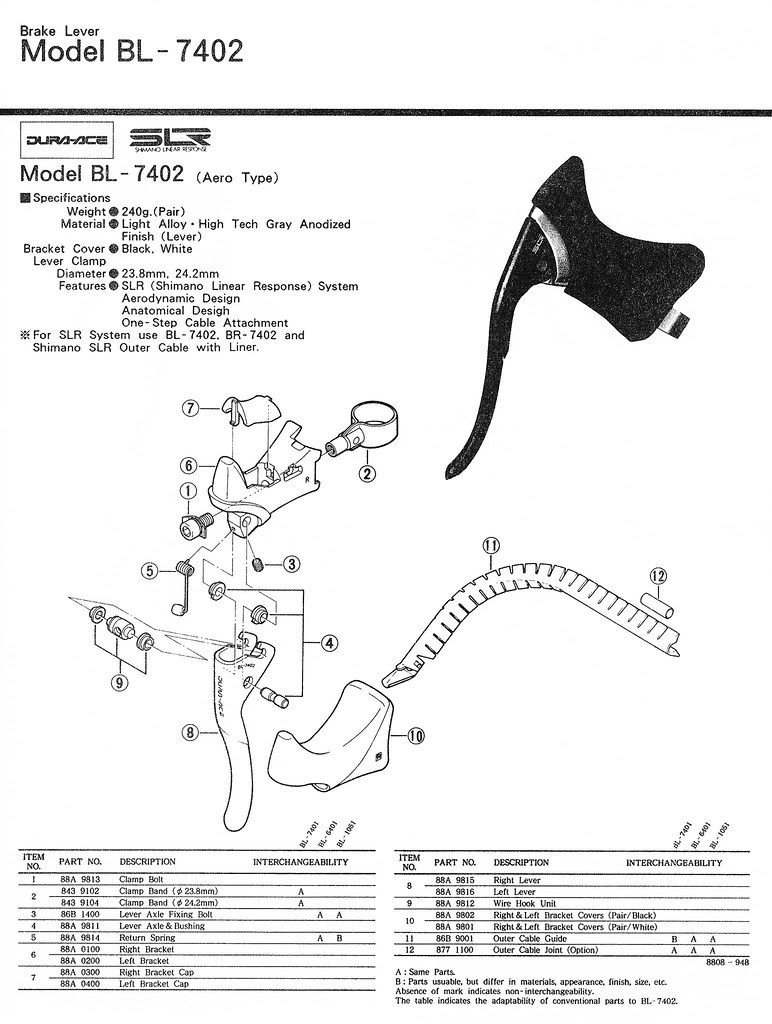

Hmmm, but wait. that exploded view schematic seems to show that the top of the body can be removed
this could be the answer.
(as long as I am careful and don't wreck the near pristine hood covers)

Last edited by pstock; 10-21-21 at 09:32 AM.
pstock is offline
Old 10-21-21, 11:16 AM
  #4
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 1,930
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 599 Post(s)
Liked 524 Times in 342 Posts
It should work as is, to make it easier I would take the band clamp off, put it in the loose lever body, place washers on Allen bolt, attach bolt to clamp.

I am not a fan of drilled bars for aero cable routing.
Mr. 66 is online now
Old 10-21-21, 11:30 AM
  #5
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,624

Bikes: Lots. Just...lots.

Mentioned: 187 Post(s)
Tagged: 0 Thread(s)
Quoted: 1585 Post(s)
Liked 1,054 Times in 500 Posts
If it’s the stock bolt, it WILL come out, just takes some manipulation. Again, tweezers help.
You may be able to get the two washers on the bolt without removing it from the lever body. Again, tweezers help.
