what is that thingy on the fork

Old 11-14-21, 11:39 AM
  #1
cyrano138
Senior Member
Thread Starter

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 575

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 53 Times in 32 Posts
what is that thingy on the fork

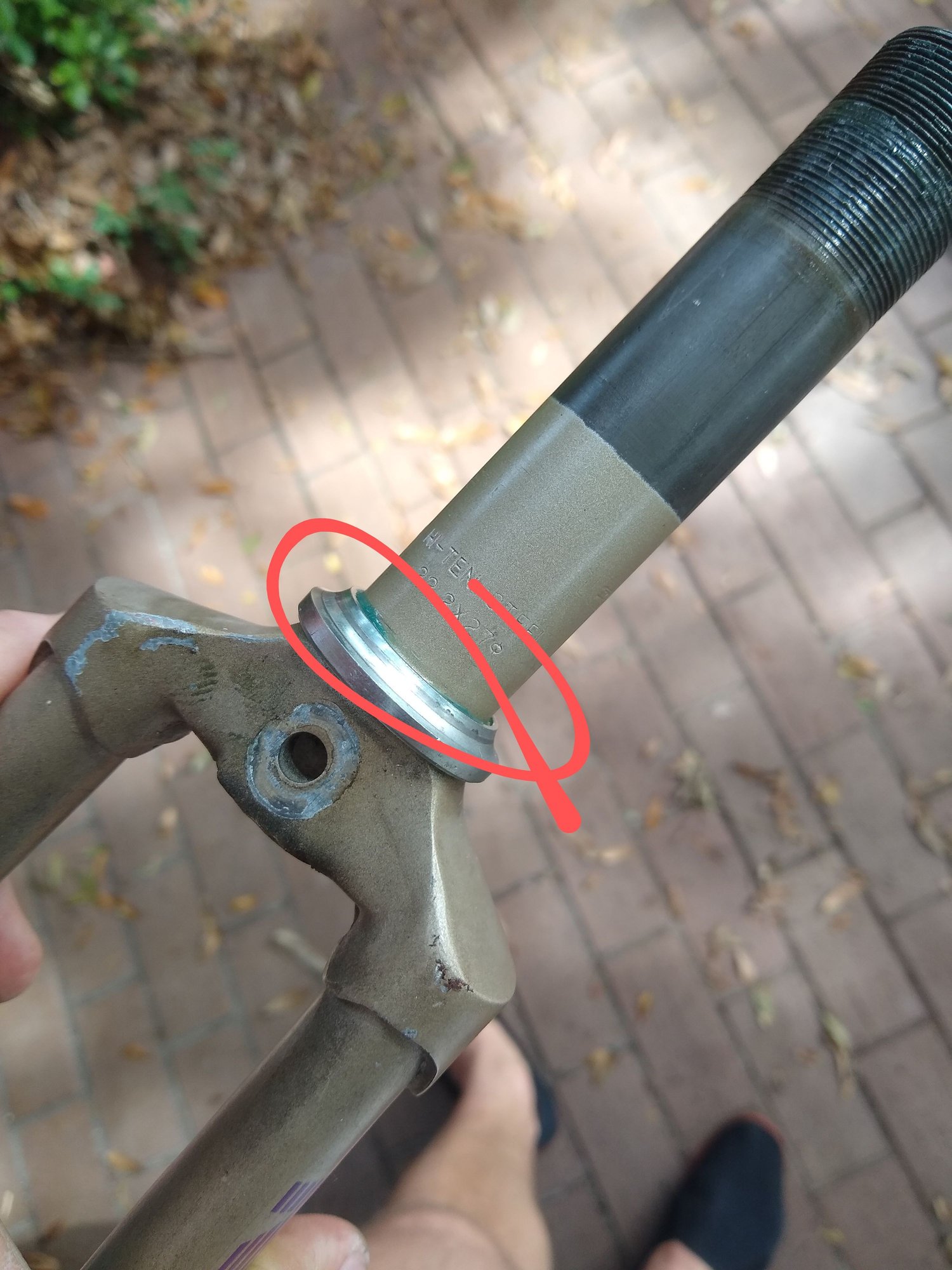

I wanted to search for a video about how to remove and replace this if it can be done, but I don't actually know what this piece is called. If you guys can tell me I would certainly appreciate it.
cyrano138 is offline
Old 11-14-21, 11:47 AM
  #2
FrozenBiker
Senior Member

Join Date: Jun 2015
Location: USA
Posts: 165
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Likes: 0
Liked 21 Times in 9 Posts
Hello. It is a "crown race".
FrozenBiker is offline
Likes For FrozenBiker:
Old 11-14-21, 11:49 AM
  #3
canopus
Senior Member

canopus's Avatar

Join Date: Mar 2009
Location: Kingwood, TX
Posts: 1,588

Bikes: Road, Touring, BMX, Cruisers...

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 133 Post(s)
Liked 168 Times in 107 Posts
is this a joke? You've been here a long time...
A) it is a ... lower race or bottom race (or previous crown race) ...
A) Yes, it is removable/replaceable (Ever purchased a headset?)
A) Yes, numerous tools are available to remove and install it.
__________________
1984 Cannondale ST
1985 Cannondale SR300
1980 Gary Littlejohn Cruiser
1984 Trek 760
1981 Trek 710
Pics
canopus is offline
Old 11-14-21, 11:49 AM
  #4
base2
Doesn't brain good.

base2's Avatar

Join Date: Jun 2015
Location: Pacific Northwest
Posts: 2,265

Bikes: 5 good ones, and the occasional project.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1239 Post(s)
Liked 909 Times in 532 Posts
It's called a crown race.
It is a bearing race & it is located upon the fork crown.

It is removed with a crown race puller.

Any bike shop should have the tool & be able to perform the removal & reinstallation for a small fee.
__________________
I shouldn't have to "make myself more visible;" Drivers should just stop running people over.

Car dependency is a tax.
base2 is offline
Old 11-14-21, 12:00 PM
  #5
Iride01
Plz hurry Dec 22!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,906

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4877 Post(s)
Liked 3,398 Times in 2,356 Posts
The part of the crown race we can see in the picture looks in good shape. The discoloration or possibly ever so slightly pitted appears to be outside the contact points of the bearings with the race..
Iride01 is offline
Old 11-14-21, 12:11 PM
  #6
cyrano138
Senior Member
Thread Starter

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 575

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 53 Times in 32 Posts
Originally Posted by FrozenBiker View Post
Hello. It is a "crown race".
Thank you!

Originally Posted by canopus View Post
is this a joke? You've been here a long time...
A) it is a ... lower race or bottom race (or previous crown race) ...
A) Yes, it is removable/replaceable (Ever purchased a headset?)
A) Yes, numerous tools are available to remove and install it.
I've removed and replaced all the other parts of a headset, but never had to take this piece off of the fork.

Originally Posted by base2 View Post
It's called a crown race.
It is a bearing race & it is located upon the fork crown.

It is removed with a crown race puller.

Any bike shop should have the tool & be able to perform the removal & reinstallation for a small fee.
I'm happy to get the tool and do it myself. I just needed to know where to start. Thank you.

Originally Posted by Iride01 View Post
The part of the crown race we can see in the picture looks in good shape. The discoloration or possibly ever so slightly pitted appears to be outside the contact points of the bearings with the race..
That's kind of why I was looking at it and why I started thinking about what would be involved in replacing one. It felt good once I put the headset and fork back together and got everything adjusted, but it occurred to me while I was doing this whole thing that I have never had to replace one before and it's something that could conceivably need to be replaced.

I know what it does, I've just never replaced one before. And searching for an instructional video without the name of the thing is fruitless.

Thanks again.

I have this tool that somebody gave me to install a crown race, but I have never removed one
cyrano138 is offline
Old 11-14-21, 12:26 PM
  #7
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 11,002

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 3697 Post(s)
Liked 2,539 Times in 1,662 Posts
A fun, sorta off topic too; I got to see in action Friday - a super race puller. It may have been a Park shop tool. (I think I recall seeing the Park logo colors on it.)

The story - I went to TiCycles with frame and fork of my Peter Mooney. (Frame's getting a braze -on moved, new WB bosses and a re-paint. Brought the fork just to show Dave Levy. I hadn't knocked off the lightweight aluminum Stronglight crown yet. (And I wasn't really looking forward to it. I've done it with steel crowns. a large screwdriver and hammer and not marred or distorted anything but it takes real time and attention.)

Showed the fork to Dave. He immediately wanted to show me his new tool. A cylinder roughly the length and width of a floor pump. Instead of folding foot tabs, it had screws with nice handles. Bigger screw emerging from the top. Insert fork steerer into bottom. Tighten the two bottom screws to grab the sides of the crown. Crank down top screw. Fork drops out the bottom. Crown stays immaculate. Takes not much longer than reading this!

Edit: except for that tool, I have all the rest of the headset tools, mostly for cheap. Common pipe and threaded rod do very nicely for installing crown races and that same pipe can be used to install crown races. I used 1/2" rod. Rounded, chromed, sorta nylock style nuts that fit nicely into the race inside and self center. All Home Depot; maybe $15 total. (Crescent wrenches and hammer also needed.) I did pay for the Park cup remover that also requires that hammer. Headsets are one place where special tools are not needed but boy! do they make the job faster and more fun!

Last edited by 79pmooney; 11-14-21 at 12:38 PM.
79pmooney is offline
Old 11-14-21, 12:43 PM
  #8
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 7,164

Bikes: Bob Jackson, Wizard, Pegoretti Duende, Merckx ProSLX, Pelizzoli, Cannondale ST, Schwinn Tempo, Schwinn Voyageur, Canyon Endurace, Richard Sachs, Davidson Discovery

Mentioned: 205 Post(s)
Tagged: 0 Thread(s)
Quoted: 1843 Post(s)
Liked 2,049 Times in 797 Posts
There’s an even nicer newer Park crown race removal tool that uses three prongs instead of two and is adjustable about 60 zillion ways to fit all kinds of forks.
Got one last year for Christmas. Not cheap, but it removes a super lightweight Dura Ace 7410 cartridge race (IMO the most difficult to remove without bending) very nicely.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 11-14-21, 01:21 PM
  #9
cyrano138
Senior Member
Thread Starter

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 575

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 53 Times in 32 Posts
I also made my own installation tool. If I ever get to work on some ultra high-end fancy bike maybe I'll get something nicer with this seems to do the trick for now.

As for removals, I looked up a few videos and, again, for the kind of bikes I'm working on a hammer and screwdriver will probably be fine.
cyrano138 is offline
Likes For cyrano138:
Old 11-14-21, 01:49 PM
  #10
Chuck M
Butted Hi-Tensile

Chuck M's Avatar

Join Date: Sep 2020
Location: Oklahoma
Posts: 1,277

Bikes: Hi-Ten bike boomers, a Trek Domane and some projects

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 452 Post(s)
Liked 1,167 Times in 577 Posts
Originally Posted by cyrano138 View Post
As for removals, I looked up a few videos and, again, for the kind of bikes I'm working on a hammer and screwdriver will probably be fine.
These are generally not on too tight. A 1/4 or 5/16 pin punch with light taps will get them off without damage to the race or one of your screwdrivers.
__________________
"It is the unknown around the corner that turns my wheels." -- Heinz StŁcke

Chuck M is offline
Likes For Chuck M:
Old 11-14-21, 01:54 PM
  #11
cyrano138
Senior Member
Thread Starter

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 575

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 53 Times in 32 Posts
Originally Posted by Chuck M View Post
These are generally not on too tight. A 1/4 or 5/16 pin punch with light taps will get them off without damage to the race or one of your screwdrivers.
Now I have a good excuse to find the brass punch that I've got laying around somewhere.
cyrano138 is offline
Old 11-14-21, 01:56 PM
  #12
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,413

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 2299 Post(s)
Liked 2,431 Times in 1,506 Posts
Cheap screwdriver and a few taps of the hammer to remove, a piece of copper or pvc pipe to install.

You say you "replaced" the rest of the headset parts, didn't your new headset come with a new crown race?

These have to match the headset bearings etc and come in different sizes (JIS/ISO)
dedhed is offline
Old 11-14-21, 02:40 PM
  #13
Iride01
Plz hurry Dec 22!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,906

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4877 Post(s)
Liked 3,398 Times in 2,356 Posts
Originally Posted by Chuck M View Post
These are generally not on too tight. A 1/4 or 5/16 pin punch with light taps will get them off without damage to the race or one of your screwdrivers.
I'm glad you brought that up. I had to sit on my fingers when I read that initially. Screwdrivers should be used for installation and removal of screws. I remember being aghast when a television DIY home repair person suggested and used one for grout removal when replacing a tile.
Iride01 is offline
Old 11-14-21, 03:46 PM
  #14
cyrano138
Senior Member
Thread Starter

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 575

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 53 Times in 32 Posts
Originally Posted by dedhed View Post
Cheap screwdriver and a few taps of the hammer to remove, a piece of copper or pvc pipe to install.

You say you "replaced" the rest of the headset parts, didn't your new headset come with a new crown race?

These have to match the headset bearings etc and come in different sizes (JIS/ISO)
Removed and then reinstalled the same ones. I was painting the frame.
cyrano138 is offline
Old 11-14-21, 04:30 PM
  #15
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,928

Bikes: Several, mostly not name brands.

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 3119 Post(s)
Liked 2,354 Times in 1,390 Posts
ob
Originally Posted by Chuck M View Post
These are generally not on too tight. A 1/4 or 5/16 pin punch with light taps will get them off without damage to the race or one of your screwdrivers.
Yes, that will work, if you're careful. Don't try to knock it off in one blow; work slowly around the circumference of the race so it comes off straight, instead of going crooked and cracking.


A dedicated crown race remover is quicker, but not really cost-effective for a one-off job.
JohnDThompson is offline
Old 11-14-21, 04:36 PM
  #16
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 11,002

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 3697 Post(s)
Liked 2,539 Times in 1,662 Posts
Originally Posted by Iride01 View Post
I'm glad you brought that up. I had to sit on my fingers when I read that initially. Screwdrivers should be used for installation and removal of screws. I remember being aghast when a television DIY home repair person suggested and used one for grout removal when replacing a tile.
I relegated two cheap, large screwdrivers to *****y tasks decades ago. Never regretted it.
79pmooney is offline
Old 11-14-21, 06:34 PM
  #17
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,708

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5149 Post(s)
Liked 2,695 Times in 1,595 Posts
Originally Posted by JohnDThompson View Post
ob

Yes, that will work, if you're careful. Don't try to knock it off in one blow; work slowly around the circumference of the race so it comes off straight, instead of going crooked and cracking.


A dedicated crown race remover is quicker, but not really cost-effective for a one-off job.

Yes, a dedicated crown race remover is a thing of beauty. But screwdrivers for crown race removal are the Devilís tools! A bearing splitter works better and itís the business end of the dedicated crown race remover. Looking at that bearing splitter, I see that it is threaded. It wouldnít be too hard to DIY this splitter which is the Park tool without the fancy tube.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 11-14-21, 06:50 PM
  #18
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,455

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1920 Post(s)
Likes: 0
Liked 899 Times in 631 Posts
The screwdriver/punch approach to crown race removal works OK as long as the crown race is larger in diameter than the fork crown so the edges overlap and give the punch something to hit against. Many newer forks, particularly carbon or those made for integrated headsets, have a fork crown larger than the crown races so your punch can't reach it.

The Park Tool crown race remover (CRP-2 or it's predecessor) 79pmoony described above is basically a modified "bearing splitter" and uses opposing thin sharp wedges that are forced between the bottom of the crown race and the fork crown to get a purchase than pulled off with a big screw press. As a homemade version of this approach I've used a sharp wood chisel bevel side up and gently tapped into the seam between the crown race and the fork crown, working it around the entire circumference several times. Eventually it opens up enough of a gap for the race to fall off or be removable by hand. Be VERY careful not to drive the chisel so deep you hit the steerer, particularly with an all carbon fork.
HillRider is offline
Old 11-14-21, 07:04 PM
  #19
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,455

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1920 Post(s)
Likes: 0
Liked 899 Times in 631 Posts
Originally Posted by Iride01 View Post
I'm glad you brought that up. I had to sit on my fingers when I read that initially. Screwdrivers should be used for installation and removal of screws. I remember being aghast when a television DIY home repair person suggested and used one for grout removal when replacing a tile.
Naaah, there is nothing sacred about screwdrivers, particularly cheap, general purpose ones. They make useful impromptu prybars, punches, scrapers, chisels, etc. What you don't want to do is use them to drive screws after that kind of abuse but, then, you don't want to use cheap screwdrivers for any driving of screws either.
HillRider is offline
Old 11-15-21, 01:24 AM
  #20
Papa Tom
Senior Member

Join Date: Aug 2008
Posts: 4,440
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 861 Post(s)
Liked 232 Times in 135 Posts
Originally Posted by Chuck M View Post
These are generally not on too tight. A 1/4 or 5/16 pin punch with light taps will get them off without damage to the race or one of your screwdrivers.
Yes! I did exactly this many, many times when I ran a bicycle recycling program in the early 2000's.
Papa Tom is offline
Old 11-15-21, 06:30 AM
  #21
ted_major
Junior Member

ted_major's Avatar

Join Date: Oct 2008
Location: Tuscaloosa, Ala.
Posts: 134
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 31 Times in 18 Posts
Originally Posted by JohnDThompson View Post
ob

Yes, that will work, if you're careful. Don't try to knock it off in one blow; work slowly around the circumference of the race so it comes off straight, instead of going crooked and cracking.


A dedicated crown race remover is quicker, but not really cost-effective for a one-off job.
Iíve used a large adjustable wrench to remove crown races. Adjust so it sits on the front and back of the crown race and tap gently, that way youíre pushing on both sides and it comes off straight. An appropriately sized piece of PVC pipe (cut square) can work as a setting tool to tap it back on.
ted_major is offline
Old 11-15-21, 07:31 AM
  #22
cyrano138
Senior Member
Thread Starter

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 575

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 53 Times in 32 Posts
Originally Posted by ted_major View Post
Iíve used a large adjustable wrench to remove crown races. Adjust so it sits on the front and back of the crown race and tap gently, that way youíre pushing on both sides and it comes off straight. An appropriately sized piece of PVC pipe (cut square) can work as a setting tool to tap it back on.
Doesn't the threaded tube part of the fork keep you from getting it on straight?
cyrano138 is offline
Old 11-15-21, 09:23 AM
  #23
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,708

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5149 Post(s)
Liked 2,695 Times in 1,595 Posts
Originally Posted by cyrano138 View Post
Doesn't the threaded tube part of the fork keep you from getting it on straight?
It shouldnít. The pipe will just slide over the steer tube just like the tool you have.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 11-15-21, 09:24 AM
  #24
canopus
Senior Member

canopus's Avatar

Join Date: Mar 2009
Location: Kingwood, TX
Posts: 1,588

Bikes: Road, Touring, BMX, Cruisers...

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 133 Post(s)
Liked 168 Times in 107 Posts
For Removal (Pics):
I have old bikes. About the only thing the Campy does fit of mine are old bmx stuff sometimes. Newer forks it would have a problem with. The cyclus is newer and deeper which wouldn't be bad. Both of these assume the race is wider that the fork crown itself

For Setting, I have a Hozan C-435 tool I picked up used.


old

New cyclus tool
__________________
1984 Cannondale ST
1985 Cannondale SR300
1980 Gary Littlejohn Cruiser
1984 Trek 760
1981 Trek 710
Pics
canopus is offline
Old 11-15-21, 09:26 AM
  #25
cyrano138
Senior Member
Thread Starter

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 575

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 53 Times in 32 Posts
Originally Posted by cyccommute View Post
It shouldnít. The pipe will just slide over the steer tube just like the tool you have.
I meant the wrench trick. I think I'm picturing it wrongly.
cyrano138 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2022 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
