What is wrong with this rear derailleur?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

What is wrong with this rear derailleur?

Old 12-13-21, 03:57 PM
  #1
Jicafold
Senior Member
Thread Starter

Join Date: Jun 2013
Posts: 940
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 85 Times in 63 Posts
What is wrong with this rear derailleur?

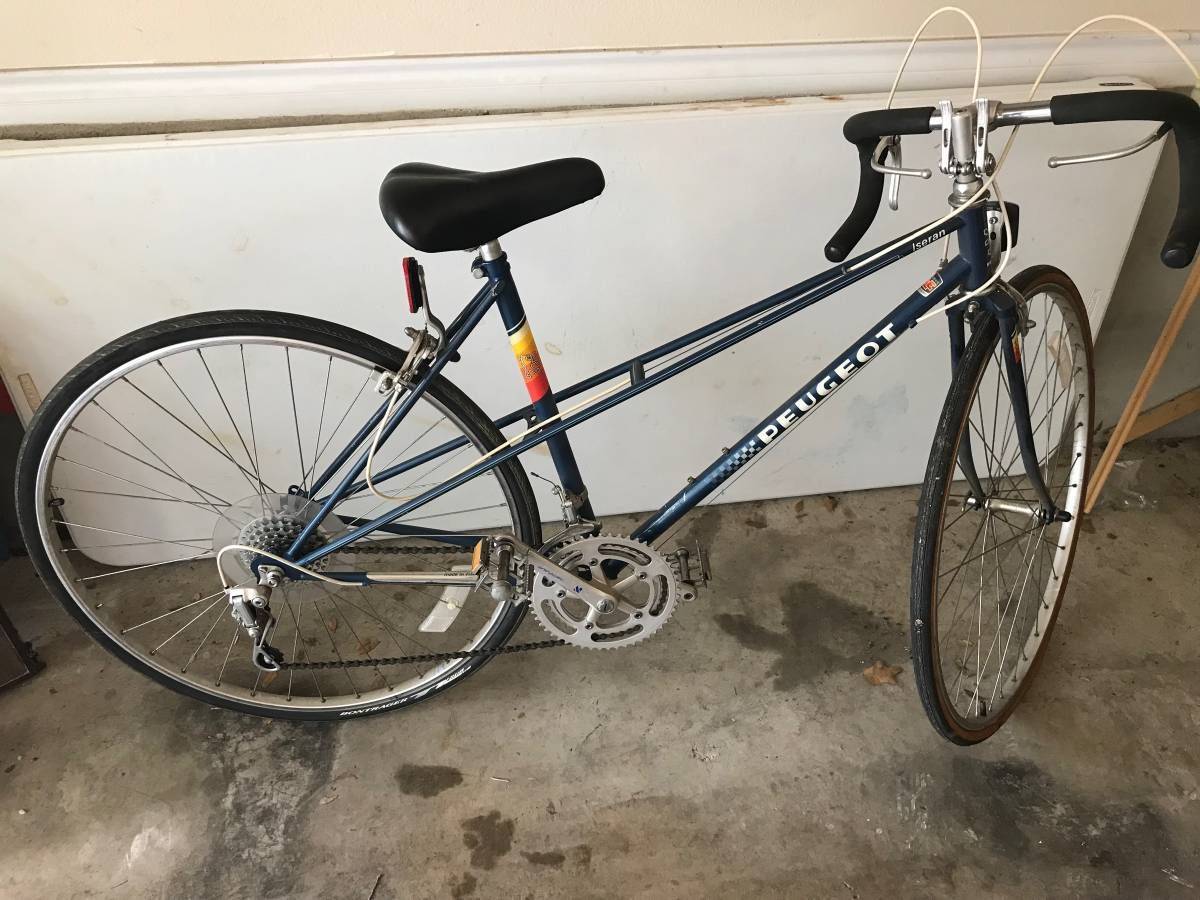

Not my bike. Just a picture. I think either this derailleur body is stuck in the wrong position or the chain is too short. It is already on the smalIest sprocket and chainring. I don't see any way possible it could shift to the large chain ring or a larger sprocket and have any chain left. Your opinions?

Jicafold is offline
Old 12-13-21, 04:19 PM
  #2
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,482

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5001 Post(s)
Liked 2,583 Times in 1,524 Posts
Originally Posted by Jicafold View Post
Not my bike. Just a picture. I think either this derailleur body is stuck in the wrong position or the chain is too short. It is already on the smalIest sprocket and chainring. I don't see any way possible it could shift to the large chain ring or a larger sprocket and have any chain left. Your opinions?

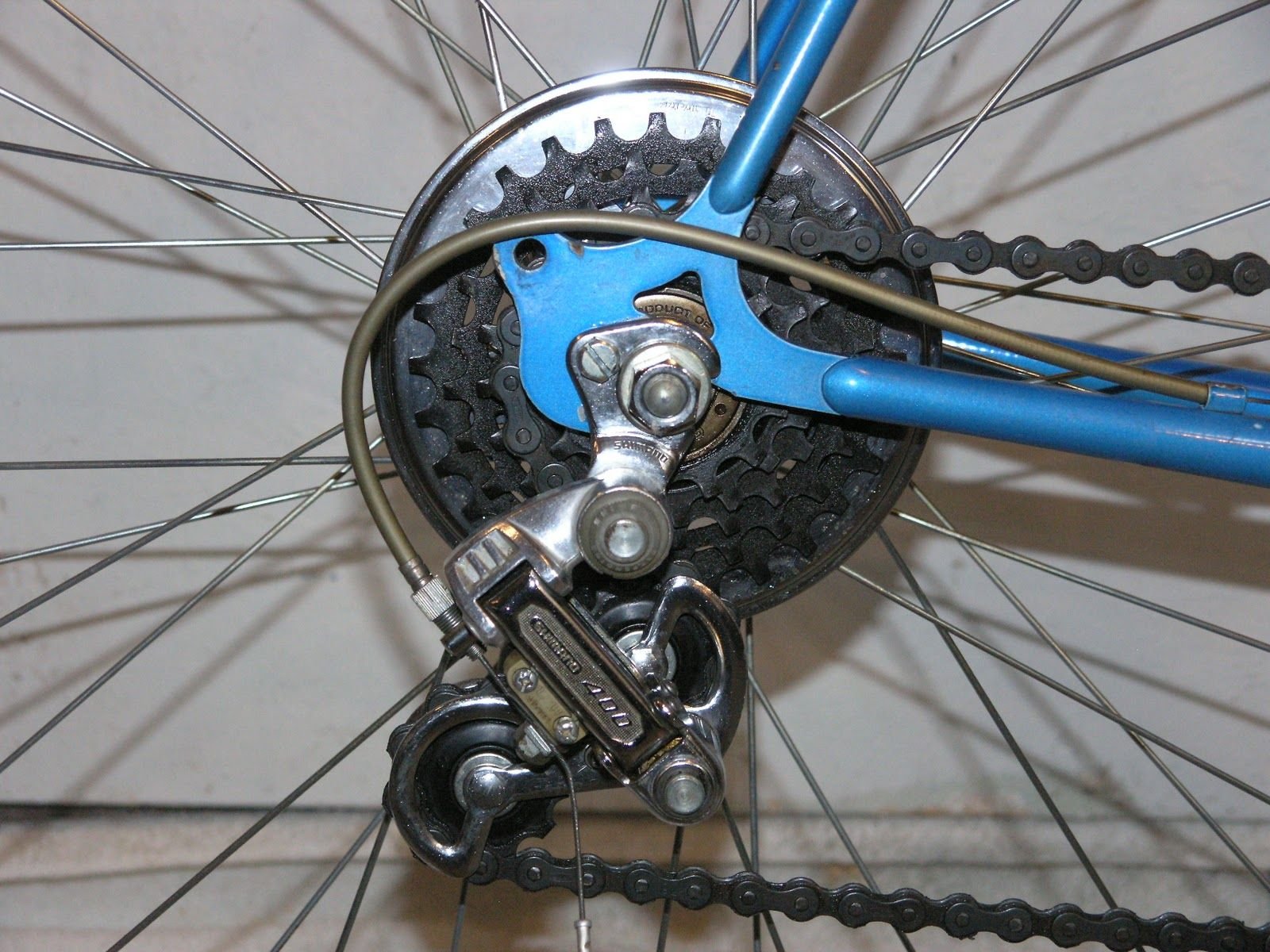

The claw looks to be attached in the wrong place. It looks like they have attached to the fender mount when it should be clamped to the dropout. It looks like itís positioned like this and has rotated upwards some. Itís essentially an extreme B screw adjustment.

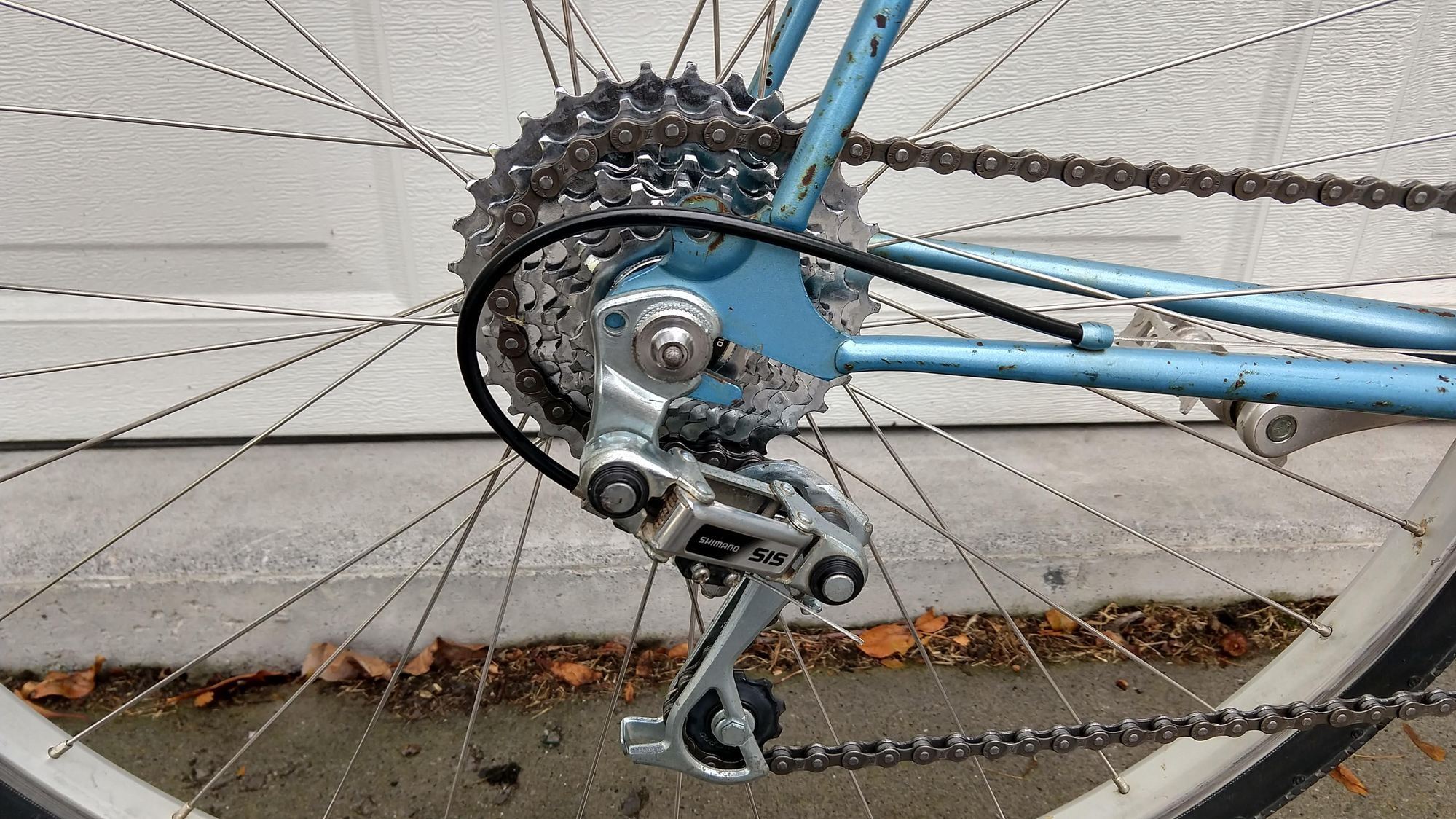

Itís should look like this. There is a stop that should go in the dropout that holds the claw in the proper place.

__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 12-13-21, 05:39 PM
  #3
Jicafold
Senior Member
Thread Starter

Join Date: Jun 2013
Posts: 940
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 85 Times in 63 Posts
Originally Posted by cyccommute View Post
The claw looks to be attached in the wrong place. It looks like they have attached to the fender mount when it should be clamped to the dropout. It looks like itís positioned like this and has rotated upwards some. Itís essentially an extreme B screw adjustment.

Itís should look like this. There is a stop that should go in the dropout that holds the claw in the proper place.

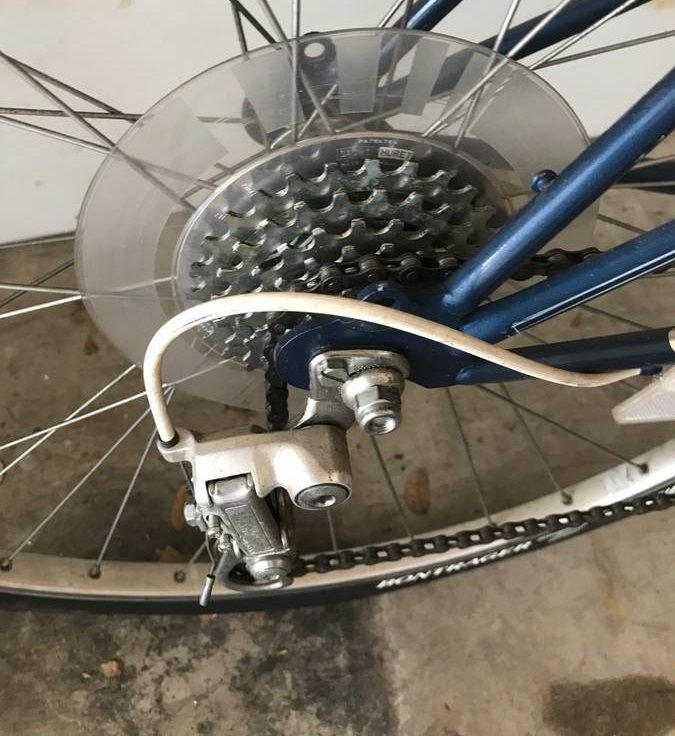

I should have posted this photo also. Looks like the mounting claw is in the right spot.

Jicafold is offline
Old 12-13-21, 06:00 PM
  #4
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,530

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1782 Post(s)
Liked 2,617 Times in 1,355 Posts
Main pivot is stuck? Could be corrosion in the pivot that's keeping it from swinging as it should.
cxwrench is offline
Likes For cxwrench:
Old 12-13-21, 07:01 PM
  #5
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 8,647

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 1780 Post(s)
Liked 1,474 Times in 895 Posts
I don't think the chain is routed correctly....but hard to see for sure
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light 56,57 or so)

squirtdad is offline
Old 12-13-21, 08:53 PM
  #6
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,597

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Srewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3580 Post(s)
Liked 2,438 Times in 1,547 Posts
These double pivot sprung ders will "hang at an angle" that reflects the two spring strengths, assuming both pivots are freely rotating. Too short a chain will see the cage played out and the parallelogram rotated forward. The photo shows a cage partially played out but the parallelogram rotated back. This can happen when, as cxwrench said, the cage pivot is sticky or hindered in its rotational movement. When removing and reinstalling a rear wheel, like shown, the der usually get's pulled back. If the cage pivot is tight on reinstall that pivot doesn't move and the B pivot tries to take up the chain droop. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 12-13-21, 09:00 PM
  #7
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,938

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1105 Post(s)
Liked 297 Times in 223 Posts
Jicafold's right. The spring or bolt that attaches the unit to the claw is messed up. The pantograph should point forward and down at about 15į, not straight down. Also shown in this manual for the Shimano Z501 (which is what your bike may have)
https://manualzz.com/doc/53871114/sh...e-instructions


WizardOfBoz is offline
Old 12-14-21, 02:21 PM
  #8
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,062

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3636 Post(s)
Liked 2,070 Times in 1,314 Posts
Jicafold, have you tried moving the derailleur forward and backward by hand? That should tell you if the upper pivot is gummed up. It's happened to me.

RJ video on the subject:
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Likes For ThermionicScott:
Old 12-14-21, 05:36 PM
  #9
Leisesturm
Senior Member

Join Date: Jul 2005
Posts: 5,194
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 1964 Post(s)
Liked 426 Times in 305 Posts
Originally Posted by Andrew R Stewart View Post
These double pivot sprung ders will "hang at an angle" that reflects the two spring strengths, assuming both pivots are freely rotating. Too short a chain will see the cage played out and the parallelogram rotated forward. The photo shows a cage partially played out but the parallelogram rotated back. This can happen when, as cxwrench said, the cage pivot is sticky or hindered in its rotational movement. When removing and reinstalling a rear wheel, like shown, the der usually get's pulled back. If the cage pivot is tight on reinstall that pivot doesn't move and the B pivot tries to take up the chain droop. Andy
I am editing an earlier reply because I see you weighed in here. You are correct, as usual. However, I see much more potential ... angle in the jockey pulleys as shown. Right now they are in about a vertical orientation. The wrap cage is about six o'clock instead of the four or five o'clock that is possible at max capacity. I don't get the sense from the o.p. that s/he has actually tried to shift to the big ring to see what would happen. They should do so and report back. Those cranksets had only about 10 teeth of difference between small and big ring. I think that is there more than enough (un)wrap left for the big-little and more. I wouldn't lay any bets on a big-big, but certainly up to the middle of the cluster is possible. The o.p. should be on the small ring for much bigger than ~ third cog from the big end of the cluster anyway.
Edit:Never mind, I see the problem. And that IS the problem. All we can do is SEE the problem. What this needs is someone who can 'touch' the problem. If I could actually get up close and personal to that thing I could set it right. So ... o.p. if you can't actually get joy through unsdoing the main connection of the derailleur body to the hanger then you need to take the bike over to a co-op where a tech will have you out the door in a few minutes.

Last edited by Leisesturm; 12-14-21 at 09:22 PM.
Leisesturm is offline
Old 12-15-21, 01:57 AM
  #10
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,790

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 917 Post(s)
Liked 739 Times in 546 Posts
It's not the OP's bike, so....

IF there's a backing nut for the claw/pivot bolt interface, it may be too tight...or there's no bushing to allow the derailleur to pivot
thook is offline
Old 12-15-21, 07:02 AM
  #11
bikemike73
Senior Member

Join Date: Mar 2016
Location: North of Boston
Posts: 691

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 132 Times in 106 Posts
Always like the RJ the bike guy videos !!!

He has helped me with a few things

Good Luck with the RD !
bikemike73 is offline
Old 12-16-21, 02:04 PM
  #12
Jicafold
Senior Member
Thread Starter

Join Date: Jun 2013
Posts: 940
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 85 Times in 63 Posts
It’s not my bike. A local seller on Craigslist. I tried to explain to him that it wasn’t right and there is no way it could function properly. Suggested he take it to a shop. Of course he denies that and says it shifts perfectly. Which can’t possibly be true. You can lead a horse to water… But you can’t make them drink.

https://sanantonio.craigslist.org/bi...420056101.html

Last edited by Jicafold; 12-16-21 at 02:15 PM.
Jicafold is offline
Old 12-16-21, 06:14 PM
  #13
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 8,647

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 1780 Post(s)
Liked 1,474 Times in 895 Posts
Originally Posted by Jicafold View Post
Itís not my bike. A local seller on Craigslist. I tried to explain to him that it wasnít right and there is no way it could function properly. Suggested he take it to a shop. Of course he denies that and says it shifts perfectly. Which canít possibly be true. You can lead a horse to waterÖ But you canít make them drink.

https://sanantonio.craigslist.org/bi...420056101.html
Unless you want the bike and can lowball it, I wouldn't pound my head against the wall with a seller like this.... they don't appreciate any input
