Tool Question-Cone Sander

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Tool Question-Cone Sander

Old 01-23-22, 09:23 AM
  #1
Tandem Tom
Senior Member
Thread Starter

Join Date: Dec 2011
Location: NE Ohio
Posts: 2,415

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Likes: 0
Liked 85 Times in 63 Posts
Tool Question-Cone Sander

I bought, at McMaster Carr, the above sander. The idea is an arbor and a sanding cone the I guess should fit on the tapered section of the arbor. But for the life of me I cannot get it to go very far down the tapered section.
Has anyone had experience with these?
Tandem Tom is online now
Old 01-23-22, 10:38 AM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,076

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3352 Post(s)
Liked 1,987 Times in 1,300 Posts
I'll bet after Brodie's vids the cone sanding industry has seen a massive increase of sales". Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 01-23-22, 10:50 AM
  #3
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,249

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4136 Post(s)
Liked 2,657 Times in 1,848 Posts
I've always thought that cones and races were hardened in such a way that the surface is harder than what underneath. So you are removing the the hard surface and exposing the softer.

Sounds like a lot of trouble to go to for the price of whatever it is you are trying to extend the life of.
Iride01 is offline
Old 01-23-22, 10:54 AM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,076

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3352 Post(s)
Liked 1,987 Times in 1,300 Posts
I believe that Tom is referring to a die grinder (think of a Dremel on steroids) bit. The arbor is a reuseable shaft that mounts in the grinder's jaws and has an arbor that the replaceable sanding cone is pressed onto. With the tapering shape of the sanding cone one can get into tight spaces and vary the fillet shapes more easily than with a cylinder shaped sanding bit. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 01-23-22, 11:01 AM
  #5
N2deep
Senior Member

N2deep's Avatar

Join Date: Jun 2021
Posts: 155
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 75 Times in 47 Posts
Maybe, just maybe, a few pictures and a clear description of the tools and what your trying to accomplish would help us help you.
N2deep is offline
Likes For N2deep:
Old 01-23-22, 12:34 PM
  #6
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,249

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4136 Post(s)
Liked 2,657 Times in 1,848 Posts
Originally Posted by Andrew R Stewart View Post
I believe that Tom is referring to a die grinder (think of a Dremel on steroids) bit. The arbor is a reuseable shaft that mounts in the grinder's jaws and has an arbor that the replaceable sanding cone is pressed onto. With the tapering shape of the sanding cone one can get into tight spaces and vary the fillet shapes more easily than with a cylinder shaped sanding bit. Andy
Oh, you appear to be correct.

I had to go back and read it three or four times to completely remove the idea that cones, as in cones for an axle weren't involved here.

Toward that end then is the OP certain the arbor size is the same for both. I'm not quite understanding the tapered arbor. Unless the grinding tool was made for a tapered chuck. Which would be rare to non-existent for anything hand-held from my little experience.

Last edited by Iride01; 01-23-22 at 12:38 PM.
Iride01 is offline
Old 01-23-22, 01:26 PM
  #7
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,076

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3352 Post(s)
Liked 1,987 Times in 1,300 Posts


Sorry about the poor image but I think you can see the LH and tapered arbor threading, the sanding cone has an entry hole (sort of) that one has to feel for as they wind the cone onto the arbor.

The die grinder has been one of the better tool purchases I've made over the years. I'm on my third and use it frequently. Grinding out lug, steerer and shell sockets is MUCH faster than with my Dremel. The old and second one I have stays at the bike shop with a fiber cut off disk mounted. That makes for pretty fast U lock cutting Andy (who has yet to lose their lock keys...)
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 01-23-22, 03:19 PM
  #8
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,249

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4136 Post(s)
Liked 2,657 Times in 1,848 Posts
Oh again!

I've actually used those before. I didn't even think of them. I never really cared for those type of sanding cones. I went through them like I was munching on a bag of cheese puffs. <grin>

If that is what the OP has, then if it fits on enough to not wobble when the grinder or what ever is turned on and gets to 18,000 to 20,000 rpm then all should be good. The forces of using it will seat it further on the arbor. I think the spiral twist of the arbors were longer so different size cones and other type shapes could be used.

Wear safety glasses or goggles.
Iride01 is offline
Old 01-23-22, 03:26 PM
  #9
jccaclimber
Senior Member

Join Date: May 2005
Location: SFBay
Posts: 2,123

Bikes: n, I would like n+1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 57 Times in 50 Posts
Originally Posted by Andrew R Stewart View Post
The die grinder has been one of the better tool purchases I've made over the years. I'm on my third and use it frequently. Grinding out lug, steerer and shell sockets is MUCH faster than with my Dremel. The old and second one I have stays at the bike shop with a fiber cut off disk mounted. That makes for pretty fast U lock cutting Andy (who has yet to lose their lock keys...)
This is one worth giving a +1 to. A Dremel tool is the box store bicycle equivalent to a proper die grinder. Mind you they serve a purpose, and I happily have one, but it’s definitely the light version of the tool family.
Then again I call the 3 hp mill in my garage “small”.
jccaclimber is offline
Old 01-23-22, 03:55 PM
  #10
Tandem Tom
Senior Member
Thread Starter

Join Date: Dec 2011
Location: NE Ohio
Posts: 2,415

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Likes: 0
Liked 85 Times in 63 Posts
I will post a pic tomorrow. I don't want to trudge through the snow to the barn!
Tandem Tom is online now
Old 01-23-22, 04:29 PM
  #11
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,076

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3352 Post(s)
Liked 1,987 Times in 1,300 Posts
Originally Posted by jccaclimber View Post
This is one worth giving a +1 to. A Dremel tool is the box store bicycle equivalent to a proper die grinder. Mind you they serve a purpose, and I happily have one, but it’s definitely the light version of the tool family.
Then again I call the 3 hp mill in my garage “small”.
I use to have a lathe of the Dremel grade, an Atlas 6', the diecast Al bodied newer version. Gad it flexed a lot. Now I have a South Bend 9" which is like an almost industrial grade tool. Much like my Samson 8x30 knee lathe (in the Grizzley G0678 "family tree"). Both are serious tools but I can move them with just one friend Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 01-23-22, 05:51 PM
  #12
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,901

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1077 Post(s)
Liked 275 Times in 205 Posts
Bearing race grinding and polishing is done on really precise, very rigid machines. Especially for the higher tolerance classes. One can probably smooth out some rust or corrosion to improve a bad bearing, but don't think that doing so will take your corroded bearing back to grade 10 or 25. If your cup is not totally knackered, clean it up gently (If I was using a die grinder I'd probably use a brass brush) wipe out any remaining rust and dust, regrease and use new balls and cones. Won't be super, but will probably be pretty rideable and will last a bit. I did this with my Schwinn Superior - fingers crossed.

Also, there seems to be some confusion about through-hardened or case-hardened bearing races. Steel that has low carbon cannot be heat-treated to be as hard as higher carbon steels. Heat-treated high carbon steels are brittle. Tempering hardened high-carbon steel lessens its brittle nature, but also lowers the hardness a bit. One can use a lower carbon steel (more ductile, less likely to crack) steel and treat it in some way to increase it's carbon content at the surface. Then when you heat-treat the part, the surface is hard but the core is tough and you have the best of both worlds. You can also harden a case by heating it very quickly and then quenching it to just harden the surface. This avoids making the core brittle. Files are made this way (using induction heating).

Chrome bearing steels are alloys that combine very good wear properties with some toughness. They are through-hardened (at least in the sizes that bicycle bearings are made in). Most higher end bicycle bearings are, I think, chrome bearing steel. This would give you a little bet better corrosion resistance. But the point is, you probably could polish a lighly corroded bearing race to reduce that crunchy feeling, and give lower friction for a while, by polishing.

I guess one can grind bearings with a die grinder, but in all but the most desperate vintage cases - just buy a new bearing! I realize that for a PX-10, that's easier said than done, though.

BTW, back in the day my dad was VP of Sales and Marketing for DuMore, a company that made die grinders and flex shaft tools. They are useful, but having grown up in a machine-shop environment where the products had to run well and last a long time, taking a die grinder to a bearing race... ughhh. It sends shivers up my spine.

Last edited by WizardOfBoz; 01-23-22 at 08:12 PM.
WizardOfBoz is offline
Old 01-24-22, 09:59 AM
  #13
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,249

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4136 Post(s)
Liked 2,657 Times in 1,848 Posts
Originally Posted by WizardOfBoz View Post
Bearing race grinding and polishing is done on really precise, very rigid machines. Especially for the higher tolerance classes. One can probably smooth out some rust or corrosion to improve a bad bearing, but don't think that doing so will take your corroded bearing back to grade 10 or 25. If your cup is not totally knackered, clean it up gently (If I was using a die grinder I'd probably use a brass brush) wipe out any remaining rust and dust, regrease and use new balls and cones. Won't be super, but will probably be pretty rideable and will last a bit. I did this with my Schwinn Superior - fingers crossed.

Also, there seems to be some confusion about through-hardened or case-hardened bearing races. Steel that has low carbon cannot be heat-treated to be as hard as higher carbon steels. Heat-treated high carbon steels are brittle. Tempering hardened high-carbon steel lessens its brittle nature, but also lowers the hardness a bit. One can use a lower carbon steel (more ductile, less likely to crack) steel and treat it in some way to increase it's carbon content at the surface. Then when you heat-treat the part, the surface is hard but the core is tough and you have the best of both worlds. You can also harden a case by heating it very quickly and then quenching it to just harden the surface. This avoids making the core brittle. Files are made this way (using induction heating).

Chrome bearing steels are alloys that combine very good wear properties with some toughness. They are through-hardened (at least in the sizes that bicycle bearings are made in). Most higher end bicycle bearings are, I think, chrome bearing steel. This would give you a little bet better corrosion resistance. But the point is, you probably could polish a lighly corroded bearing race to reduce that crunchy feeling, and give lower friction for a while, by polishing.

I guess one can grind bearings with a die grinder, but in all but the most desperate vintage cases - just buy a new bearing! I realize that for a PX-10, that's easier said than done, though.

BTW, back in the day my dad was VP of Sales and Marketing for DuMore, a company that made die grinders and flex shaft tools. They are useful, but having grown up in a machine-shop environment where the products had to run well and last a long time, taking a die grinder to a bearing race... ughhh. It sends shivers up my spine.
Just to be clear, you sort of made the assumption I did that the OP was talking about something to use on the cones of their hubs.

However we have no idea currently what the OP intends to do with this and only assume it is for their bicycle since this is a bicycle forum.

If you are just addressing my reply about cones and hardness, then thanks for the info.
Iride01 is offline
Old 01-24-22, 10:41 AM
  #14
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,901

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1077 Post(s)
Liked 275 Times in 205 Posts
Originally Posted by Iride01 View Post
If you are just addressing my reply about cones and hardness, then thanks for the info.
Mostly me just blathering on self-indulgently, sorry. I was trying to point out that, since most bike bearings are chrome bearinng steel, they will be through-hardened so the concern over the lost of the hard case is not operative.
WizardOfBoz is offline
Old 01-24-22, 03:06 PM
  #15
Tandem Tom
Senior Member
Thread Starter

Join Date: Dec 2011
Location: NE Ohio
Posts: 2,415

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Likes: 0
Liked 85 Times in 63 Posts
OP here. The potential use is for sanding fillet brazing not sanding wheel cones.

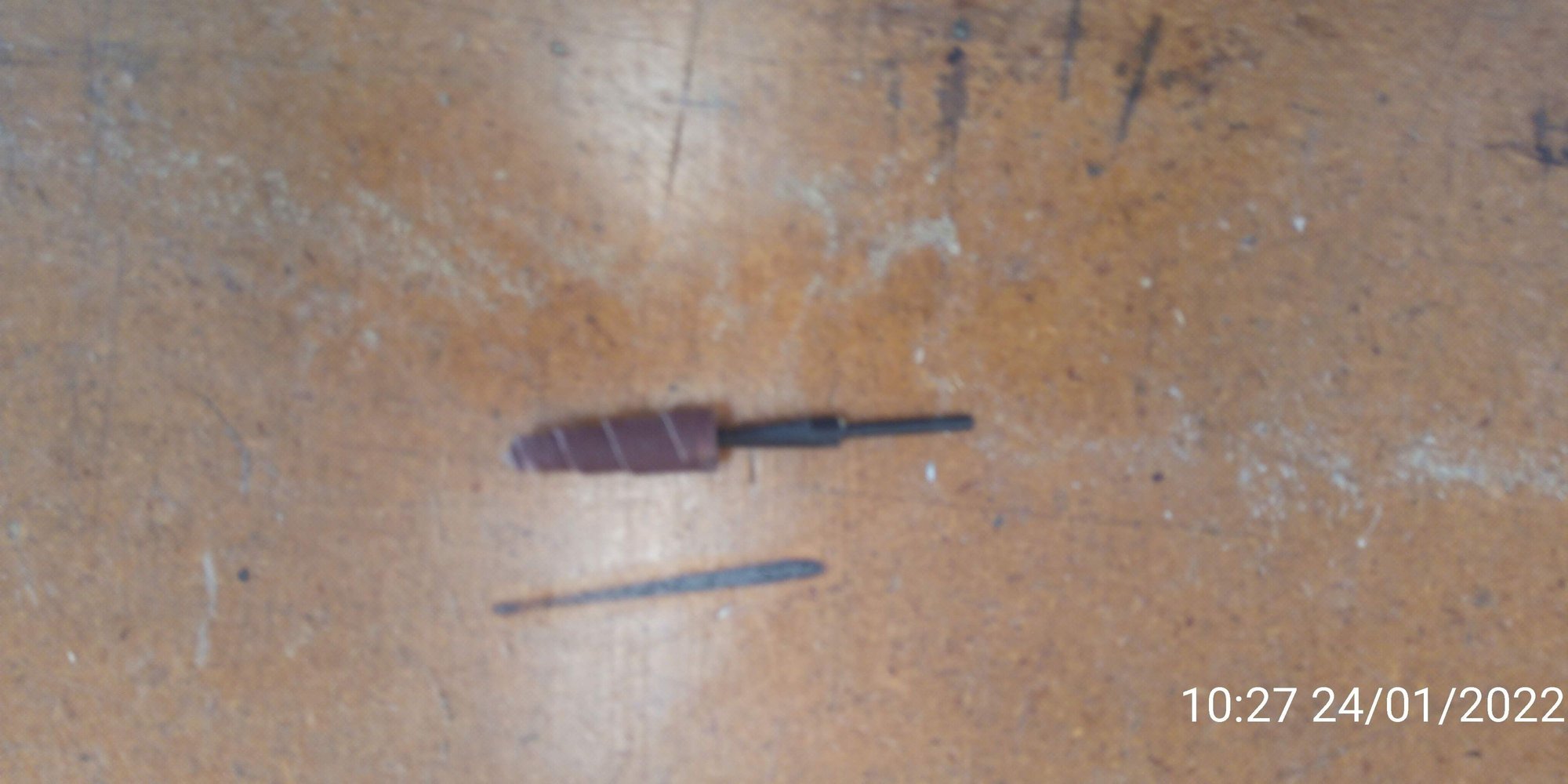

Here are a few pics of the pieces I bought. As you can see the sanding cone will not seat any further on the arbor.
Thoughts??

Tandem Tom is online now
Old 01-24-22, 03:10 PM
  #16
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,076

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3352 Post(s)
Liked 1,987 Times in 1,300 Posts
Tom- The amount that the cone is onto the arbor looks nearly the same as with mine. Are there issues during use?

I think I mis spoke when I said the arbor has LH threads. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 01-24-22, 06:10 PM
  #17
Tandem Tom
Senior Member
Thread Starter

Join Date: Dec 2011
Location: NE Ohio
Posts: 2,415

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Likes: 0
Liked 85 Times in 63 Posts
I'm getting severe vibration. I was using it on a HF dremel .
Tandem Tom is online now
Old 01-25-22, 01:10 AM
  #18
jccaclimber
Senior Member

Join Date: May 2005
Location: SFBay
Posts: 2,123

Bikes: n, I would like n+1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 57 Times in 50 Posts
How fast are you spinning? Those aren’t meant to be used at in the upper half of the speed range on at least name brand Dremel tools.
A lighter tool is going to have a harder time keeping vibration down as well.
jccaclimber is offline
Likes For jccaclimber:
Old 01-25-22, 06:15 AM
  #19
Tandem Tom
Senior Member
Thread Starter

Join Date: Dec 2011
Location: NE Ohio
Posts: 2,415

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Likes: 0
Liked 85 Times in 63 Posts
I was running it at the lowest speed.
Tandem Tom is online now
Old 01-25-22, 06:50 AM
  #20
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,901

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1077 Post(s)
Liked 275 Times in 205 Posts
Did the sanding roll come with the arbor? Gesswein has arbors and sanding rolls in several different sizes. Could the roll be smaller than intended for that arbor?

https://www.gesswein.com/p-3524-abra...dge-rolls.aspx
WizardOfBoz is offline
Old 01-25-22, 03:31 PM
  #21
Tandem Tom
Senior Member
Thread Starter

Join Date: Dec 2011
Location: NE Ohio
Posts: 2,415

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Likes: 0
Liked 85 Times in 63 Posts
I may have solved the problem. I took the chuck apart and put it back together. Seems tp work!
Tandem Tom is online now
Likes For Tandem Tom:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
